Page 45 of 585
2–34
Essential Safety Equipment
Child-Restraint
Do not allow a child or anyone to lean
over or against the side window of a
vehicle with side and curtain air bags:
It is dangerous to allow anyone to lean
over or against the side window, the
area of the front passenger seat, the
front and rear window pillars and the
roof edge along both sides from which
the side and curtain air bags deploy,
even if a child-restraint system is used.
The impact of infl ation from a side or
curtain air bag could cause serious
injury or death to an out of position
child. Furthermore, leaning over or
against the front door could block the
side and curtain air bags and eliminate
the advantages of supplemental
protection. With the front air bag and
the additional side air bag that comes
out of the front seat, the rear seat is
always a better location for children.
Take special care not to allow a child to
lean over or against the side window,
even if the child is seated in a child-
restraint system. Front Passenger's Seat Child-Restraint
System Installation (With Front
Passenger Occupant Classifi cation
System)
1. Switch the ignition ON.
2. Slide the seat as far back as possible.
3. Place the child-restraint system on the
seat without putting your weight on
the seat and fasten the seat belt. See
the manufacturer's instructions on the
child-restraint system for belt routing
instructions.
4. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
5. Push the child-restraint system fi rmly
into the vehicle seat. Be sure the
belt retracts as snugly as possible. A
clicking noise from the retractor will
be heard during retraction if the system
is in automatic locking mode. If the
belt does not lock the seat down tight,
repeat the previous step and also this
one.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 46 of 585
2–35
Essential Safety Equipment
Child-Restraint
NOTE
y Inspect this function before each use of
the child-restraint system. You should
not be able to pull the shoulder belt
out of the retractor while the system is
in the automatic locking mode. When
you remove the child-restraint system,
be sure the belt fully retracts to return
the system to emergency locking mode
before occupants use the seat belts.
y Follow the child-restraint system
manufacturer's instructions carefully.
Depending on the type of child-restraint
system, it may not employ seat belts
which are in automatic locking mode.
6. Seat your child safely in the child-
restraint system and secure the child
according to the instructions from the
child-restraint system manufacturer.
7. Make sure the front passenger air bag
deactivation indicator light illuminates
after installing a child-restraint system
on the front passenger seat.
If the front passenger air bag
deactivation indicator light does not
illuminate, remove the child-restraint
system, switch the ignition to OFF, and
then re-install the child-restraint system
(page 2-56 ).
WARNING
Do not seat a child in a child-restraint
system on the front passenger seat if the
front passenger air bag deactivation
indicator light does not illuminate (With
Front Passenger Occupant Classifi cation
System):
While it is always better to install any
child-restraint system on the rear seat,
it is imperative that a child-restraint
system ONLY be used on the front
passenger seat if the deactivation
indicator light illuminates when the
child is seated in the child-restraint
system (page 2-56 ). Seating a child
in a child-restraint system installed
on the front passenger seat with the
front passenger air bag deactivation
indicator light not illuminated is
dangerous. If this indicator light does
not illuminate, this means that the
front passenger front and side air
bags, and seat belt pretensioner are
ready for deployment. If an accident
were to deploy an air bag, a child in
a child-restraint system sitting in the
front passenger seat could be seriously
injured or killed. If the indicator light
does not illuminate after seating a
child in a child-restraint system on
the front passenger seat, seat a child
in a child-restraint system on the rear
seat and consult an Authorized Mazda
Dealer as soon as possible.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 47 of 585
2–36
Essential Safety Equipment
Child-Restraint
Using LATCH Lower Anchor
Your Mazda is equipped with LATCH lower anchors for attachment of specially designed
LATCH child-restraint systems in the rear seats. Both anchors must be used, otherwise the
seat will bounce around and put the child in danger. Most LATCH child-restraint systems
must also be used in conjunction with a tether to be effective. If they have a tether you must
use it to better assure your child's safety.
WARNING
Follow the manufacturer's instructions for the use of the child-restraint system:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could
move causing serious injury or death to the child or other occupants. Make sure the
child-restraint system is properly secured in place according to the child-restraint system
manufacturer's instructions.
Never attach two child-restraint systems to the same LATCH lower anchor:
Attaching two child-restraint systems to the same LATCH lower anchor is dangerous.
In a collision, one anchor may not be strong enough to hold two child-restraint system
attachments, and it may break, causing serious injury or death. If you use the seat
position for another child-restraint system when an outboard LATCH position is occupied,
use the center seat belts instead, and the tether if tether-equipped.
Make sure the child-restraint system is properly secured:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could
move causing serious injury or death to the child or other occupants. Follow the child-
restraint system manufacturer's instructions on belt routing to secure the seat just as you
would with a child in it so that nobody is tempted to put a child in an improperly secured
seat later on. When not in use, remove it from the vehicle or fasten it with a seat belt, or
latch it down to BOTH LATCH lower anchors for LATCH child-restraint systems.
Make sure there are no seat belts or foreign objects near or around the LATCH child-
restraint system:
Not following the child-restraint system manufacturer's instructions when installing
the child-restraint system is dangerous. If seat belts or a foreign object prevent the
child-restraint system from being securely attached to the LATCH lower anchors and the
child-restraint system is installed improperly, the child-restraint system could move in a
sudden stop or collision causing serious injury or death to the child or other occupants.
When installing the child-restraint system, make sure there are no seat belts or foreign
objects near or around the LATCH lower anchors. Always follow the child-restraint system
manufacturer's instructions.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 48 of 585
2–37
Essential Safety Equipment
Child-Restraint
Installation on rear outboard seats
1. First, adjust the front seat to allow
clearance between the child-restraint
system and the front seat (page 2-5 ).
2. Make sure the seatback is securely
latched by pushing it back until it is
fully locked.
3. Expand the area between the seat
bottom and the seatback slightly to
verify the locations of the LATCH
lower anchors.
NOTE
The markings above the LATCH lower
anchors indicate the locations of the
LATCH lower anchors for the attachment
of a child-restraint system.
4. Raise the head restraint to the top
locked position.
Refer to Head Restraints on page 2-10 .
5. Secure the child-restraint system
using BOTH LATCH lower anchors,
following the child-restraint system
manufacturer's instruction. Pull on the
child-restraint to be sure both anchors
are engaged. 6. If your child-restraint system came
equipped with a tether, that means it is
very important to properly secure the
tether for child safety. Please carefully
follow the child-restraint system
manufacturer's instructions when
installing tethers.
WARNING
Use the tether and tether anchor only
for a child-restraint system:
Using the tether or tether anchor to
secure anything but a child-restraint
system is dangerous. This could
weaken or damage the tether or tether
anchor and result in injury.
Always route the tether strap between
the head restraint and the seatback:
Routing the tether strap on top of
the head restraint is dangerous. In a
collision the tether strap could slide off
the head restraint and loosen the child-
restraint system. The child-restraint
system could move which may result in
death or injury to the child.
Anchor bracket
Tether strap(4-Door)
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D

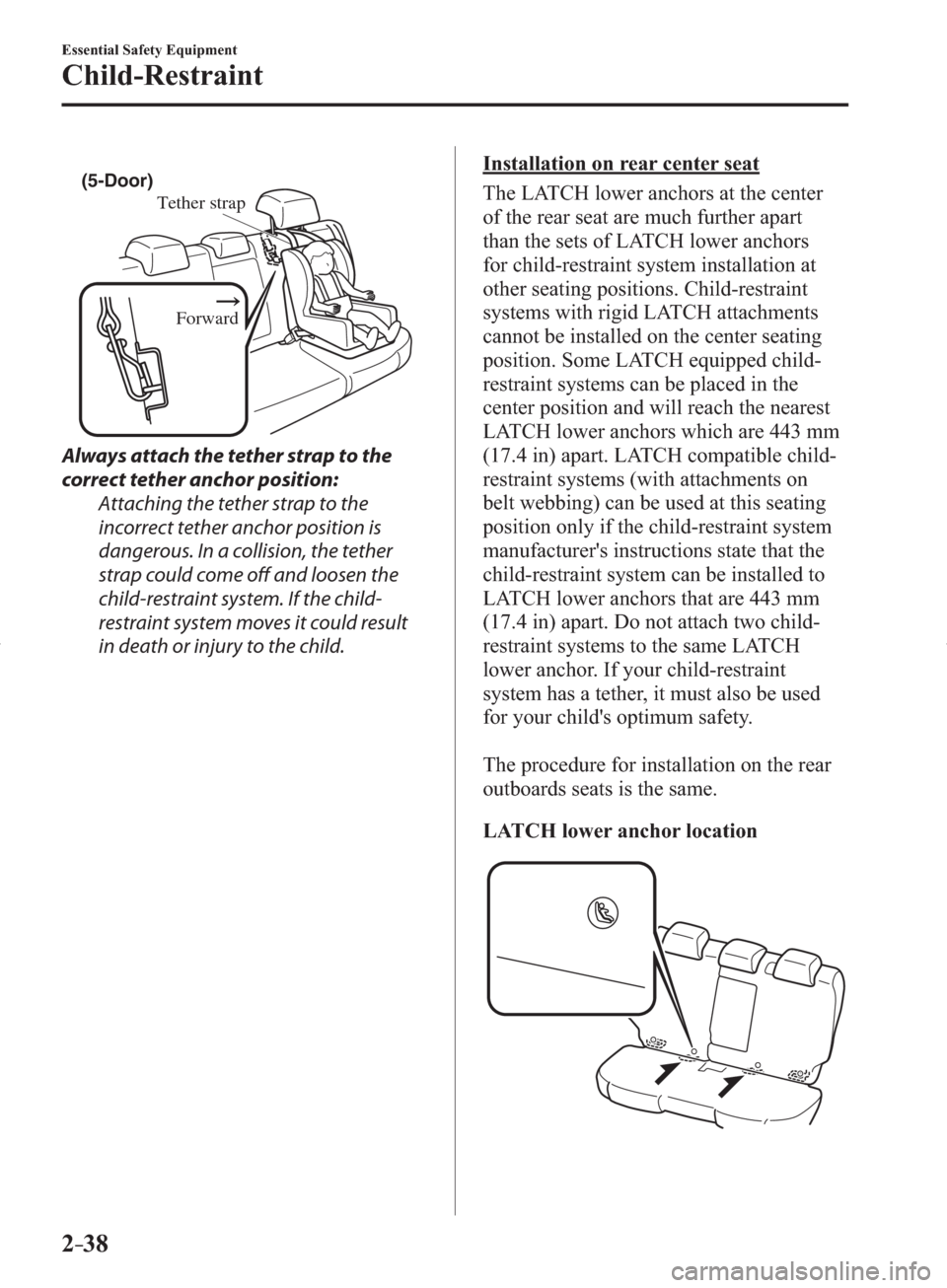

Page 49 of 585
2–38
Essential Safety Equipment
Child-Restraint
Tether strap
Forward
(5-Door)
Always attach the tether strap to the
correct tether anchor position:
Attaching the tether strap to the
incorrect tether anchor position is
dangerous. In a collision, the tether
strap could come off and loosen the
child-restraint system. If the child-
restraint system moves it could result
in death or injury to the child.
Installation on rear center seat
The LATCH lower anchors at the center
of the rear seat are much further apart
than the sets of LATCH lower anchors
for child-restraint system installation at
other seating positions. Child-restraint
systems with rigid LATCH attachments
cannot be installed on the center seating
position. Some LATCH equipped child-
restraint systems can be placed in the
center position and will reach the nearest
LATCH lower anchors which are 443 mm
(17.4 in) apart. LATCH compatible child-
restraint systems (with attachments on
belt webbing) can be used at this seating
position only if the child-restraint system
manufacturer's instructions state that the
child-restraint system can be installed to
LATCH lower anchors that are 443 mm
(17.4 in) apart. Do not attach two child-
restraint systems to the same LATCH
lower anchor. If your child-restraint
system has a tether, it must also be used
for your child's optimum safety.
The procedure for installation on the rear
outboards seats is the same.
LATCH lower anchor location
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 50 of 585
2–39
Essential Safety Equipment
Child-Restraint
WARNING
Always route the tether strap between
the head restraint and the seatback:
Routing the tether strap on top of
the head restraint is dangerous. In a
collision the tether strap could slide off
the head restraint and loosen the child-
restraint system. The child-restraint
system could move which may result in
death or injury to the child.
Anchor bracket
Tether strap(4-Door)
Tether strap
Forward
(5-Door)
Always attach the tether strap to the
correct tether anchor position:
Attaching the tether strap to the
incorrect tether anchor position is
dangerous. In a collision, the tether
strap could come off and loosen the
child-restraint system. If the child-
restraint system moves it could result
in death or injury to the child.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 52 of 585
2–41
Essential Safety Equipment
SRS Air Bags
If your vehicle is also equipped with a front passenger occupant classifi cation system,
refer to the Front Passenger Occupant Classifi cation System (page 2-56 ) for details.
If your vehicle is equipped with a front passenger occupant classifi cation system, the front
passenger air bag deactivation indicator light illuminates for a specifi ed time after the
ignition is switched ON.
Small children must be protected by a child-restraint system as stipulated by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page 2-22 ).
Carefully consider which child-restraint system is necessary for your child and follow
the installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
WARNING
Seat belts must be worn in air bag equipped vehicles:
Depending only on the air bags for protection during an accident is dangerous. Alone,
air bags may not prevent serious injuries. The appropriate air bags can be expected to
infl ate only in the fi rst accident, such as frontal, near frontal or side collisions or roll-over
accidents that are at least moderate. Vehicle occupants should always wear seat belts.
Children should not ride in the front passenger seat:
Placing a child, 12 years or under, in the front seat is dangerous. The child could be hit
by a deploying air bag and be seriously injured or even killed. A sleeping child is more
likely to lean against the door and be hit by the side air bag in moderate collision to the
front-passenger side of the vehicle. Whenever possible, always secure a child 12 years and
under on the rear seats with an appropriate child-restraint system for the child's age and
size.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 53 of 585
2–42
Essential Safety Equipment
SRS Air Bags
Never use a rear-facing child-restraint system in the front seat with an air bag that
could deploy:
Rear-facing child-restraint systems on the front seat are particularly dangerous even
though you may feel assured that a front passenger air bag will not deploy based on
the fact that the front passenger air bag deactivation indicator light illuminates. The
child-restraint system can be hit by a deploying air bag and moved violently backward
resulting in serious injury or death to the child.
Do not sit too close to the driver and front passenger air bags:
Sitting too close to the driver and front passenger air bag modules or placing hands or
feet on them is extremely dangerous. The driver and front passenger air bags infl ate with
great force and speed. Serious injuries could occur if someone is too close. The driver
should always hold onto only the rim of the steering wheel. The front seat passenger
should keep both feet on the fl oor. Front seat occupants should adjust their seats as
far back as possible and always sit upright against the seatbacks with seat belts worn
properly.
Sit in the center of the seat and wear seat belts properly:
Sitting too close to the side air bag modules or placing hands on them, or sleeping up
against the door or hanging out the windows is extremely dangerous. The side and
curtain air bags infl ate with great force and speed directly expanding along the door
on the side the car is hit. Serious injury could occur if someone is sitting too close to the
door or leaning against a window, or if rear seat occupants grab the sides of the front
seatbacks. Give the side and curtain air bags room to work by sitting in the center of the
seat while the vehicle is moving with seat belts worn properly.
Do not attach objects on or around the area where driver and front passenger air bags
deploy:
Attaching an object to the driver and front passenger air bag modules or placing
something in front of them is dangerous. In an accident, an object could interfere with air
bag infl ation and injure the occupants.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 57 of 585
2–46
Essential Safety Equipment
SRS Air Bags
NOTE
y If it becomes necessary to have the components or wiring system for the supplementary
restraint system modifi ed to accommodate a person with certain medical conditions in
accordance with a certifi ed physician, contact an Authorized Mazda Dealer, refer to
“Customer Assistance (U.S.A.)” (page 8-2 ).
y When an air bag deploys, a loud infl ation noise can be heard and some smoke will be
released. Neither is likely to cause injury, however, the texture of the air bags may cause
light skin injuries on body parts not covered with clothing through friction.
y Should you sell your Mazda, we urge you to tell the new owner of its air bag systems
and that familiarization with all instructions about them, from the Owner's Manual, is
important.
y This highly-visible label is displayed which warns against the use of rear-facing child-
restraint systems on the front passenger seat.
(U.S.A. and Canada)
(Mexico)
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 68 of 585
2–57
Essential Safety Equipment
SRS Air Bags
If the front passenger weight sensors are normal, the indicator light illuminates when the
ignition is switched ON. The light turns off after a few seconds.
The front/passenger air bag deactivation indicator light illuminates or is off under the
following conditions:
Condition detected by
the front passenger
occupant classifi cation
system Front passenger air bag
deactivation indicator light Front passenger front
and side air bags Front passenger seat
belt pretensioner
system
Empty (Not occupied) On Deactivated Deactivated
Child or child-restraint
system
*1 On Deactivated Deactivated
Adult
*2 Off Ready Ready
*1 If a larger child sits on the front passenger seat, the sensors might detect the child as being an adult depending
on the child's physique.
*2 If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child depending
on the person's physique.
The curtain air bag is ready for infl ating regardless of the chart above.
If the front passenger air bag deactivation indicator light does not illuminate when the
ignition is switched ON and does not illuminate as indicated in the above chart, do not allow
a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as soon as
possible. The system may not work properly in an accident.
WARNING
Do not decrease the total seated weight on the front passenger seat:
When an adult or large child sits on the front passenger seat, decreasing the total seated
weight on the front passenger seat required for air bag deployment is dangerous. The
front passenger seat weight sensors will detect the reduced total seated weight condition
and the front passenger front and side air bags and seat belt pretensioner system will
not deploy during an accident. The front passenger will not have the supplementary
protection of the air bag, which could result in serious injury. Decreasing the total seated
weight on the front passenger seat could result in an air bag not deploying under the
following conditions, for example:
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
