Page 61 of 585
*Some models.2–50
Essential Safety Equipment
SRS Air Bags
Front Passenger Air Bag
The front passenger air bag is mounted in the front passenger dashboard.
The infl ation mechanism for the front passenger air bag is the same as the driver's air bag, as
mentioned above.
For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-53 ).
(With Front Passenger Occupant Classifi cation System)
In addition, the front passenger air bag is designed to only deploy in accordance with the
total seated weight on the front passenger seat. For details, refer to the front passenger
occupant classifi cation system (page 2-56 ).
Side Air Bags *
The side air bags are mounted in the outboard sides of the front seatbacks.
When the air bag crash sensors detect a side impact of greater than moderate force, the
system infl ates the side air bag only on the side in which the vehicle was hit. The side
air bag infl ates quickly to reduce injury to the driver or front passenger's chest caused by
directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-53 ).
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 62 of 585
*Some models.2–51
Essential Safety Equipment
SRS Air Bags
(With Front Passenger Occupant Classifi cation System)
In addition, the front passenger side air bag is designed to only deploy in accordance with
the total seated weight on the front passenger seat. For details, refer to the front passenger
occupant classifi cation system (page 2-56 ).
Curtain Air Bags *
The curtain air bags are mounted in the front and rear window pillars, and the roof edge
along both sides.
When the air bag crash sensors detect a side impact of greater than moderate force, the
curtain air bag infl ates quickly and helps to reduce injury mainly to the rear outboard
passenger's head caused by directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-53 ).
In a side impact:
Greater than moderate impact to one side of the vehicle will cause the curtain air bag on that
side only to infl ate.
Only one side curtain air bag will deploy on the
side of the vehicle that receives the force of an
impact.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 63 of 585
2–52
Essential Safety Equipment
SRS Air Bags
(With Front Passenger Occupant Classifi cation System)
In a roll-over:
In response to a vehicle roll-over, both curtain air bags infl ate.
Both curtain air bags will deploy after
the roll-over accident is detected.
(With Front Passenger Occupant Classifi cation System)
In an angled collision:
During a collision, the driver and front passenger's air bags will deploy. Depending on the
nature of the impact, the side air bag and the curtain air bag may deploy.
Warning Light/Beep
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-21 .
Refer to Warning Sound is Activated on page 7-36 .
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 64 of 585
2–53
Essential Safety Equipment
SRS Air Bags
SRS Air Bag Deployment Criteria
This chart indicates the applicable SRS equipment that will deploy depending on the type of
collision.
(The illustrations are the representative cases of collisions.)
SRS
equipment Types of collision
A severe frontal/near frontal
collision A severe side
collision A roll-over/near
roll-over
*3 A rear collision
Front
seat belt
pretensioner X *1 (both sides) X *1 (impact side
only) X *1 (both sides)
No air bag and
front seat belt
pretensioner will be
activated in a rear
collision. Driver air
bag X
Front
passenger
air bag X
*1
Side air bag X *2 X *1 (impact side
only)
Curtain air
bag X
*2 X (impact side
only) X (both sides)
X: The SRS air bag equipment is designed to deploy in a collision.
*1 (With Front Passenger Occupant Classifi cation System)
The front passenger front and side air bags and the seat belt pretensioner are designed to
deploy depending on the condition of the total seated weight on the front passenger seat.
*2 (With Front Passenger Occupant Classifi cation System)
In an angled collision, the side air bag and curtain air bag may deploy.
*3 (With Front Passenger Occupant Classifi cation System)
In a roll-over accident, the seat belt pretensioners and the curtain air bags deploy.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 65 of 585
2–54
Essential Safety Equipment
SRS Air Bags

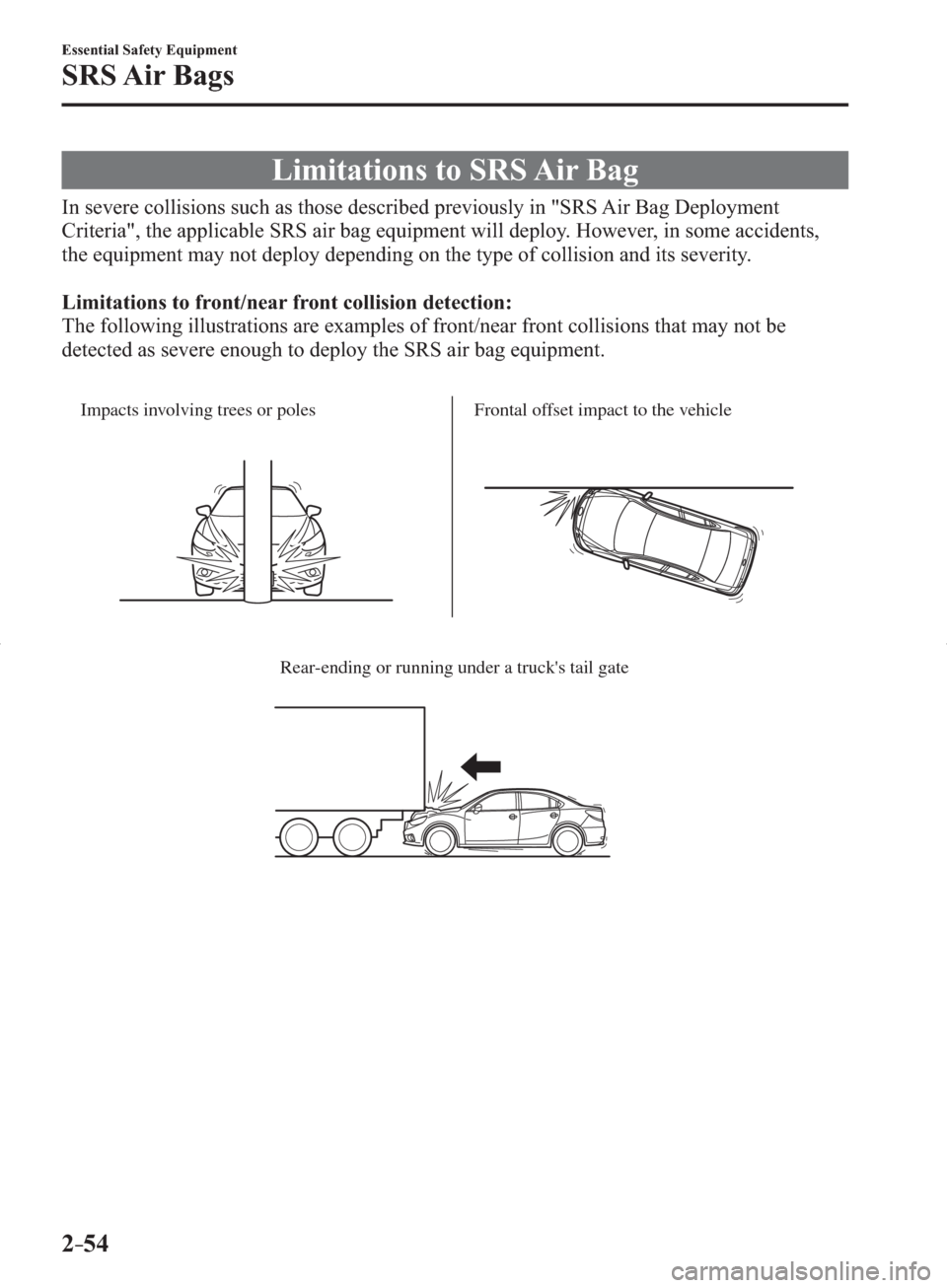

Limitations to SRS Air Bag
In severe collisions such as those described previously in "SRS Air Bag Deployment
Criteria", the applicable SRS air bag equipment will deploy. However, in some accidents,
the equipment may not deploy depending on the type of collision and its severity.
Limitations to front/near front collision detection:
The following illustrations are examples of front/near front collisions that may not be
detected as severe enough to deploy the SRS air bag equipment.
Impacts involving trees or polesFrontal offset impact to the vehicle
Rear-ending or running under a truck's tail gate
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 66 of 585
2–55
Essential Safety Equipment
SRS Air Bags
Limitations to side collision detection:
The following illustrations are examples of side collisions that may not be detected as severe
enough to deploy the SRS air bag equipment.
Side impacts involving trees or polesSide impacts with two-wheeled vehicles
Roll-over (Without Front Passenger Occupant Classification System)
(With Front Passenger Occupant Classifi cation System)
Limitations to roll-over detection:
The following illustration is an example of an accident that may not be detected as a roll-
over accident. Therefore, the front seat belt pretensioners and curtain air bags may not
deploy.
Pitch end over end
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 67 of 585
*Some models.2–56
Essential Safety Equipment
SRS Air Bags
Front Passenger Occupant Classifi cation System *
First, please read "Supplemental Restraint System (SRS) Precautions" (page 2-40 ) carefully.
Front Passenger Seat Weight Sensor
Your vehicle is equipped with a front passenger seat weight sensors as a part of the
supplemental restraint system. These sensors are located under both of the front passenger
seat rails. These sensors determine the total seated weight on the front passenger seat and
monitor the seat belt buckle for the front passenger seat. The SAS unit is designed to prevent
the front passenger front and side air bags and seat belt pretensioner system from deploying
if the front passenger air bag deactivation indicator light illuminates.
To reduce the chance of injuries caused by deployment of the front passenger air bag,
the system deactivates the front passenger front and side air bags and also the seat
belt pretensioner system when the front passenger air bag deactivation indicator light
illuminates. Refer to the following table for the front passenger air bag deactivation
indicator light illumination conditions.
This system shuts off the front passenger front and side air bags and seat belt pretensioner
system, so make sure the front passenger air bag deactivation indicator light illuminates
according to the following table.
The air bag/front seat belt pretensioner system warning light fl ashes and the front passenger
air bag deactivation indicator light illuminates if the sensors have a possible malfunction.
If this happens, the front passenger front and side air bags and seat belt pretensioner system
will not deploy.
Front passenger air bag deactivation indicator light
This indicator light illuminates to remind you that the front passenger front and side air bags
and seat belt pretensioner will not deploy during a collision.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 68 of 585
2–57
Essential Safety Equipment
SRS Air Bags
If the front passenger weight sensors are normal, the indicator light illuminates when the
ignition is switched ON. The light turns off after a few seconds.
The front/passenger air bag deactivation indicator light illuminates or is off under the
following conditions:
Condition detected by
the front passenger
occupant classifi cation
system Front passenger air bag
deactivation indicator light Front passenger front
and side air bags Front passenger seat
belt pretensioner
system
Empty (Not occupied) On Deactivated Deactivated
Child or child-restraint
system
*1 On Deactivated Deactivated
Adult
*2 Off Ready Ready
*1 If a larger child sits on the front passenger seat, the sensors might detect the child as being an adult depending
on the child's physique.
*2 If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child depending
on the person's physique.
The curtain air bag is ready for infl ating regardless of the chart above.
If the front passenger air bag deactivation indicator light does not illuminate when the
ignition is switched ON and does not illuminate as indicated in the above chart, do not allow
a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as soon as
possible. The system may not work properly in an accident.
WARNING
Do not decrease the total seated weight on the front passenger seat:
When an adult or large child sits on the front passenger seat, decreasing the total seated
weight on the front passenger seat required for air bag deployment is dangerous. The
front passenger seat weight sensors will detect the reduced total seated weight condition
and the front passenger front and side air bags and seat belt pretensioner system will
not deploy during an accident. The front passenger will not have the supplementary
protection of the air bag, which could result in serious injury. Decreasing the total seated
weight on the front passenger seat could result in an air bag not deploying under the
following conditions, for example:
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 69 of 585
2–58
Essential Safety Equipment
SRS Air Bags
¾ A front passenger is seated as shown in the following fi gure:
¾ A rear passenger pushes up on the front passenger seat with their feet.
¾ Luggage or other items placed under the front passenger seat or between the front
passenger seat and driver seat that push up the front passenger seat bottom.
¾ Any accessories which might decrease the total seated weight on the front passenger
seat are attached to the front passenger seat.
The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the front passenger air bag deactivation indicator light illuminates.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 70 of 585
2–59
Essential Safety Equipment
SRS Air Bags
Do not increase the total seated weight on the front passenger seat:
When an infant or small child sits on the front passenger seat, increasing the total seated
weight on the front passenger seat is dangerous. The front passenger seat weight sensors
will detect the increased total seated weight, which could result in the unexpected
deployment of the front passenger front and side air bags and seat belt pretensioner
system in an accident and may cause serious injury. Increasing the total seated weight on
the front passenger seat could result in the front passenger front and side air bags and
seat belt pretensioner system deployment in an accident under the following conditions,
for example:
¾ Luggage or other items are placed on the seat with the child in the child-restraint
system.
¾ A rear passenger or luggage push or pull down on the front passenger seatback.
¾ A rear passenger steps on the front passenger seat rails with their feet.
¾ Luggage or other items are placed on the seatback or hung on the head restraint.
¾ Heavy items are placed in the seatback map pocket.
¾ The seat is washed.
¾ Liquids are spilled on the seat.
¾ The front passenger seat is moved backward, pushing into luggage or other items
placed behind it.
¾ The front passenger seatback contacts the rear seat.
¾ Luggage or other items are placed between the front passenger seat and driver seat.
¾ Any accessories which might increase the total seated weight on the front passenger
seat are attached to the front passenger seat.
CAUTION
¾ To assure proper deployment of the front air bag and to prevent damage to the sensors in
the front seat bottoms:
¾ Do not place sharp objects on the front seat bottoms or leave heavy luggage on them.
¾ Do not spill any liquids on the front seats or under the front seats.
¾ To allow the sensors to function properly, always perform the following:
¾ Adjust the front seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.
¾ If you place your child on the front passenger seat, secure the child-restraint system
properly and slide the front passenger seat as far back as possible (page 2-30 ).
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
