*Some models.5–129
Interior Features
Bluetooth®

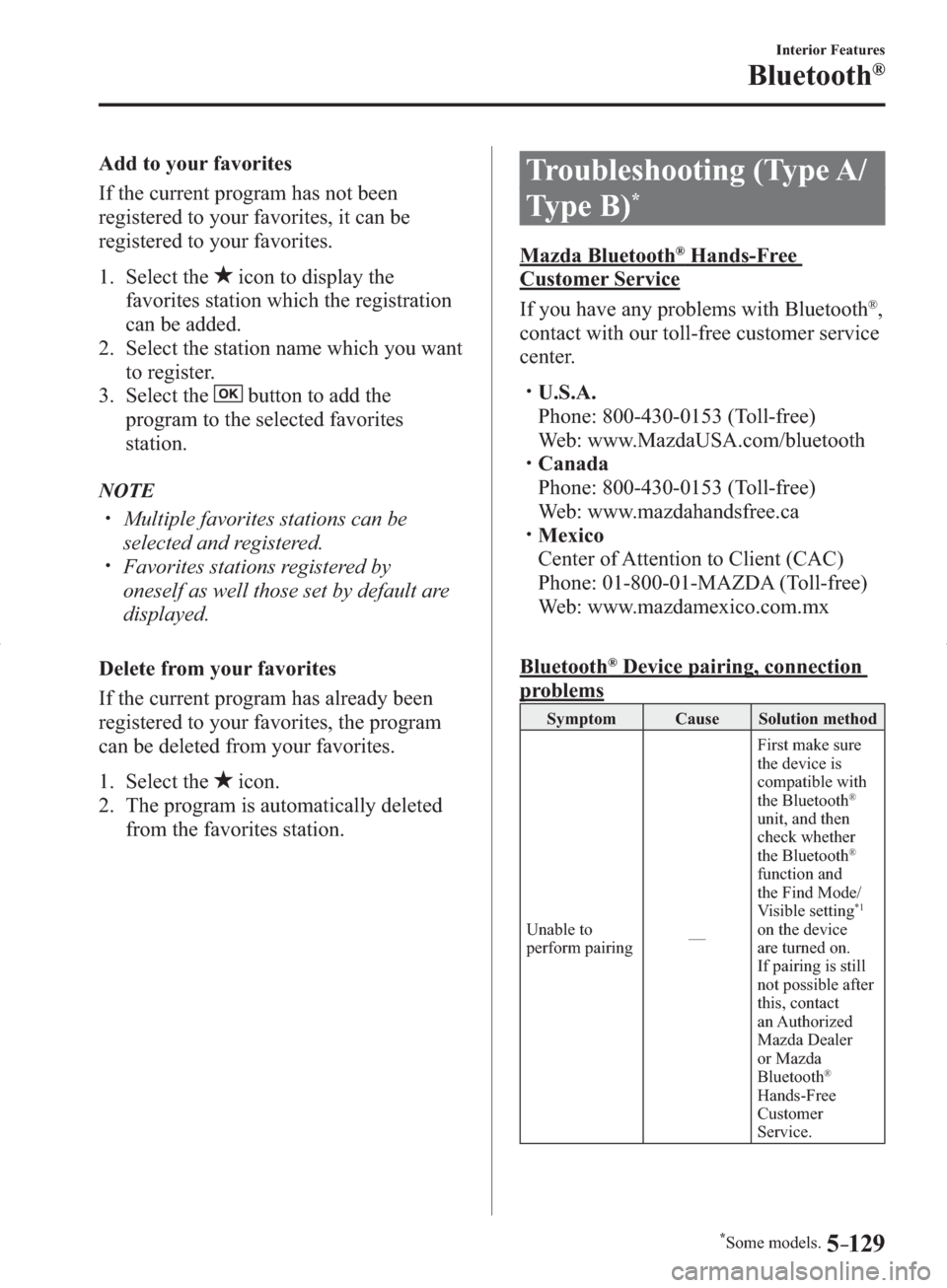

Add to your favorites
If the current program has not been
registered to your favorites, it can be
registered to your favorites.
1. Select the
icon to display the
favorites station which the registration
can be added.
2. Select the station name which you want
to register.
3. Select the
button to add the
program to the selected favorites
station.
NOTE
y Multiple favorites stations can be
selected and registered.
y Favorites stations registered by
oneself as well those set by default are
displayed.
Delete from your favorites
If the current program has already been
registered to your favorites, the program
can be deleted from your favorites.
1. Select the
icon.
2. The program is automatically deleted
from the favorites station.
Troubleshooting (Type A/
Type B)
*
Mazda Bluetooth ® Hands-Free
Customer Service
If you have any problems with Bluetooth
® ,
contact with our toll-free customer service
center.
y U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.MazdaUSA.com/bluetooth
y Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
y Mexico
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA (Toll-free)
Web: www.mazdamexico.com.mx
Bluetooth
® Device pairing, connection
problems
Symptom Cause Solution method
Unable to
perform pairing — First make sure
the device is
compatible with
the Bluetooth
®
unit, and then
check whether
the Bluetooth
®
function and
the Find Mode/
Visible setting
*1
on the device
are turned on.
If pairing is still
not possible after
this, contact
an Authorized
Mazda Dealer
or Mazda
Bluetooth
®
Hands-Free
Customer
Service.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 387 of 585
5–130
Interior Features
Bluetooth®
Symptom Cause Solution method
Pairing cannot
be performed
again The pairing
information
programmed
to the
Bluetooth
®
unit or
device is not
recognized
correctly. Perform
pairing using
the following
procedure. y Clear “Mazda”
stored in the
device.
y Perform pairing
again.
Unable to
perform pairing The
Bluetooth
®
function
and the Find
Mode/Visible
setting
*1 on
the device
may turn off
automatically
after a period
of time has
elapsed
depending on
the device. Check whether
the Bluetooth
®
function and
the Find Mode/
Visible setting
*1
on the device
are turned on
and pairing or
reconnect. Does not
connect
automatically
when starting
the engine
Automatically
connects,
but then
disconnects
suddenly
Disconnects
intermittently The device is
in a location
in which
radio wave
interference
can occur
easily, such
as inside a
bag in a rear
seat, in a rear
pocket of a
pair of pants. Move the device
to a location in
which radio wave
interference is
less likely to
occur.
Does not
connect
automatically
when starting
the engine The
programmed
pairing
information is
updated when
the device OS
is updated. Perform pairing
again.
*1 Setting which detects the existence of a device
external to the Bluetooth
® unit
NOTE
y When you update the operating
system of your mobile device (such
as Windows/Android/iOS) the pairing
information may be invalidated.
Therefore, the device may need to be
reprogrammed to the hands-free unit.
y If you pair your phone which has
already been paired to your vehicle
more than once in the past, you need to
delete “Mazda” on your mobile device.
Then, execute the Bluetooth
® search
on your mobile device once again, and
pair to a newly detected “Mazda”.
y Before you pair your device, make sure
that Bluetooth ® is “ON”, both on your
phone and on the vehicle.
Voice recognition related problems
Symptom Cause Solution
method
Poor voice
recognition
y Excessive, slow
speech.
y Excessive,
forceful speech
(shouting).
y Speaking before
the beep sound
has ended.
y Loud noise
(speaking or
noise from
outside/inside
vehicle).
y Airfl ow from
A/C is blowing
against the
microphone.
y Speaking in
off-standard
expressions
(dialect). Regarding the
causes indicated
on the left, be
careful with
how you speak.
In addition,
when numbers
are spoken in
a sequence,
recognition
ability will
improve if no
stop is placed
between the
numbers. False
recognition
of numbers
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 388 of 585
5–131
Interior Features
Bluetooth®
Symptom Cause Solution
method
Poor voice
recognition There is a
malfunction in the
microphone. A poor
connection or
malfunction
with the
microphone
may have
occurred.
Consult an
Authorized
Mazda Dealer.
Phone-
related
voice
recognition
is disabled There is a problem
with the connection
between the
Bluetooth
® unit and
the device. If there is any
malfunction
after checking
the pairing
situation,
check for
device pairing
or connection
problems.
Names
in the
phonebook
are not
easily
recognized The Bluetooth
®
system is under a
condition in which
recognition is
diffi cult. By carrying out
the following
measures,
the rate of
recognition will
improve.
y Clear memory
from the
phonebook
which is not
used very
often.
y Avoid
shortened
names, use
full names.
(Recognition
improves
the longer
the name is.
By not using
names such
as “Mom”,
“Dad”,
recognition
will improve.)
When
operating
the audio,
a song
name is not
recognized Song names cannot
be recognized by
voice. —
Symptom Cause Solution
method
You want
to skip
guidance — Guidance can
be skipped
by quickly
pressing and
releasing the
Talk button.
Regarding problems with calls
Symptom Cause Solution
method
When starting
a call, vehicle
noise from the
other party can
be heard For about three
seconds after
starting a call,
the Bluetooth
®
unit's Noise
Suppression
function
requires time to
adapt to the call
environment. This does
not indicate a
problem with
the device.
The other party
cannot be heard
or the speaker's
voice is quiet The volume is
set at zero or
low. Increase the
volume.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 389 of 585
5–132
Interior Features
Bluetooth®

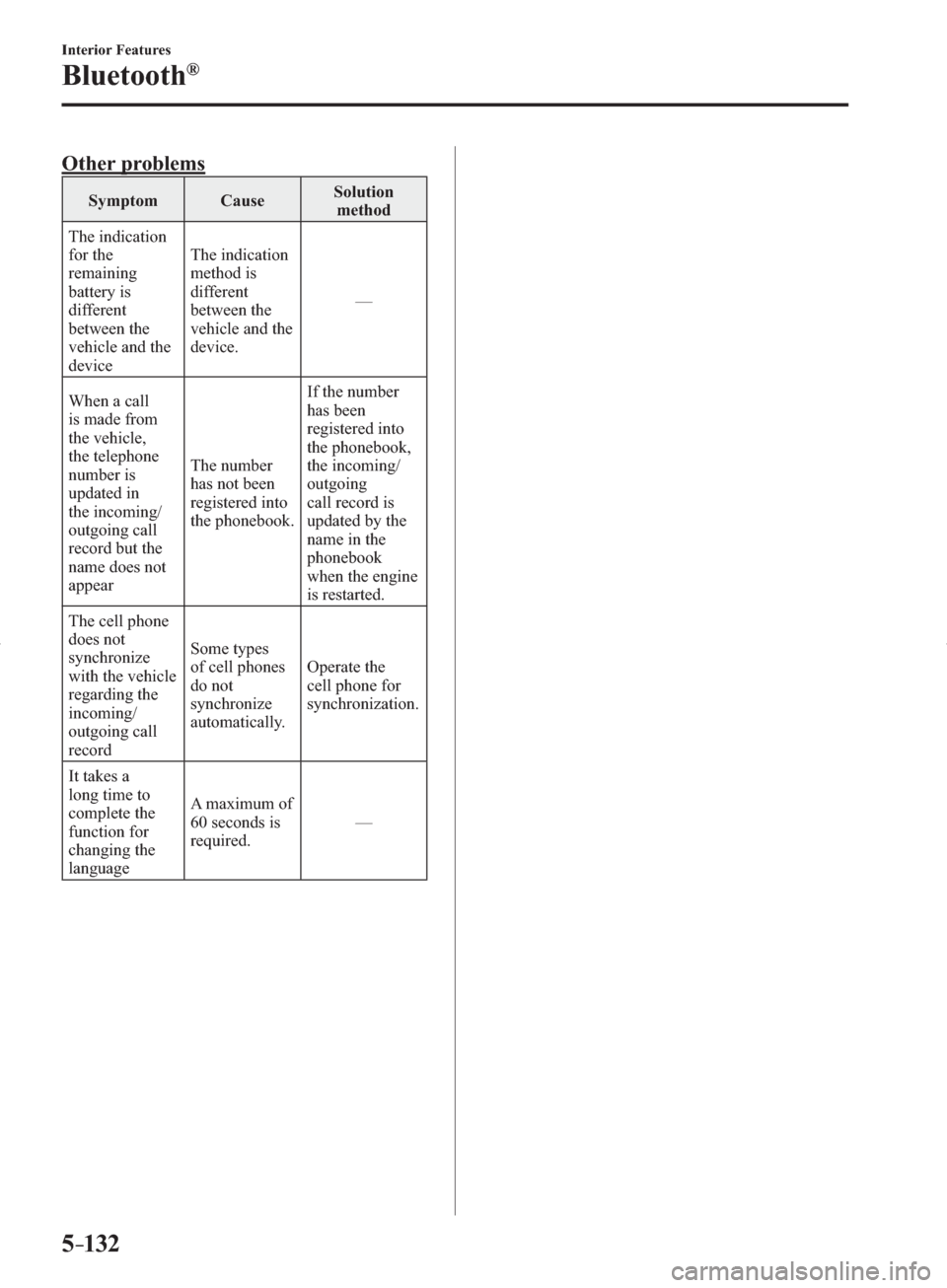

Other problems
Symptom Cause Solution
method
The indication
for the
remaining
battery is
different
between the
vehicle and the
device The indication
method is
different
between the
vehicle and the
device. —
When a call
is made from
the vehicle,
the telephone
number is
updated in
the incoming/
outgoing call
record but the
name does not
appear The number
has not been
registered into
the phonebook. If the number
has been
registered into
the phonebook,
the incoming/
outgoing
call record is
updated by the
name in the
phonebook
when the engine
is restarted.
The cell phone
does not
synchronize
with the vehicle
regarding the
incoming/
outgoing call
record Some types
of cell phones
do not
synchronize
automatically. Operate the
cell phone for
synchronization.
It takes a
long time to
complete the
function for
changing the
language A maximum of
60 seconds is
required. —
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 556 of 585
8–45
Customer Information and Reporting Safety Defects
Declaration of Conformity
Bluetooth® Hands-Free
Type A
U.S.A. and Canada
FCC ID: CB2MBLUEC09 IC:279B-MBLUEC09
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING
Changes or modifi cations not expressively approved by the party responsible for
compliance could void the user's authority to operate the equipment.
The term “IC: ” before the radio certifi cation number only signifi es that Industry Canada
technical specifi cations were met.
The antenna used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. End-users and installers must be provided with
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Bluetooth
® Hands-Free Customer Service
y U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.MazdaUSA.com/bluetooth
y Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 557 of 585
8–46
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mexico
y Brief description: Bluetooth module for Hands-free telephone and streaming audio
y Name and address of the importer: Refer to "MEXICO" (page 8-12 ) in Importer/
Distributor section.
y Brand name of the product: Johnson Controls Inc.
y Model name of the product: MAZ
y Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-12 ) in Importer/Distributor section.
y Names and addresses of where to acquire spare parts, consumables and accessories: Refer
to "MEXICO" (page 8-12 ) in Importer/Distributor section.
y Warranty period, items covered by the warranty and its possible limitations or exceptions:
Refer to the Warranty Booklet for detailed warranty information.
y Warranty procedure:
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx
y Electrical specifi cations:
Voltage: 9-16V, Frequency: 2.4Ghz, Current: 270mA(Typ)
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 579 of 585
10–2
Index
A
Accessory Socket .............................. 5-136
Active Driving Display ....................... 4-19
Adaptive Front Lighting System
(AFS).................................................. 4-46
Add-On Non-Genuine Parts and
Accessories ......................................... 8-18
Advanced Key
Advanced keyless entry system ...... 3-9
Advanced Key removed from vehicle
warning beep ....................................... 7-37
Operational range .......................... 3-10
Air Bag/Front Seat Belt Pretensioner
System Warning Beep ......................... 7-36
Air Bag Systems ................................. 2-40
Ambient Temperature Display ............ 4-16
Antilock Brake System (ABS) ............ 4-79
Audio Control Switch
Adjusting the Volume .................... 5-58
Mute Switch .................................. 5-59
Seek Switch ................................... 5-58
Audio System ...................................... 5-16
AUX/USB/iPod mode ................... 5-59
Antenna ......................................... 5-16
Audio Control Switch ................... 5-58
Audio Set (Type A) ....................... 5-26
Audio Set (Type B) ....................... 5-38
Operating Tips for Audio System ... 5-17
Satellite Radio ............................... 5-48
Automatic Transaxle ........................... 4-30
Active Adaptive Shift (AAS) ........ 4-32
Direct Mode .................................. 4-39
Driving tips.................................... 4-40
Manual shift mode......................... 4-33
Shift-lock system ........................... 4-32
Shift position indication ................ 4-31
Warning light ................................. 4-31
B
Battery ................................................. 6-37
Maintenance .................................. 6-38
Specifi cations .................................. 9-4
Battery runs out ................................... 7-15
Jump-Starting ................................ 7-15
Blind Spot Monitoring (BSM)
System ............................................... 4-108
BSM OFF switch......................... 4-114
BSM warning light ...................... 4-113
Blind Spot Monitoring (BSM) .... 4-109
Care of radar sensors ................... 4-114
Blind Spot Monitoring (BSM) System
warning beep ....................................... 7-38
Blind Spot Monitoring (BSM) system
Rear Cross Traffi c Alert (RCTA) ... 4-111
Bluetooth® ........................................... 5-75
Bluetooth® Audio (Type A) ......... 5-114
Bluetooth® Audio (Type B) ......... 5-116
Bluetooth® Hands-Free (Type A) ... 5-95
Bluetooth® Hands-Free (Type B) ... 5-102
Troubleshooting .......................... 5-129
Body Lubrication ................................ 6-32
Bottle Holder ..................................... 5-138
Brakes
Brakes assist .................................. 4-70
Foot brake...................................... 4-68
Pad wear indicator ......................... 4-69
Parking brake ................................ 4-69
Warning light ................................. 4-69
Break-In .............................................. 3-45
C
Capacities .............................................. 9-5
Carbon Monoxide ............................... 3-29
Cell Phones ......................................... 8-19
Center Console .................................. 5-140
Child Restraint
Child-restraint precautions ............ 2-22
Installing child-restraint systems... 2-28
LATCH child-restraint systems ..... 2-36
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
