Page 460 of 585

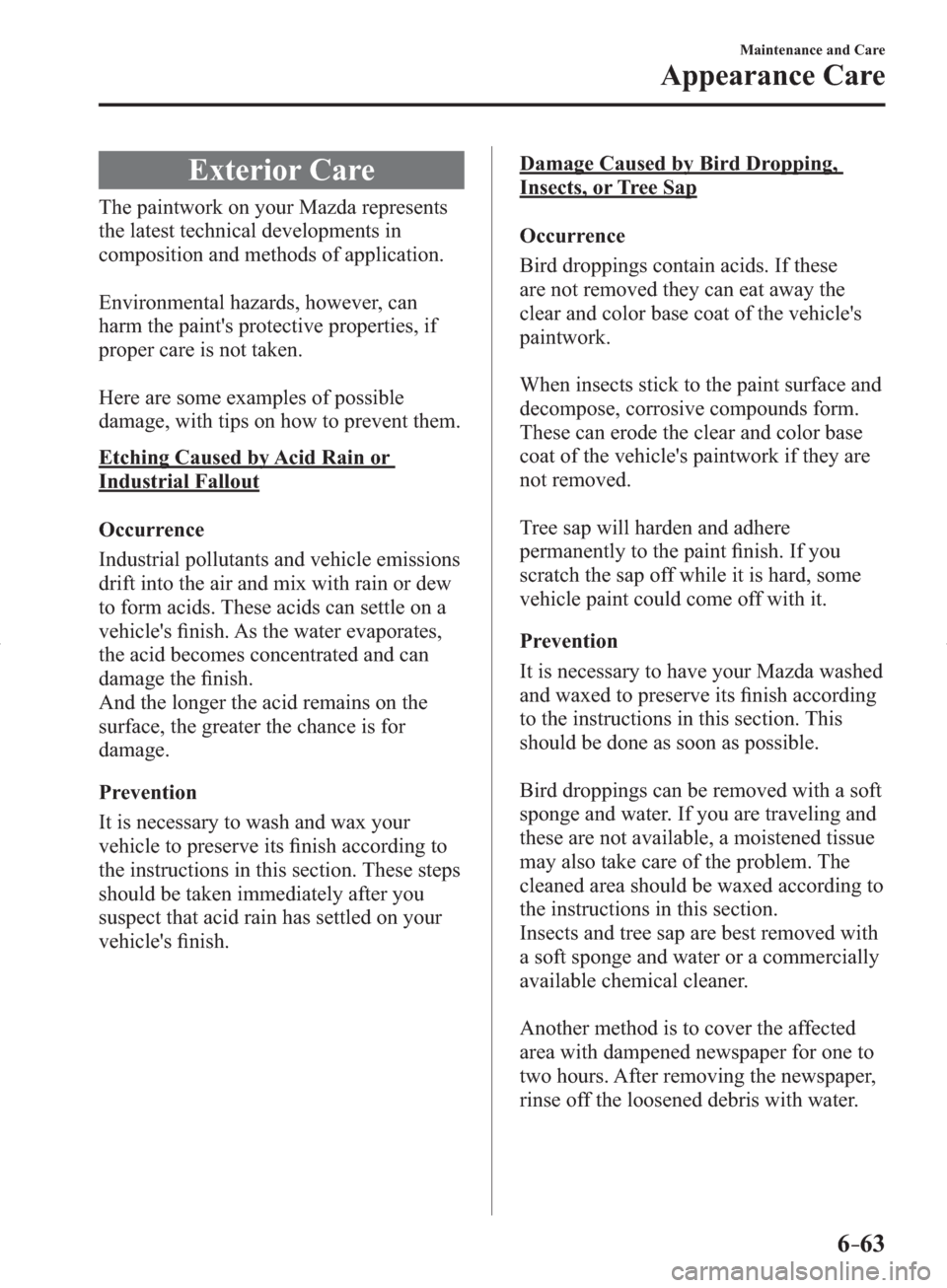

6–63
Maintenance and Care
Appearance Care
Exterior Care
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent them.
Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's fi nish. As the water evaporates,
the acid becomes concentrated and can
damage the fi nish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its fi nish according to
the instructions in this section. These steps
should be taken immediately after you
suspect that acid rain has settled on your
vehicle's fi nish.
Damage Caused by Bird Dropping,
Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
are not removed they can eat away the
clear and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface and
decompose, corrosive compounds form.
These can erode the clear and color base
coat of the vehicle's paintwork if they are
not removed.
Tree sap will harden and adhere
permanently to the paint fi nish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda washed
and waxed to preserve its fi nish according
to the instructions in this section. This
should be done as soon as possible.
Bird droppings can be removed with a soft
sponge and water. If you are traveling and
these are not available, a moistened tissue
may also take care of the problem. The
cleaned area should be waxed according to
the instructions in this section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 461 of 585

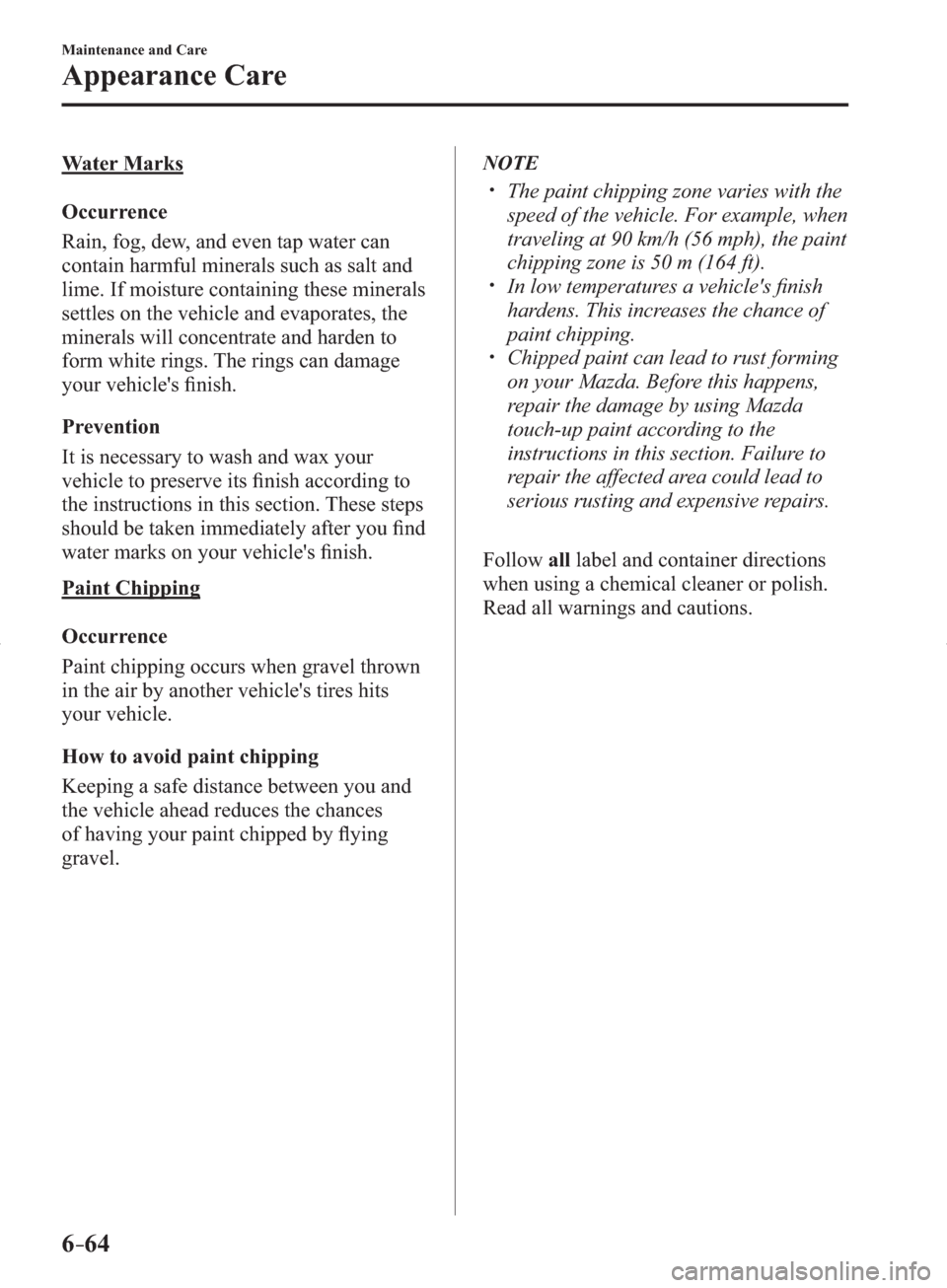

6–64
Maintenance and Care
Appearance Care
Water Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these minerals
settles on the vehicle and evaporates, the
minerals will concentrate and harden to
form white rings. The rings can damage
your vehicle's fi nish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its fi nish according to
the instructions in this section. These steps
should be taken immediately after you fi nd
water marks on your vehicle's fi nish.
Paint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances
of having your paint chipped by fl ying
gravel. NOTE
y The paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
y In low temperatures a vehicle's fi nish
hardens. This increases the chance of
paint chipping.
y Chipped paint can lead to rust forming
on your Mazda. Before this happens,
repair the damage by using Mazda
touch-up paint according to the
instructions in this section. Failure to
repair the affected area could lead to
serious rusting and expensive repairs.
Follow all label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 462 of 585
6–65
Maintenance and Care
Appearance Care
Maintaining the Finish
Washing
CAUTION
¾ When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
¾ If the windshield above the rain
sensor is touched or wiped with a
cloth.
¾ If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windshield when the wiper lever is in
the AUTO position and the ignition
is switched ON as fi ngers could be
pinched or the wipers and wiper blades
damaged when the wipers activate
automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
¾ Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
To help protect the fi nish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur. Scratches occur on the paint surface when:
y The vehicle is washed without fi rst
rinsing off dirt and other foreign matter.
y The vehicle is washed with a rough, dry,
or dirty cloth.
y The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.
y Cleansers or wax containing abrasives
are used.
NOTE
y Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
y Scratches are more noticeable on
vehicles with darker paint fi nishes.
To minimize scratches on the vehicle's
paint fi nish:
y Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
y Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
y Rub gently when washing or drying the
vehicle.
y Take your vehicle only to a car wash
that keeps its brushes well maintained.
y Do not use abrasive cleansers or wax
that contain abrasives.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage the
protective coating; also, cleaners and
detergents may discolor or deteriorate
the paint.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 463 of 585
6–66
Maintenance and Care
Appearance Care
Pay special attention to removing salt, dirt,
mud, and other foreign material from the
underside of the fenders, and make sure
the drain holes in the lower edges of the
doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits
can damage the fi nish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the fi nish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been aff ected.
When using a high water pressure car
wash
High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is
put too close to the vehicle, the force of
the spray could damage or deform the
molding, affect the sealability of parts,
and allow water to penetrate the interior.
Keep a suffi cient space (30 cm (12 in) or
more) between the nozzle and the vehicle.
In addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the fi nish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take off
the wax. Rewax these areas even if the rest
of the vehicle does not need it.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 464 of 585
6–67
Maintenance and Care
Appearance Care
Repairing Damage to the Finish
Deep scratches or chips on the fi nish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies anti-
corrosion materials to all parts, both
repaired and new. This will prevent
them from rusting.
Bright-Metal Maintenance
y Use tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
y To prevent corrosion on bright-
metal surfaces, apply wax or chrome
preservative and rub it to a high luster.
y During cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating
and cause discoloration or paint
deterioration.
Underbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, fl oor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly fl ush the underbody and wheel
housings with lukewarm or cold water at
the end of each winter. Try also to do this
every month.
Pay special attention to these areas
because they easily hide mud and dirt.
It will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped there
will cause rusting.
WARNING
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been aff ected.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 465 of 585
*Some models.6–68
Maintenance and Care
Appearance Care
Aluminum Wheel Maintenance *
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.
NOTE
y Do not use a wire brush or any
abrasive cleaner, polishing compound,
or solvent on aluminum wheels. They
may damage the coating.
y Always use a sponge or soft cloth to
clean the wheels.
Rinse the wheels thoroughly with
lukewarm or cold water. Also, be sure
to clean the wheels after driving on
dusty or salted roads to help prevent
corrosion.
y Avoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
y If your aluminum wheels lose luster,
wax the wheels.
Plastic Part Maintenance
y When cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectifi ed spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a signifi cant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, fl ush with water
immediately.
y If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fl uids such as
gasoline, oil, engine coolant, or battery
fl uid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fl uids using a
soft cloth immediately.
y High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could deform plastic parts or
damage the paint.
y Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
y In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result
in deformation of plastic parts or paint
damage.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 466 of 585
*Some models.6–69
Maintenance and Care
Appearance Care
Interior Care
WARNING
Do not spray water in the cabin:
Splashing water on electrical parts
such as the audio unit and switches
is dangerous as it could cause a
malfunction or a fi re.
Dashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They will damage and discolor
the dashboard. If these solutions get on the
dashboard, wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
Instrument panel top (soft pad)
y Extremely soft material is used for the
soft pad surface. When cleaning, it is
recommended that you use a clean towel
dampened in a mild detergent to remove
soiling.
y If the soft pad surface is rubbed harshly,
it could result in the surface being
damaged leaving white scratch marks.
Cleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leather
*
Remove dust and sand fi rst using a
vacuum cleaner or other means, then wipe
dirt off using a soft cloth with a leather
cleaner or a soft cloth soaked in mild soap.
Wipe off the remaining cleaner or soap
using a cloth soaked in clean water and
wrung out well.
Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, shaded area. If the leather
gets wet such as from rain, also remove
moisture and dry it as soon as possible.
NOTE
y Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.
y To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
y Sand and dust on the seat surface may
damage the overcoat of the genuine
leather surfaces and accelerate wear.
y Greasy soiling on genuine leather may
cause molding and stains.
y Rubbing hard with a stiff brush or cloth
may cause damage.
y Do not wipe the leather using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, or gasoline.
Otherwise, it may cause discoloration
or stains.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 467 of 585
*Some models.6–70
Maintenance and Care
Appearance Care
y If the seats get wet, promptly remove
moisture with a dry cloth. Remaining
moisture on the surface may cause
deterioration such as hardening and
shrinkage.
y Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.
y Do not leave vinyl products on the seats
for long periods as they may affect
the leather quality and coloring. If the
cabin temperature becomes hot, the
vinyl may deteriorate and adhere to the
genuine leather.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
To keep the fabric looking clean and fresh,
take care of it. Otherwise its color will be
affected, it can be stained easily, and its
fi re-resistance may be reduced.
CAUTION
Use only recommended cleaners
and procedures. Others may aff ect
appearance and fi re-resistance.
Panel
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels resulting
from the use of a hard brush or cloth may
not be repairable.
Be particularly careful when cleaning the
following areas which are installed with
specially coated panels.
y Piano black panel
y Decoration panel *
Maintenance of the Active Driving
Display
The combiner and mirror surface have a
special coating. When cleaning, do not use
a hard or rough-surface cloth, or cleaning
detergent. In addition, if a chemical
solvent gets on the active driving display,
wipe it off immediately. Otherwise, the
combiner and mirror could be damaged
and the surface coating could be scratched.
Use a fi ne, soft cloth such as those used
for cleaning eyeglasses.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 468 of 585
6–71
Maintenance and Care
Appearance Care

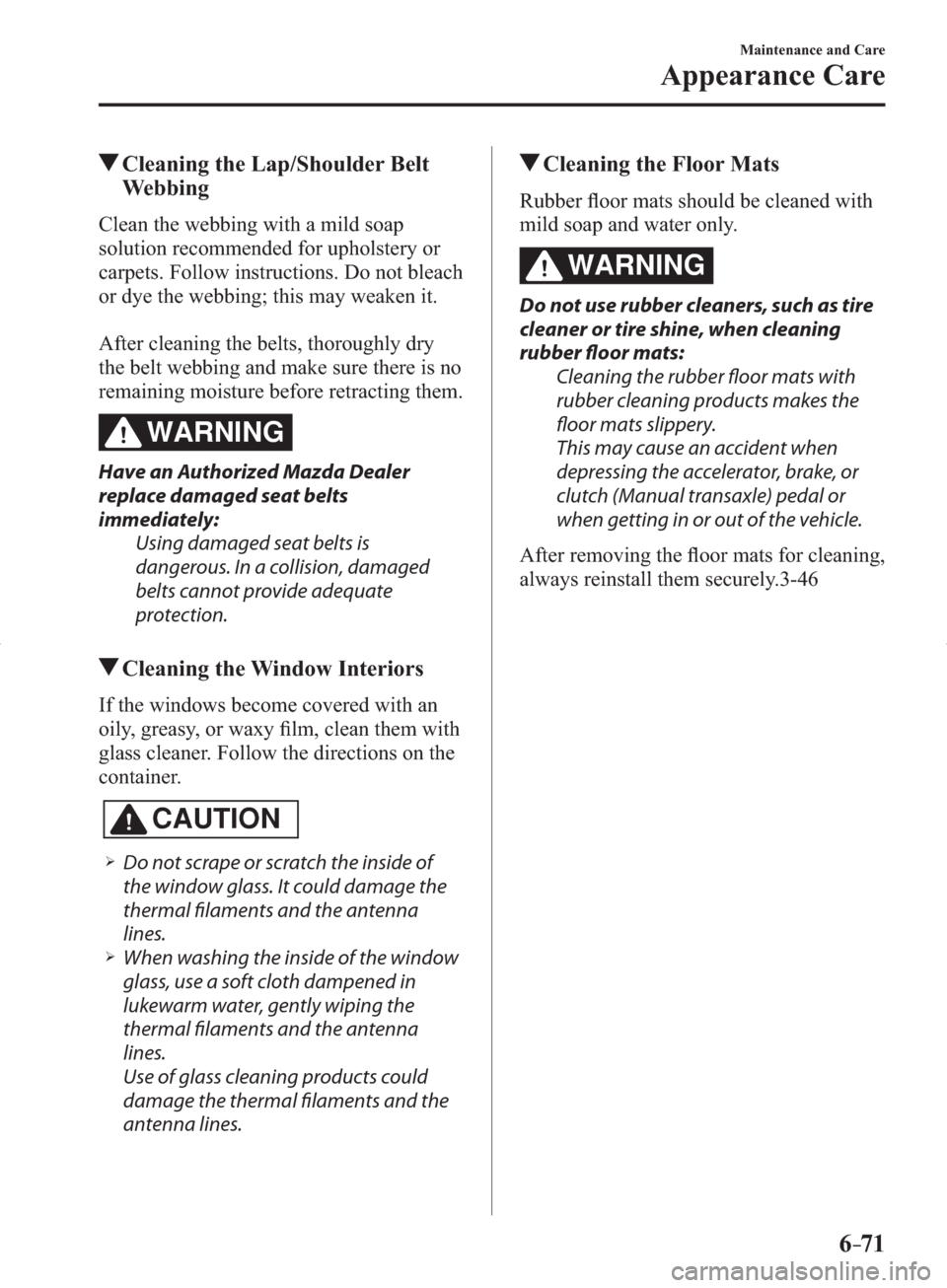

Cleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Do not bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is no
remaining moisture before retracting them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy fi lm, clean them with
glass cleaner. Follow the directions on the
container.
CAUTION
¾ Do not scrape or scratch the inside of
the window glass. It could damage the
thermal fi laments and the antenna
lines.
¾ When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal fi laments and the antenna
lines.
Use of glass cleaning products could
damage the thermal fi laments and the
antenna lines.
Cleaning the Floor Mats
Rubber fl oor mats should be cleaned with
mild soap and water only.
WARNING
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning
rubber fl oor mats:
Cleaning the rubber fl oor mats with
rubber cleaning products makes the
fl oor mats slippery.
This may cause an accident when
depressing the accelerator, brake, or
clutch (Manual transaxle) pedal or
when getting in or out of the vehicle.
After removing the fl oor mats for cleaning,
always reinstall them securely. 3-46
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 474 of 585
7–5
If Trouble Arises
Flat Tire
NOTE
Verify that the cover is securely installed.
Maintenance
y Always keep the jack clean.
y Make sure the moving parts are kept
free from dirt or rust.
y Make sure the screw thread is
adequately lubricated.
Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be aff ected.
You could lose control of the vehicle,
especially on ice or snow bound roads,
and have an accident. Move a regular
tire to the front wheel and install the
temporary spare tire to the rear.
CAUTION
¾ When using the temporary spare tire,
driving stability may decrease compared
to when using only the conventional
tire. Drive carefully.
¾ To avoid damage to the temporary
spare tire or to the vehicle, observe the
following precautions:
¾ Do not exceed 80 km/h (50 mph).
¾ Avoid driving over obstacles. Also, do
not drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the
ground clearance is reduced about 10
mm (0.4 in).
¾ Do not use a tire chain on this tire
because it will not fi t properly.
¾ Do not use your temporary spare
tire on any other vehicle, it has been
designed only for your Mazda.
¾ Use only one temporary spare tire on
your vehicle at the same time.
To remove the spare tire
1. Lift the trunk/luggage compartment
mat.
Trunk/Luggage compartment mat
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
