Page 3 of 585
A Word to Mazda Owners
Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete
customer satisfaction in mind.
To help ensure enjoyable and trouble-free operation of your Mazda, read this manual
carefully and follow its recommendations.
An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is
necessary, that's the place to go.
Our nationwide network of Mazda professionals is dedicated to providing you with the best
possible service.
We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure
and in your full satisfaction with your Mazda product.
Mazda Motor Corporation
HIROSHIMA, JAPAN
Important Notes About This Manual
Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you
resell the vehicle, leave this manual with it for the next owner.
All specifi cations and descriptions are accurate at the time of printing. Because improvement is a constant goal at
Mazda, we reserve the right to make changes in specifi cations at any time without notice and without obligation.
Air Conditioning and the Environment
Your Mazda's genuine air conditioner is fi lled with HFC134a (R134a), a refrigerant that has been found not to
damage the earth's ozone layer. If the air conditioner does not operate properly, consult an Authorized Mazda
Dealer.
Perchlorate
Certain components of this vehicle such as [air bag modules, seat belt pretensioners, lithium batteries,…] may
contain Perchlorate Material-- Special handling may apply for service or vehicle end of life disposal. See www.
dtsc.ca.gov/hazardouswaste/perchlorate.
Please be aware that this manual applies to all models, equipment and options. As a result, you may fi nd
some explanations for equipment not installed on your vehicle.
©2013 Mazda Motor Corporation
Printed in Japan Sep. 2013 (Print1)
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 5 of 585
Table of Contents
Pictorial Index
Interior, exterior views and part identification of your Mazda.1
Essential Safety Equipment
Important information about safety equipment, including seats, seat belt
system, child-restraint systems and SRS air bags.2
Before Driving
Use of various features, including keys, doors, mirrors and windows.3
When Driving
Information concerning safe driving and stopping.4
Interior Features
Use of various features for ride comfort, including air-conditioning and audio
system.5
Maintenance and Care
How to keep your Mazda in top condition.6
If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.7
Customer Information and Reporting Safety Defects
Important consumer information including warranties and add-on equipment.8
Specifications
Technical information about your Mazda.9
Index10
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 9 of 585
1–4
Pictorial Index
Interior Overview
Interior Equipment (View C)
Seat belts ............................................................................................................... page2-12
SRS air bag............................................................................................................ page 2-40
Bottle holder ........................................................................................................ page 5-138
Vanity mirror ....................................................................................................... page 5-133
Moonroof switch ................................................................................................... page 3-39
Overhead lights ................................................................................................... page 5-134
Rearview mirror .................................................................................................... page 3-34
Sunvisor .............................................................................................................. page 5-133
Glove compartment ............................................................................................. page 5-139
Hazard warning fl asher switch .............................................................................. page 4-58
Parking brake ........................................................................................................ page 4-69
Commander switch ............................................................................................... page 5-38
Cup holders ......................................................................................................... page 5-137
Front seat ................................................................................................................. page 2-5
Center console ..................................................................................................... page 5-140
Rear seat .................................................................................................................. page 2-8
The equipment and installation position varies by vehicle
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 12 of 585
*Some models.2–1
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-
restraint systems and SRS air bags.
Seats ..................................................................................................... 2-2
Seat Precautions ............................................................................ 2-2
Front Seat ...................................................................................... 2-5
Rear Seat ....................................................................................... 2-8
Head Restraints ........................................................................... 2-10
Seat Belt Systems .............................................................................. 2-12
Seat Belt Precautions .................................................................. 2-12
3-Point Type Seat Belt ................................................................ 2-15
Seat Belt Warning Systems ......................................................... 2-16
Front Seat Belt Pretensioner and Load Limiting Systems .......... 2-16
Center-Rear Position 2-Point Type Seat Belt
* ............................. 2-18
Seat Belt Extender ....................................................................... 2-20
Child-Restraint ................................................................................. 2-22
Child-Restraint Precautions ........................................................ 2-22
Child-Restraint System Installation ............................................ 2-27
Installing Child-Restraint Systems ............................................. 2-28
SRS Air Bags .................................................................................... 2-40
Supplemental Restraint System (SRS) Precautions .................... 2-40
Supplemental Restraint System Components ............................. 2-47
How the SRS Air Bags Work ...................................................... 2-49
SRS Air Bag Deployment Criteria .............................................. 2-53
Limitations to SRS Air Bag ........................................................ 2-54
Front Passenger Occupant Classifi cation System
* ...................... 2-56
Constant Monitoring ................................................................... 2-61
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 13 of 585
2–2
Essential Safety Equipment
Seats
Seat Precautions
WARNING
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a
sudden stop or collision, the seat or seatback could move, causing injury. Make sure the
adjustable components of the seat are locked in place by attempting to slide the seat
forward and backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a
child's hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can allow passengers to be ejected or thrown
around and baggage to strike occupants in a sudden stop or collision, resulting in severe
injury. After adjusting the seatback at any time, even when there are no other passengers,
rock the seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose
control of the vehicle and have an accident.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening
any bolts is dangerous. The front seats contain air bag components essential to the
supplemental restraint system. Such modifi cations could damage the supplemental
restraint system and result in serious injury. Consult an Authorized Mazda Dealer if there
is any need to remove or reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is dangerous. A collision, even one not strong enough
to infl ate the air bags, could damage the front seats which contain essential air bag
components. If there was a subsequent collision, an air bag may not deploy which could
lead to injuries. Always have an Authorized Mazda Dealer inspect the front seats, front
seat belt pretensioners and air bags after a collision.
Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do not
get the full protection from seat belts. During sudden braking or a collision, you can slide
under the lap belt and suff er serious internal injuries. For maximum protection, sit well
back and upright.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 14 of 585
2–3
Essential Safety Equipment
Seats
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, which could result in a serious accident, injury or
death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be fi xed securely, and result in an
accident.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fl y around and become projectiles that may hit and
injure passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during
sudden braking or a collision and cause injury.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is
moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up
on the folded seatback while the vehicle is moving is particularly dangerous. In a sudden
stop or even a minor collision, a child not in a proper seat or child-restraint system and
seat belt could be thrown forward, back or even out of the vehicle resulting in serious
injuries or death. The child in the baggage area could be thrown into other occupants
and cause serious injury.
Never give the car keys to children and do not allow them to play in the vehicle (4–
Door):
Playing with the folding rear seats is dangerous. Once the seatbacks are back up, a child
in the trunk would not be able to get out the way they had entered. If you have small
children, keep the seatbacks locked.
Always leave your car locked and keep the car keys safely away from children (4–
Door):
Leaving your car unlocked or the keys in reach of children is dangerous. Children who fi nd
their way into the trunk through an unlocked rear seatback or an open trunk can become
accidentally locked in the trunk. This could result in death or brain damage from heat
prostration, particularly in the summer. Always lock the doors and the trunk, and as an
added measure, keep the rear seatbacks locked, whether you have children in your home
or not.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D

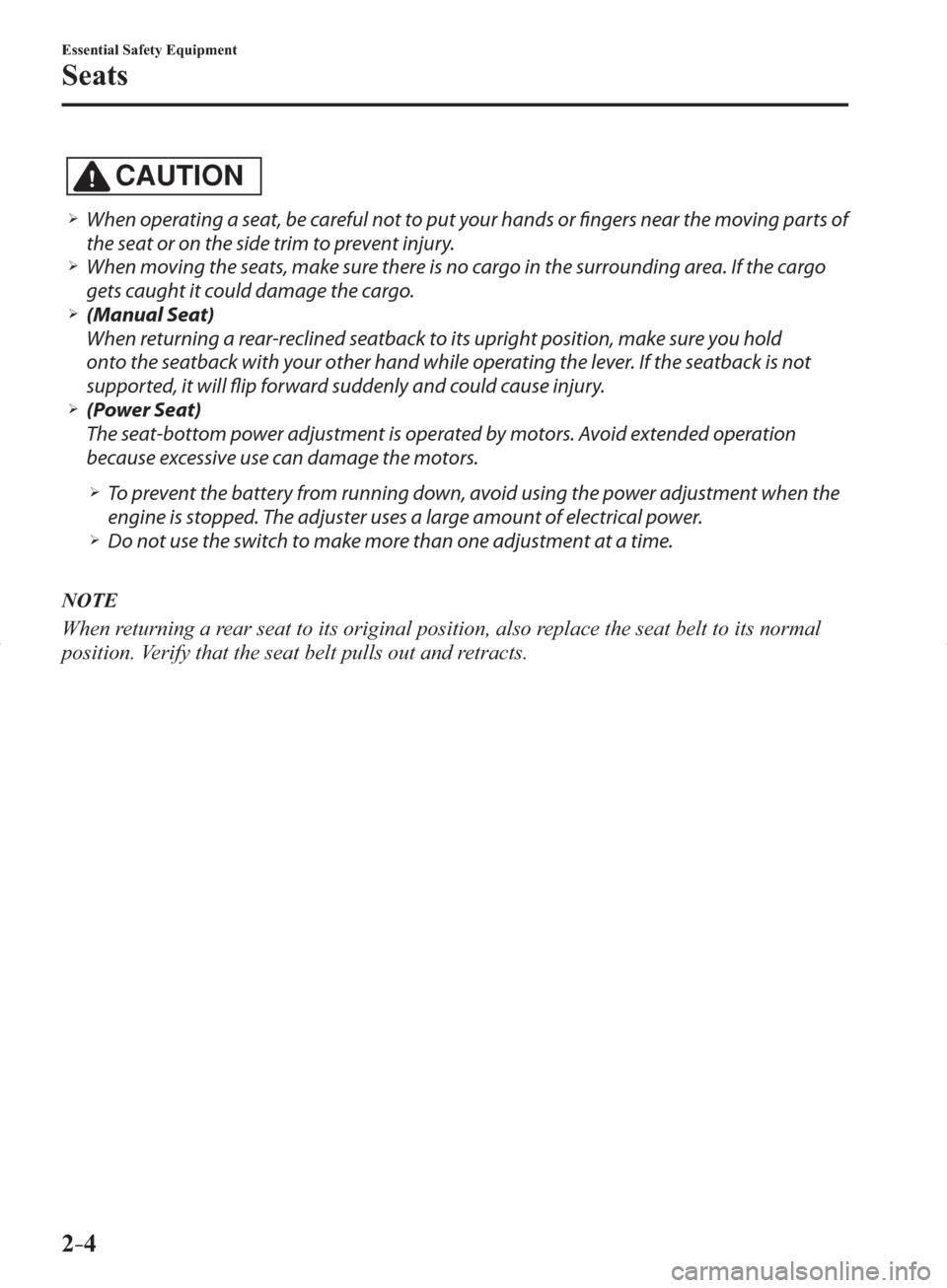

Page 15 of 585
2–4
Essential Safety Equipment
Seats
CAUTION
¾ When operating a seat, be careful not to put your hands or fi ngers near the moving parts of
the seat or on the side trim to prevent injury.
¾ When moving the seats, make sure there is no cargo in the surrounding area. If the cargo
gets caught it could damage the cargo.
¾ (Manual Seat)
When returning a rear-reclined seatback to its upright position, make sure you hold
onto the seatback with your other hand while operating the lever. If the seatback is not
supported, it will fl ip forward suddenly and could cause injury.
¾ (Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended operation
because excessive use can damage the motors.
¾ To prevent the battery from running down, avoid using the power adjustment when the
engine is stopped. The adjuster uses a large amount of electrical power.
¾ Do not use the switch to make more than one adjustment at a time.
NOTE
When returning a rear seat to its original position, also replace the seat belt to its normal
position. Verify that the seat belt pulls out and retracts.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 19 of 585
2–8
Essential Safety Equipment
Seats
Rear Seat
Split/One-piece Folding the
Seatback
By lowering the rear seatback(s) the
luggage compartment space can be
expanded.
WARNING
Do not drive the vehicle with occupants
on folded down seatback(s) or in the
luggage compartment.
Putting occupants in the luggage
compartment is dangerous because
seat belts cannot be fastened which
could lead to serious injury or death
during sudden braking or a collision.
Do not allow children to play inside the
vehicle with the seatback(s) lowered.
Allowing children to play in the
vehicle with the seatback(s) folded
down is dangerous, If a child enters
the luggage compartment and the
seatback(s) were raised back up, the
child may become trapped in the
luggage compartment which could
lead to an accident.
Tightly secure cargo in the luggage
compartment when it is transported
with the seatback(s) folded down.
Driving without tightly securing cargo
and luggage is dangerous as it could
move and become an obstruction to
driving during emergency braking or
a collision resulting in an unexpected
accident.
When transporting cargo, do not allow
the cargo to exceed the height of the
seatback(s).
Transporting cargo stacked higher
than the seatback(s) is dangerous as
visibility to the rear and sides of the
vehicle is reduced which could interfere
with driving operations and lead to an
accident.
Lowering the seatback(s)
CAUTION
Check the position of a front seat
before folding a rear seatback.
Depending on the position of a front
seat, it may not be possible to fold
a rear seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Remove the head restraint on the rear
outboard seat if necessary.
(4–Door)
1. Open the trunk lid and pull the lever for
the seatback you want to fold down.
*1: With split-folding
type seat only*1
2. Open a rear door and fold the rear seat
forward.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 20 of 585
2–9
Essential Safety Equipment
Seats
(5–Door)
Press the push knob to fold down the
seatback.
To return the seatback to its upright
position:
WARNING
When returning a seatback to its
upright position, make sure the 3-point
seat belt is not caught in the seatback
and the 3-point seat belt is not twisted.
If the seat belt is used while it is twisted
and caught in the seatback, the seat
belt cannot function at its full capacity,
which could cause serious injury or
death.
When returning a seatback to its
upright position, make sure that it is
fi rmly locked and the red indication is
not visible (5–Door).
If the red indication is visible behind
the push knob, it means the seatback
is not locked. If the vehicle is driven
without the seatback locked, it could
fold down suddenly and cause an
accident.
Locked position
Unlocked position
Red indication
1. Make sure that the seat belt passes
through the seat belt guide correctly
and it is not twisted, then raise the
seatback while preventing the seat belt
from being caught in the seatback.
(4–Door)
Seat belt guides
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 21 of 585
*Some models.2–10
Essential Safety Equipment
Seats
(5–Door)
Red indication
Seat belt guide
2. Press the seatback rearward and lock it
in place. After returning the seatback
to its upright position, make sure it is
securely locked.
Armrest *
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
WARNING
Never put your hands and fi ngers
around the moving parts of the seat and
armrest:
Putting your hands and fi ngers around
the moving parts of the seat and
armrest is dangerous as they could get
injured.
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
rear center seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used and
make sure they are properly adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be seriously
injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the center
is even with the top of the passenger's ears.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
