/C\FCA&('#*A'FKVKQPKPFD

3–7
Before Driving
Keys
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, press and hold the panic button to
activate the vehicle's alarm.
NOTE
The panic button will work whether any
door or the liftgate/trunk lid is open or
closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the following
will occur:



y The horn sounds intermittently.



y The hazard warning lights fl ash.
(Turning off the alarm)
The alarm stops by pressing any button on
the key.
Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE



y Starting the engine may be possible
even if the key is outside of the vehicle
and extremely close to a door and
window, however, always start the
engine from the driver's seat.
  If the vehicle is started and the key is
not in the vehicle, the vehicle will not
restart after it is shut off and the push
button start is switched to off.



y The luggage compartment/trunk is
out of the assured operational range,
however, if the key (transmitter) is
operable the engine will start.
With the advanced keyless function
Interior antenna
Operational range
/C\FCA&('#*A'FKVKQPKPFD

3–8
Before Driving
Keys
Without the advanced keyless function
Operational range
Interior antenna
NOTE
The engine may not start if the key is
placed in the following areas:



y Around the dashboard



y In the storage compartments such as
the glove compartment



y On the rear parcel shelf (4–door)
Key Suspend Function
If a key is left in the vehicle, the
functions of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
The following are inoperable:



y Starting the engine using the push button
start.



y(With the advanced keyless function)
 Operating the request switches.
To restore these functions, perform any
one of the following:



y Press a button on the key which has had
its functions temporarily suspended.



y(Manual transaxle)
 When carrying another key, depress the
clutch pedal until the KEY indicator
light (green) illuminates.
 (Automatic transaxle)
 When carrying another key, depress the
brake pedal until the KEY indicator light
(green) illuminates.
  Refer to Warning/Indicator Lights on
page 4-21 .
/C\FCA&('#*A'FKVKQPKPFD

*Some models.5–1
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.



Climate Control System..................................................................... 5-2
Operating Tips ............................................................................... 5-2
Vent Operation .............................................................................. 5-3
Manual Climate Control ............................................................... 5-5
Automatic Climate Control ........................................................... 5-9
Dual-Zone Automatic Climate Control ....................................... 5-12
Audio System .................................................................................... 5-16
Antenna ....................................................................................... 5-16
Operating Tips for Audio System ............................................... 5-17
Audio Set (Type A) ..................................................................... 5-26
Audio Set (Type B) ..................................................................... 5-38
Audio Control Switch Operation
* ............................................... 5-58
AUX/USB/iPod mode ................................................................. 5-59
Bluetooth
® ......................................................................................... 5-75
Bluetooth® (Type A/Type B)* ...................................................... 5-75
Bluetooth® Hands-Free (Type A)* ............................................... 5-95
Bluetooth® Hands-Free (Type B)* ............................................. 5-102
Bluetooth® Audio (Type A)* ...................................................... 5-114
Bluetooth® Audio (Type B)* ...................................................... 5-116
Troubleshooting (Type A/Type B)* ........................................... 5-129
Interior Equipment ........................................................................ 5-133
Sunvisors ................................................................................... 5-133
Interior Lights ........................................................................... 5-134
Accessory Sockets .................................................................... 5-136
Cup Holder ................................................................................ 5-137
Bottle Holder ............................................................................. 5-138
Storage Compartments .............................................................. 5-139
/C\FCA&('#*A'FKVKQPKPFD

5–55
Interior Features
Audio System
Settings
Select the icon on the home screen and display the Settings screen.
Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:
Tab Item Function
AD-Disp Height
Brightness Control
Other Refer to Active Driving Display on page 4-19 .
Display Refer to Volume/Display/Sound Controls on page 5-42 .
Safety Smart City Brake Support
Blind Spot Monitoring Volume
Other Refer to Smart City Brake Support (SCBS) on
page 4-72 .
Refer to Blind Spot Monitoring (BSM) System
on page 4-108 .
Refer to Forward Obstruction Warning (FOW)
on page 4-116 .
Refer to Lane Departure Warning System
(LDWS) on page 4-119 .
Sound Refer to Volume/Display/Sound Controls on page 5-42 .
Vehicle Rain Sensing Wiper
Door Lock
Other Refer to Windshield Wipers on page 4-53 .
Refer to Auto Lock/Unlock Function on page
3-17 .
Refer to Transmitter on page 3-4 .
Refer to Locking, Unlocking with Request
Switch (With the advanced keyless function)
on page 3-13 .
Refer to Turn and Lane-Change Signals on
page 4-51 .
Refer to Illuminated Entry System on page
5-135 .
Refer to High Beam Control System (HBC) on
page 4-48 .
Refer to Lights-On Reminder on page 7-36 .
Refer to Headlights on page 4-41 .
Refer to Daytime Running Lights on page
4-47 .
Devices Bluetooth Refer to Bluetooth
® Preparation (Type B) on
page 5-92 .
Network Management Wi-Fi™ is used to obtain Navi POI/Real Time
Traffi c function (Such as gas prices, weather,
nearest restaurant)
/C\FCA&('#*A'FKVKQPKPFD

*Some models.5–134
Interior Features
Interior Equipment
Interior Lights

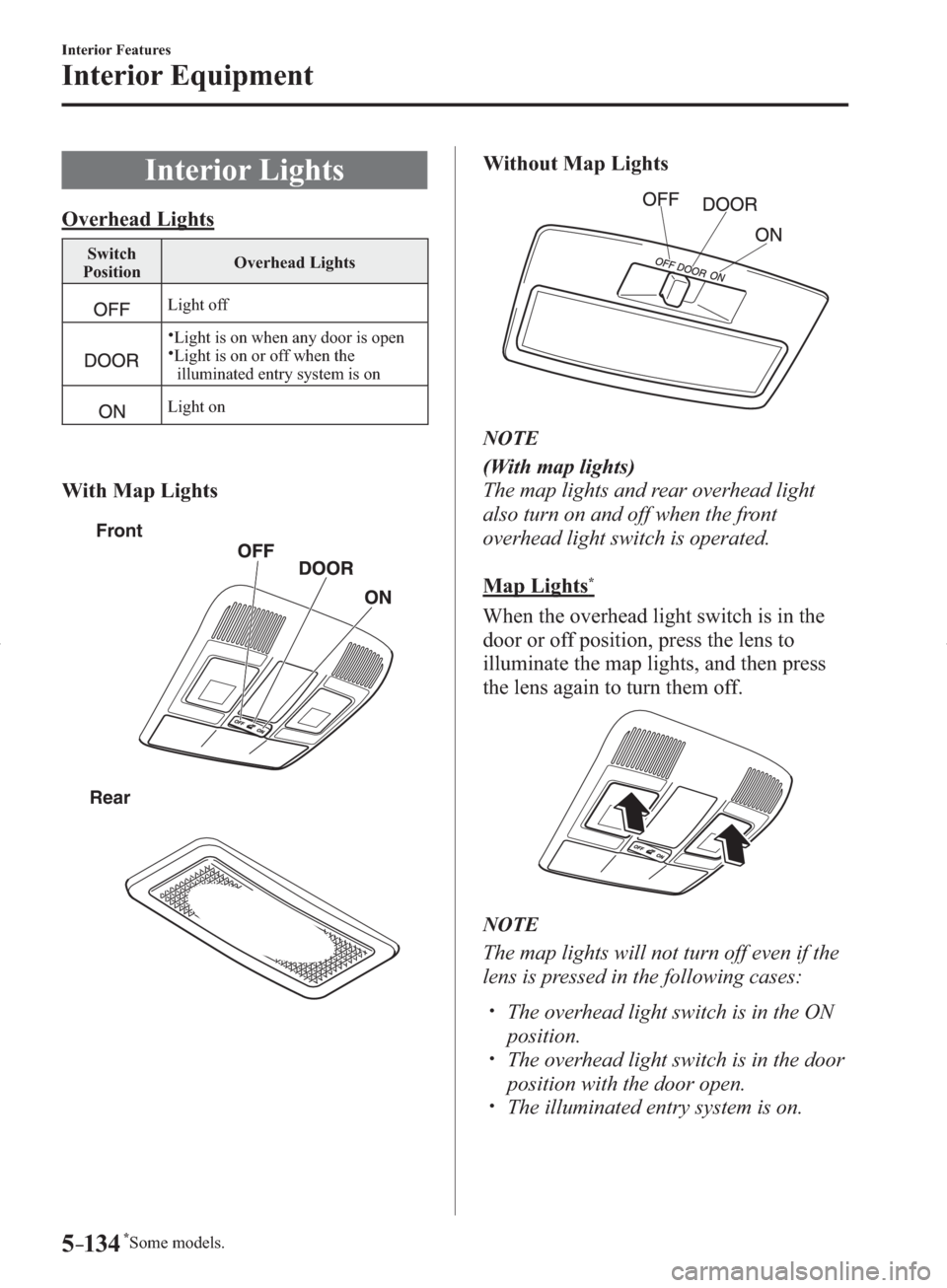

Overhead Lights
Switch
Position Overhead Lights
Light off
y Light is on when any door is open y Light is on or off when the
illuminated entry system is on
Light on
With Map Lights
Front
Rear
Without Map Lights
NOTE
(With map lights)
The map lights and rear overhead light
also turn on and off when the front
overhead light switch is operated.
Map Lights
*
When the overhead light switch is in the
door or off position, press the lens to
illuminate the map lights, and then press
the lens again to turn them off.
NOTE
The map lights will not turn off even if the
lens is pressed in the following cases:



y The overhead light switch is in the ON
position.



y The overhead light switch is in the door
position with the door open.



y The illuminated entry system is on.
/C\FCA&('#*A'FKVKQPKPFD

5–135
Interior Features
Interior Equipment
Luggage Compartment Lights (5–door)
Switch
Position Luggage Compartment Light
Light off
Light on when the liftgate is open
Trunk Light (4–door)
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Illuminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) turn on for:




y About 30 seconds after the driver's door
is unlocked and the ignition is switched
off.



y About 15 seconds after all doors are
closed and the ignition is switched off.



y About 5 seconds after all doors are
closed and the ignition is switched off
when the key is out of the vehicle.



y Illuminates for about 15 seconds when
the ignition is returned from ACC to
OFF.
The light also turns off when:



y The ignition is switched on and all doors
are closed.



y The driver's door is locked.
NOTE




yBattery saver
 If any door is left open with the
overhead light switch in the DOOR
position, or the liftgate/trunk lid is left
open, the overhead light or luggage
compartment light/trunk light turns
off after about 30 minutes to prevent
battery depletion.



y The operation of the illuminated entry
system can be changed.
  Refer to Personalization Features on
page 9-12 .
/C\FCA&('#*A'FKVKQPKPFD

*Some models.6–56
Maintenance and Care
Owner Maintenance
5–Door
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Wrap a fl athead screwdriver with a soft
cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
fl athead screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of the removal procedure.
Replacing Interior Light Bulbs
Overhead lights (Front)/Map lights * ,
Overhead lights (Front) * , Overhead
lights (Rear) * , Vanity mirror lights*
1. Wrap a small fl athead screwdriver
with a soft cloth to prevent damage to
the lens, and then remove the lens by
carefully prying on the edge of the lens
with the fl athead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead lights (Front)/Map lights
*
/C\FCA&('#*A'FKVKQPKPFD

*Some models.9–10
Specifi cations
Specifi cations
Interior light
Light bulb Category
Wattage ECE R
Trunk light (4–Door) 3 —
Luggage compartment light (5–Door) 5 —
Overhead lights (Front)/Map lights
* 8 —
Overhead light (Front) * 10 —
Overhead light (Rear) * 10 —
Vanity mirror lights * 2 —
Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fi tted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and infl ation pressure.
Refer to Tire Infl ation Pressure on page 6-41 .
After adjusting the tire pressure, initialization of the tire pressure monitoring system is
necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on page 4-107 .
Standard tire
(U.S.A. and Canada)
Tire size Infl ation pressure
Front Rear
P205/60R16 91H 250 kPa (36 psi) 250 kPa (36 psi)
215/45R18 89W 250 kPa (36 psi) 250 kPa (36 psi)
/C\FCA&('#*A'FKVKQPKPFD

9–13
Specifi cations
Personalization Features
Item Feature Factory Setting Available Settings
Advanced keyless
entry system The volume of the answer-back beep during
advanced keyless entry system operation can
be changed.
Refer to Locking, Unlocking with Request
Switch (With the advanced keyless function)
on page 3-13 .
Refer to Settings on page 5-55 . Medium High/
Medium/
Low/
Off
The function to automatically lock the doors
when leaving the vehicle while carrying the
key can be changed.
Refer to Settings on page 5-55 . Off On/Off
The method for unlocking the doors using the
request switch/transmitter can be changed.
Refer to Locking, Unlocking with Request
Switch, Door Handle (With the advanced
keyless function) on page 3-13
Refer to Transmitter on page 3-4 .
Refer to Settings on page 5-55 . Once: Driver's
Twice: All Doors Once: All Doors/
Once: Driver's Twice:
All Doors
The time required for the doors to relock
automatically after unlocking with the request
switch/transmitter can be changed.
Refer to Settings on page 5-55 . 60 seconds 90 seconds/
60 seconds/
30 seconds
Illumination entry The time required for the interior lamp to turn
off automatically can be changed (prevents
battery depletion when a door is open/ajar).
Refer to Settings on page 5-55 . 30 minutes 60 minutes/
30 minutes/
10 minutes
The time required for the interior lamp to turn
off automatically after all doors are closed can
be changed.
Refer to Settings on page 5-55 . 15 seconds 60 seconds/
30 seconds/
15 seconds/
7.5 seconds
Three-fl ash turn
signal The three-fl ash turn function can be changed.
Refer to Settings on page 5-55 . On On/Off
Auto-wiper control The auto-wiper control function can be
changed.
Refer to Settings on page 5-55 . On On/Off
Auto headlight off
*1 The time required for headlights to turn off
after ignition is switched off can be changed.
Refer to Settings on page 5-55 . 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/
Off
*2
Auto-light control The headlight illumination on/off timing based
on surrounding lightness/darkness can be
changed.
Refer to Settings on page 5-55 . Medium Light/
Medium Light/
Medium/
Medium Dark/
Dark
High Beam Control
System (HBC) The High Beam Control System (HBC)
function can be changed.
*3
Refer to Settings on page 5-55 . On On/Off
Turn indicator The turn indicator beep volume level can be
changed.
Refer to Settings on page 5-55 . High High/Low
/C\FCA&('#*A'FKVKQPKPFD
