Page 8 of 585
1–3
Pictorial Index
Interior Overview
Interior Equipment (View B)
Audio control switches.......................................................................................... page 5-58
SRS air bags .......................................................................................................... page 2-40
Cruise control switches ..............................................................................page 4-100 , 4-95
Steering shift switches .......................................................................................... page 4-33
Climate control system............................................................................................ page 5-2
Audio system......................................................................................................... page 5-16
Navigation system (if equipped) ............................................. Refer to the separate manual
Seat warmer switches .............................................................................................. page 2-7
Rear window defroster switch............................................................................... page 4-56
CD player .............................................................................................................. page 5-54
Manual transaxle shift lever .................................................................................. page 4-27
Automatic transaxle selector lever ........................................................................ page 4-30
Drive selection switch ........................................................................................... page 4-89
Lock release lever ................................................................................................. page 3-32
Hood release handle .............................................................................................. page 6-24
Remote fuel-fi ller lid release ................................................................................. page 3-30
Trunk release button .............................................................................................. page 3-22
The equipment and installation position varies by vehicle
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 145 of 585
4–20
When Driving
Instrument Cluster and Display
The active driving display indicates the following information:
y Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
Refer to Mazda Radar Cruise Control (MRCC) on page 4-91 .
y Lane Departure Warning System (LDWS) Operation Conditions and Warnings
Refer to Lane Departure Warning System (LDWS) on page 4-119 .
y Smart City Brake Support (SCBS) Operation Conditions and Warnings
Refer to Smart City Brake Support (SCBS) on page 4-72 .
y Forward Obstruction Warning (FOW) Operation Conditions and Warnings
Refer to Forward Obstruction Warning (FOW) on page 4-116 .
y Vehicle Speed Setting Using Cruise Control
Refer to Cruise Control on page 4-100 .
y Turn-by-Turn (TBT) (Direction and Distance) and Lane Guidance
y Vehicle Speed
Each setting/adjustment for the active driving display can be performed on the Type B audio
display.
1. Select the (
) icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.
y
Height : Active driving display position
y
Brightness Control : Method for adjusting screen brightness (Automatically/Manually)
y
Calibration : Brightness initialization setting (when selecting automatic adjustment)
y
Brightness : Brightness adjustment (when selecting manual adjustment)
y
Navigation : On/Off
y
Active Driving Display : On/Off
y
Reset
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 295 of 585
5–38
Interior Features
Audio System
Audio Set (Type B)
NOTE
The explanation of functions described in this manual may differ from the actual
operation, and the shapes of screens and buttons and the letters and characters displayed
may also differ from the actual appearance.
Additionally, depending on future software updates, the content may successively change
without notice.
Audio Set (Type B) has three different human interfaces.
y Commander with switches
y Touch panel
y Voice recognition with steering switch and microphone
Commander and switch operation
Volume dial
NOTE
For safety reasons, some operations are disabled while the vehicle is being driven.
Volume dial operation
Press the volume dial to switch the audio MUTE on and off.
Turn the volume dial to adjust the volume. The volume increases by turning the dial
clockwise, and decreases by turning it counter clockwise.
Switches around commander knob
: Displays the home screen.
: Displays the audio screen.
: Displays the navigation screen. (Only navigation-equipped vehicles)
: Displays the Favorites screen. Long-press to store particular items in Favorites. (AM/
FM radio, phonebook and destination of the navigation system can be programmed.)
: Returns to previous screen.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D

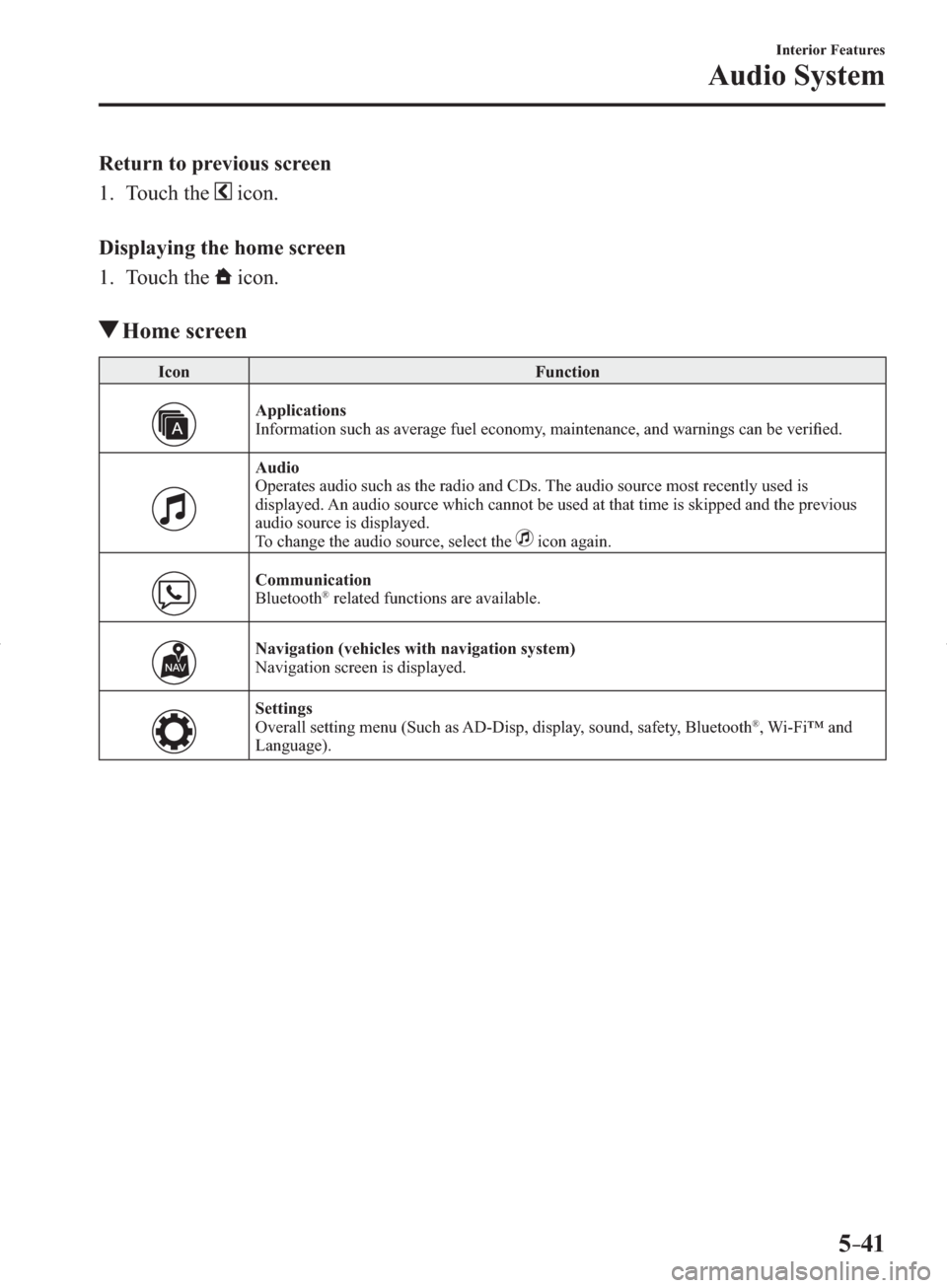

Page 298 of 585
5–41
Interior Features
Audio System
Return to previous screen
1. Touch the
icon.
Displaying the home screen
1. Touch the
icon.
Home screen
Icon Function
Applications
Information such as average fuel economy, maintenance, and warnings can be verifi ed.
Audio
Operates audio such as the radio and CDs. The audio source most recently used is
displayed. An audio source which cannot be used at that time is skipped and the previous
audio source is displayed.
To change the audio source, select the
icon again.
Communication
Bluetooth ® related functions are available.
Navigation (vehicles with navigation system)
Navigation screen is displayed.
Settings
Overall setting menu (Such as AD-Disp, display, sound, safety, Bluetooth ® , Wi-Fi™ and
Language).
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 316 of 585
*Some models.5–59
Interior Features
Audio System
USB Audio/Bluetooth ® Audio/CD
Press the seek switch (
) to skip forward
to the beginning of the next track.
Press the seek switch (
) within a few
seconds after playback begins to track
down to the beginning of the previous
track.
Press the seek switch (
) after a few
seconds have elapsed to start playback
from the beginning of the current track.
Press and hold the seek switch (
,) to
continuously switch the tracks up or down.
Pandora
®* /Stitcher™ Radio *1
Press the seek switch () to skip forward
to the beginning of the next track.
(Pandora
® only)
Long-press the seek switch (
,) to
evaluate the playback of the current song
as “Thumbs-Up/Thumbs-Down”.
*1 Type B
Mute Switch *
Press the mute switch () once to mute
audio, press it again to resume audio
output.
NOTE
If the ignition is switched off with the
audio muted, the mute will be canceled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the audio
again, press the mute switch (
).
AUX/USB/iPod mode
Audio can be heard from the vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
A commercially-available, non-impedance
(3.5
) stereo mini plug cable is required.
Contact an Authorized Mazda Dealer for
details.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device or an iPod to the USB port.
NOTE
(Type B)
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine) with
stored map data is inserted into the SD
card slot and used.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 381 of 585
5–124
Interior Features
Bluetooth®
Icon Function
Like/Thumbs-Up*
Evaluates the current content as “Like”.
Dislike/Thumbs-Down*
Evaluates the current content as “Dislike”.
Shout
Records voice.
Records voice and posts it as playable audio to Facebook and other social stations.
Map (Only navigation-equipped vehicles)
Sets the destination of the navigation to the location searched using the Location Based
Services.
Call
A call can be made to the telephone number of a shop searched using the Location Based
Services. Can be used only when the connected device is connected as Hands-Free.
Returns to the previous content.
Pauses playback of the content. When selected again, playback resumes.
Goes to the next content.
Adjusts the audio quality level.
Refer to Volume/Display/Sound Controls on page 5-42 .
*
Some stations may use alternate variations of Like and Dislike, based on station type or
provider.
Main menu
Select the
icon.
Switch the tab and select the station category.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 383 of 585
5–126
Interior Features
Bluetooth®
Example of use (Location Based
Services)
1. Select the desired station from the
location base service tab on the main
menu.
The destination name or address
playback starts in the order of the
destination name list.
2. Select the icon and display the
content list. Other cafes can be
selected.
Selection of other destinations from the
list can be made.
3. When the icon is selected, the
location of the currently displayed
destination is displayed on the
navigation (only with navigation
system).
4. When the
icon is selected, a phone
call is placed to the currently displayed
destination.
Shout
Some social stations, such as Facebook or
Caraoke, support the ability to record and
share voice messages using the “Shout”
function.
1. Select the
icon and start the
countdown (3, 2, 1, 0). Recording starts
when the countdown reaches zero.
2. Records voice.
3. Select the
icon and store/post the
recording.
NOTE
y A maximum of 30 seconds can be
recorded.
y Recording is stopped automatically
after 30 seconds have elapsed from
when the recording started. You can
then store or delete the recording.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 530 of 585
8–19
Customer Information and Reporting Safety Defects
Cell Phones
Cell Phones Warning
WARNING
Please comply with the legal regulations concerning the use of communication
equipment in vehicles in your country:
Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing
a number on a cell phone while driving also ties-up the driver's hands. Use of these
devices will cause the driver to be distracted and could lead to a serious accident. If a
passenger is unable to use the device, pull off the right-of-way to a safe area before use.
If use of a cell phone is necessary despite this warning, use a hands-free system to at least
leave the hands free to drive the vehicle. Never use a cell phone or other electrical devices
while the vehicle is moving and, instead, concentrate on the full-time job of driving.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 560 of 585
8–49
Customer Information and Reporting Safety Defects
Service Publications
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-017B-14 2014 WORKSHOP MANUAL (English)
9999-MX-017B-14 2014 WORKSHOP MANUAL (Spanish)
9999-95-019G-14 2014 WIRING DIAGRAM (English)
9999-MX-019G-14 2014 WIRING DIAGRAM (Spanish)
9999-95-038C-14R1 2014 OWNER'S MANUAL (English)
9999-EC-038C-14R1 2014 OWNER'S MANUAL (English and French)
9999-PR-038C-14R1 2014 OWNER'S MANUAL (Spanish)
9999-95-064F-14 2014 SERVICE HIGHLIGHTS
9999-95-038C-14NAV 2014 NAVIGATION SYSTEM OWNER'S MANUAL
(English)
9999-EC-038C-14NAV 2014 NAVIGATION SYSTEM OWNER'S MANUAL
(English and French)
9999-PR-038C-14NAV 2014 NAVIGATION SYSTEM OWNER'S MANUAL
(Spanish)
WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
WIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical system.
OWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
SERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 561 of 585
8–50
Customer Information and Reporting Safety Defects
Service Publications
NAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
