Page 9 of 585
1–4
Pictorial Index
Interior Overview
Interior Equipment (View C)
Seat belts ............................................................................................................... page2-12
SRS air bag............................................................................................................ page 2-40
Bottle holder ........................................................................................................ page 5-138
Vanity mirror ....................................................................................................... page 5-133
Moonroof switch ................................................................................................... page 3-39
Overhead lights ................................................................................................... page 5-134
Rearview mirror .................................................................................................... page 3-34
Sunvisor .............................................................................................................. page 5-133
Glove compartment ............................................................................................. page 5-139
Hazard warning fl asher switch .............................................................................. page 4-58
Parking brake ........................................................................................................ page 4-69
Commander switch ............................................................................................... page 5-38
Cup holders ......................................................................................................... page 5-137
Front seat ................................................................................................................. page 2-5
Center console ..................................................................................................... page 5-140
Rear seat .................................................................................................................. page 2-8
The equipment and installation position varies by vehicle
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 11 of 585
1–6
Pictorial Index
Exterior Overview
(5-Door)
Hood ...................................................................................................................... page 6-24
Windshield wiper blades ....................................................................................... page 6-33
Moonroof .............................................................................................................. page 3-39
Doors and keys ...................................................................................................... page 3-12
Fuel-fi ller lid ......................................................................................................... page 3-30
Wheels and Tires ................................................................................................... page 6-41
Exterior lights ........................................................................................................ page 6-45
Rear window wiper blade ..................................................................................... page 6-35
Liftgate .................................................................................................................. page 3-22
Antenna ................................................................................................................. page 5-16
Child safety locks .................................................................................................. page 3-20
Outside mirror ....................................................................................................... page 3-33
The equipment and installation position varies by vehicle
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D

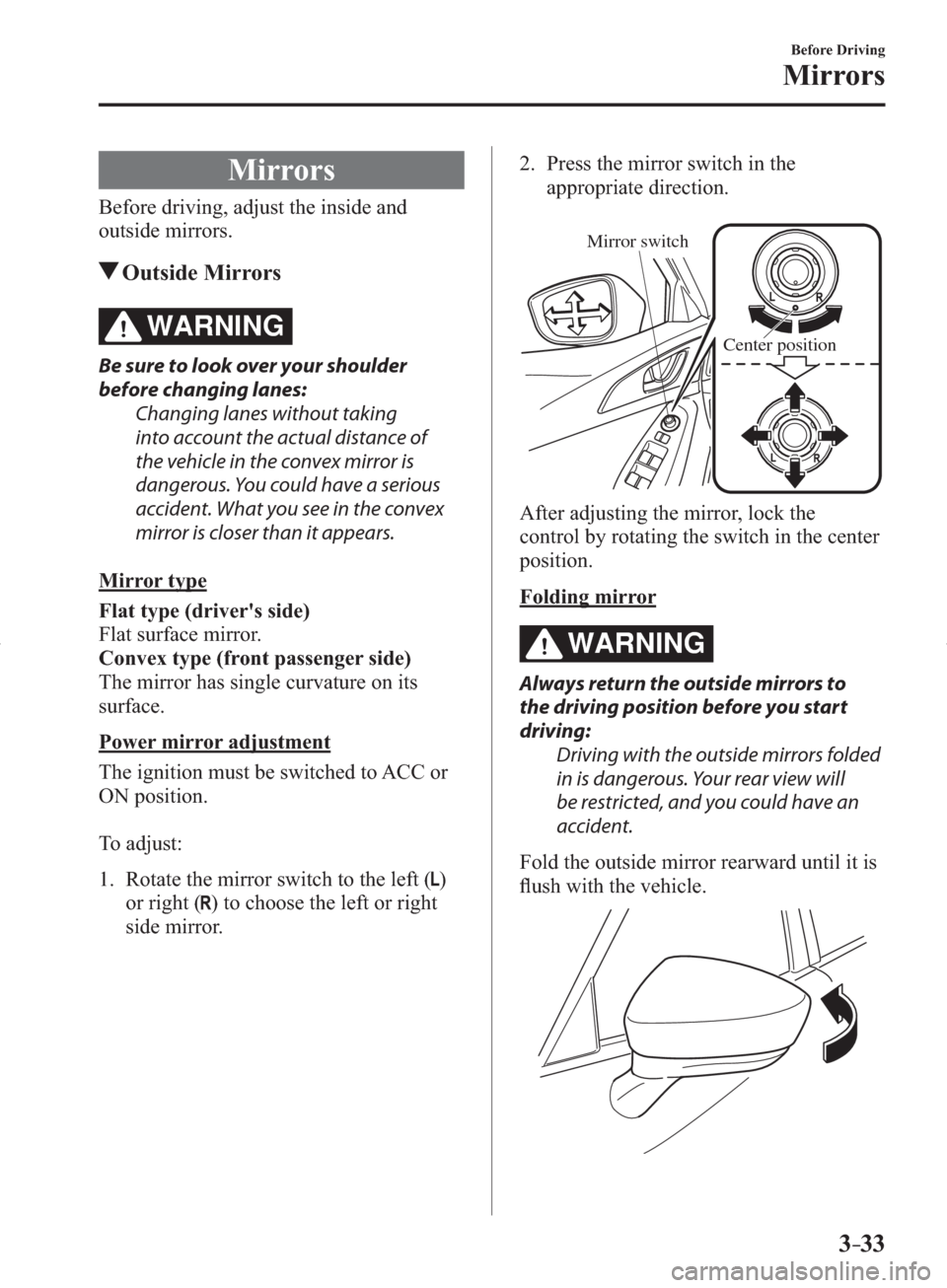

Page 106 of 585
3–33
Before Driving
Mirrors
Mirrors
Before driving, adjust the inside and
outside mirrors.
Outside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking
into account the actual distance of
the vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror switch to the left (
)
or right (
) to choose the left or right
side mirror.
2. Press the mirror switch in the
appropriate direction.
Mirror switch
Center position
After adjusting the mirror, lock the
control by rotating the switch in the center
position.
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors folded
in is dangerous. Your rear view will
be restricted, and you could have an
accident.
Fold the outside mirror rearward until it is
fl ush with the vehicle.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 107 of 585
3–34
Before Driving
Mirrors
Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.
Night DayDay/Night lever
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from vehicles
at the rear when the ignition is switched
ON.
(With Homelink wireless control
system)
Press the OFF button (
) to cancel the
automatic dimming function. The indicator
light will turn off.
To reactivate the automatic dimming
function, press the ON button (
). The
indicator light will illuminate.
Indicator lightOFF button
ON button
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 188 of 585
*Some models.4–63
When Driving
Forward Sensing Camera
Forward Sensing Camera *
Your vehicle is equipped with a Forward Sensing Camera (FSC). The Forward Sensing
Camera (FSC) is positioned near the rearview mirror and used by the following systems.
y High Beam Control System (HBC)
y Lane Departure Warning System (LDWS)
The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
traveling at night and detects traffi c lanes. The distance in which the Forward Sensing
Camera (FSC) can detect objects varies depending on the surrounding conditions.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 189 of 585
4–64
When Driving
Forward Sensing Camera
CAUTION
Heed the following cautions to assure the correct operation of the Forward Sensing
Camera (FSC).
¾ Do not remove the Forward Sensing Camera (FSC) cover.
¾ Do not place objects on the dashboard which refl ect light.
¾ Do not apply accessories, stickers or fi lm to the windshield near the Forward Sensing
Camera (FSC). If there are objects in front of the Forward Sensing Camera (FSC) lens,
even a transparent sticker, they will cause the system to not operate correctly.
¾ Always keep the windshield glass around the camera clean by removing dirt or
fogging. Use the windshield defroster to remove fogging on the windshield.
¾ When cleaning the windshield, do not allow glass cleaners or similar cleaning agent
to get on the Forward Sensing Camera (FSC) lens. In addition, do not touch the
Forward Sensing Camera (FSC) lens.
¾ Consult an Authorized Mazda Dealer regarding cleaning the interior side of the
windshield around the Forward Sensing Camera (FSC).
¾ Be careful not to scratch the Forward Sensing Camera (FSC) lens or allow it to get
dirty. Also, do no take the camera apart. Otherwise, it could result in damage or
malfunction.
¾ Consult an Authorized Mazda Dealer before performing repairs around the Forward
Sensing Camera (FSC).
¾ The Forward Sensing Camera (FSC) is installed to the windshield. Consult an
Authorized Mazda Dealer for windshield repair and replacement.
¾ When performing repairs around the rearview mirror, consult an Authorized Mazda
Dealer.
¾ Consult an Authorized Mazda Dealer regarding cleaning of the Forward Sensing
Camera (FSC) lens.
¾ Do not hit or apply strong force to the Forward Sensing Camera (FSC) or the area
around it. If strong force is applied, stop using the Lane Departure Warning System
(LDWS) and the High Beam Control System (HBC), and consult an Authorized Mazda
Dealer.
¾ The direction in which the Forward Sensing Camera (FSC) is pointed has been fi nely
adjusted. Do not change the installation position of the Forward Sensing Camera
(FSC) or remove it. Otherwise, it could result in damage or malfunction.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 198 of 585
4–73
When Driving
Brake
Do not rely completely on the Smart City Brake Support (SCBS) system:
¾ The Smart City Brake Support (SCBS) system is only designed to reduce damage in the
event of a collision. Over reliance on the system leading to the accelerator pedal or
brake pedal being mistakenly operated could result in an accident.
¾ The Smart City Brake Support (SCBS) is a system which operates in response to a
vehicle ahead. The system may not be able to detect or react to 2-wheeled vehicles or
pedestrians.
¾ The laser sensor for the Smart City Brake Support (SCBS) system is installed near the
rearview mirror. To assure the correct operation of the Smart City Brake Support
(SCBS), heed the following cautions.
¾
Do not apply stickers to the surface of the windshield near the laser sensor
(including transparent stickers). Otherwise, the laser sensor may not be able to
detect vehicles or obstructions ahead which could result in an accident.
¾
Do not disassemble the laser sensor.
¾
If cracks or damage caused by fl ying gravel or debris is visible near the laser sensor,
stop using the Smart City Brake Support (SCBS) system immediately and have your
vehicle inspected by an Authorized Mazda Dealer. If the vehicle continues to be
driven with cracks or scratch marks left on the windshield near the laser sensor, the
system may operate unnecessarily and cause an unexpected accident.
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-78 .
¾
When replacing the windshield wipers or windshield, consult an Authorized Mazda
Dealer.
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles or obstructions ahead. This will result in the Smart City Brake Support
(SCBS) system not operating normally or mistakenly operating, which could cause a
serious accident.
Turn off the Smart City Brake Support (SCBS) when the vehicle is running on a chassis
roller or being towed:
Turn off the Smart City Brake Support (SCBS) system to prevent mistaken operation when
the vehicle is running on a chassis roller or being towed. See the next page on how to turn
off the Smart City Brake Support (SCBS).
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page 4-78 .
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 201 of 585
4–76
When Driving
Brake
Laser Sensor Handling
The Smart City Brake Support (SCBS) laser sensor is installed at the top of the windshield
near the rearview mirror.
Always keep the surface of the windshield around the laser sensor clean to assure proper
operation of the Smart City Brake Support (SCBS) system.
WARNING
As there is the possibility of eye damage occurring from the laser, always heed the
following precautions:
¾ Never remove the sensor.
¾ A removed sensor will not meet the conditions for a class 1M laser under the IEC
60825-1 specifi cation and therefore eye safety cannot be assured.
¾ Do not peer into the sensor using optical instruments with a magnifi cation function
such as magnifying glasses, and microscopic and objective lenses within a distance of
100 mm (3.94 in) from the sensor.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 253 of 585
4–128
When Driving
Rear View Monitor
Viewing the Display
Guide lines which indicate the width of the vehicle (yellow) are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.
b
a
a) Vehicle width guide lines (yellow)
These guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines.
These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red and yellow lines indicate the points about 50 cm (19 in) for the red line and 100
cm (39.3 in) for the yellow lines from the rear bumper (at the center point of each of the
lines).
CAUTION
The guide lines on the screen are fi xed lines. They are not synced to the driver's turning
of the steering wheel. Always be careful and check the area to the vehicle's rear and the
surrounding area directly with your eyes while backing up.
Rear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending on
the traffi c, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so confi rm the surrounding conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 390 of 585
*Some models.5–133
Interior Features
Interior Equipment
Sunvisors
When you need a sunvisor, lower it for use
in front or swing it to the side.
Sunvisor
Side Extension Sunvisors *
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, retract the
visor extender to its original position.
Otherwise, the visor extender could hit
the rearview mirror.
Vanity Mirrors
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.
To prevent the battery from being
discharged, the vanity mirror will only
illuminate in the tilt range shown below.
off
off
on
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
