Rear Cross Traffic Alert (RCTA)
If there is the possibility of a collision
with an approaching vehicle while the
rear view/rear wide view is displayed, a
warning is displayed on the center
display.
The Rear Cross Traffic Alert (RCTA)
uses rear side radar sensor to detect
vehicles approaching from the rear left
and right sides of the vehicle, and it
assists the driver in checking the rear of
the vehicle while reversing by flashing
the Blind Spot Monitoring (BSM)
warning lights and activating the
warning sound.
Refer to Rear Cross Traffic Alert
(RCTA) on page 4-114.
360°View Monitor Range
1. Cameras
2. Ultrasonic sensors
3. Front/Rear side radar sensors
WA R N I N G
Always confirm the safety of the area
around the vehicle with the mirrors and
directly with your eyes when driving:
The 360°View Monitor is an auxiliary device
which assists the driver in checking the
safety of the area around the vehicle.
The shooting range of the cameras and
detection range of the sensors are limited.
For example, the areas in black at the front
and rear of the vehicle image and the
seams where each of the camera images
merge are blind spots where an obstruction
may not be visible. In addition, the
extended vehicle width lines and projected
vehicle path lines are only to be used as
references, and the images on the screen
may differ from the actual conditions.
CAUTION
 Do not use the 360°View Monitor under
any of the following conditions.
 Icy or snow-covered roads.
 Tire chains or a te mporary spare tire is
installed.
 The front doors or the rear doors is not
fully closed.
 The vehicle is on a road incline.
 The door mirrors are retracted.
 Do not hit the front/rear camera, front/
rear bumper, and door mirrors forcefully.
The camera position or installation angle
may shift.
 The cameras are of a waterproof
structure. Do not disassemble, modify, or
remove a camera.
When Driving
i-ACTIVSENSE
4-167
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

The camera cover is made of hard
plastic, therefore do not apply oil film
remover, organic solvents, wax, or
coating agents. If any such agent gets on
the camera cover, wipe it
off using a soft
cloth immediately.
 Do not rub the camera lens forcefully, or
clean it with an abrasive or hard brush.
Otherwise, it could scratch the camera
lens and negatively affect the images.
 Consult an Authorized Mazda Dealer for
repair, painting, or replacement of the
front/rear camera, front/rear bumper
and door mirrors.
 Heed the following cautions to assure
that the 360°View Monitor operates
normally.
 Do not modify the vehicle suspensions
or lower/raise the vehicle body, or
both.
 Always use wheels of the
specified type
and size for the front and rear wheels.
Consult an Authorized Mazda Dealer
for tire replacement.
 When the display is cold, images may
leave trails or the screen might be darker
than usual, making it
difficult to check
the vehicle surroundings. Always confirm
the safety at the front and around the
vehicle visually when driving.
 The method for parking/stopping the
vehicle using the 360°View Monitor
differs depending on the road
circumstances/conditions and the
vehicle conditions. When and how much
you turn the steering wheel will differ
depending on the situation, , therefore
always check the vehicle surroundings
directly with your eyes while using the
system.Also, before using the system, always
make sure that the vehicle can be
parked/stopped in the parking/stopping
space.
NOTE
If there are water droplets, snow, or mud
on the camera lens, wipe it off using a
soft cloth. If the camera lens is
especially dirty, wash it off with mild
detergent.
If the camera lens is touched or there is
any dirt on it, it could affect the screen
image. Wipe the lens using a soft cloth.
If the area where the camera is
installed, such as the front/rear bumper
or door mirrors, has been damaged in a
vehicle accident, the camera (position,
installation angle) may have shifted.
Always consult an Authorized Mazda
Dealer to have the vehicle inspected.
If the camera is subjected to excessive
changes in temperature such as by
pouring hot water on the camera during
cold weather, the 360°View Monitor may
not operate normally.
If the battery voltage is low, the screen
might be temporarily difficult to view,
however, this does not indicate a
problem.
The 360°View Monitor has limitations.
Objects under the bumper or near both
ends of the bumper cannot be displayed.
Obstructions above the upper image
range of the camera are not displayed.
Under the following conditions, the
screen might be difficult to view,
however this does not indicate a
problem.
When Driving
i-ACTIVSENSE
4-168
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

NOTE
Because there might be a difference between the image displayed on the screen and the
actual conditions, always check the safety of the surrounding area using the mirrors and
directly with your eyes when driving.
Even though the object displayed on the screen, such as a road curb or a division line of a
parking space, and the vehicle parallel guide lines appear parallel, they may not actually
be parallel.
▼Top View/Rear View
Use the top view/rear view to assist in checking the safety of
the surrounding area when
accelerating from a stop, parking, or stopping the vehicle.
Range of display ed screen image
1. Target object
NOTE
In the top view screen, the areas in black at the front and rear of the vehicle image and the
seams where each of the camera images merge are blind spots.
Because images displayed in the top view screen are processed from each camera, the top
view screen may display in the following ways.
If an image containing an object with a conspicuous color is picked up by any of the
cameras, the screen area for each camera may be affected and it may display in that
color.
When Driving
i-ACTIVSENSE
4-187
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Be careful not to scratch the Forward
Sensing Camera (FSC) lens or allow it
to get dirty.
 Do not remove the Forward Sensing
Camera (FSC) cover.
 Do not place objects on the dashboard
which
reflect light.
 Always keep the windshield glass
around the camera clean by removing
dirt or fogging. Use the windshield
defroster to remove fogging on the
windshield.
 Consult an Authorized Mazda Dealer
regarding cleaning the interior side of
the windshield around the Forward
Sensing Camera (FSC).
 Consult an Authorized Mazda Dealer
before performing repairs around the
Forward Sensing Camera (FSC).
 The Forward Sensing Camera (FSC) is
installed to the windshield. Consult an
Authorized Mazda Dealer for
windshield repair and replacement.
 When cleaning the windshield, do not
allow glass cleaners or similar cleaning
fluids to get on the Forward Sensing
Camera (FSC) lens. In addition, do not
touch the Forward Sensing Camera
(FSC) lens.
 When performing repairs around the
rearview mirror, consult an Authorized
Mazda Dealer.
 Consult an Authorized Mazda Dealer
regarding cleaning of the camera lens.Do not hit or apply strong force to the
Forward Sensing Camera (FSC) or the
area around it. If the Forward Sensing
Camera (FSC) is severely hit or if there
are cracks or damage caused by
flying
gravel or debris in the area around it,
stop using the following systems and
consult an Authorized Mazda Dealer.
 High Beam Control System (HBC)
 Lane Departure Warning System
(LDWS)
 Traffic Sign Recognition System
(TSR)
 Distance & Speed Alert (DSA)
 Driver Attention Alert (DAA)
 Driver Monitoring (DM)
 Mazda Radar Cruise Control (MRCC)
 Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function)
 Lane-keep Assist System (LAS)
 Traffic Jam Assist (TJA)
 Smart Brake Support (SBS)
 The direction in which the Forward
Sensing Camera (FSC) is pointed has
been finely adjusted. Do not change
the installation position of the Forward
Sensing Camera (FSC) or remove it.
Otherwise, it could result in damage or
malfunction.
 Always use tires for all wheels that are of
the specified size, and the same
manufacturer, brand, and tread pattern.
In addition, do not use tires with
significantly different wear patterns on
the same vehicle as the system may not
operate normally.
When Driving
i-ACTIVSENSE
4-201
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

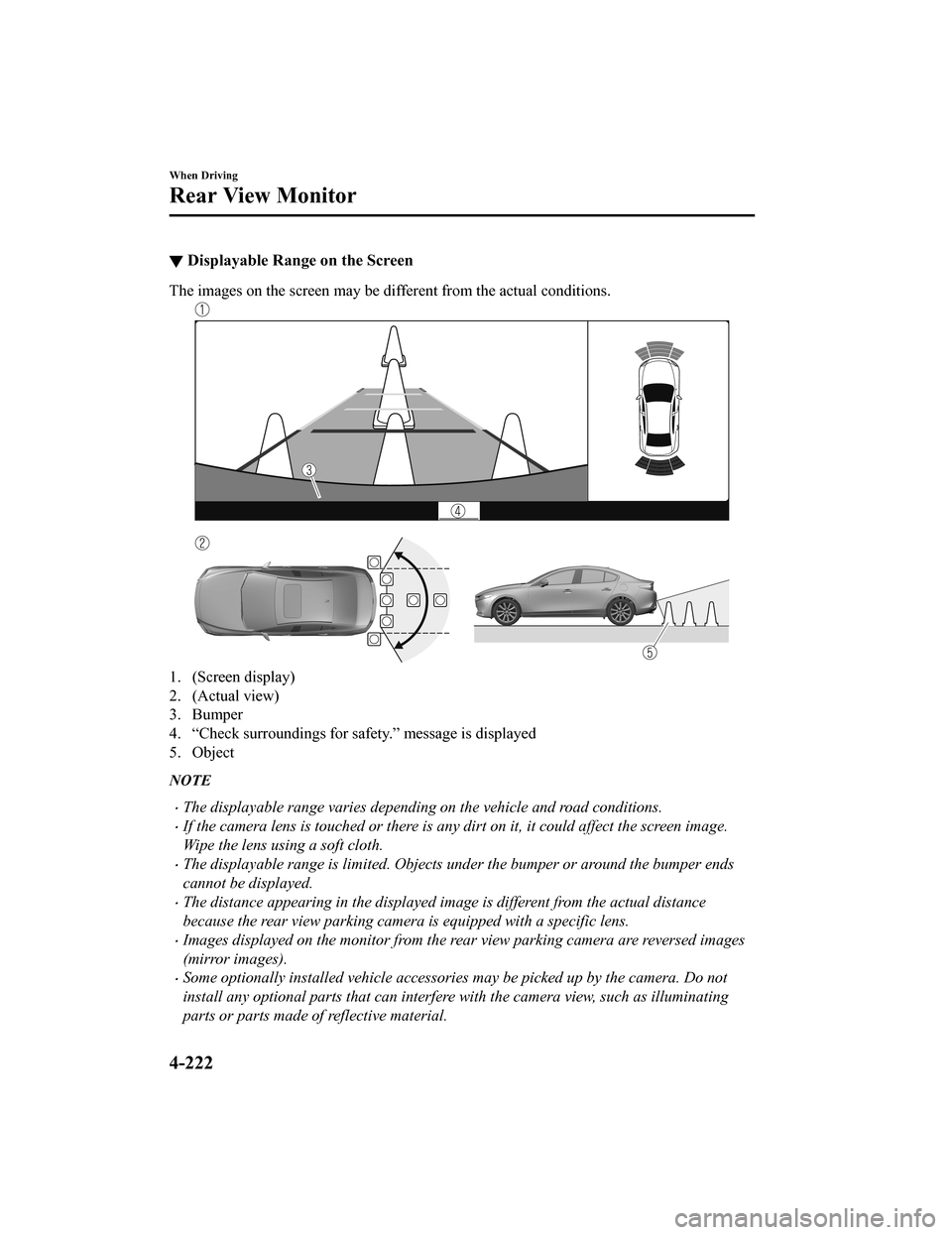

▼Displayable Range on the Screen
The images on the screen may be different from the actual condi
tions.
1. (Screen display)
2. (Actual view)
3. Bumper
4. “Check surroundings for safety.” message is displayed
5. Object
NOTE
The displayable range varies depending on the vehicle and road conditions.
If the camera lens is touched or there is any dirt on it, it could affect the screen image.
Wipe the lens using a soft cloth.
The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.
The distance appearing in the displayed imag e is different from the actual distance
because the rear view parking camera is equipped with a specific lens.
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
Some optionally installed vehicle accessories may be picked up by the camera. Do not
install any optional part s that can interfere with the camera view, such as illuminating
parts or parts made of reflective material.
When Driving
Rear View Monitor
4-222
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

When parking in a space with a division line on only one side of the parking space, the
division line and the vehicle width guide line appear aligned in the monitor, but they may
not actually be aligned on the ground.
Fixed assist lines display type
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
1. Shift the shift lever (manual t ransmission) or the selector lever (automatic transmission)
to reverse (R) position to switc h the display to the rear view monitor display.
When Driving
Rear View Monitor
4-229
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Sunvisors
▼Sunvisors
When you need a sunvisor, lower it for use
in front or swin
g it to the side.
▼Side Extension Sunvisors*
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, retract the visor
extender to its original position. Otherwise,
the visor extender could hit the rearview
mirror.
▼ Va n i t y M i r r o r s
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will
illuminate when you
open the cover.
The vanity mirror will only illuminate in
the tilt range shown in the figure.

1. Vanity mirror light
2. On
3. Off

NOTE
If a vanity mirror light is left on with the
ignition switched OFF, the light is turned
off automatically to prevent the battery
from being discharged.

The vanity mirror light can be turned on
again by doing any of the following
operations:
Opening/closing any door.
Unlocking any door.
Switching the ignition to ACC or ON.
Switching an overhead light/front map
light on.
Interior Features
Interior Equipment
5-34*Some models.
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Index
Cruise Control................................. 4-212Cruise control switc h.................4-212
Cruise standby indication (white)/
cruise set indication (green)...... 4-212
Cup Holder........................................ 5-38
Customer Assistance (Canada)........... 8-6
Customer Assistance (Mexico)......... 8-10
Customer Assistance (Puerto Rico).... 8-9
Customer Assistance (U.S.A.)............ 8-2
Cylinder Deactivation... .................... 4-11
D
Daytime Running Lights................... 4-49
Defogger........... ................................. 4-56
Mirror...........................................4-57
Rear window........... .................... 4-56
Dimensions.......................................... 9-6
Display.............................................. 4-12
Distance & Speed Alert (DSA)....... 4-106 Indication on display................. 4-107
Door Locks........................................ 3-11
Door-ajar Warning Beep................... 7-45
Driver Attention Aler t (DAA).........4-107
Driver Monitoring Cam era..............4-211
Driver Monitoring (DM)................. 4-109
Drive Selection..................................4-79
Driving In Flooded Ar ea...................3-49
Driving on Uneven Road.................. 3-50
Driving Position Memo ry................. 2-10
Driving Tips...................................... 3-44 Automatic transmission............... 4-43
Break-in period............................ 3-44
Driving in flooded a rea............... 3-49
Driving on uneven road...............3-50
Floor mat..................................... 3-46
Hazardous driving.. ..................... 3-45
Overloading............. .................... 3-49
Rocking the vehicle. .................... 3-46
Saving fuel and protection of the
environment................................. 3-44
Winter driving............................. 3-47
Dynamic Stability Control (DSC)..... 4-77 DSC OFF indicator light............. 4-78
DSC OFF switch......................... 4-78
TCS/DSC indicator light............. 4-77
E
Electric Parking Brak e (EPB)........... 4-64
Electric Parking Brake (EPB) Warning
Beep...................................................7-43
Emergency Starting Push-starting................................ 7-20
Starting a flooded engine............ 7-20
Emergency Towing Tiedown hooks........ .................... 7-24
Towing description...................... 7-23
Emission Control System..................3-26
Engine Coolant.........................................6-17
Engine compartment overview.... 6-14
Exhaust gas..................................3-26
Hood release................................ 6-12
Oil................................................ 6-15
Starting...........................................4-5
Essential Information.......................... 6-2
Event Data Recorder......................... 8-19
Excessive Speed Warning................. 7-45
Exterior Care..................................... 6-44 Aluminum wheel maintenance.... 6-49
Bright-metal maint enance........... 6-48
Maintaining the fini sh................. 6-45
Plastic part maintenance.............. 6-49
F
Flasher
Hazard warning........................... 4-58
Headlights.................................... 4-44
Flat Tire
Changing a flat tire........................7-7
Mounting the spare tire............... 7-12
10-3
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Index
MirrorsOutside mirrors..... ....................... 3-30
Rearview mirror.......................... 3-32
Mirror Defogger......... ....................... 4-57
Moonroof...........................................3-37
Multi-information Display................ 4-14
O
Outside Mirrors......... ........................ 3-30
Overhead Console............................. 5-42
Overhead Lights................................ 5-35
Overheating....................................... 7-21
Overloading....................................... 3-49
Owner Maintenance Closing the hood...... ................... 6-13
Engine compartment overview.... 6-14
Key battery replacemen t..............6-28
Opening the hood........................ 6-12
Owner maintenance
precautions................................... 6-11
P
Parking Brake....................................4-64
Parking Sensor System................... 4-235 Park assist sensor system
operation.................................... 4-239
Sensor detection range.............. 4-237
Power Steering.................................. 4-82
Power Windows............. ................... 3-34
R
Rearview Mirror........ ........................3-32
Rear Coat Hooks....... ........................ 5-41
Rear Cross Traffic Alert (RCTA).... 4-114
Rear Cross Traffic Alert (RCTA)
Warning Beep.................................... 7-44
Rear Door Child Safet y Locks.......... 3-18
Rear Side Radar Sensor.................. 4-208
Rear View Monitor......................... 4-220
Displayable range on the
screen......................................... 4-222
Rear view monitor operation..... 4-225
Rear view parking camera
location...................................... 4-221
Switching to the rear view monitor
display........................................4-221
Variance between actual road
conditions and displayed
image......................................... 4-232
Viewing the display................... 4-223
Rear Window Defogger. ................... 4-56
Rear Window Washer....................... 4-55
Rear Window Wiper.... ..................... 4-55
Recommended Oil.............................6-15
Recording of Vehicle Data................ 8-20
Recreational Towing......................... 3-51
Registering Your Vehicle in A Foreign
Country.............................................. 8-16
Replacement Fuse..............................................6-38
Key battery.................................. 6-28
Light bulbs...................................6-35
Tires............................................. 6-33
Wheel........................................... 6-34
Wiper........................................... 6-21
Rocking the Vehicle.......................... 3-46
S
Safety Defects, Reporting
(Canada)............................................ 8-14
Safety Defects, Repor ting (U.S.A.)... 8-12
Saving Fuel and Protection of the
Environment...................................... 3-44
Scheduled Maintenance Canada........................................... 6-6
Mexico........................................... 6-8
U.S.A. and Puerto Rico................. 6-4
Seats Driver's seat................................... 2-5
10-7
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
