Location of the Tire Label(Placard)
▼Location of the Tire Label (Placard)
You will find the tire
label containing tire
inflation pressure by tire size and other
important info rmation on the driver's side
B-pillar or on the edge of the driver's door
frame.

SAMPLE
▼ Recommended Tire Inflation
Pressure
On the tire label you will find the
recommended tire inflation pressure in
both kPa and psi for the tires installed as
original equipment on
the vehicle. It is
very important that the inflation pressure
of the tires on your vehicle is maintained
at the recommended pressure. You should
check the tire pressure regularly to insure
that the proper inflation pressure is
maintained.
Refer to Tires on page 9-9.
NOTE
Tire pressures listed on the vehicle placard
or tire information label indicate the
recommended cold tire inflation pressure,
measured when the tires are cold, after the
vehicle has been parked for at least 3
hours. As you drive, the temperature in the
tire warms up, increasing the tire pressure.
WA R N I N G
Always check the tire inflation pressures on
a regular basis according to the
recommended tire inflation pressure on the
tire label and in conjunction with the
information in this owner's manual:
Driving your vehicle with under-inflated
tires is dangerous.
Under-inflation is the most common cause
of failures in any kind of tire and may result
in severe cracking, tread separation or
“blowout”, with unexpected loss of vehicle
control and increased risk of injury.
Under-inflation increases sidewall
flexing
and rolling resistance, resulting in heat
buildup and internal damage to the tire. It
results in unnecessary tire stress, irregular
wear, loss of control and accidents. A tire
can lose up to half of its air pressure and
not appear to be flat!
It is impossible to determine whether or not
tires are properly inflated just by looking at
them.
▼ Checking Tire Pressure
1. When you check the air pressure, make
sure the tires are cold ―meaning they
are not hot from driving even a mile.
2. Remove the cap from the valve on one
tire.
3. Firmly press a tire gauge onto the
valve.
4. Add air to achieve recommended air pressure.
5. If you overfill the tire, release air by
pushing on the metal stem in the center
of the valve. Then recheck the pressure
with your tire gauge.
6. Replace the valve cap.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-27
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

7. Repeat with each tire, including thespare.
NOTE
Some spare tires require higher
inflation pressure.
8. Visually inspect the tires to make sure
there are no nails or other objects
embedded that could poke a hole in the
tire and cause an air leak.
9. Check the sidewalls to make sure there are no gouges, cuts, bulges, cracks or
other irregularities.
▼Glossary of Terms
Tire Placard:
A label indicating the OE
tire sizes, recommended inflation pressure,
and the maximum weight the vehicle can
carry.
Tire Identification Number (TIN): A
number on the sidewall of each tire
providing information about the tire brand
and manufacturing plant, tire size, and
date of manufacture.
Inflation Pressure: A measure of the
amount of air in a tire.
kPa: Kilopascal, the metric unit for air
pressure.
psi: Pounds per square inch, the English
unit for air pressure.
B-pillar: The structural member at the
side of the vehicle behind the front door.
Original Equipment (OE): Describes
components originally equipped on the
vehicle.
Vehicle Load Limit: The maximum value
of the combination weight of occupants
and cargo.
Bead Area of the Tire: Area of the tire
next to the rim.
Sidewall Area of the Tire: Area between
the bead area and the tread.
Tread Area of the Tire: Area on the
perimeter of the tire t hat contacts the road
when it's mounted on the vehicle.

Seating capacity means the total
allowable number of vehicle occupants.
Seating capacity is described on the tire
label.

Production options weight is the
combination weight of installed regular
production options weighing over 2.3
kilograms in excess of the standard items
which they replace, and not previously
considered in the curb weight or accessory
weight, including heavy duty brakes, ride
levelers, roof rack, heavy duty battery, and
special trim.

Rim is the metal support (wheel) for a tire
or a tire and tube assembly upon which the
tire beads are seated.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-28
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Tire Maintenance
▼Tire Maintenance
Improper or inad
equate vehicle
maintenance can cause tires to wear
abnormally. Here are some important
maintenance points:
▼ Tire Inflation Pressure
Inspect all tire p
ressure monthly
(including the spare) when the tires are
cold. Maintain recommended pressures for
the best ride, top handling, and minimum
tire wear. Use the pressures specified on
the vehicle tire inform ation placard or tire
label for optimum service.
▼ Tire Rotation
To equalize tread wear, rotate the tires
every 16,000 km (10,000 miles) at the
latest or sooner if irregular wear develops.
Mazda recommends to rotate every 8,000
km (5,000 miles) to help increase tire life
and distribute wear more evenly.
1. Forward
Do not include (TEMPORARY USE
ONLY) spare tire in rotation.

Inspect the tires for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:
Incorrect tire pressure
Improper wheel alignment
Out-of-balance wheel
Severe braking
After rotation, inflate all tire pressures to
specification (page 9-9) and inspect the
lug nuts for tightness.
CAUTION
Rotate unidirectional tires and radial tires
that have an asymmetrical tread pattern or
studs only from front to rear, not from side
to side. Tire performance will be weakened
if rotated from side to side.
▼ Replacing a Tire
WA R N I N G
Always use tires that are in good condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and traction
could result in an accident.
If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.
1. New tread
2. Worn tread
3. Tread wear indicator

You should replace the tire before the band
crosses the entire tread.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-29
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

Vehicle Loading
▼Vehicle Loading
WA R N I N G
Do not tow a trailer with this vehicle:
Towing a trailer wi
th this vehicle is
dangerous because it has not been
designed to tow a trailer and doing so will
affect the drive system which could result in
vehicle damage.
This section will guide you in the proper
loading of your vehicle, to keep your
loaded vehicle weight within its design
rating capability. Properly loading your
vehicle will provide maximum return of
vehicle design performance. Before
loading your vehicle, familiarize yourself
with the following terms for determining
your vehicle's weight ratings, from the
vehicle's Safety Certification Label and
Tire and Load Information Label:
WA R N I N G
Overloaded Vehicle:
Overloading a vehicle is dangerous. The
results of overloading can have serious
consequences in terms of passenger safety.
Too much weight on a vehicle's suspension
system can cause spring or shock absorber
failure, brake failure, handling or steering
problems, irregular tire wear, tire failure or
other damage.
Overloading makes a vehicle harder to
drive and control. It also increases the
distance required for stopping. In cases of
serious overloading, brakes can fail
completely, particularly on steep grades.
The load a tire will carry safely is a
combination of the size of the tire, its load
range, and corresponding inflation
pressure.
Never overload the vehicle and always
observe the vehicle's weight ratings from
the vehicle's Safety Certification and Tire
and Load Information labels.
Base Curb Weight is the weight of the
vehicle including a f ull tank of fuel and
all standard equip ment. It does not
include passengers, cargo, or optional
equipment.

Vehicle Curb Weight is the weight of
your new vehicle when you picked it up
from your dealer plus any aftermarket
equipment.

PAYLOAD
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-31
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

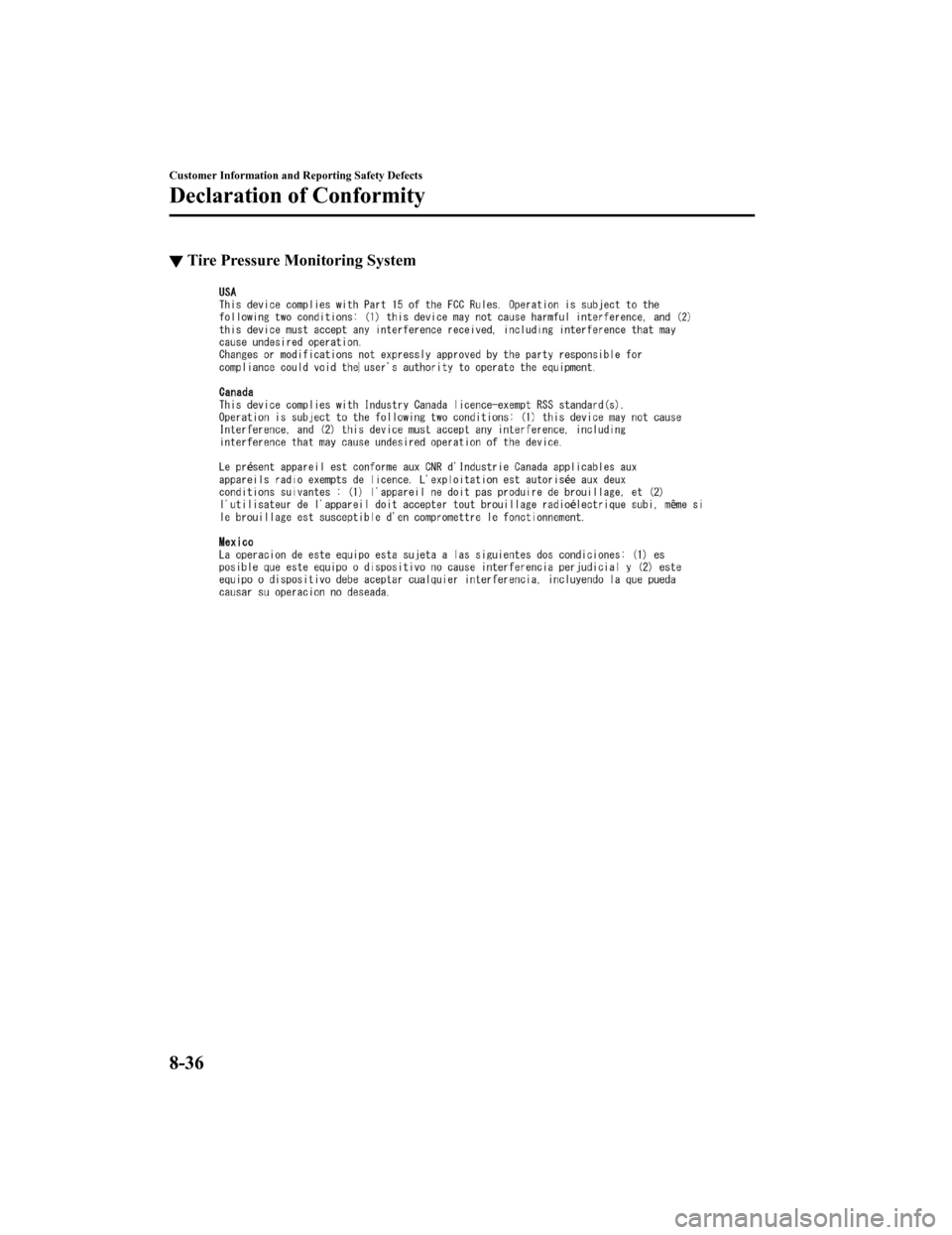

▼Tire Pressure Monitoring System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-36
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

Vehicle InformationLabels
▼Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
▼Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼ Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification Numbers
9-2
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

Interior light
Light bulbCategory
Wa t t ag e UN-R*1
Overhead light (Front)/Map lights
LED*2―
Overhead light (Rear) LED
*2―
Vanity mirror lights
*LED*2―
Trunk light (4-Door) 5 ―
Luggage compartmen t light (5-Door)
LED
*2―
*1 UN-R stands for United Nations Regulation.*2 LED is the abbreviation for Light Emitting Diode.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation press
ure.
Refer to Tire Pressure Label on page 9-2.
Refer to Tire Inflation Pressure on page 6-31.
Standard tire
(U.S.A. and Canada)
Tire size Inflation pressure
Front Rear
205/60R16 92H M+S 250 kPa (36 psi)250 kPa (36 psi)
215/45R18 89V M+S 250 kPa (36 psi)250 kPa (36 psi)
Specifications
Specifications
*Some models.9-9
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

(Mexico)
Tire sizeInflation pressure
Up to 3 persons ―Full load
205/60R16 92V Front
250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
215/45R18 89W Front
250 kPa (2.5 bar, 36 psi) 270 kPa (2.7 bar, 39 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
1 person's weight: About 75 kg
Temporary spare tire
Tire size Inflation pressure
T125/70D16 96M
* １420 kPa (60 psi)
T125/80D16 97M
*2420 kPa (60 psi)
*1FWD*2AWD
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following to rque.
108―147 N·m (12―14 kgf·m, 80―108 ft·lbf)
▼ Fuses
Refer to Fuses on page 6-38.
Specifications
Specifications
9-10
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

Index
K
Keyless Entry System......................... 3-4
Keys.....................................................3-2Key suspend function.................... 3-8
Transmitter..................................... 3-5
Key Left-in-luggage Compartment/Trunk
Warning Beep (With the advanced
keyless function)............................... 7-43
Key Left-in-vehicle Warning Beep (With
the advanced keyless function)......... 7-43
Key Removed from Vehicle Warning
Beep...................................................7-42
Key Suspend Function........................ 3-8
L
Label Information
Chassis number..............................9-2
Engine number.............................. 9-3
Motor vehicle safety standard
label............................................... 9-2
Tire pressure label......................... 9-2
Vehicle emission control information
label............................................... 9-2
Vehicle identification number........9-2
Lane Departure Warning sound........ 7-44
Lane Departure Warning System
(LDWS)............................................. 4-90
Lane-change Signals......................... 4-50
Lane-keep Assist System (LAS)..... 4-151
Leaving Home Light......................... 4-48
Liftgate.............................................. 3-19 Luggage compartment................. 3-22
When liftgate/trunk lid cannot be
opened..........................................7-46
Lights-on Reminder.......................... 7-41
Light Bulbs Replacement................................ 6-35
Specifications.................................9-8
Low Fuel Warning Beep................... 7-43
Lubricant Quality................................ 9-4
Luggage Compartment.. .................... 5-43
Luggage Compartment L ight............ 5-35
M
Maintenance
Information.................................... 6-2
Scheduled (Canada).......................6-6
Scheduled (Mexico)...................... 6-8
Scheduled (U.S.A. and Puerto
Rico).............................................. 6-4
Manual Transmission Shift Pattern... 4-31
Map Lights........................................ 5-35
Mazda Connect................................. 5-14 Appendix..................................... 5-25
Connected Service....................... 5-33
Mazda Connect Basic
Operations....................................5-17
Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function).......................................... 4-126 Close proximity warning........... 4-130
Display indication......................4-129
Setting the system..................... 4-131
Stop hold control....................... 4-136
Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function) System Warnings............... 7-45
Mazda Radar Cruise Control
(MRCC)........................................... 4-118 Close proximity warning........... 4-121
Display indication......................4-120
Setting the system..................... 4-122
Shift-up/shift-down request
display........................................4-126
Mazda Radar Cruise Control (MRCC)
System Warnings......... ......................7-45
Message Indicated on Multi-information
Display.............................................. 7-38
Meters................................................ 4-12
10-6
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Index
Front passenger's seat.................. 2-13
Front seat....................................... 2-5
Head restraint.............................. 2-17
Rear seat...................................... 2-14
Seat warmer................................. 2-20
Seat Belt System Automatic locking....................... 2-25
Emergency locking...................... 2-25
Extender....................................... 2-30
Pregnant women.......................... 2-25
Seat belt precautions................... 2-23
Seat Belt Warning Beep.................... 7-41
Security System
Immobilizer system..................... 3-40
Theft-deterrent system.................3-42
Shift Position Warning Beep.............7-43
Smart Brake Support (S BS)............ 4-155
Collision warning.... .................. 4-156
Stopping the Smart Brake Support
(SBS) system operation............. 4-157
Smart Brake Support [Rear Crossing]
(SBS-RC)........................................ 4-161
Collision warning.... .................. 4-165
Stopping the Smart Brake Support
[Rear Crossing] (SBS-RC) system
operation.................................... 4-165
Smart Brake Support [Rear] (SBS-
R)..................................................... 4-157
Collision warning.... .................. 4-160
Stopping the Smart Brake Support
[Rear] (SBS-R) system
operation.................................... 4-160
Spare Tire............................................ 7-5
Spare Tire and Tool Storage............... 7-3
Specifications Air conditioner......... ..................... 9-8
Capacities.......................................9-5
Dimensions.................................... 9-6
Electrical system............................9-4
Engine............................................ 9-4
Light bulbs.....................................9-8Lubricant quality........................... 9-4
Tires............................................... 9-9
Weights.......................................... 9-6
SRS Air Bags
Driver and front passenger occupant
classification system.................... 2-71
How the SRS air bags work........ 2-64
Limitations to SRS air bag.......... 2-70
Monitoring................................... 2-76
SRS air bag deployment
criteria.......................................... 2-68
Supplemental restraint system
components.................................. 2-62
Supplemental restraint system (SRS)
precautions................................... 2-55
Starting the Engine..............................4-5
Steering Wheel
Heated steering wheel................. 2-21
Horn............................................. 4-57
Storage Compartments...................... 5-41 Center console............................. 5-42
Glove compartment..................... 5-42
Overhead console........................ 5-42
Storage pocket............................. 5-42
Storage Pocket...................................5-42
Sunshade............................................3-39
Sunvisors........................................... 5-34
T
Theft-Deterrent System..................... 3-42
Three-flash Turn Signal.................... 4-50
Tiedown Hook...................................7-24
Tires................................................... 6-31
Replacing a tire........................... 6-33
Replacing a wheel....................... 6-34
Snow tires.................................... 3-47
Specifications.................................9-9
Temporary spare tire....................6-33
Tire chains................................... 3-48
Tire inflation pressure................. 6-31
10-8
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
