A beep sound is heard for confirmation
when the doors, fuel-filler lid, and
liftgate are locked/unlocked using the
touch sensor. If you prefer, the beep
sound can be turned off.
The volume of the beep sound can also
be changed. Refer to the Settings section
in the Mazda Connect Owner's Manual.
(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-42.
The setting can be changed so that the
doors, fuel-filler lid, and liftgate are
locked automatically without touching
the sensing area of the touch sensor.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
(Walk-away auto lock function)
A beep sound is heard when all doors
and the liftgate/trunk lid are closed
while the transmitter is being carried.
All the doors, fuel-filler lid, and liftgate
are locked automatically when the
transmitter is out of the operational
range. Also, the hazard warning lights
flash once. (Even if the driver is in the
operational range, all the doors,
fuel-filler lid, and liftgate are locked
automatically after about 30 seconds.) If
you are out of the operational range
before the doors and the liftgate/trunk
lid are completely closed or another
transmitter is left in the vehicle, the
walk-away auto lock function will not
work. Always make sure that all doors
and the liftgate/trunk lid are closed and
locked before leaving the vehicle. The
walk-away auto lock function does not
close the power windows.
(Auto re-lock function)
After unlocking with the touch sensor,
all the doors , fuel-filler lid, and liftgate
will automatically lock if any of the
following operations are not performed
within about 60 seconds.
Opening a door or the liftgate/trunk
lid.
Switching the igniti on to any position
other than off.
If your vehicle has a theft-deterrent
system, the hazard warning lights will
flash for confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼ Locking, Unlocking with
Transmitter
The following locations can be locked/
unlocked by operating the keyless entry
system transmitter.
Refer to Keyless Entry
System (page 3-4).
All doors
Fuel-filler lid
Liftgate
▼ Locking, Unlocking with Door-Lock
Switch
Door-lock switch on driver’s and front
passenger's door
The following locations are locked/
unlocked by pressing the door-lock switch.
All doors
Fuel-filler lid
Liftgate
Before Driving
Doors and Locks
3-15
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

Driver's door
1. Unlock
2. Lock
Front passenger's door
1. Unlock
2. Lock
Locking from the outside using the
door-lock switch
When locking from the outside using the
door-lock switch, press the lock side of the
door-lock switch with all of the following
conditions met and then close all the
doors.
The ignition is switched OFF.
Any door is open.
NOTE
To prevent the transmitter from being
left in the vehicle, make sure that you
carry the transmitter before locking.
After locking by pressing the door-lock
switch and when all the doors are closed
with the transmitter left in the vehicle,
all the doors, liftgate, and fuel-filler lid
are unlocked.
After locking by pressing the door-lock
switch and when the liftgate/trunk lid is
closed last with th e transmitter left in
the vehicle, only the liftgate/trunk lid is
unlocked.

Door-lock switch on liftgate (With the
advanced keyless function)
All doors, fuel-filler lid, and the liftgate
can be locked by pressing the door-lock
switch.

When locking using the door-lock switch,
press the door-lock switch with all of the
following conditions met and then close
the liftgate.
You are carrying the transmitter.
The ignition is switched OFF.
All the doors are closed.
When locking, the hazard warning lights
and a beep sound operate 1 time.
Before Driving
Doors and Locks
3-16
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Do not modify or replace the liftgate
damper stay. Consult an Authorized
Mazda Dealer if a liftgate damper stay is
deformed or damaged for reasons such
as a collision or if there is some other
problem.
▼ Opening and Clos
ing the Liftgate/
Trunk Lid
Opening the liftgate (5–door)
Using the electric liftgate opener
Unlock the doors and liftgate, then press
the electric liftgate opener on the liftgate
and raise the liftgate when the latch
releases.
NOTE
(With the advanced keyless function)
A locked liftgate can also be opened
while the key is being carried.
When opening the liftgate with the doors
and the liftgate locked, it may require a
few seconds for the liftgate latch to
release after the electric liftgate opener
is pressed.
The liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener. If the liftgate cannot be opened
despite doing this procedure, first push
the liftgate completely closed, then press
the electric liftgate opener to fully open
the liftgate.
When the liftgate latch is released by
pressing the electric liftgate opener, the
liftgate raises slightly. If the liftgate is
not operated for a certain period of
time, the liftgate cannot be raised.
To o p e n
Press the electric liftgate opener again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by pressing
the electric liftgate opener, then close it
after waiting at least 1 second.
If the liftgate is not fully closed, the
driver is notified by a warning indicated
in the instrument cluster.
If the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate c annot be unlocked, the
liftgate can be opened by performing the
emergency procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-46.
Before Driving
Doors and Locks
3-20
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

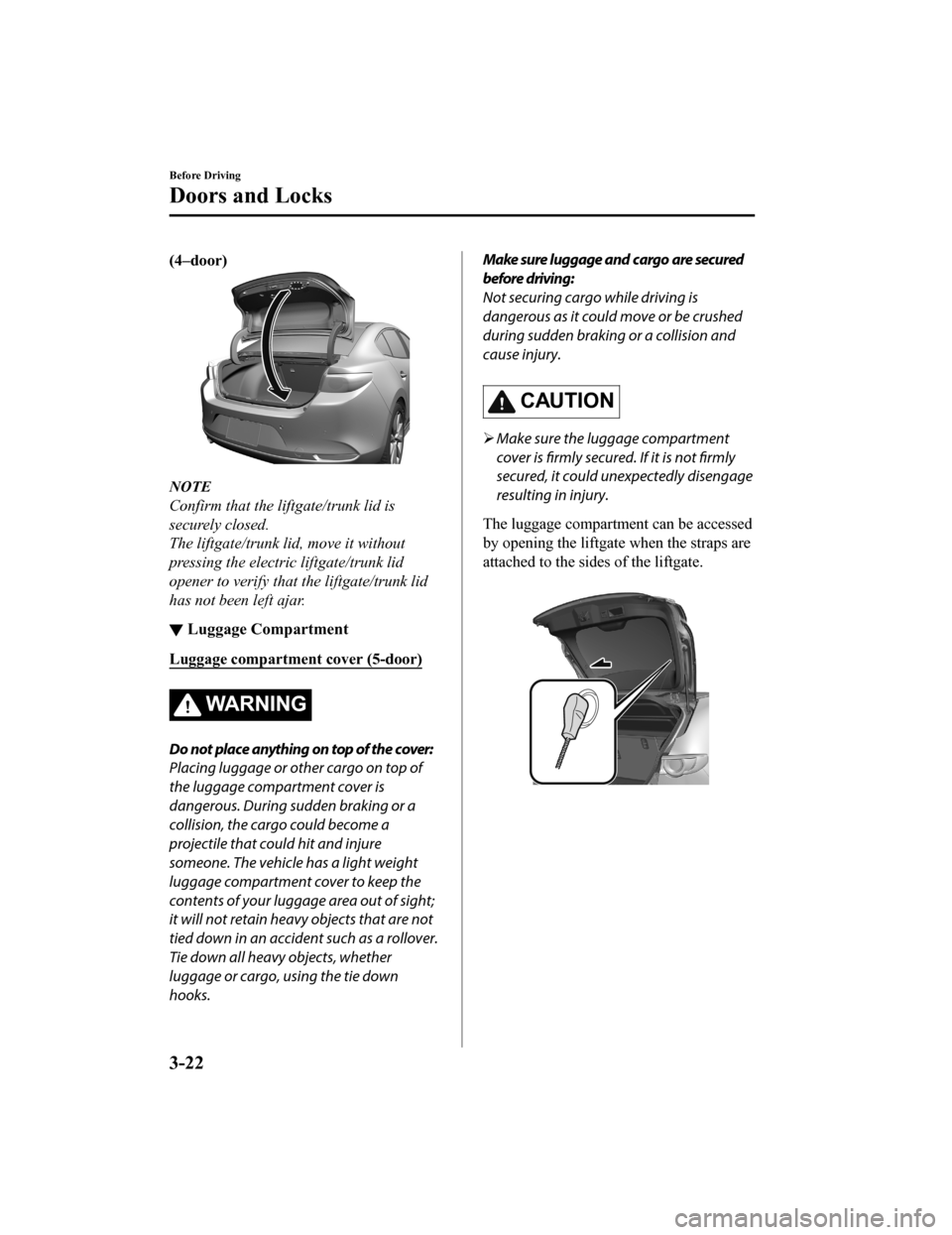

(4–door)
NOTE
Confirm that the liftgate/trunk lid is
securely closed.
The liftgate/trunk lid, move it without
pressing the electric liftgate/trunk lid
opener to verify that the liftgate/trunk lid
has not been left ajar.
▼ Luggage Compartment
Luggage compartment cover (5-door)
WA R N I N G
Do not place anything on top of the cover:
Placing luggage or other cargo on top of
the luggage compartment cover is
dangerous. During sudden braking or a
collision, the cargo could become a
projectile that could hit and injure
someone. The vehicle has a light weight
luggage compartment cover to keep the
contents of your luggage area out of sight;
it will not retain heavy objects that are not
tied down in an accident such as a rollover.
Tie down all heavy objects, whether
luggage or cargo,
using the tie down
hooks.
Make sure luggage and cargo are secured
before driving:
Not securing cargo while driving is
dangerous as it could move or be crushed
during sudden braking or a collision and
cause injury.
CAUTION
 Make sure the luggage compartment
cover is
firmly secured. If it is not
firmly
secured, it could unexpectedly disengage
resulting in injury.
The luggage compartment can be accessed
by opening the liftgate when the straps are
attached to the sides of the liftgate.

Before Driving
Doors and Locks
3-22
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Always keep the car from being a tempting
place to play by latching the rear seats,
doors and the trunk, and keeping the keys
where children can not play with them:
Leaving children or animals unattended in
a parked vehicle is dangerous. Babies left
sleeping and children who lock themselves
in cars or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any time.
Do not leave the car, the rear folding seats
or the trunk unlocked.
▼Opening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.

The inside trunk release lever is located on
the inside of the trunk lid.
Before Driving
Doors and Locks
3-24
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

Do not run the engine when inside an
enclosed area:
Running the engine inside an enclosed
area, such as a garage, is dangerous.
Exhaust gas, which contains poisonous
carbon monoxide, could easily enter the
cabin. Loss of consciousness or even death
could occur.
Open the windows or adjust the heating or
cooling system to draw fresh air when
idling the engine:
Exhaust gas is dangerous. When the vehicle
is stopped with the windows closed and the
engine running for a long time even in an
open area, exhaust gas, which contains
poisonous carbon monoxide, could enter
the cabin. Loss of consciousness or even
death could occur.
Clear snow from underneath and around
your vehicle, particularly the tail pipe,
before starting the engine:
Running the engine when a vehicle is
stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow,
allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous
carbon monoxide, it could cause loss of
consciousness or even death to occupants
in the cabin.Fuel-Filler Lid and Cap
▼Fuel-Filler Lid and Cap
WA R N I N G
When removing the fuel-filler cap, loosen
the cap slightly and wait for any hissing to
stop, then remove it:
Fuel spray is dangerous. Fuel can burn skin
and eyes and cause illness if ingested. Fuel
spray is released when there is pressure in
the fuel tank and the
fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away from
the filler neck:
Fuel vapor is dangerous. It could be ignited
by sparks or flames causing serious burns
and injuries.
Additionally, use of the incorrect fuel-filler
cap or not using a fuel-filler cap may result
in a fuel leak, which could result in serious
burns or death in an accident.
Do not continue refueling after the fuel
pump nozzle shuts off automatically:
Continuing to add fuel after the fuel pump
nozzle has shut off automatically is
dangerous because overfilling the fuel tank
may cause fuel overflow or leakage. Fuel
overflow and leakage could damage the
vehicle and if the fuel ignites it could cause
a fire and explosion resulting in serious
injury or death.
Before Driving
Fuel and Emission
3-27
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems.
(U.S.A. and Canada)
It may also cause the check engine light
in the instrument cluster to illuminate.
 When using an automatic car wash or a
high water pressure car wash, lock the
driver's door. Otherwise, the fuel-filler lid
may open unexpectedly and could be
damaged.
▼ Refueling
Before refueling, close all the doors,
windows, and liftgate/trunk lid, and switch
the ignition OFF.
1. Using the following, unlock the
driver’s door.
Transmitter (page 3-15)
Touch sensor (page 3-13)
Door-lock switch (page 3-15)
Auto lock/unlock function (page
3-17)
NOTE
When unlocking the driver's door,
the fuel lid is also unlocked at the
same time.
When locking the driver's door, the
fuel lid is locked after 90 seconds.
The time until the fuel lid is locked
after locking the driver's door can be
changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
However, when the driver's door is
locked using the following functions,
the fuel lid is also locked at the same
time.
Auto lock/unlock function (page
3-17)
Auto re-lock function (page 3-5,
3-13)
2. Press the locat ion shown in the
illustration and open the fuel lid.

3. To remove the fuel-filler cap, turn it counterclockwise.
4. Attach the removed cap to the inner
side of the fu el-filler lid.

4–door
1. Fuel-filler lid
2. Fuel-filler cap

Before Driving
Fuel and Emission
3-28
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

5–door
1. Fuel-filler lid
2. Fuel-filler cap

5. Insert the refuelin g nozzle all the way
and begin refueling. Pull out the
refueling nozzle after the refueling
stops automatically.
6. To close the fuel-filler cap, turn it clockwise until a click is heard.
7. To close, press the fuel-filler lid until a
click sound is heard.

4–door
5–door
8. Make sure to lock all the doors whenleaving the vehicle.
NOTE
Lock the doors after closing the
fuel-filler lid.
If the fuel-filler lid is closed after
locking the doors, the fuel-filler lid
cannot be locked.
CAUTION
(U.S.A. and Canada)
If the check fuel cap warning light
illuminates, the fuel-filler cap may not be
properly installed. If the warning light
illuminates, park your vehicle safely off the
right-of-way, remove the fuel-filler cap and
reinstall it correctly. After the cap has been
correctly installed, the fuel cap warning
light may continue to illuminate until a
number of driving cycles have been
completed. A drive cycle consists of starting
the engine (after four or more hours with
the engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check fuel cap
warning light illuminated could cause the
check engine light to illuminate as well.
Before Driving
Fuel and Emission
3-29
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Mirrors
▼Mirrors
Before driving, adjust the inside and
outside mirrors.
▼Outside Mirrors
WA R N I N G
Be sure to look over your shoulder before
changing lanes:
Changing lanes without taking into
account the actual distance of the vehicle
in the convex mirror is dangerous. You
could have a serious accident. What you
see in the convex mirror is closer than it
appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.

To adjust:
1. Press the select switch for the outside
mirror to be adjusted to turn on the
indicator light.
2. Press the adjustment switch to adjustthe angle of the outside mirror.
1. Indicator light
2. Select switch
3. Adjustment switch

After adjusting the angle of the outside
mirror, press the select switch for the
outside mirror to be adjusted to turn off
the indicator light.
NOTE
(With driving position memory function)
The on-road outside mi rror position can
be programmed in conjunction with the
driving position memory function.
Refer to Driving Position Memory on page
2-10.
Before Driving
Mirrors
3-30
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Power mirrors with reverse tilt down
function*
The outside mirrors tilt downward to
facilitate the view of the lower area on
each side of the vehicle.
1. Switch the ignition ON.
2. Press the select switch for the outsidemirror to be tilted do wnward to turn on
the indicator light of the select switch.
3. Shift the shift lever/selector lever to the R position to tilt the outer mirror
on the side where the select button was
pressed downward.
NOTE
When any of the following condition is
met, the outer mirrors return to their
normal positions.
The ignition is switched to a position
other than ON.
The shift lever/selector lever is shifted to
a position other than R.
The select switch is pressed again.
Folding outside mirror
WA R N I N G
Always return the outside mirrors to the
driving position before you start driving:
Driving with the outside mirrors folded in is
dangerous. Your rear view will be
restricted, and you could have an accident.
Manually fold the outside mirror rearward
until it is flush w ith the vehicle.
Engine-off outside mirror operation
The outside mirrors can be operated for
about 40 seconds after the ignition is
switched from ON to off.
Driver's side auto-dimming outside
mirror*
The movement of the auto-dimming
outside mirror is interlocked with the
auto-dimming rearview mirror in the
interior to automatically reduce glare from
rear on-coming vehicles.
Refer to Rearview M irror on page 3-32.
NOTE
The front passenger-side outside mirror
does not have the auto-dimming feature.
Before Driving
Mirrors
*Some models.3-31
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
