Adjusting the height on the front edge
of the seat bottom
Adjust the height on the front edge of the
seat bottom to the position where the back
of your knees contacts the front edge of
the seat bottom.
1. With your right foot set on the accelerator pedal, adjust the height on
the front edge of the seat bottom so
that the back of your knees lightly
contacts the front edge of the seat
bottom.
2. Depress the accelerator pedal and
make sure that you no longer feel
cramping in the back of your knees.
1. Manual Seat
2. Power Seat

Adjusting the ste ering wheel position
Adjust the steering wh eel to the position
where it can be operated easily and the
gauges can be viewed easily.
1. With your back resting against the seatback, extend both arms, place them
on the top of the steering wheel, and
pull the steering wheel towards you to
the position of your wrists.
2. Adjust the steering wheel height sothat the gauges can be viewed easily.
3. Raise the lever to securely lock the
steering wheel.
Adjusting the head restraint position
To prevent shock to the head and neck,
adjust the head restra ints to their correct
positions.
Refer to Height Adjustment on page
2-17.
▼ Driving Position Memory (Power
Seat)*
The desired driving position can be called
up after programming the position.
The following driving positions can be
programmed.
Essential Safety Equipment
Seats
2-10*Some models.
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

Child-RestraintPrecautions
▼ Child-Restraint Precautions
Mazda strongly urges the use of
child-restraint system
s for children small
enough to use them.

You are required by law to use a
child-restraint system for children in the
U.S. and Canada.
Check your local and state or provincial
laws for specific requirements regarding
the safety of childr en riding in your
vehicle.

Whatever child-rest raint system you
consider, please pick the appropriate one
for the age and size of the child, obey the
law and follow the i nstructions that come
with the individual ch ild-restraint system.

A child who has outgrown child-restraint
systems should sit in the rear and use seat
belts, both lap an d shoulder. If the
shoulder belt crosses the neck or face,
move the child closer to the center of the
vehicle in the outboard seats, and towards
the buckle on the right if the child is
seated on the center seat.

Statistics confirm that the rear seat is the
best place for all children up to 12 years of
age, and more so with a supplemental
restraint system (air bags).

A rear-facing child-restraint system should
NEVER be used on the front seat with the
air bag system activated. The front
passenger's seat is also the least preferred
seat for other child-restraint systems.

(With Front Passenger Occupant
Classification System)
To reduce the chance of injuries caused by
deployment of the front passenger air bag,
the front passenger seat weight sensors
occupant classification sensor works as a
part of the supplementa l restraint system.
This system deactivates the front
passenger front and side air bags and knee
air bags, and also the front passenger seat
belt pretensioner system when the front
passenger air bag deactivation indicator
light illuminates.

When an infant or small child sits on the
front passenger seat, the system shuts off
the front passenger front and side air bags
and knee air bags, and seat belt
pretensioner system, so make sure the
front passenger air bag deactivation
indicator light illuminates.

Even if the front passenger air bag is shut
off, Mazda strongly recommends that
children be prope rly restrained and
child-restraint systems of all kinds are
properly secured on the rear seats which
are the best place for children.

For more details, refer to "Front passenger
seat weight sensors" (page 2-72).

Essential Safety Equipment
Child Restraint
2-32
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys.................................................... 3-2 Keys.............................................. 3-2
Keyless Entry System................... 3-4
Advanced Keyless Entry
System.................................................3-9 Advanced Keyless Entry System
*.....
...................................................... 3-9
Operational Range...................... 3-10
Doors and Locks.............................. 3-11 Door Locks................................. 3-11
Liftgate/Trunk Lid...................... 3-19
Inside Trunk Release Lever (4-
door)
*.......................................... 3-23
Fuel and Emission........................... 3-25 Fuel and Engine Exhaust
Precautions................................. 3-25
Fuel-Filler Lid and Cap.............. 3-27
Mirrors............................................. 3-30 Mirrors........................................ 3-30
Windows........................................... 3-34 Power Windows..........................3-34
Moonroof
*.................................. 3-37
Security System............................... 3-40Modification and Add-On
Equipment...................................3-40
Immobilizer System....................3-40
Theft-Deterrent System
*.............3-42
Driving Tips..................................... 3-44 Break-In Period.......................... 3-44
Saving Fuel and Protection of the
Environment............................... 3-44
Hazardous Driving.... ..................3-45
Floor Mat.................................... 3-46
Rocking the Vehicle....................3-46
Winter Driving............................3-47
Driving In Flooded A rea............ 3-49
Overloading................................ 3-49
Driving on Uneven Road............ 3-50
Towing.............................................. 3-51 Trailer Towing............................ 3-51
Recreational Towing................... 3-51
*Some models.3-1
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Trailer Towing
▼Trailer Towing
Your Mazda is not designed for towing.
Never tow a trailer
with your Mazda.
Recreational Towing
▼Recreational Towing
An example of "recreational towing" is
towing your vehicle behind a motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer to
"Towing Description
" (page 7-23) and
"Tiedown Hooks" (page 7-24) and
carefully follow the instructions.
Before Driving
To w i n g
3-51
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼Indications
1. Manual shift mode indication
2. Gear position indication
Manual shift mode indication
In manual shift mode, the “M” of the shift
position indication in the instrument panel
illuminates.
Gear position indication
The numeral for the selected gear
illuminates.

NOTE
If the gears cannot be shifted down
when driving at higher speeds, the gear
position indication will flash twice to
signal that the gears cannot be shifted
down (to protect the transmission).
If the automatic transmission fluid
(ATF) temperature becomes too high,
there is the possibility that the
transmission will switch to automatic
shift mode, canceling manual shift mode
and turning off the gear position
indication illuminati
on. This is a normal
function to protect the AT. After the ATF
temperature has decreased, the gear
position indication illumination turns
back on and driving in manual shift
mode is restored.
▼ Manually Shifting Up
You can shift gears up by operating the
selector lever or
the steering shift
switches
*.
M1 → M2 → M3 → M4 → M5 → M6
Using selector lever
To shift up to a hig her gear, tap the
selector lever back + once.

Using steering shift switch*
To shift up to a higher gear with the
steering shift switches, pull the UP switch
(+/OFF) towa rd you once with your
fingers.

1. UP switch (+/OFF)
When Driving
Automatic Transmission
*Some models.4-37
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

If the headlight switch and the windshield wiper switch are in AUTO, and the wipers are
operated at low or high speed by the auto wiper control for several seconds, bad weather
conditions are determined and the headlights may be turned on.
The sensitivity of the auto-light control may be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
▼Headlight High-Low Beam
The headlights switch between high and
low beams by moving the lever forward or
backward.

1. High beam
2. Low beam

When the headlight high-beams are on, the
headlight high-beam indicator light is
turned on.

▼Flashing the Headlights
The headlights can be flashed with the
ignition switched to ON.
To flash the headlights, pull the lever fully
towards you (the headlight switch does not
need to be on).

1. OFF
2. Headlight flashing

The headlight high-beam indicator light in
the instrument cluster illuminates
simultaneously. The lever will return to
the normal position when released.

When Driving
Switches and Controls
4-47
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

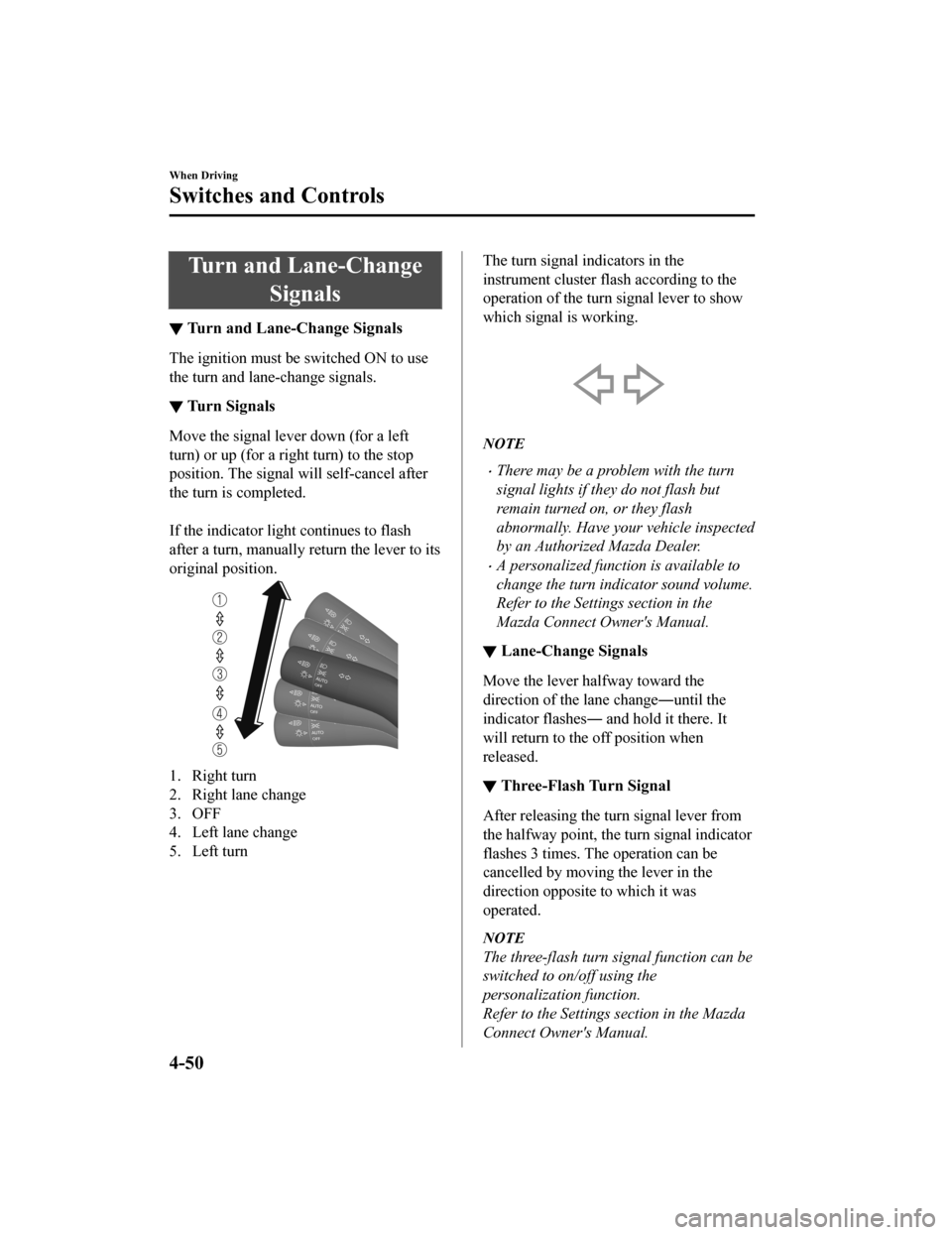

Turn and Lane-ChangeSignals
▼Turn and Lane-Change Signals
The ignition must be switched ON to use
the turn and lane
-change signals.
▼Turn Signals
Move the signal lever down (for a left
turn) or up (for a righ
t turn) to the stop
position. The signal will self-cancel after
the turn is completed.

If the indicator light continues to flash
after a turn, manually return the lever to its
original position.
1. Right turn
2. Right lane change
3. OFF
4. Left lane change
5. Left turn

The turn signal indicators in the
instrument cluster flash according to the
operation of the turn signal lever to show
which signal is working.

NOTE
There may be a problem with the turn
signal lights if they do not flash but
remain turned on, or they flash
abnormally. Have your vehicle inspected
by an Authorized Mazda Dealer.
A personalized function is available to
change the turn indicator sound volume.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼ Lane-Change Signals
Move the lever halfway toward the
direction of the lane change―until the
indicator flashes― and hold it there. It
will return to the off position when
released.
▼Three-Flash Turn Signal
After releasing the turn signal lever from
the halfway point, the turn signal indicator
flashes 3 times. The
operation can be
cancelled by moving the lever in the
direction opposite to which it was
operated.
NOTE
The three-flash turn signal function can be
switched to on/off using the
personalization function.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
When Driving
Switches and Controls
4-50
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

If the headlight switch and the
windshield wiper switch are in AUTO,
and the wipers are operated at low or
high speed by the auto wiper control for
several seconds, bad weather conditions
are determined and the headlights may
be turned on.
The auto-wiper control functions can be
turned off.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Windshield Washer
Pull the wiper lever
toward you to spray
washer fluid and operate the windshield
wipers several times. The washer fluid is
sprayed only while the windshield wipers
move out of their stowed positions to the
point where they start reversing back.

1. OFF
2. Washer
NOTE
If the windshield washer is turned on
when the windshield wipers are not
operating, the windshield wipers
operate a few times.
If you pull the wiper lever while the
windshield wipers are reversing back to
their stowed positions, the next time the
washer fluid is sprayed is during the
next cycle.
If the washer does no t work, inspect the
fluid level (page 6-19). If the fluid level
is normal, consult a n Authorized Mazda
Dealer.
When Driving
Switches and Controls
4-54
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Hazard Warning Flasher
▼Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the turn signals wi
ll flash. The hazard
warning indicator lights in the instrument
cluster flash simultaneously.
NOTE
The turn signals do not work when the
hazard warning lights are on.
Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
HomeLink Wireless
Control System
*
▼ HomeLink Wireless Control System
NOTE
HomeLink and HomeLink house are
registered trademarks of Gentex
Corporation.
The HomeLink system replaces up to 3
hand-held transmitters with a single
built-in component in the auto-dimming
mirror. Pressing the HomeLink button on
the auto-dimming mirror activates garage
doors, gates and other devices surrounding
your home.

1. Indicator light
2. HomeLink button
WA R N I N G
Do not use the HomeLink system with any
garage door opener that lacks the safety
stop and reverse feature:
Using the HomeLink system with any
garage door opener that lacks the safety
stop and reverse feature as required by
federal safety standards is dangerous. (This
includes garage doors manufactured
before April 1, 1982.)
When Driving
Switches and Controls
4-58*Some models.
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

The vehicle could roll depending on the
vehicle's load or if it is towing something. In
addition, for vehicles with a manual
transmission, the vehicle could still roll
depending on how the clutch pedal or the
accelerator pedal is operated.
Always confirm the safety around the
vehicle before starting to drive the vehicle.
NOTE
HLA does not operate on a gentle slope.
In addition, the gradient of the slope on
which the system will operate changes
depending on the vehicle's load.
HLA does not operate if the parking
brake is applied, the vehicle has not
stopped completely, or the clutch pedal
is released.
While HLA is operating, the brake pedal
may feel stiff and vibrate, however, this
does not indicate a malfunction.
HLA does not operate while the
TCS/DSC indicator light is illuminated.
Refer to TCS/DSC Indication/Indicator
Light (Turns on) on page 7-32.
HLA does not turn of f even if the DSC
OFF switch is pressed to turn off the
TCS/DSC.
When Driving
Brake
4-74
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
