3. Distance between the vehicle and object displayed on the screen.
4. Actual distance between the vehicle and object.
5. Object at actual position
6. Object on screen

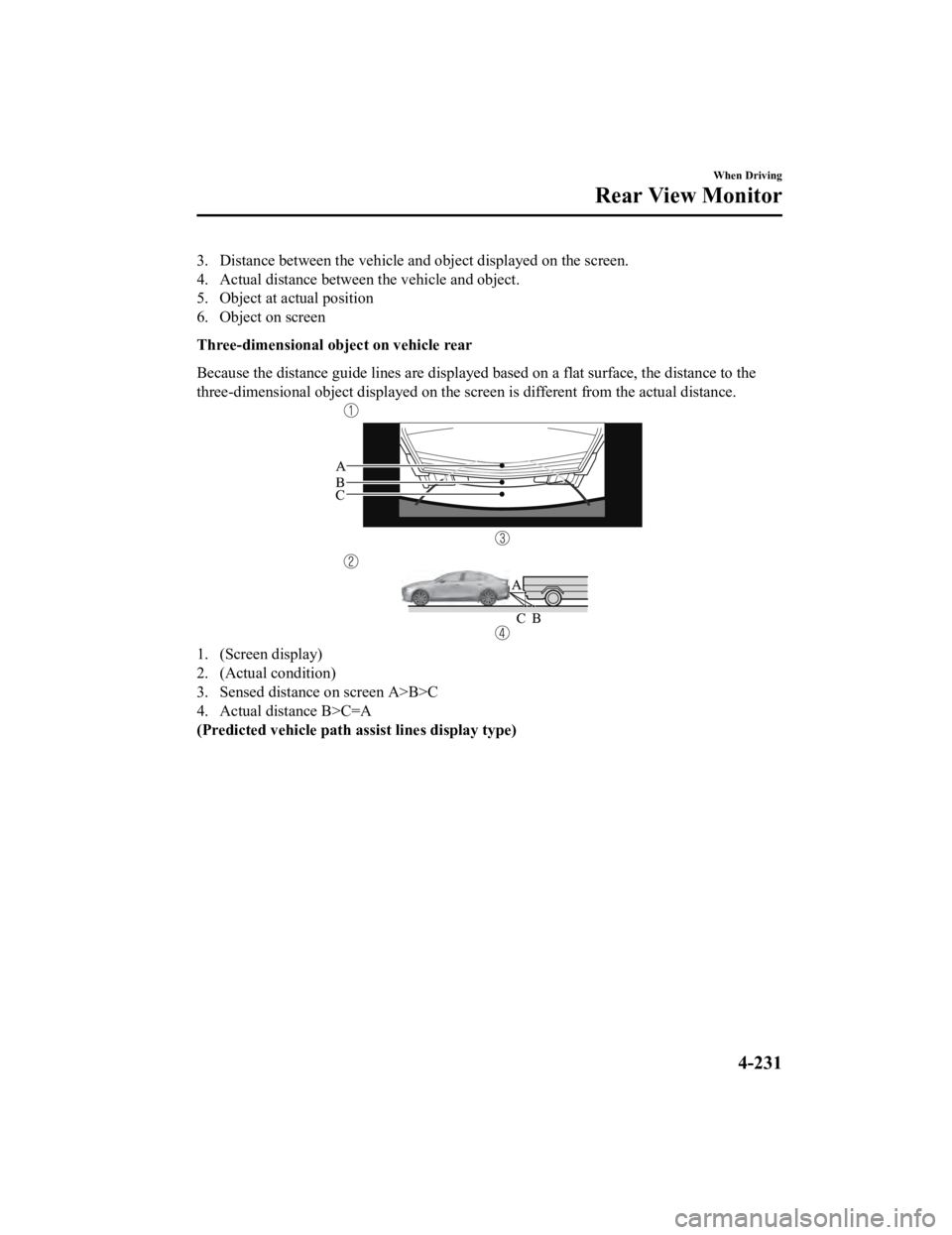

Three-dimensional ob ject on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different f rom the actual distance.
1. (Screen display)
2. (Actual condition)
3. Sensed distance on screen A>B>C
4. Actual distance B>C=A
(Predicted vehicle path assist lines display type)
When Driving
Rear View Monitor
4-231
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

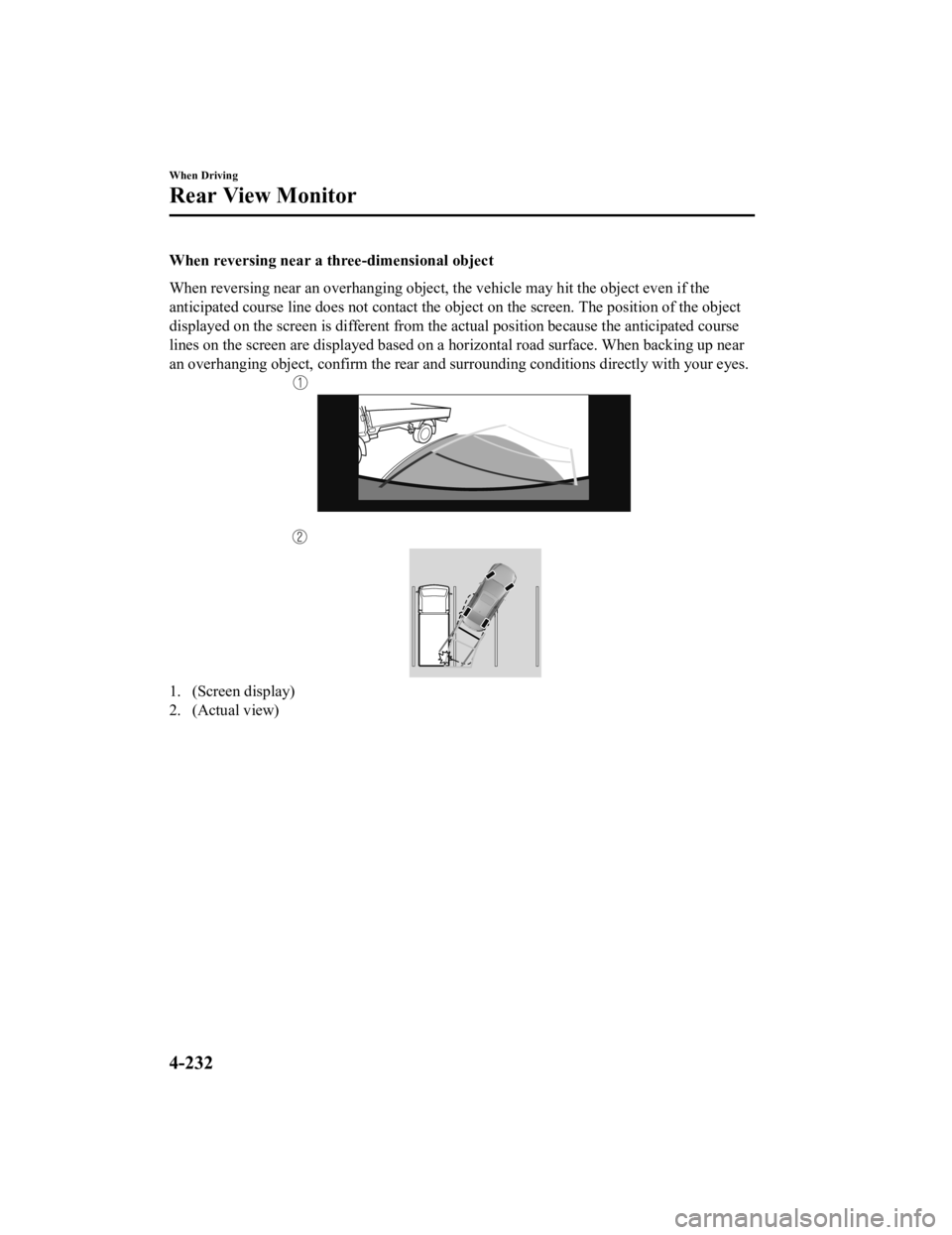

When reversing near a three-dimensional object
When reversing near an overhanging object, the vehicle may hit the object even if the
anticipated course line does not c ontact the object on the screen. The position of the object
displayed on the screen is different from the actual position b ecause the anticipated course
lines on the screen are displayed based on a horizontal road surface. When backing up near
an overhanging object, confirm the rear and surrounding conditi ons directly with your eyes.
1. (Screen display)
2. (Actual view)
When Driving
Rear View Monitor
4-232
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

Parking Sensor System*
▼Parking Sensor System
The parking sensors use ultrasonic sensors which detect obstruc
tions around the vehicle
when the vehicle is driven at low speeds, such as during garage or parallel parking, and a
buzzer sound and detection indicator notify the driver of the a pproximate distance from the
vehicle to the surrounding obstruction.

1. Front ultrasonic sensor*
2. Front corner ultrasonic sensor*
3. Rear ultrasonic sensor
4. Rear corner ultrasonic sensor
5. Rear side ultrasonic sensor
*
WA R N I N G
Do not rely completely on the parking sensor system and be sure to confirm the safety around
your vehicle visually when driving:
This system can assist the driver in operat ing the vehicle in the forward and backward
directions while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always confirm the safety
around your vehicle visually when driving.
When Driving
Parking Sensor System
*Some models.4-233
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

CAUTION
Do not install any accessories within the detection ranges of the sensors. It may
affect the
system operation.
 Depending on the type of obstruction and th e surrounding conditions, the detection range
of a sensor may narrow, or the sensors may not be able to detect obstructions.
NOTE
The system may not operate norma lly under the following conditions:
Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).
The sensor area is frozen (Returns to normal operation when the ice is thawed).
The sensor is covered by a hand.
The sensor is excessively shocked.
The vehicle is excessively tilted.
Under extremely hot or cold weather conditions.
The vehicle is driven on bumps, inclines, gravel, grating, or grass covered roads.
Anything which generates ultrasonic waves such as another vehicle's horn, the engine
sound of a motorcycle, the air brake sound of a large-sized vehicle, or another vehicle's
sensors approaches the vehicle.
The vehicle is driven in heavy rain or in road conditions causing water-splash.
A commercially-available fender pole or an antenna for a radio transmitter is installed
to the vehicle.
The vehicle is moving towards a tall or square curbstone, or a steep grade.
An obstruction is too close to the sensor.
The vehicle is moving towards an uneven wall or stairs.
There are multiple obstructions.
The vehicle is driven in a place with low ceilings.
Obstructions under the bumper cannot be detected. Obstructions which are lower than the
sensor or thin may not be detected even though they were detected once.
The following types of obstructions may not be detected:
Thin objects such as wire, rope or poles
Things which absorb sonic waves easily such as cotton or snow
Angular shaped objects
Very tall objects, and those which are wide at the top
Small, short objects
Always have the system inspected at an Aut horized Mazda Dealer if any shock is applied
to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect
obstructions.
When Driving
Parking Sensor System
4-234
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

The system may have a malfunction if the indicator light does not turn on even when the
parking sensor switch is turned on. Have your vehicle inspected by an Authorized Mazda
Dealer.
The system may have a malfunction if a me ssage indicating a system malfunction is
displayed. Have your vehicle inspected by an Authorized Mazda Dealer.
A message may be displayed even when the ambient temperature is extremely cold, or
mud, ice, or snow adheres to the sensor area. Remove any foreign matter from the sensor
area.
▼ Sensor Detection Range
The sensors detect obstructions within the following range.

1. Front ultrasonic sensor detection range
2. Rear corner/Rear side ultrasonic sensor detection range
3. Rear ultrasonic sensor detection range
4. Front corner ultrasonic sensor detection range
A: About 55.0 cm (About 21.6 in)
B: About 150 cm (About 59.0 in)
C: About 100 cm (About 39.3 in)

When Driving
Parking Sensor System
4-235
Mazda3_8HE9-EA-18K_Edition3
2018-11-21 14:31:58

Viewing distance display
DisplayDistance between vehicle and obstruction
Without 360° view monitor
With 360° viewmonitor Front ultrasonic sen‐
sor
*/Front corner
ultrasonic sensor*
Rear ultrasonic sen‐ sor/Rear corner ul‐
trasonic sensor/Rear
side ultrasonic sen‐
sor
*
Without front ul‐
trasonic sensor and front corner ultra‐ sonic sensor With front ultra‐
sonic sensor and
front corner ultra‐ sonic sensor
Green
Front ultrasonic sen‐ sor:
Approx. 100―60.0 cm (39.3―23.6 in) Rear ultrasonic sen‐
sor:
Approx. 150―60.0 cm (59.0―23.6 in)
Yellow
Front ultrasonic sen‐
sor:
Approx. 60.0―45.0
cm (23.6―17.7 in)
Front corner ultrason‐ ic sensor:
Approx. 55.0―38.0 cm (21.6―14.9 in) Rear ultrasonic sen‐
sor:
Approx. 60.0―45.0 cm (23.6―17.7 in)
Rear corner ultrasonic
sensor/Rear side ul‐ trasonic sensor:
Approx. 55.0―38.0
cm (21.6―14.9 in)
Amber
Front ultrasonic sen‐ sor:
Approx. 45.0―35.0 cm (17.7―13.7 in)
Front corner ultrason‐ ic sensor:
Approx. 38.0―25 cm (14.9―9.8 in) Rear ultrasonic sen‐
sor:
Approx. 45.0―35.0 cm (17.7―13.7 in)
Rear corner ultrasonic sensor/Rear side ul‐ trasonic sensor:
Approx. 38.0―25 cm (14.9―9.8 in)
When Driving
Parking Sensor System
4-236*Some models.
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

DisplayDistance between vehicle and obstruction
Without 360° view monitor
With 360° viewmonitor Front ultrasonic sen‐
sor
*/Front corner
ultrasonic sensor*
Rear ultrasonic sen‐ sor/Rear corner ul‐
trasonic sensor/Rear side ultrasonic sen‐
sor
*
Without front ul‐
trasonic sensor and front corner ultra‐ sonic sensor With front ultra‐
sonic sensor and
front corner ultra‐ sonic sensor
Red
Front ultrasonic sen‐ sor:
Within approx. 35.0 cm (13.7 in)
Front corner ultrason‐ ic sensor:
Within approx. 25 cm (9.8 in) Rear ultrasonic sen‐
sor:
Within approx. 35.0 cm (13.7 in)
Rear corner ultrasonic sensor/Rear side ul‐ trasonic sensor:
Within approx. 25 cm (9.8 in)
▼Park Assist Sensor System
Operation
When the parking sensor switch is pressed
with the ignition switched ON, the buzzer
sounds and the indicator light turns on.
When the ignition is switched ON with the
parking sensor activated, the indicator
light turns on.
Press the switch again to stop the
operation.
1. Indicator light
NOTE
When the ignition is
switched OFF, the
system status before it was turned off is
maintained. For exampl e, if the ignition is
switched OFF while the parking sensor is
activated, the system will be activated
when the ignition is switched ON the next
time.
Operation conditions
The parking sensor system can be used
when all of the foll owing conditions are
met:
The ignition is switched ON.
The parking sensor switch is turned on.
NOTE
(Automatic vehicle)
The detection indicator and buzzer of
the front sensors/front corner sensors do
not operate when the selector lever is in
the P position.
The detection indicator and buzzer
sound do not activate when the parking
brake is applied.
When Driving
Parking Sensor System
*Some models.4-237
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

▼Obstruction Detection Indication
The position of a sensor which has
detected an obstruction is indicated. The
gauge illuminates in different areas
depending on the distance to an
obstruction detected by the sensor.
As the vehicle approaches closer to an
obstruction, the zone in the gauge closer to
the vehicle illuminates.
Without 360°view monitor
1. Front ultrasonic sensor gauge*
2. Right front corner ultrasonic sensor
gauge
*
3. Right rear corner ultrasonic sensorgauge/Right rear side ultrasonic sensor
gauge
*
4. Rear ultrasonic sensor gauge
5. Left rear corner ultrasonic sensorgauge/Left rear side ultrasonic sensor
gauge
*
6. Left front corne r ultrasonic sensor
gauge
*
With 360°view monitor
1. Front ultrasonic sensor gauge
2. Right front corner ultrasonic sensor gauge
3. Right rear corner ultrasonic sensor
gauge/Right rear side ultrasonic sensor
gauge
*
4. Rear ultrasonic sensor gauge
5. Left rear corner ultrasonic sensorgauge/Left rear side ultrasonic sensor
gauge
*
6. Left front corner ultrasonic sensorgauge
NOTE
The detection indicator can switch
between display and non-display.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
When Driving
Parking Sensor System
4-238*Some models.
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

System problem notification
The indication displays if the system has a
malfunction.
Without 360°view monitor
With 360°view monitor
Check the reason for the indication
displaying on the center display or
multi-information display.
Refer to If a Warning Light Turns On or
Flashes on page 7-26.
When Driving
Parking Sensor System
4-239
Mazda3_8HE9-EA-18K_Edition32018-11-21 14:31:58

▼Parking Sensor Warning Beep
Informs the driver of the approximate distance from the vehicle
to the obstruction using
warning beeps depending on the d istance. If multiple obstructions are detected at the same
time, warning beeps are activated according to the distance to the nearest obstruction. The
warning beeps are activated as follows while the system is oper ating. However, the warning
beeps are not activated while t he seat belt reminder is operati ng.
Front ultrasonic sensor
*, Rear ultrasonic sensor
Distance Detec‐ tion area Distance between vehicle and obstruction
Beeper sound*1Front ultrasonic sensorRear ultrasonic sensor
Farthest distance Approx. 100―60.0 cm (39.3―23.6
in)
Approx. 150―60.0 cm (59.0―23.6in)
Slow intermittent
sound
Far distance Approx. 60.0―45.0 cm
(23.6―17.7 in)
Approx. 60.0―45.0 cm(23.6―17.7 in)
Medium intermit‐
tent sound
Middle distance Approx. 45.0―35.0 cm
(17.7―13.7 in)
Approx. 45.0―35.0 cm(17.7―13.7 in)
Fast intermittent
sound
Close distance Within approx. 35.0 cm (13.7 in)
Within approx. 35.0 cm (13.7 in)
Continuous sound
