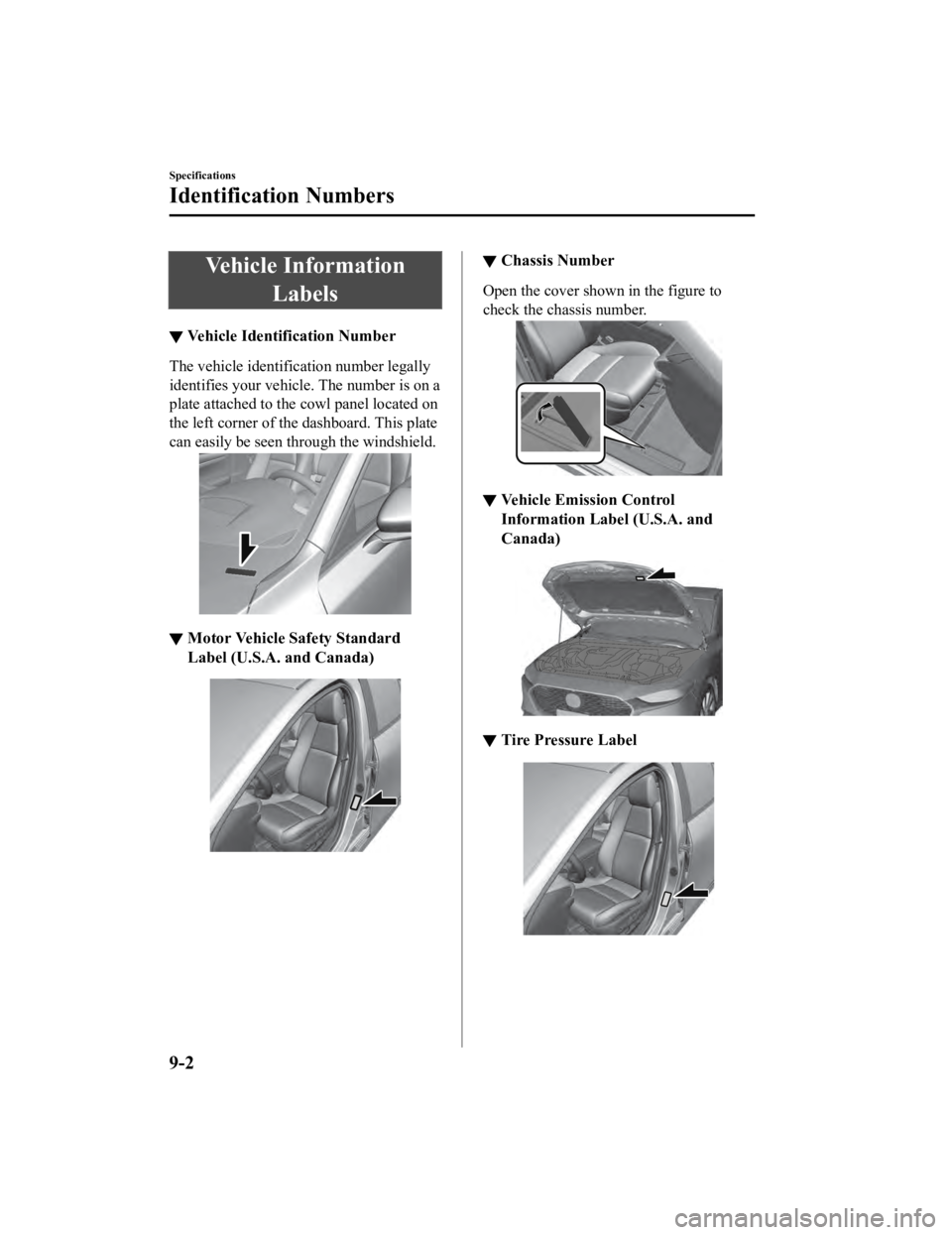

Vehicle InformationLabels
▼Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
▼Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼ Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification Numbers
9-2
Mazda3_8HE9-EA-18K_Edition3
2018-11-21 14:31:58

▼Engine Number
1. Forward
Specifications
Identification Numbers
9-3
Mazda3_8HE9-EA-18K_Edition3
2018-11-21 14:31:58

Specifications
▼Engine
Item Specification
SKYACTIV-G 2.0 SKYACTIV-G 2.5
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 1,997.6 ml (1,997.6 cc) 2,488.5 ml (2,488.5 cc)
Compression ratio 13.0
▼Electrical System
Item
Classification
Battery 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
*1 This spark plug provides the SK YACTIV-G engine with optimum performance. Contact an Authorized Mazda
Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-15.
Coolant FL-22 type
Manual transmission oil Mazda Long Life Gear Oil G7
Automatic transmission f luid Mazda Genuine ATF FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
Specifications
Specifications
9-4
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYAC‐
TIV-G 2.0
With oil filter replacement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYAC‐
TIV-G 2.5 With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
Coolant Manual transmission
6.3 L (6.7 US qt, 5.5 Imp qt)
Automatic
transmission SKYACTIV-G 2.0
6.5 L (6.9 US qt, 5.7 Imp qt)
SKYACTIV-G 2.5 6.6 L (7.0 US qt, 5.8 Imp qt)
Manual transmis‐
sion oil SKYACTIV-G 2.0
1.70 L (1.80 US qt, 1.50 Imp qt)
SKYACTIV-G 2.5 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic trans‐
mission fluid SKYACTIV-G 2.0
7.6 L (8.0 US qt, 6.7 Imp qt)
SKYAC‐
TIV-G 2.5 U.S.A. and
CanadaWith Cylinder Deactiva‐
tion
7.9 L (8.3 US qt, 7.0 Imp qt)
Without Cylinder Deacti‐
vation 7.6 L (8.0 US qt, 6.7 Imp qt)
Mexico 7.6 L (8.0 US qt, 6.7 Imp qt)
Transfer case oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank U.S.A. and
Canada2WD
50.0 L (13.2 US gal, 11.0 Imp gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp gal)
Mexico 51.0 L (13.5 US gal, 11.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
Specifications
Specifications
9-5
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

▼Dimensions
4-Door
Item
Vehicle specification
Overall length 4,662 mm (183.5 in)
Overall width 1,797 mm (70.7 in)
Overall height 1,445 mm (56.9 in)
Front tread 1,568 mm (61.7 in)
Rear tread 2WD
1,581 mm (62.2 in)
AWD 1,580 mm (62.2 in)
Wheelbase 2,726 mm (107.3 in)
5-Door
ItemVehicle specification
Overall length 4,459 mm (175.6 in)
Overall width 1,797 mm (70.7 in)
Overall height 1,440 mm (56.7 in)
Front tread 1,568 mm (61.7 in)
Rear tread 2WD
1,581 mm (62.2 in)
AWD 1,580 mm (62.2 in)
Wheelbase 2,726 mm (107.3 in)
▼We i g h t s
U.S.A. and Canada
SKYACTIV-G 2.0
(4-Door)
Item We i gh t
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight
Rating) 1,804 kg (3,977 lbs)
1,825 kg (4,023 lbs)
GAWR (Gross Axle
Weight Rating) Front
966 kg (2,130 lbs) 989 kg (2,180 lbs)
Rear 843 kg (1,858 lbs) 841 kg (1,854 lbs)
(5-Door)
Item We i gh t
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight
Rating) 1,810 kg (3,990 lbs)
1,833 kg (4,041 lbs)
Specifications
Specifications
9-6
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

ItemWe i g h t
Manual transmission Automatic transmission
GAWR (Gross Axle
Weight Rating) Front
965 kg (2,127 lbs) 989 kg (2,180 lbs)
Rear 848 kg (1,870 lbs) 847 kg (1,867 lbs)
SKYACTIV-G 2.5
(4-Door)
Item We i g h t
2WD AWD
GVWR (Gross Vehicle Weight
Rating) 1,850 kg (4,079 lbs)
1,910 kg (4,211 lbs)
GAWR (Gross Axle
Weight Rating) Front
1,016 kg (2,240 lbs) 1,030 kg (2,271 lbs)
Rear 839 kg (1,850 lbs) 885 kg (1,951 lbs)
(5-Door)
Item We i g h t
2WD AW D
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight
Rating) 1,822 kg (4,017 lbs) 1,849 kg (4,076 lbs) 1,915 kg (4,222 lbs)
GAWR (Gross Axle
Weight Rating) Front 987 kg (2,176 lbs) 1,016 kg (2,240 lbs) 1,046 kg (2,306 lbs)
Rear 838 kg (1,847 lbs) 836 kg (1,843 lbs) 872 kg (1,922 lbs)
Mexico
SKYACTIV-G 2.0
(4-Door)
Item
We i g h t
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,849 kg (4,076 lbs)1,870 kg (4,123 lbs)
(5-Door)
Item We i g h t
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,847 kg (4,072 lbs)1,870 kg (4,123 lbs)
Specifications
Specifications
9-7
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

SKYACTIV-G 2.5
(4-Door)
ItemWe i gh t
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,861 kg (4,103 lbs)1,870 kg (4,123 lbs)
(5-Door)
Item We i gh t
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,848 kg (4,074 lbs)1,870 kg (4,123 lbs)
▼Air Conditioner*
The type of refrigerant used is indicated on a label attached t
o the inside of the engine com‐
partment. Check the label befo re recharging the refrigerant.
Refer to Operating Tips on page 5-2.
Item Specification
Refrigerant Type HFC134a (R-134a)
▼Light Bulbs
Exterior light
Light bulb Category
Wattage UN-R*1 (SAE)
Headlights LED
*2― (―)
Daytime running lights LED
*2― (―)
Parking lights LED type
LED
*2― (―)
Bulb type 5 WY5W (―)
Front turn signal lights LED
*2― (―)
Front side-marker lights LED type
LED
*2― (―)
Bulb type 5 WY5W (―)
Side turn signal lights
*LED*2― (―)
High-mount brake light LED
*2― (―)
Rear turn signal lights LED
*2― (―)
Rear side-marker lights LED
*2― (―)
Brake lights LED
*2― (―)
Taillights LED
*2― (―)
Reverse lights LED
*2― (―)
License plate lights LED
*2― (―)
Specifications
Specifications
9-8*Some models.
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

*1 UN-R stands for United Nations Regulation.*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wa t t ag e UN-R*1
Overhead light (Front)/Map lights
LED*2―
Overhead light (Rear) LED
*2―
Vanity mirror lights
*LED*2―
Trunk light (4-Door) 5 ―
Luggage compartmen t light (5-Door)
LED
*2―
*1 UN-R stands for United Nations Regulation.*2 LED is the abbreviation for Light Emitting Diode.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation press
ure.
Refer to Tire Pressure Label on page 9-2.
Refer to Tire Inflation Pressure on page 6-30.
Standard tire
(U.S.A. and Canada)
Tire size Inflation pressure
Front Rear
205/60R16 92H M+S 250 kPa (36 psi)250 kPa (36 psi)
215/45R18 89V M+S 250 kPa (36 psi)250 kPa (36 psi)
(Mexico)
Tire size Inflation pressure
Front Rear
205/60R16 92H 250 kPa (36 psi)250 kPa (36 psi)
205/60R16 92V 250 kPa (36 psi)250 kPa (36 psi)
215/45R18 89V 250 kPa (36 psi)250 kPa (36 psi)
215/45R18 89W 250 kPa (36 psi)250 kPa (36 psi)
Specifications
Specifications
*Some models.9-9
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

Temporary spare tire
Tire sizeInflation pressure
T125/70D16 96M
* １420 kPa (60 psi)
T125/80D16 97M
*2420 kPa (60 psi)
*12WD*2AWD
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following to rque.
108―147 N·m (12―14 kgf·m, 80―108 ft·lbf)
▼ Fuses
Refer to Fuses on page 6-37.
Specifications
Specifications
9-10
Mazda3_8HE9-EA-18K_Edition3
