Always have the system inspected at an Authorized Mazda Dealer if any shock is applied
to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect
obstructions.
The system may have a malfunction if the in dicator light does not turn on even when the
parking sensor OFF switch is turned on. Have your vehicle inspected by an Authorized
Mazda Dealer.
The system may have a malfunction if a me ssage indicating a system malfunction is
displayed. Have your vehicle inspected by an Authorized Mazda Dealer.
A message may be displayed even when the ambient temperature is extremely cold, or
mud, ice, or snow adheres to the sensor area. Remove any foreign matter from the sensor
area.
▼ Sensor Detection Range
The sensors detect obstructions within the following range.

1. Front ultrasonic sensor detection range
2. Rear corner/Rear side ultrasonic sensor detection range
3. Rear ultrasonic sensor detection range
4. Front corner ultrasonic sensor detection range
A: About 55.0 cm (About 21.6 in)
B: About 150 cm (About 59.0 in)
C: About 100 cm (About 39.3 in)

When Driving
Parking Sensor System
4-237
Mazda3_8HZ1-EA-19G_Edition3_old
2020-1-15 14:30:08

Viewing distance display
DisplayDistance between vehicle and obstruction
Without 360° view monitor
With 360° viewmonitor Front ultrasonic sen‐
sor
*/Front corner
ultrasonic sensor*
Rear ultrasonic sen‐ sor/Rear corner ul‐
trasonic sensor/Rear
side ultrasonic sen‐
sor
*
Without front ul‐
trasonic sensor and front corner ultra‐ sonic sensor With front ultra‐
sonic sensor and
front corner ultra‐ sonic sensor
Green
Front ultrasonic sen‐ sor:
Approx. 100―60.0 cm (39.3―23.6 in) Rear ultrasonic sen‐
sor:
Approx. 150―60.0 cm (59.0―23.6 in)
Yellow
Front ultrasonic sen‐
sor:
Approx. 60.0―45.0
cm (23.6―17.7 in)
Front corner ultrason‐ ic sensor:
Approx. 55.0―38.0 cm (21.6―14.9 in) Rear ultrasonic sen‐
sor:
Approx. 60.0―45.0 cm (23.6―17.7 in)
Rear corner ultrasonic
sensor/Rear side ul‐ trasonic sensor:
Approx. 55.0―38.0
cm (21.6―14.9 in)
Amber
Front ultrasonic sen‐ sor:
Approx. 45.0―35.0 cm (17.7―13.7 in)
Front corner ultrason‐ ic sensor:
Approx. 38.0―25 cm (14.9―9.8 in) Rear ultrasonic sen‐
sor:
Approx. 45.0―35.0 cm (17.7―13.7 in)
Rear corner ultrasonic sensor/Rear side ul‐ trasonic sensor:
Approx. 38.0―25 cm (14.9―9.8 in)
When Driving
Parking Sensor System
4-238*Some models.
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

DisplayDistance between vehicle and obstruction
Without 360° view monitor
With 360° viewmonitor Front ultrasonic sen‐
sor
*/Front corner
ultrasonic sensor*
Rear ultrasonic sen‐ sor/Rear corner ul‐
trasonic sensor/Rear side ultrasonic sen‐
sor
*
Without front ul‐
trasonic sensor and front corner ultra‐ sonic sensor With front ultra‐
sonic sensor and
front corner ultra‐ sonic sensor
Red
Front ultrasonic sen‐ sor:
Within approx. 35.0 cm (13.7 in)
Front corner ultrason‐ ic sensor:
Within approx. 25 cm (9.8 in) Rear ultrasonic sen‐
sor:
Within approx. 35.0 cm (13.7 in)
Rear corner ultrasonic sensor/Rear side ul‐ trasonic sensor:
Within approx. 25 cm (9.8 in)
▼Parking Sensor OFF Switch
When the switch is pressed, the parking
sensor is stopped a
nd the indicator light
turns on.
If the switch is pressed again, the parking
sensor becomes operational and the
indicator light turns off.
1. Indicator light
NOTE
(Automatic vehicle)
The detection indicator and buzzer of
the front sensors/front corner sensors do
not operate when the selector lever is in
the P position.
The detection indicator and buzzer
sound do not activate when the parking
brake is applied.
When Driving
Parking Sensor System
*Some models.4-239
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

▼Obstruction Detection Indication
The position of a sensor which has
detected an obstruction is indicated. The
gauge illuminates in different areas
depending on the distance to an
obstruction detected by the sensor.
As the vehicle approaches closer to an
obstruction, the zone in the gauge closer to
the vehicle illuminates.
Without 360°view monitor
1. Front ultrasonic sensor gauge*
2. Right front corner ultrasonic sensor
gauge
*
3. Right rear corner ultrasonic sensorgauge/Right rear side ultrasonic sensor
gauge
*
4. Rear ultrasonic sensor gauge
5. Left rear corner ultrasonic sensorgauge/Left rear side ultrasonic sensor
gauge
*
6. Left front corne r ultrasonic sensor
gauge
*
With 360°view monitor
1. Front ultrasonic sensor gauge
2. Right front corner ultrasonic sensor gauge
3. Right rear corner ultrasonic sensor
gauge/Right rear side ultrasonic sensor
gauge
*
4. Rear ultrasonic sensor gauge
5. Left rear corner ultrasonic sensorgauge/Left rear side ultrasonic sensor
gauge
*
6. Left front corner ultrasonic sensorgauge
NOTE
The detection indicator can switch
between display and non-display.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
When Driving
Parking Sensor System
4-240*Some models.
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

System problem notification
The indication displays if the system has a
malfunction.
Without 360°view monitor
With 360°view monitor
Check the reason for the indication
displaying on the center display or
multi-information display.
Refer to If a Warning Light Turns On or
Flashes on page 7-27.
When Driving
Parking Sensor System
4-241
Mazda3_8HZ1-EA-19G_Edition3_old2020-1-15 14:30:08

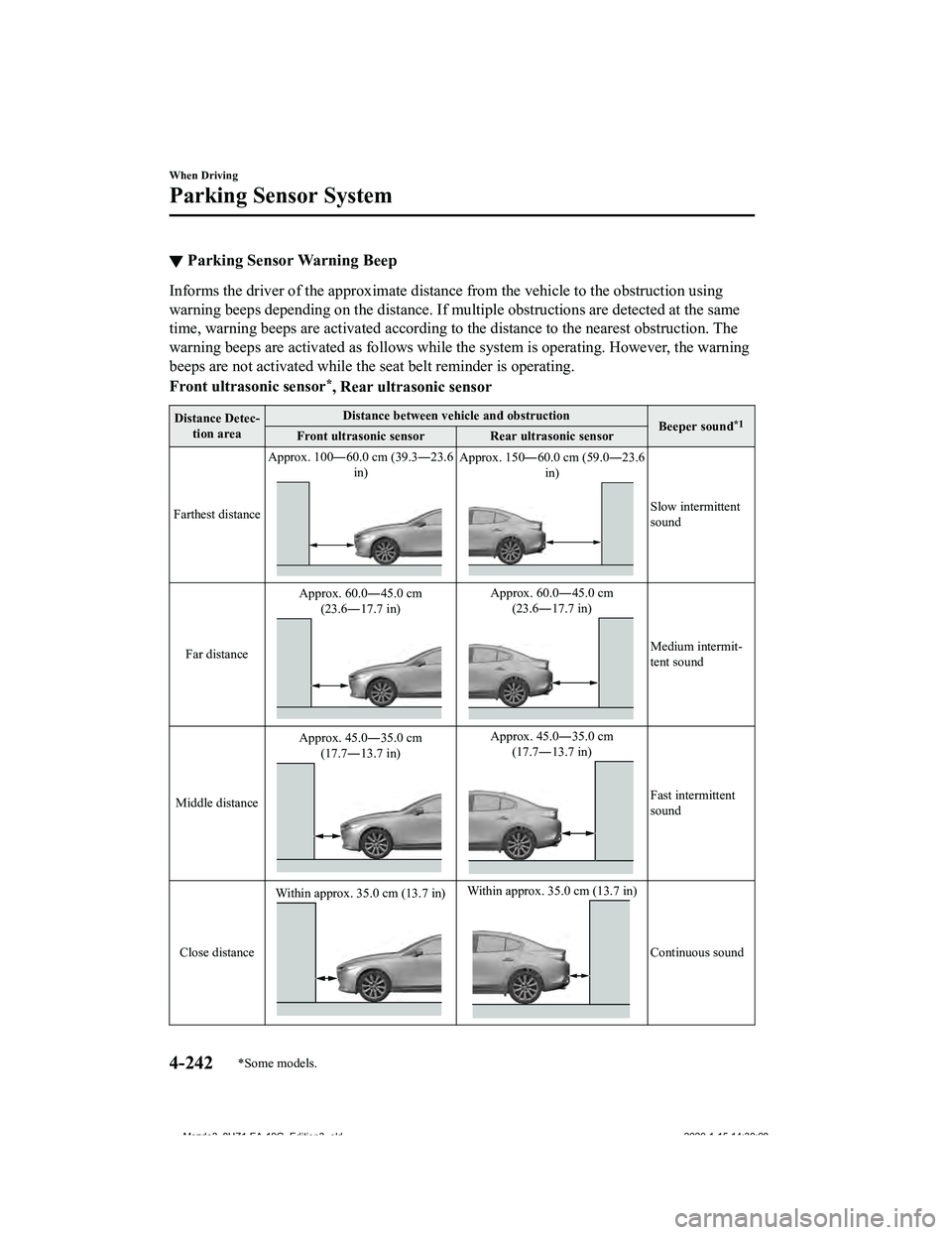

▼Parking Sensor Warning Beep
Informs the driver of the approximate distance from the vehicle
to the obstruction using
warning beeps depending on the d istance. If multiple obstructions are detected at the same
time, warning beeps are activated according to the distance to the nearest obstruction. The
warning beeps are activated as follows while the system is oper ating. However, the warning
beeps are not activated while t he seat belt reminder is operati ng.
Front ultrasonic sensor
*, Rear ultrasonic sensor
Distance Detec‐ tion area Distance between vehicle and obstruction
Beeper sound*1Front ultrasonic sensorRear ultrasonic sensor
Farthest distance Approx. 100―60.0 cm (39.3―23.6
in)
Approx. 150―60.0 cm (59.0―23.6in)
Slow intermittent
sound
Far distance Approx. 60.0―45.0 cm
(23.6―17.7 in)
Approx. 60.0―45.0 cm(23.6―17.7 in)
Medium intermit‐
tent sound
Middle distance Approx. 45.0―35.0 cm
(17.7―13.7 in)
Approx. 45.0―35.0 cm(17.7―13.7 in)
Fast intermittent
sound
Close distance Within approx. 35.0 cm (13.7 in)
Within approx. 35.0 cm (13.7 in)
Continuous sound
When Driving
Parking Sensor System
4-242*Some models.
Mazda3_8HZ1-EA-19G_Edition3_old
2020-1-15 14:30:08

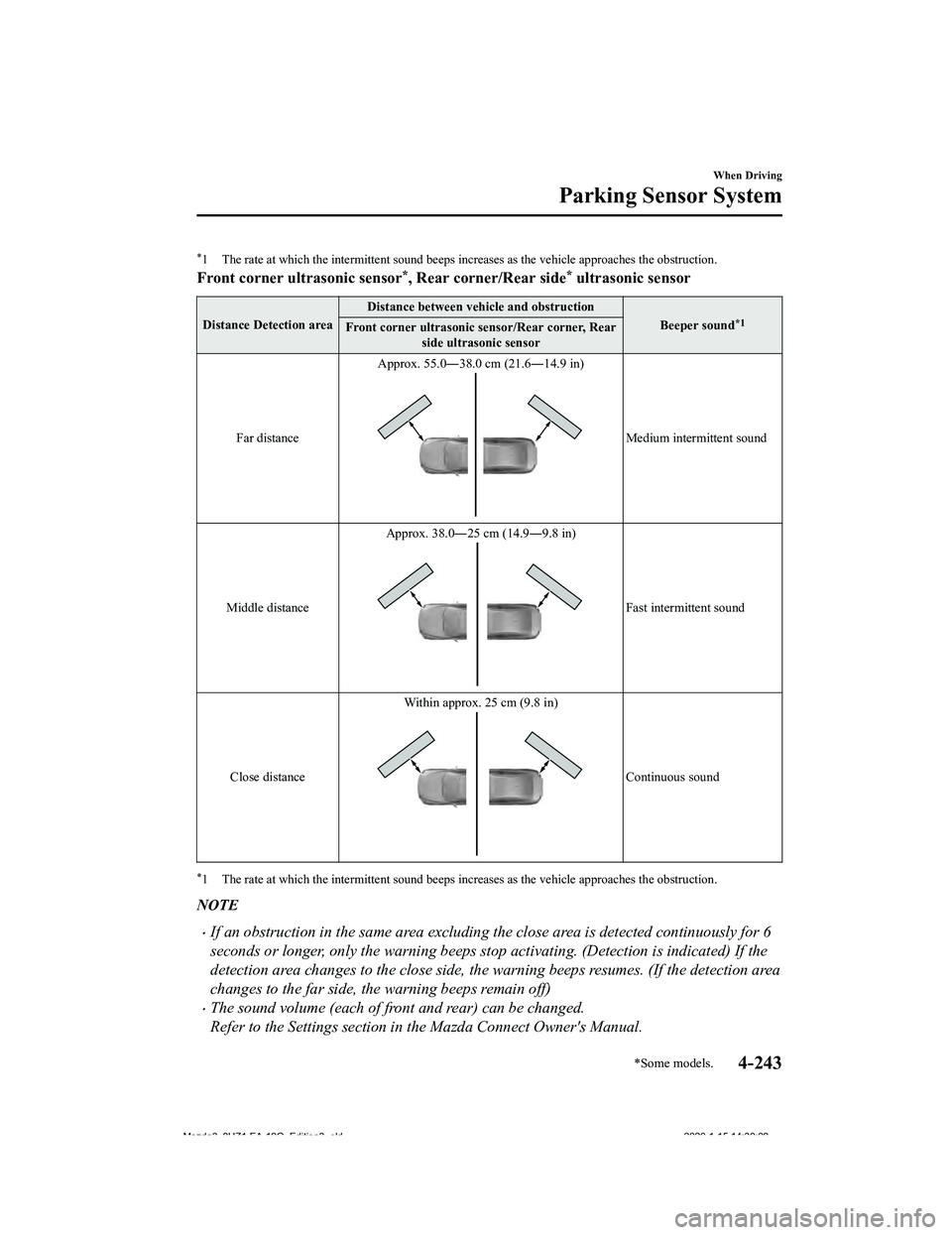

*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
Front corner ultr asonic sensor*, Rear corner/Rear side* ultrasonic sensor
Distance Detection area Distance between vehicle and obstruction
Beeper sound*1Front corner ultrasonic sensor/Rear corner, Rearside ultrasonic sensor
Far distance Approx. 55.0―38.0 cm (21.6―14.9 in)
Medium intermittent sound
Middle distance Approx. 38.0―25 cm (14.9―9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the intermitte
nt sound beeps increases as the vehicle approaches the obstruction.
NOTE
If an obstruction in the same area excluding the close area is detected continuously for 6
seconds or longer, only the warning beeps stop activating. (Detection is indicated) If the
detection area changes to the close side, the warning beeps resumes. (If the detection area
changes to the far side, the warning beeps remain off)
The sound volume (each of front and rear) can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When Driving
Parking Sensor System
*Some models.4-243
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

▼When Warning Indicator/Beep is Activated
The system notifies the driver
of an abnormality by activating the beep sound and the
indicator light.
Indicator/Beep How to check
A message indicating a system
malfunction or sensor malfunc‐
tion is displayed. There may be a problem with the system. Have your vehicle inspe
cted by an
Authorized Mazda Dealer as soon as possible.
A message indicating that the
sensor is dirty is displayed. Remove any foreign matter from t
he sensor area. If the system does not recov‐
er, have the vehicle inspected by an Authorized Mazda Dealer.
A certain obstruction detection
indication is continuously dis‐
played. Foreign matter may have gotten on the sensor area corresponding
to the detec‐
tion indicator. If the system doe s not recover, have the vehicle inspected by an
Authorized Mazda Dealer.
When Driving
Parking Sensor System
4-244
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08
