MAZDA MODEL 3 SEDAN 2022 Owners Manual

The air conditioner is operated with
the airflow mode in the
position.The temperature setting dial of the
air conditioner is in the maximum
heating or maximum cooling (A/C
ON) position.
(Automatic climate control system)
The cabin temperature is largely
different from the set temperature of
the air conditioner.
The brakes are released slightly on a
slope and the vehicle begins to
move.
Two minutes have elapsed since the
idling was stopped.
The battery power is depleted.The hood is opened.The driver's seat belt is unfastened
and the driver's door is opened.
Engine idling is stopped while the
vehicle is stopped
The accelerator pedal is depressed
with the selector lever in the D or
M (not in second gear fixed mode)
position.
The selector lever is shifted to the R
position.
The selector lever is shifted from N
or P position to D or M (not in
second gear fixed mode) position.
The steering wheel is operated
with the selector lever in the D or
M (not in second gear fixed mode)
position.
The selector lever is in the M
position and the second gear fixed
mode is selected.
The steering wheel is operated.Engine idling is stopped while
driving
The selector lever is in a position
other than the D position.
The accelerator pedal is depressed.Sport mode is selected.
The steering wheel is operated.The shift lever is shifted to the R
position.
Selector lever is operated while
engine idling is stopped
If the selector lever is shifted from D or
M (not in second gear fixed mode)
position to N or P position while
engine idling is stopped, the engine
does not restart even when the brake
pedal is released. The engine will
restart if the brake pedal is depressed
again or the selector lever is shifted to
the D, M (not in second gear fixed
mode), or R position. (For the
purposes of safety, always keep the
brake pedal depressed when shifting
the selector lever.)
If the selector lever is shifted from the
D or M (not in second gear fixed
mode) to the N or P position, and the
driver's seat belt is unfastened or the
driver's door is opened, the engine
restarts.
Battery terminals have been
disconnected
Engine idling may not stop right after
the battery terminals have been
disconnected. In addition, if the
battery is replaced, the i-stop functions
must be verified. Consult an
Authorized Mazda Dealer.
▼ i-stop OFF Switch
When pressing the switch, the i-stop
function stops and the i-stop OFF
switch indicator light turns on. If the
switch is pressed again, the i-stop
function becomes operational and the
When Driving
Start/Stop Engine
4-14
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

i-stop OFF switch indicator light turns
off.
1. Indicator light
NOTE
If the engine is stopped with the i-stop
function stopped, the i-stop function
becomes operational again when the
engine is started the next time.
▼Vehicle Roll Prevention Function
(Automatic transmission)
Vehicles with the i-
stop function are
equipped with a vehicle roll prevention
function. This function prevents the
vehicle from rolling, such as when
releasing the brake pedal while on a
slope under the following conditions:
While engine idling is stopped
(prevents the vehicle from rolling
back)
When the engine restarts after
releasing the brake pedal (prevents
the vehicle's sudden movement due
to vehicle creep), sudden movement
of the vehicle is prevented by
controlling the brakes.
1. Release foot from brake pedal
2. Vehicle brake force maintained
3. Engine restarted
4. Acceleration
When Driving
Start/Stop Engine
4-15
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

WARNING
Do not rely completely on the vehicle
roll prevention function.
The vehicle roll prevention function
is a supplementary function which
operates for a maximum of 2
seconds after releasing the brake
pedal and accelerating the vehicle
from an engine idling stop condition.
Over reliance on the system may
result in an unexpected accident if
the vehicle were to suddenly
accelerate. Before starting to drive
the vehicle, always confirm the safety
of the surroundings and operate the
selector lever, brake pedal, and
accelerator pedal appropriately.
Note that the vehicle may move
suddenly depending on the vehicle's
load or if it is towing something.
 Note that the vehicle may move
suddenly after the vehicle roll
prevention function is released while
the vehicle is under the following
conditions:
 The selector lever is in the N
position.
 If the selector lever is shifted to the
N position and the brake pedal is
released while the i-stop function
is operating, the brake force is
gradually released. To accelerate
the vehicle, release the brake pedal
after the engine restarts and shift
the selector lever to a position
other than the N position.
NOTE
When the vehicle is stopped on a
steep grade, the vehicle roll
prevention function does not
operate because engine idling is not
stopped.
The brake pedal response may
change, sound may occur from the
brakes, or the brake pedal could
vibrate from the operation of the
vehicle roll prevention function.
However, this does not indicate a
malfunction.
▼ i-stop Warning Light (Amber)/
i-stop Indicator Light (Green)
To ensure safe and comfortable use of
the vehicle, the i-stop system
constantly monitors the driver's
operations, the vehicle's interior and
exterior environment, and the
operational status of the vehicle, and
uses the i-stop warning light (amber)
and i-stop indicator light (green) to
inform the driver of various cautions
and warnings.
NOTE
On vehicles equipped with the center
display, the i-stop operation status is
displayed in the fuel efficiency monitor
display.
Refer to the Fuel Efficiency Monitor
section in the Mazda Connect
Owner's Manual.
i-stop warning light (amber)
When the light is turned on
The light turns on when the ignition
is switched ON and turns
off when
the engine is started.
(Manual transmission)
A sound is activated when the door
is opened while the engine idling is
stopped with the shift lever in a
position other than neutral. In this
case, the engine does not restart
When Driving
Start/Stop Engine
4-16
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

automatically to ensure safety. Shift
the shift lever to neutral and start the
engine.
If the i-stop warning light (amber)
remains on while the engine is
running, the battery performance
may have decreased. Have your
vehicle inspected by an Authorized
Mazda Dealer.
NOTE
A problem in the system may be
indicated under the following
conditions. Have your vehicle
inspected by an Authorized Mazda
Dealer.
The light does not turn on when the
ignition is switched ON.
The light continues to remain on
while the engine is running.
When the light is flashing
The light continues to flash if the
system has a malfunction. Have your
vehicle inspected by an Authorized
Mazda Dealer.
i-stop indicator light (green)
When the light is turned on
The light turns on while engine idling is
stopped and turns off when the engine
is restarted.
When Driving
Start/Stop Engine
4-17
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

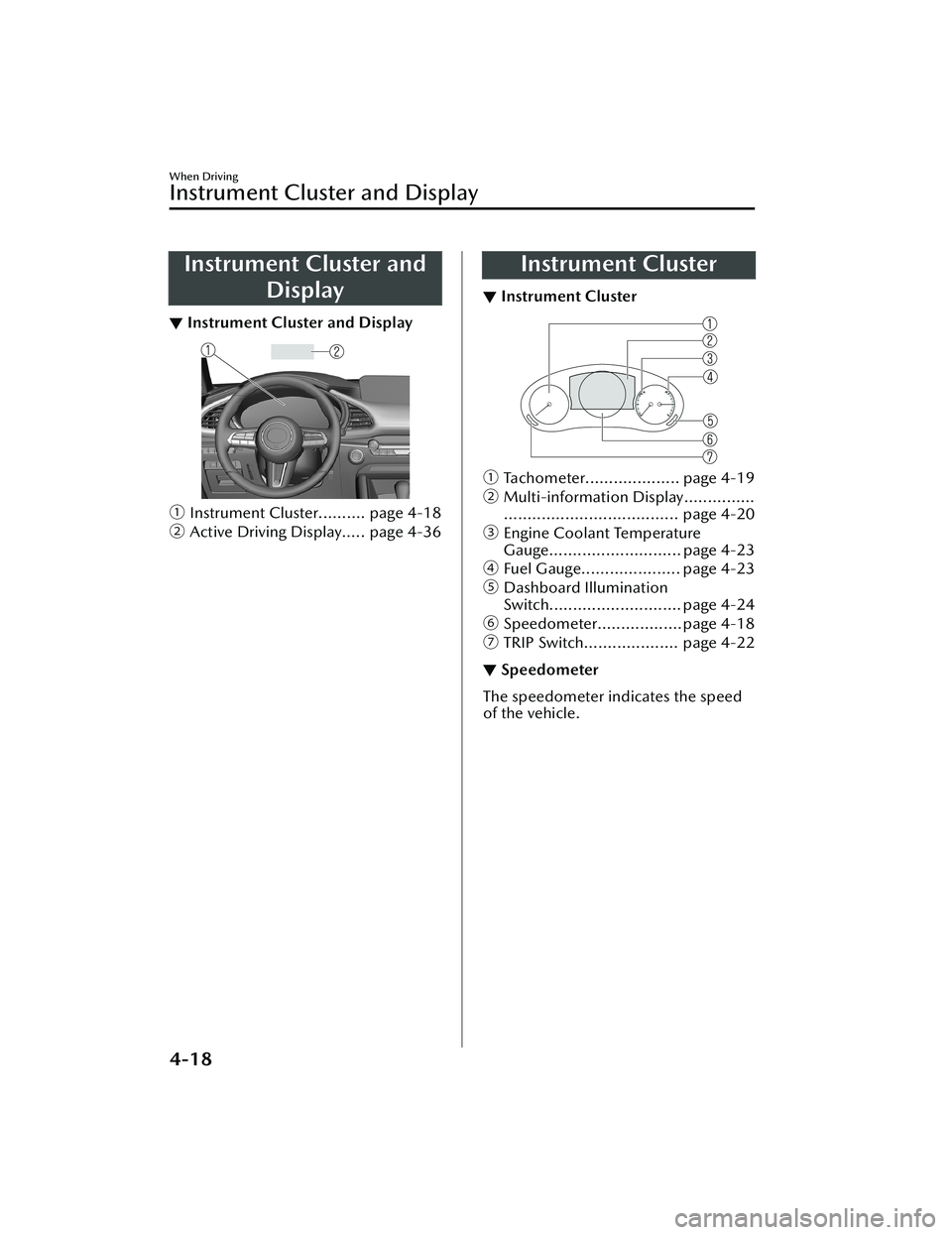

Instrument Cluster andDisplay
▼Instrument Cluster and Display
ƒ
Instrument Cluster.......... page 4-18
„ Active Driving Display..... page 4-36
Instrument Cluster
▼Instrument Cluster
ƒ
Tachometer.................... page 4-19
„ Multi-information Display...............
..................................... page 4-20
… Engine Coolant Temperature
Gauge............................ page 4-23
† Fuel Gauge..................... page 4-23
‡ Dashboard Illumination
Switch............................ page 4-24
ˆ Speedometer..................page 4-18
‰ TRIP Switch.................... page 4-22
▼Speedometer
The speedometer indicates the speed
of the vehicle.
When Driving
Instrument Cluster and Display
4-18
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

▼Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.

1. STRIPED ZONE*1
2. RED ZONE*1
*1 The range varies depending on the type of
gauge.
NOTE
When the tachometer needle enters
the STRIPED ZONE, this indicates to
the driver that the gears should be
shifted before entering the RED ZONE.
When Driving
Instrument Cluster and Display
4-19
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

▼Multi-information Display
1. Multi-information Display
2. INFO switch

The multi-information display indicates the following information.
SpeedometerOdometerTr i p m e te rOutside temperatureDistance-to-emptyAverage fuel economyCurrent fuel economyDeceleration Regeneration
Charge Display (M Hybrid)i-ACTIVSENSE DisplayCompass DisplayDoor-Ajar/Trunk lid-Ajar/Liftgate-Ajar Warning Indication*1
Message Display
*1 Displayed when opening door/trunk lid/liftgate.
When Driving
Instrument Cluster and Display
4-20
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

The screen content changes each time the INFO switch is pressed.
1. Basic display
2. Drive information display
3. i-ACTIVSENSE display
4. Message display
*1
*1 Displayed only when a warning occurs.

The type of display for the fuel economy and the maximum driving distance can be
changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When Driving
Instrument Cluster and Display
4-21
Mazda3_8KH1-EA-21K_Edition1_new2021-7-27 16:02:22

▼Odometer, Trip Meter and Trip
Meter Selector
You can switch between the odometer
and trip meter display using the TRIP
switch.

1. TRIP switch
2. Odometer display
3. Trip meter A display
4. Trip meter B display
Odometer
The odometer records the total
distance the vehicle has been driven.
Tr i p m e te r
The driving distance for a
specified
interval is indicated. Two types (TRIP A,
TRIP B) of interval distance can be
measured.

For instance, trip meter A can record
the distance from the point of origin,
and trip meter B can record the
distance from where the fuel tank is
filled.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter can be reset by pressing
the TRIP switch for 1.5 seconds or
more while the trip meter is displayed.
NOTE
Only the trip meters record tenths of
kilometers (miles).
When Driving
Instrument Cluster and Display
4-22
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

▼Engine Coolant Temperature
Gauge
Displays the engine coolant
temperature. The blue range of the
gauge indicates that the engine coolant
temperature is low, and the red range
of the gauge indicates that the engine
coolant temperature is high and
overheating.

CAUTION
When the engine coolant temperature
gauge needle is in the red range, the
engine coolant temperature is
extremely high. Drive slowly to reduce
engine load. If the engine coolant
temperature gauge needle is in the red
range, there is the possibility of
overheating. Park the vehicle in a safe
place immediately and take
appropriate measures.
Refer to Overheating on page 7-21.
NOTE
If the engine or engine coolant
temperature is high or low, the
engine output may be restricted to
protect the engine.
▼Fuel Gauge
The fuel gauge shows approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4
full.

1. Full
2. 1/4 Full
3. Empty

When Driving
Instrument Cluster and Display
4-23
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22
