Winter Driving
lCarry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask an Authorized Mazda Dealer to
perform the following precautions:
lHave the proper ratio of antifreeze in
the radiator.
Refer to Engine Coolant on page 8-20.
lInspect the battery and its cables. Cold
reduces battery capacity.
lInspect the ignition system for damage
and loose connections.
lUse washer fluid made with
antifreeze ―but don't use engine
coolant antifreeze for washer fluid
(page 8-25).
lDon't use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P with an
automatic transaxle and to 1 or R with
a manual transaxle. Block the rear
wheels.
q Snow Tires
Use snow tires on all four wheels
Don't go faster than 120 km/h (75 mph)
while driving with snow tires. Inflate
snow tires 30 kPa (0.3 kgf/cm
2, 4.3 psi)
more than recommended on the tire
pressure label (driver's door frame), but
never more than the maximum cold-tire
pressure shown on the tires.
Your vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates
you may find it necessary to replace them
with snow tires during the winter months
to further improve traction on snow and
ice covered roads.
WARNING
Use only the same size and type tires
(snow, radial, or non-radial) on all four
wheels: Using tires different in size or type is
dangerous. Your vehicle's handling
could be greatly affected and result
in an accident.
CAUTION
Check local regulations before using
studded tires.
NOTE
If your vehicle is equipped with the tire
pressure monitoring system, the system may
not function correctly when using tires with
steel wire reinforcement in the sidewalls (page
5-24).
q Tire Chains
Check local regulations before using tire
chains.
CAUTION
Ø Chains may affect handling.
Ø Do not go faster than 50 km/h (30
mph) or the chain manufacturer's
recommended limit, whichever is
lower.
Ø Drive carefully and avoid bumps,
holes, and sharp turns.
Ø Avoid locked-wheel braking.
Ø Do not use chains on a temporary
spare tire; it may result in damage
to the vehicle and to the tire.
Ø Do not use chains on roads that
are free of snow or ice. The tires
and chains could be damaged.
Ø Chains may scratch or chip
aluminum wheels.
4-8
Before Driving Your Mazda
Driving Tips
Mazda5_8X91-EA-07E_Edition1 Page102
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
Page 102 of 409

Black plate (103,1)
NOTE
If your vehicle is equipped with the tire
pressure monitoring system, the system may
not function correctly when using tire chains.
Install the chains on the front tires.
Do not use chains on the rear tires.
Use only genuine Mazda tire chains.
Please consult an Authorized Mazda
Dealer.
Installing the chains
1. Remove the wheel covers, or the chainbands will scratch them.
2. Secure the chains on the front tires as tightly as possible. Always follow the
chain manufacturer's instructions.
3. Retighten the chains after driving 1/2 ―1 km (1/4 ―1/2 mile).
Driving In Flooded Area
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance returns to normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
CAUTION
Do not drive the vehicle on flooded
roads as it could cause short
circuiting of electrical/electronic
parts, or engine damage or stalling
from water absorption. If the vehicle
has been immersed in water, consult
an Authorized Mazda Dealer.
Before Driving Your Mazda
Driving Tips
4-9
Mazda5_8X91-EA-07E_Edition1 Page103
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
Page 103 of 409

Black plate (104,1)

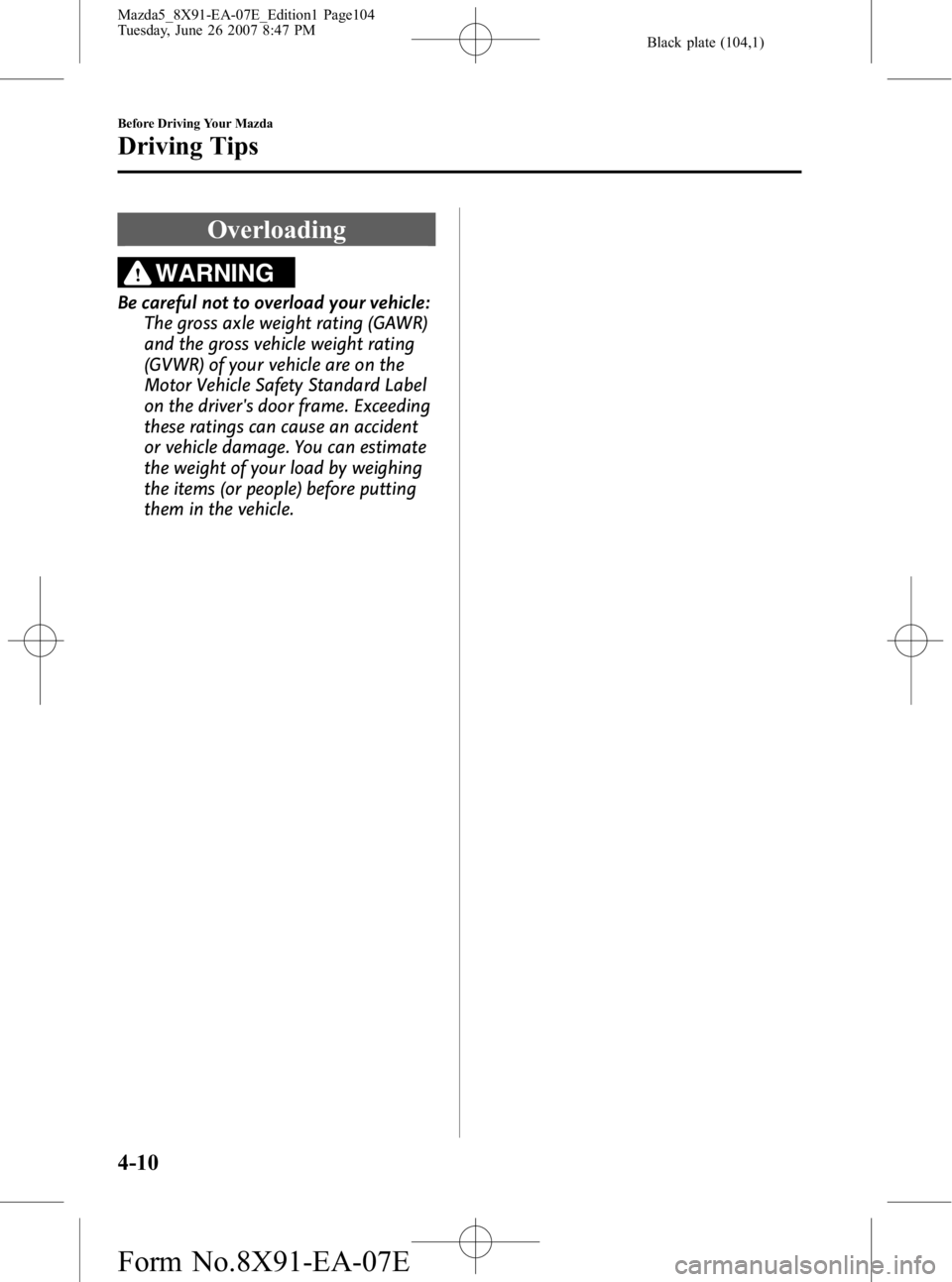

Overloading
WARNING
Be careful not to overload your vehicle:The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) of your vehicle are on the
Motor Vehicle Safety Standard Label
on the driver's door frame. Exceeding
these ratings can cause an accident
or vehicle damage. You can estimate
the weight of your load by weighing
the items (or people) before putting
them in the vehicle.
4-10
Before Driving Your Mazda
Driving Tips
Mazda5_8X91-EA-07E_Edition1 Page104
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
Page 104 of 409

Black plate (105,1)
Trailer Towing
The Mazda5 is not designed for towing.
Never tow a trailer with your Mazda5.
Before Driving Your Mazda
Towing
4-11
Mazda5_8X91-EA-07E_Edition1 Page105
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
Page 105 of 409

Black plate (106,1)
4-12
Mazda5_8X91-EA-07E_Edition1 Page106
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
Page 106 of 409

Black plate (107,1)
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-3
Brake System ............................................................................ 5-4
Manual Transaxle Operation ..................................................... 5-9
Automatic Transaxle Controls ................................................. 5-11
Power Steering ........................................................................ 5-17
Cruise Control
í...................................................................... 5-18
Tire Pressure Monitoring Systemí......................................... 5-21
Instrument Cluster and Indicators ............................................ 5-27 Meters and Gauges .................................................................. 5-27
Warning/Indicator Lights and Beep Sounds ............................ 5-31 Warning/Indicator Lights ........................................................ 5-31
Beep Sounds ........................................................................... 5-42
Switches and Controls ................................................................ 5-43 Lighting Control ..................................................................... 5-43
Turn and Lane-Change Signals ............................................... 5-46
Front Fog Lights
í.................................................................. 5-47
Windshield Wipers and Washer .............................................. 5-47
Rear Window Wiper and Washer ............................................ 5-51
Rear Window Defroster ........................................................... 5-51
Horn ........................................................................................ 5-52
Hazard Warning Flasher .......................................................... 5-53
5-1íSome models.
Mazda5_8X91-EA-07E_Edition1 Page107
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
Page 107 of 409

Black plate (108,1)
Ignition Switch
qIgnition Switch Positions
LOCK
The steering wheel locks to protect
against theft. Only in this position can the
key be removed.
Manual transaxle
To turn the key from the ACC to the
LOCK position, push the button when the
key is at the ACC position, then turn the
key to the LOCK position.
Button
Automatic transaxle
To turn the key from the ACC to the
LOCK position, the shift lever must be in
the P position.
Shift lever
engaged in
P (park)
WARNING
Remove the key only when the vehicle
is parked:
Removing the key from the ignition
switch while the vehicle is moving is
dangerous. Removing the key allows
the steering wheel to lock. You will
lose steering control and a serious
accident could occur.
Before leaving the driver's seat, always
set the parking brake and make sure
the shift lever is in P with an automatic
transaxle or in 1 or R with a manual
transaxle: Leaving the driver's seat without
setting the parking brake and the
shift lever is dangerous. Unexpected
vehicle movement could occur. This
could cause an accident.
NOTE
If turning the key is difficult, jiggle the steering
wheel from side to side.
5-2
Driving Your Mazda
Starting and Driving
Mazda5_8X91-EA-07E_Edition1 Page108
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
Page 108 of 409

Black plate (109,1)
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-31).
NOTE
When the ignition switch is turned to the ON
position, the sound of the fuel pump motor
operating near the fuel tank can be heard. This
does not indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the key; then
it returns to the ON position. The brake
warning light can be checked after the
engine is started (page 5-31).
qIgnition Key Reminder
If the ignition switch is in the LOCK or
ACC position with the key inserted, a
continuous beep sound will be heard
when the driver's door is opened.
Starting the Engine
NOTE
Engine-starting is controlled by the spark
ignition system.
This system meets all Canadian Interference-
Causing Equipment Standard requirements
regulating the impulse electrical field strength
of radio noise.
1. Occupants should fasten their seat
belts.
2. Make sure the parking brake is on.
3. Depress the brake pedal.
4. (Manual transaxle)
Depress the clutch pedal all the way
and shift into neutral.
Keep the clutch pedal depressed while
cranking the engine.
(Automatic transaxle)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transaxle)
The starter will not operate if the clutch pedal
is not depressed all the way.
(Automatic transaxle)
The starter will not operate if the shift lever is
not in P or N.
5. Turn the ignition switch to the START
position and hold (up to 10 seconds at
a time) until the engine starts.
Driving Your Mazda
Starting and Driving
5-3
Mazda5_8X91-EA-07E_Edition1 Page109
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
Page 109 of 409

Black plate (110,1)
CAUTION
Don't try the starter for more than 10
seconds at a time. If the engine stalls
or fails to start, wait 10 seconds
before trying again. Otherwise, you
may damage the starter and drain
the battery.
6. After starting the engine, let it idle for about 10 seconds.
NOTE
lIn extremely cold weather, below _
18 °C
(0 °F), or after the vehicle has not been
driven in several days, let the engine warm
up without operating the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
Brake System
q Foot Brake
Your Mazda has power-assisted brakes
that adjust automatically through normal
use.
Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual.
5-4
Driving Your Mazda
Starting and Driving
Mazda5_8X91-EA-07E_Edition1 Page110
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
Page 110 of 409

Black plate (111,1)
WARNING
Do not coast with the engine stalled or
turned off, find a safe place to stop:Coasting with the engine stalled or
turned off is dangerous. Braking will
require more effort, and the brake's
power-assist could be depleted if you
pump the brake. This will cause
longer stopping distances or even an
accident.
Shift to a lower gear when going down
steep hills: Driving with your foot continuously
on the brake pedal or steadily
applying the brakes for long
distances is dangerous. This causes
overheated brakes, resulting in
longer stopping distances or even
total brake failure. This could cause
loss of vehicle control and a serious
accident. Avoid continuous
application of the brakes.
Dry brakes that have become wet by
driving very slowly and applying the
brakes lightly until brake performance
is normal: Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
qParking Brake
WARNING
Before leaving the driver's seat, always
set the parking brake and make sure
the shift lever is in P with an automatic
transaxle or in 1 or R with a manual
transaxle:
Leaving the driver's seat without
setting the parking brake and the
shift lever is dangerous. Unexpected
vehicle movement could occur. This
could cause an accident.
CAUTION
Driving with the parking brake on
will cause excessive wear of the brake
linings or pads.
NOTE
For parking in snow, refer to Winter Driving
(page 4-8) regarding parking brake use.
Setting the parking brake
Depress the brake pedal and then firmly
pull the parking brake lever fully upwards
with a greater amount of force than is
required so that the vehicle holds in the
stationary position.
Driving Your Mazda
Starting and Driving
5-5
Mazda5_8X91-EA-07E_Edition1 Page111
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
