MAZDA MODEL 5 2008 Owners Manual

Black plate (171,1)
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 6-4).
NOTE
lThe mode selector dial can be set at the
intermediate positions (
) between each
mode. Set the dial to a intermediate
position if you want to slightly adjust the
airflow amount.
lFor example, when the mode selector dial is
at the
position between theand
positions, airflow from the floor vent is less
than that of the
position.
A/C switchí
Push the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan
control dial is set at position 1, 2, 3, or 4.
Push the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function when the
outside temperature approaches 0 °C (32 °F).
Air intake selector
This switch controls the source of air
entering the vehicle.
Press the
switch to alternate
between the outside air and recirculated
air modes.
It is recommended that under normal
conditions the switch be kept in the
outside air mode.
Outside air mode (indicator light
turned off)
Outside air is taken into the vehicle. Use
this mode for normal ventilation and
heating.
Recirculated air mode (indicator light
illuminated)
Outside air is shut off. Air within the
vehicle is recirculated.
This mode can be used when driving on a
dusty road or in similar conditions. It also
helps to provide quicker cooling of the
interior.
Interior Comfort
Climate Control System
6-7íSome models.
Mazda5_8X53-EA-07I_Edition3 Page171
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (172,1)

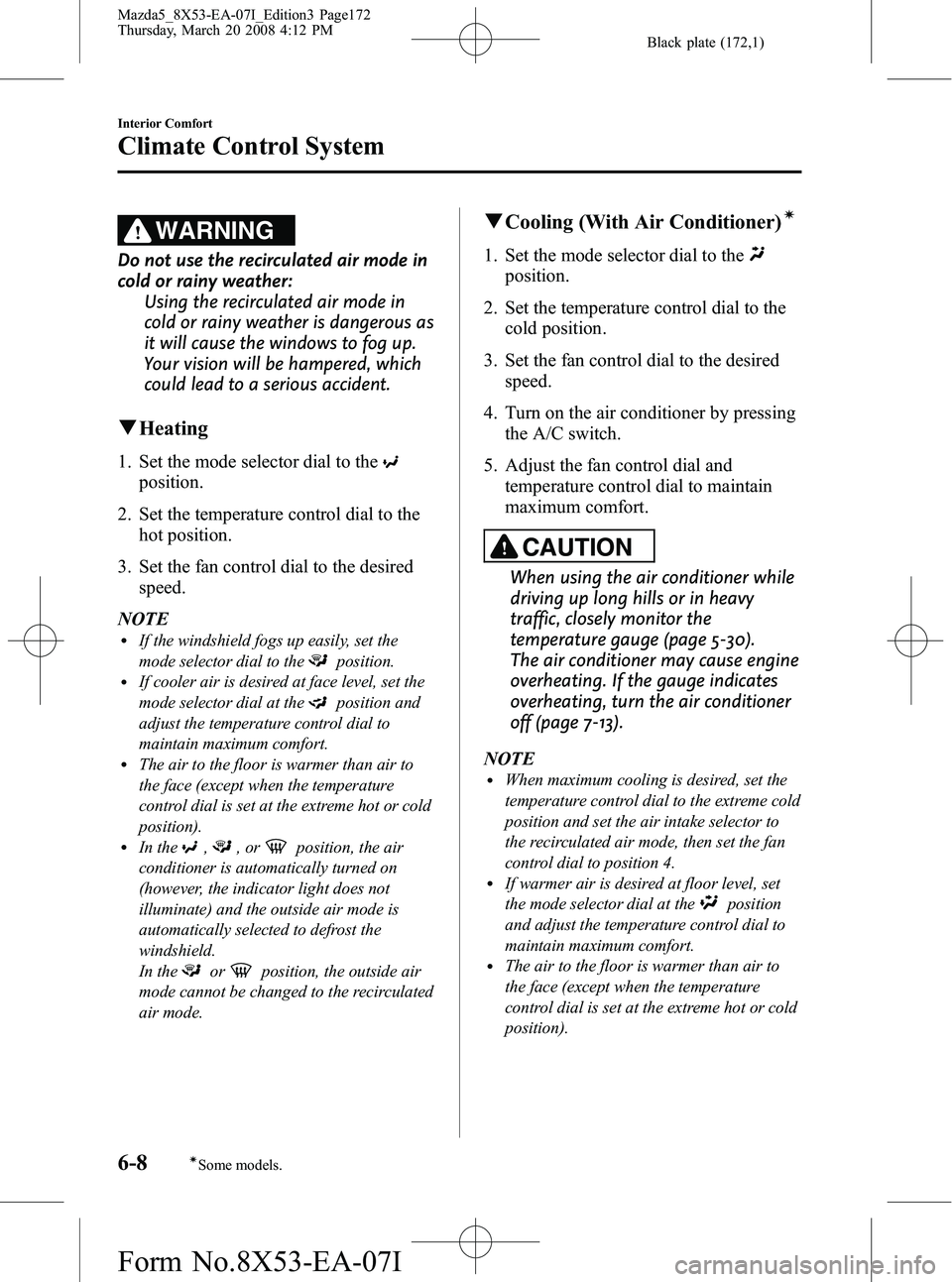

WARNING
Do not use the recirculated air mode in
cold or rainy weather:Using the recirculated air mode in
cold or rainy weather is dangerous as
it will cause the windows to fog up.
Your vision will be hampered, which
could lead to a serious accident.
qHeating
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the hot position.
3. Set the fan control dial to the desired speed.
NOTE
lIf the windshield fogs up easily, set the
mode selector dial to the
position.lIf cooler air is desired at face level, set the
mode selector dial at the
position and
adjust the temperature control dial to
maintain maximum comfort.
lThe air to the floor is warmer than air to
the face (except when the temperature
control dial is set at the extreme hot or cold
position).
lIn the,,orposition, the air
conditioner is automatically turned on
(however, the indicator light does not
illuminate) and the outside air mode is
automatically selected to defrost the
windshield.
In the
orposition, the outside air
mode cannot be changed to the recirculated
air mode.
q Cooling (With Air Conditioner)í
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the cold position.
3. Set the fan control dial to the desired speed.
4. Turn on the air conditioner by pressing the A/C switch.
5. Adjust the fan control dial and temperature control dial to maintain
maximum comfort.
CAUTION
When using the air conditioner while
driving up long hills or in heavy
traffic, closely monitor the
temperature gauge (page 5-30).
The air conditioner may cause engine
overheating. If the gauge indicates
overheating, turn the air conditioner
off (page 7-13).
NOTE
lWhen maximum cooling is desired, set the
temperature control dial to the extreme cold
position and set the air intake selector to
the recirculated air mode, then set the fan
control dial to position 4.
lIf warmer air is desired at floor level, set
the mode selector dial at the
position
and adjust the temperature control dial to
maintain maximum comfort.
lThe air to the floor is warmer than air to
the face (except when the temperature
control dial is set at the extreme hot or cold
position).
6-8
Interior Comfort
íSome models.
Climate Control System
Mazda5_8X53-EA-07I_Edition3 Page172
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (173,1)

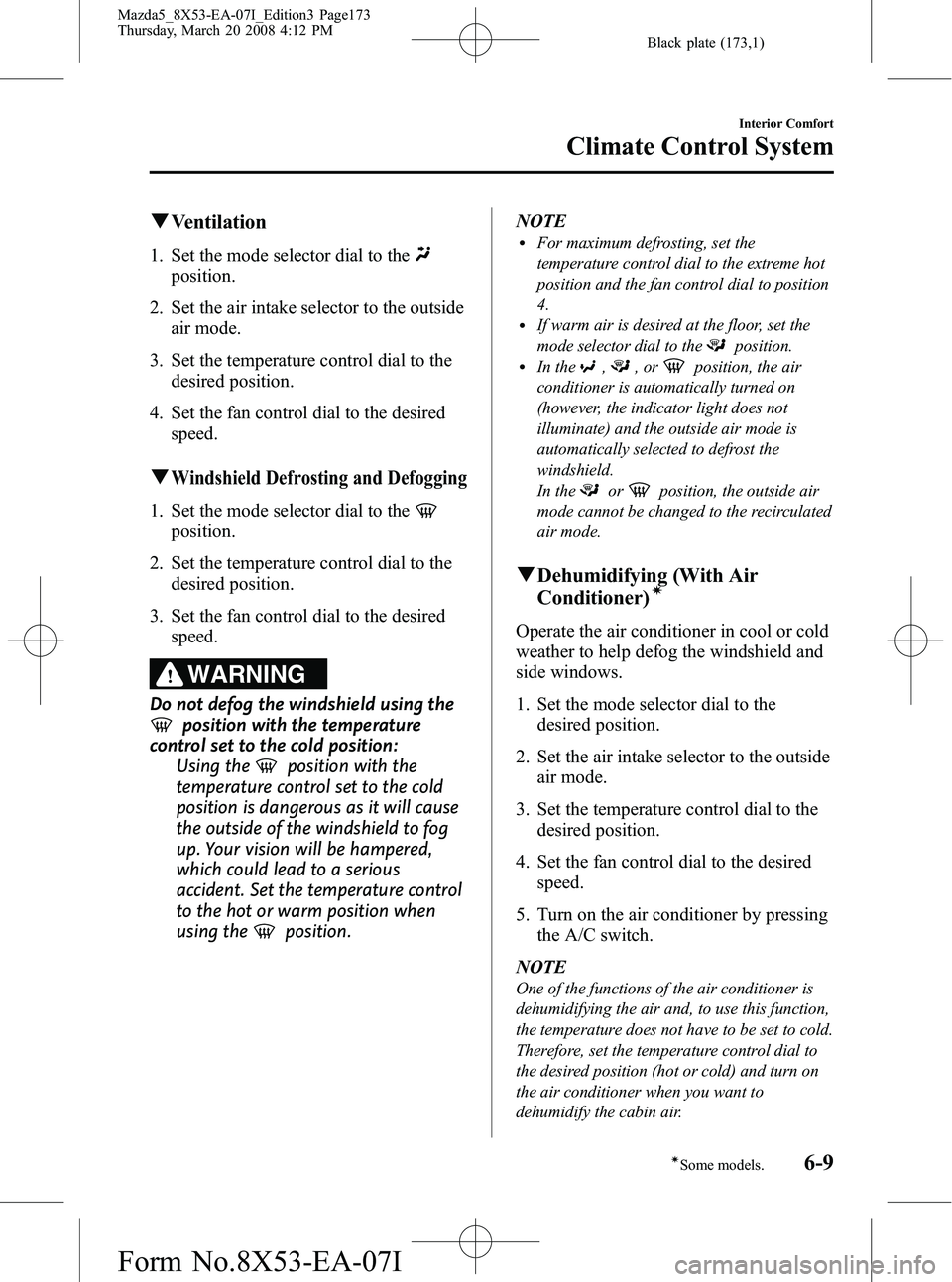

qVentilation
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the outside air mode.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
qWindshield Defrosting and Defogging
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the desired position.
3. Set the fan control dial to the desired speed.
WARNING
Do not defog the windshield using the
position with the temperature
control set to the cold position:
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident. Set the temperature control
to the hot or warm position when
using the
position. NOTE
lFor maximum defrosting, set the
temperature control dial to the extreme hot
position and the fan control dial to position
4.
lIf warm air is desired at the floor, set the
mode selector dial to the
position.lIn the,,orposition, the air
conditioner is automatically turned on
(however, the indicator light does not
illuminate) and the outside air mode is
automatically selected to defrost the
windshield.
In the
orposition, the outside air
mode cannot be changed to the recirculated
air mode.
q Dehumidifying (With Air
Conditioner)í
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the outside air mode.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
5. Turn on the air conditioner by pressing the A/C switch.
NOTE
One of the functions of the air conditioner is
dehumidifying the air and, to use this function,
the temperature does not have to be set to cold.
Therefore, set the temperature control dial to
the desired position (hot or cold) and turn on
the air conditioner when you want to
dehumidify the cabin air.
Interior Comfort
Climate Control System
6-9íSome models.
Mazda5_8X53-EA-07I_Edition3 Page173
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (174,1)
Fully Automatic Typeí
Climate control information is displayed on the information display.
Without rear ventilation systemFan control dial Mode selector switch
Temperature control dial
Windshield defroster switch
OFF switch Air intake selectorRear window defroster switch Ambient Temperature switch
Auto switch
A/C switch
With rear ventilation system
Auto switch Mode selector switchWindshield defroster switch Fan control dial
OFF switch A/C switch
Ambient Temperature switch
Rear ventilation control switch
Rear window defroster switch
Air intake selector
6-10
Interior Comfort
íSome models.
Climate Control System
Mazda5_8X53-EA-07I_Edition3 Page174
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (175,1)

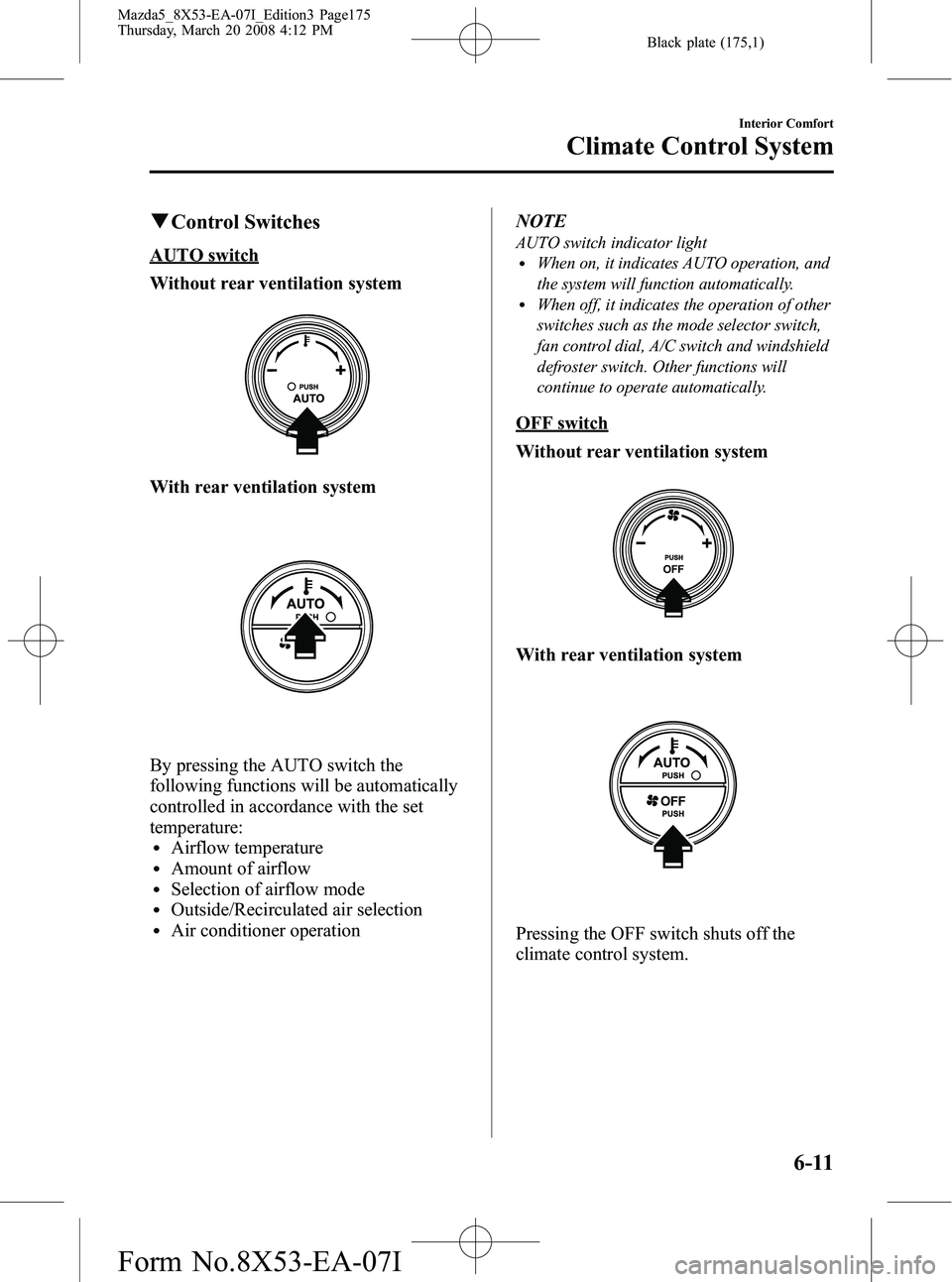

qControl Switches
AUTO switch
Without rear ventilation system
With rear ventilation system
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow modelOutside/Recirculated air selectionlAir conditioner operation NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lWhen off, it indicates the operation of other
switches such as the mode selector switch,
fan control dial, A/C switch and windshield
defroster switch. Other functions will
continue to operate automatically.
OFF switch
Without rear ventilation system
With rear ventilation system
Pressing the OFF switch shuts off the
climate control system.
Interior Comfort
Climate Control System
6-11
Mazda5_8X53-EA-07I_Edition3 Page175
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (176,1)
Temperature control dial
Without rear ventilation system
ColdHot
With rear ventilation system
ColdHot
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Without rear ventilation system
Slow
Fast
With rear ventilation system
Slow Fast
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
lWith the airflow mode set toposition
and the temperature control dial set at a
medium temperature, heated air is directed
to the feet and a comparably lower air
temperature will flow through the central,
left and right vents.
lTo set the air vent to, press the
windshield defroster switch.
6-12
Interior Comfort
Climate Control System
Mazda5_8X53-EA-07I_Edition3 Page176
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (177,1)
A/C switch
Without rear ventilation system
With rear ventilation system
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
NOTE
The air conditioner may not function when the
outside temperature approaches 0 °C (32 °F).
(Indicator remains on even when system is off.)
Air intake selector
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position (indicator
light illuminated)
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position (indicator light
turned off)
Use this position for normal conditions
and defogging.
WARNING
Do not use theposition in cold or
rainy weather: Using the
position in cold or
rainy weather is dangerous as it will
cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
AMB (Ambient Temperature) switch
Press the AMB switch to display the
ambient temperature.
Interior Comfort
Climate Control System
6-13
Mazda5_8X53-EA-07I_Edition3 Page177
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (178,1)
NOTElThe displayed ambient temperature may
vary from the actual ambient temperature
depending on the surrounding area and
vehicle conditions.
lPress the AMB switch 2 seconds or more to
switch the display from Fahrenheit to
Centigrade or vice versa.
lPress the AMB switch again to switch the
display from ambient temperature to the
temperature set for the air conditioner.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
qOperation of Automatic Air
Conditioning
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
Without rear ventilation system
With rear ventilation system
2. Use the temperature control dial to select a desired temperature.
Without rear ventilation system
Cold Hot
With rear ventilation system
ColdHot
To turn off the system, press the OFF
switch.
6-14
Interior Comfort
Climate Control System
Mazda5_8X53-EA-07I_Edition3 Page178
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (179,1)

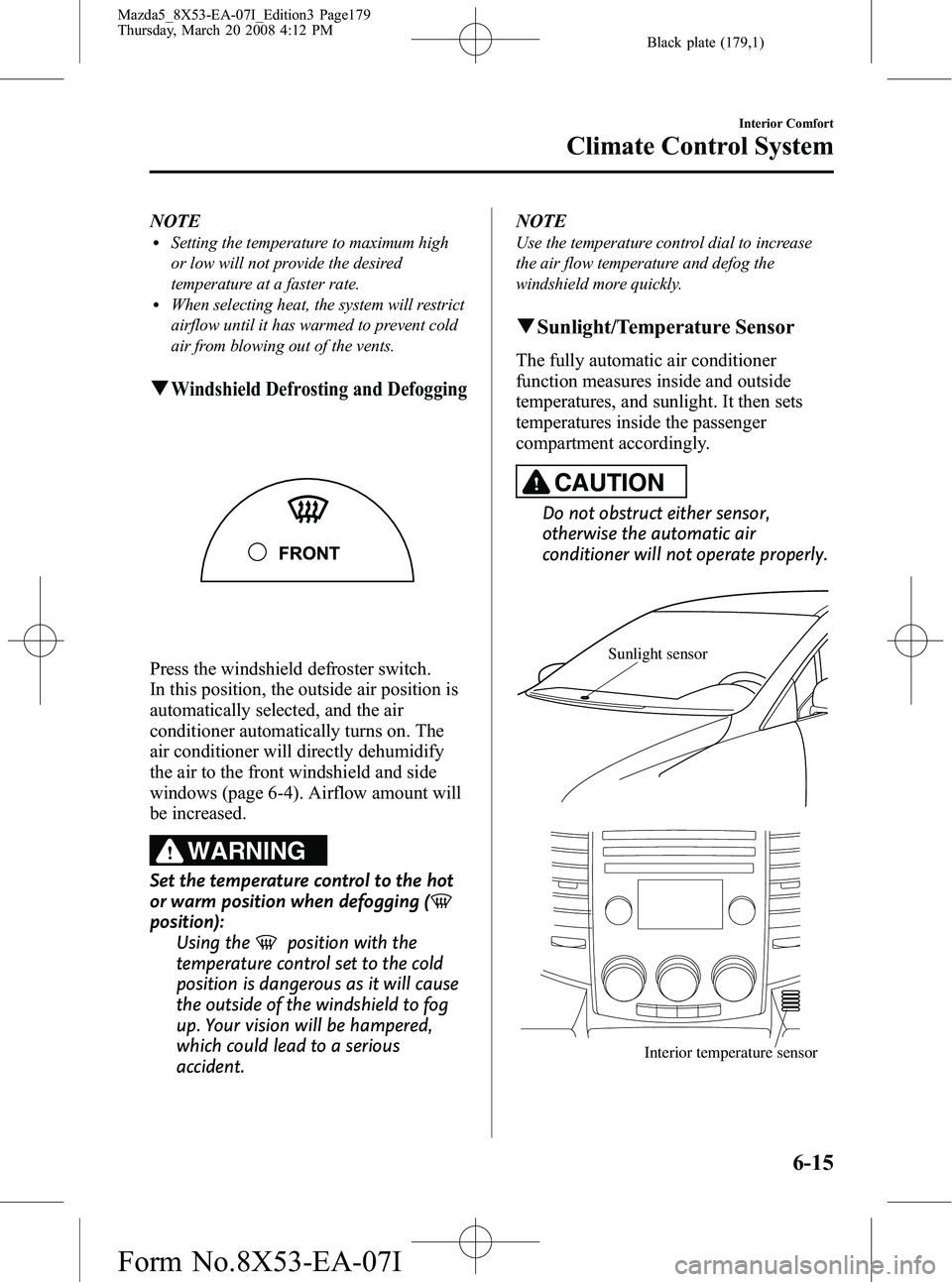

NOTElSetting the temperature to maximum high
or low will not provide the desired
temperature at a faster rate.
lWhen selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.
qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, the outside air position is
automatically selected, and the air
conditioner automatically turns on. The
air conditioner will directly dehumidify
the air to the front windshield and side
windows (page 6-4). Airflow amount will
be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging (
position):Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident. NOTE
Use the temperature control dial to increase
the air flow temperature and defog the
windshield more quickly.
q
Sunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly.
CAUTION
Do not obstruct either sensor,
otherwise the automatic air
conditioner will not operate properly.
Sunlight sensor
Interior temperature sensor
Interior Comfort
Climate Control System
6-15
Mazda5_8X53-EA-07I_Edition3 Page179
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (180,1)
Rear Ventilation Systemí
The rear ventilation system only blows
cool air through the rear vents while the
front climate control system is on. It does
not blow air when the front climate
control is off. The rear vents blow either
outside air or recirculated air, depending
on the position in which the air intake
selector switch is set.
Front climate control is given priority
over the rear ventilation control.
Knob
qControl Switches
Rear ventilation control switch
To get air flowing through the rear vents,
first operate the fan control dial or turn on
the AUTO switch on the front climate
control operation panel. Then, switch on
the rear ventilation control switch on the
front climate control panel, or switch on
either the low or high rear vent button on
the rear console.
Rear vent buttons
The rear vent switches adjust the airflow
volume flowing from the rear vent.
OFF ―Fan off
LO ―Low speed
HI ―High speed
NOTE
Only cool or cold air (no heat) blows through
the rear vents while the front climate control is
on. Heat for the rear passengers comes from
under the front seats when the front heater is
on and set to floor mode.
When pressing the rear ventilation control
switch on the front control panel (with climate
control system on), the rear ventilation system
operates at low speed only. To change to high
speed, press the HI rear vent button.
6-16
Interior Comfort
íSome models.
Climate Control System
Mazda5_8X53-EA-07I_Edition3 Page180
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I
