MAZDA MODEL 5 2008 Owners Manual

Black plate (361,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they don't have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-012B-08 2008 WORKSHOP MANUAL (English)
9999-MX-012B-08 2008 WORKSHOP MANUAL (Spanish)
9999-95-074G-08 2008 WIRING DIAGRAM (English)
9999-MX-074G-08 2008 WIRING DIAGRAM (Spanish)
9999-95-005C-08 (U.S.A. only) 2008 OWNER'S MANUAL
9999-EC-005C-08 (Canada only) 2008 OWNER'S MANUAL
9999-PR-005C-08 (Puerto Rico, Mexico only) 2008 OWNER'S MANUAL
9999-95-010F-08 2008 SERVICE HIGHLIGHTS
9999-95-011F-08NAV (U.S.A. only) 2008 NAVIGATION SYSTEM OWNER'S MANUAL
9999-EC-011F-08NAV (Canada only) 2008 NAVIGATION SYSTEM OWNER'S MANUAL
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
Customer Information
Service Publications
9-43
Mazda5_8X53-EA-07I_Edition3 Page361
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (362,1)
qNAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.
9-44
Customer Information
Service Publications
Mazda5_8X53-EA-07I_Edition3 Page362
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (363,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4 Specifications .......................................................................... 10-4
10-1
Mazda5_8X53-EA-07I_Edition3 Page363
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (364,1)

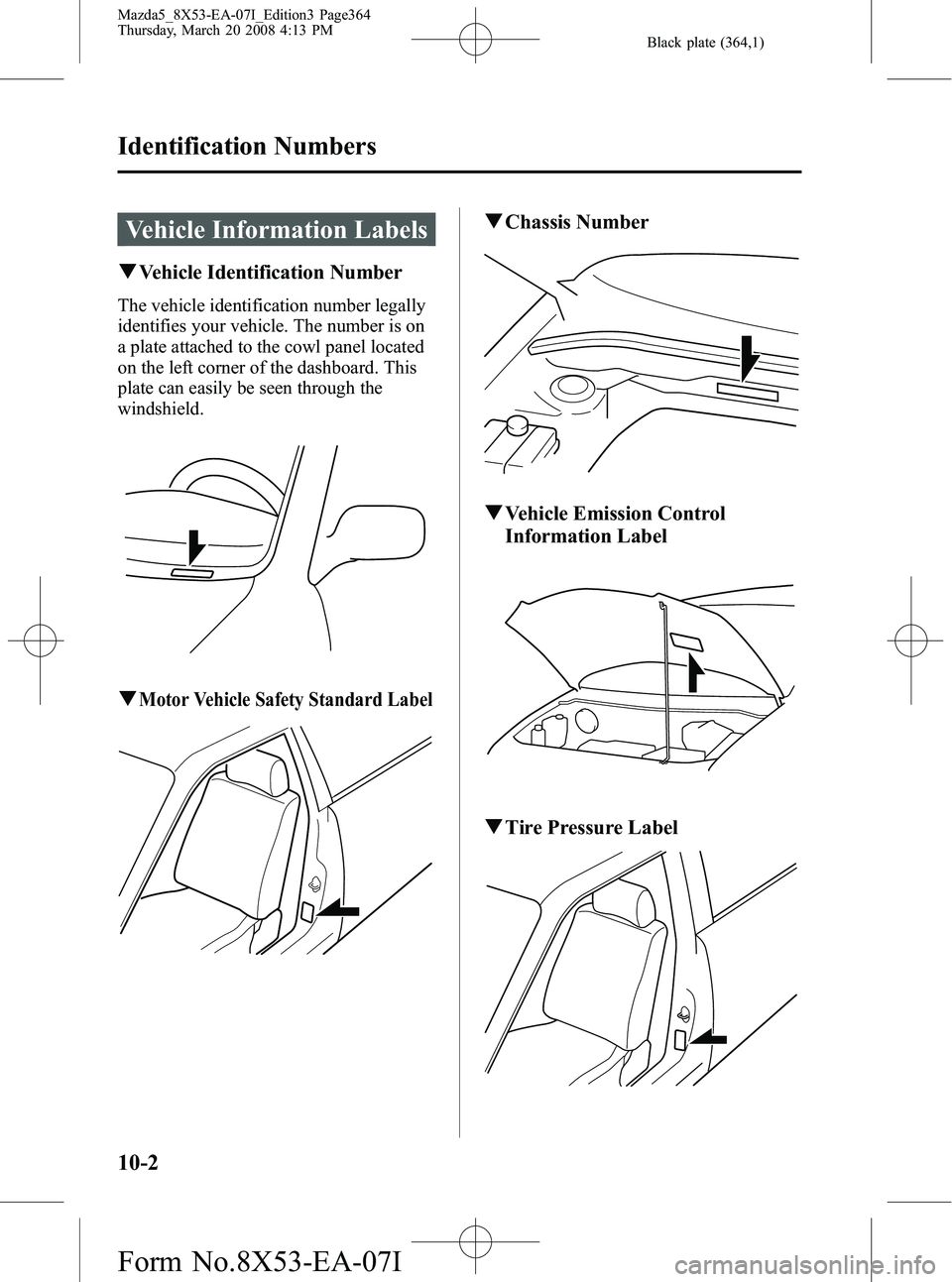

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
Mazda5_8X53-EA-07I_Edition3 Page364
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (365,1)

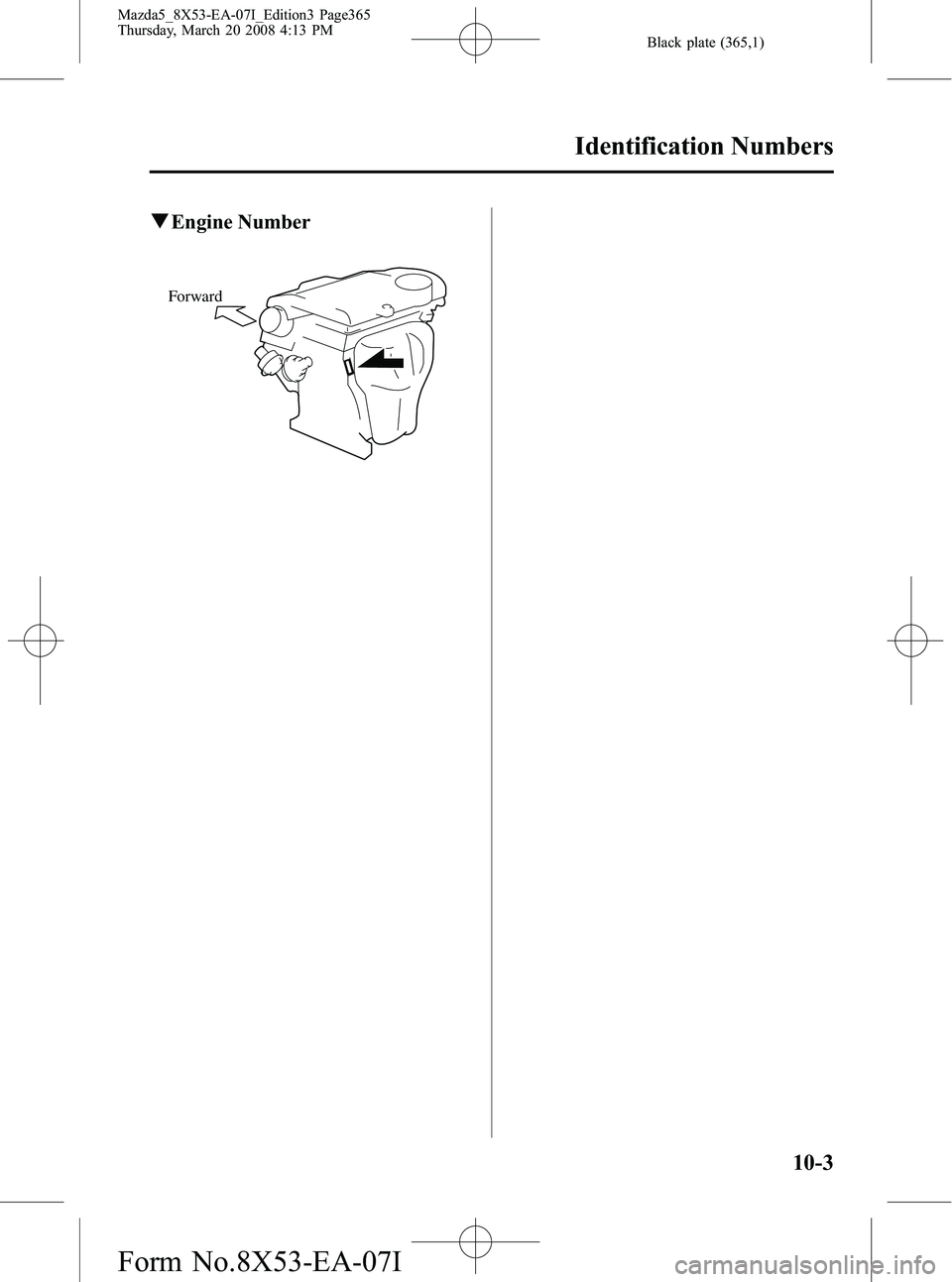

qEngine Number
Forward
Identification Numbers
10-3
Mazda5_8X53-EA-07I_Edition3 Page365
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (366,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 9.7
qElectrical System
Item Classification
Battery 12V-48AH/5HR, 12V-55AH/5HR
Spark-plug number LFG1 18110
*1, L3Y2 18 110
Spark-plug gap 1.25 ―1.35 mm (0.0493 ―0.0531 in)
*1 ex factory
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page
8-18.
Manual transaxle oil Any temperature
API Service
GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F) API Service
GL-4 or GL-5
SAE 80W-90
Automatic transaxle fluid ATF M-V
Power steering fluid ATF M-III or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda5_8X53-EA-07I_Edition3 Page366
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (367,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil 2.77 L (2.93 US qt, 2.44 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length 4,620 mm (181.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,630 mm (64.2 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
(Manual transaxle)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,090 kg (4,608 lb)
GAWR (Gross Axle Weight Rating) Front
1,015 kg (2,238 lb)
Rear 1,090 kg (2,403 lb)
(Automatic transaxle) Item Weight
GVWR (Gross Vehicle Weight Rating) 2,116 kg (4,665 lb)
GAWR (Gross Axle Weight Rating) Front
1,046 kg (2,306 lb)
Rear 1,085 kg (2,392 lb)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
Mazda5_8X53-EA-07I_Edition3 Page367
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (368,1)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 60 HB3 (HB3)
Low beam
Halogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Side-marker lights 27/8 ―(#1157NA)
Fog lights
í55 H11 (H11)
Side turn signal lights*15 WY5W (―)
High-mount brake light*12.4 ―(― )
Rear combination light Bulb type
Reverse lights
18W16W (#921)
Rear turn signal lights 21WY21W (32CP)
Brake lights/Taillights
(Rear side-marker light) 21/5 W21/5W (#7443)
LED type
*1
Reverse lights 18W16W (#921)
Rear turn signal lights 21WY21W (32CP)
Brake lights 4.6―(― )
Taillights 0.4―(― )
Rear side-marker light 0.8 ―(― )
License plate lights 5T10 (―)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
Interior light
Light bulb Category
Wattage ECE R
Luggage compartment light 8 ―
Overhead lights/Map lights (Front) 5 W5W
Overhead light (Rear) 10 ―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
10-6íSome models.
Specifications
Mazda5_8X53-EA-07I_Edition3 Page368
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (369,1)
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-31.
Standard tireTire size Inflation pressure
Front Rear
P205/55R16 89H 230 kPa (34 psi)230 kPa (34 psi)
205/50R17 89V 230 kPa (34 psi)230 kPa (34 psi)
Temporary tire
Tire size Inflation pressure
T125/70D16 420 kPa (60 psi)
q Fuses
Refer to the fuse rating on page 8-42.
