audio MAZDA MODEL 5 2008 Owner's Guide

Black plate (211,1)
qFunction restrictions while using
Bluetooth Hands-Free
Functions are limited as follows while
Bluetooth Hands-Free is being used.
lBeep sound and voice guidance related
to the audio unit and navigation system
are not heard.
lBeep sound related to the A/C
operation is not heard.
lThe navigation system's voice
recognition command does not
function.
qHow to use this section
Descriptions in the text are as follows:
Say : Voice commands to be called out by
you.
Prompt : Voice guidance output from the
speaker.
A beep sound [Beep] is output from the
speaker. Call out after the beep sound is
heard.
Example)
Say : [Beep] “Dial ”
Prompt :“Number, please ”
Say : [Beep] “XXXXXXXXXXX (Ex.
“ 555-1234 ”) (Telephone number) ”
Bluetooth Hands-Free Activation
Method
1. Program the mobile telephone (Pairing)
Refer to Bluetooth Hands-Free
preparation on page 6-48.
2. Press the voice recognition/hands-free switch with a short press.
3. (With the navigation system)
Say : [Beep] “Telephone ”or “Phone ”. The hands-free system is activated.
Functions of the hands-free telephone,
such as making and receiving calls, can be
used after the activation. (For details on
the telephone functions, refer to
“Basic
Bluetooth Hands-Free Operation ”or
“ Convenient Use of the Hands-Free
System ”.)
NOTE
(With the navigation system)
When the voice recognition/hands-free switch
is pressed with a long press, the hands-free
system is activated without having to call out
“ Telephone ”or “Phone ”.
For vehicles with a navigation system, the
navigation system is activated by calling out
the voice recognition command of the
navigation system after pressing the voice
recognition/hands-free switch with a short
press. For voice recognition details with the
navigation system, refer to the separate
“ NAVIGATION SYSTEM MANUAL ”.
Interior Comfort
Bluetooth Hands-Free
6-47
Mazda5_8X53-EA-07I_Edition3 Page211
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (214,1)
22.Say: [Beep] “1 ” (Call out a number of
the desired priority from 1 to 7.)
NOTE
lNormally, “1” is to be input (Highest
priority).
lIf more than two mobile telephones are
registered, input the priority order from 1 to
7.
23. Prompt :“XXXXXX - - - (Ex. “Stan's
phone ”) (Phone tag) set to priority X
(Priority number). Is this correct? ”
24. Say: [Beep] “Ye s ”
25. Prompt :“Pairing complete ”
After a mobile telephone is registered, the
system automatically identifies the phone.
By pressing the voice recognition/hands-
free switch again, or by pressing the voice
recognition/hands-free switch first after
turning the ignition switch from the
LOCK to the ACC position, the system
reads out a voice guidance, “XXXXXX -
- - (Ex. “Stan's phone ”) (Phone tag) is
connected ”. If two or more telephones are
registered, the one with the highest
priority is selected.
q Making a call using a telephone
number
1. Activate the Bluetooth Hands-Free
(page 6-47).
2. Say : [Beep] “Dial ”
3. Prompt :“Number, please ”
4. Say : [Beep] “XXXXXXXXXXX (Ex.
“ 555-1234 ”) (Telephone number) ”
5. Prompt :“Dialing XXXXXXXXXXX
(Ex. “555-1234 ”) (Telephone number)
is this correct? ”
6. Say : [Beep] “Ye s ”or “No” . 7. When
“Ye s ”is called out, the call is
made.
When “No ”is called out, the procedure
returns to Step 3.
q Receiving an incoming call
1. Prompt :“Incoming call, press the
phone button to answer ”.
2. To accept the call, press the voice recognition/hands-free switch (Short
press).
To reject the call, press the voice
recognition/hands-free switch (Long
press).
qHanging up a call
Press the voice recognition/hands-free
switch during the call (Long press).
Beep will confirm that call is ended.
qVolume adjustment
Turn the power/volume dial of the audio
unit or navigation system to adjust the
volume.
Turn the power/volume dial to the right to
increase volume, to the left to decrease it.
Audio unit Navigation system
6-50
Interior Comfort
Bluetooth Hands-Free
Mazda5_8X53-EA-07I_Edition3 Page214
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (215,1)
NOTElThe volume can also be adjusted using the
volume button on the steering wheel.
lThe music volume of the audio unit and the
navigation system cannot be adjusted while
Bluetooth Hands-Free is being used.
qHelp function use
The help function informs the user of all
the available voice commands under the
current conditions.
1. Press the voice recognition/hands-free
switch (Short press).
2. Say : [Beep] “Help ”
3. Follow prompts to get the appropriate voice guidance.
Convenient Use of the
Hands-Free System
qPhone book usage
Phone book registration
Phone numbers can be registered to the
Bluetooth Hands-Free phone book.
1. Activate the Bluetooth Hands-Free
(page 6-47).
2. Say: [Beep] “Phone book ”
3. Prompt: “Select one of the following:
new entry, edit, list names, delete or
erase all..., or say “cancel ”to return to
main menu. ”
4. Say: [Beep] “New entry ”
5. Prompt: “Name please. ”
6. Say: [Beep] “XXXXX... (Ex. “Mary's
phone ”)” (Say a voice tag for the name
registered.)
7. Prompt: “Adding XXXXX... (Ex.
“ Mary's phone ”) (Registered voice
tag). Is this correct? ”
8. Say: [Beep] “Ye s ”
9. Prompt: “Home, Work, Mobile, or
Pager? ”
10. Say: [Beep] “Mobile ”(Say “Home ”,
“ Work ”, “Mobile ”,or “Pager ”, for the
desired location to be registered.)
11. Prompt: “Mobile ”(Location to be
registered). Is this correct?
12. Say: [Beep] “Ye s ”
13. Prompt: “Number, please. ”
14. Say: [Beep] “XXXXXXXXXXX
(Ex. “555-1234 ”)” (Say the phone
number to be registered.)
Interior Comfort
Bluetooth Hands-Free
6-51
Mazda5_8X53-EA-07I_Edition3 Page215
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (228,1)
Information Display
ClockAudio display Climate control display/
Ambient temperature display
6-64
Interior Comfort
Interior Equipment
Mazda5_8X53-EA-07I_Edition3 Page228
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (229,1)
qInformation Display Functions
The information display has the following functions:lClocklAmbient Temperature Display (Outside Temperature Display, Fully Automatic Type)lClimate Control Display (Fully Automatic Type)lAudio Display
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Turn the ignition switch to the ACC or
ON position.
2. Adjust the time using the time setting buttons (
,).
The hours advance while the time
setting button (
) is pressed.
The minutes advance while the time
setting button (
) is pressed.
Time resetting
1. Turn the ignition switch to the ACC or ON position.
2. Press the:00 button for 1.5 seconds or more. The displayed time flashes. 3. When the button is released, the time
will be reset as follows:
(Example)
12:01 ―12:29 →12:00
12:30 ―12:59 →1:00
NOTE
When the:00 button is released, the seconds
will start at “00 ”.
Switching between 12 and 24-hour
clock time
1. Turn the ignition switch to the ACC or
ON position.
2. Press both time setting buttons (
,)
simultaneously for 1.5 seconds or
more.
3. “12h ”or “24h ”is displayed.
4. The selected clock time will be displayed within three seconds.
Interior Comfort
Interior Equipment
6-65
Mazda5_8X53-EA-07I_Edition3 Page229
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (230,1)
qAmbient Temperature Display
(Fully Automatic Type)
When the ignition switch is in the ON
position, press the AMB switch (page
6-10) to display the ambient temperature.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the AMB switch a few seconds or
more to switch the display from Fahrenheit
to Centigrade or vice versa.
lPress the AMB switch again to switch the
display from ambient temperature to the
temperature set for the air conditioner.
qClimate Control Display (Fully
Automatic Type)
The climate control system status is
displayed. To operate the climate control
system, refer to “Climate Control System ”
(page 6-2).
q Audio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System ”(page 6-17).
6-66
Interior Comfort
Interior Equipment
Mazda5_8X53-EA-07I_Edition3 Page230
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (239,1)

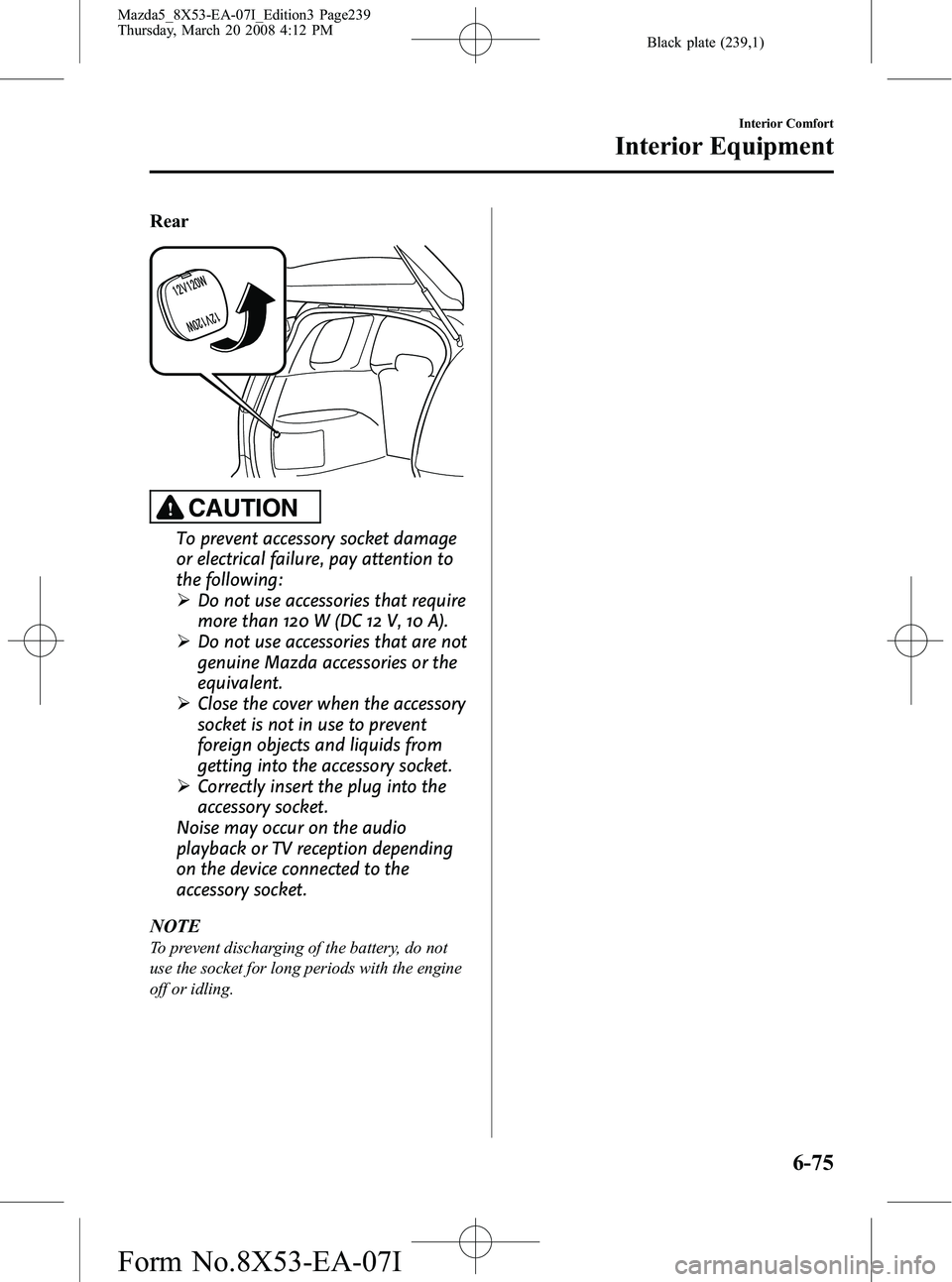

Rear
CAUTION
To prevent accessory socket damage
or electrical failure, pay attention to
the following:
ØDo not use accessories that require
more than 120 W (DC 12 V, 10 A).
Ø Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
Ø Close the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.
Ø Correctly insert the plug into the
accessory socket.
Noise may occur on the audio
playback or TV reception depending
on the device connected to the
accessory socket.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-75
Mazda5_8X53-EA-07I_Edition3 Page239
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (311,1)
Fuse block (Passenger's side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 M.DEF 7.5 A Mirror defroster
í
2―― ―
3 ENG3 20 A Ignition switch
4 P.OUTLET 15 A Accessory Socket
5 SHIFT/L 5 A AT shift
í
6 CIGAR 15 A Lighter
7 MIRROR 7.5 A Power control mirror, Audio systemí
8 A/C 10 A Air conditioner
9 F.WIP 25 A Windshield wipers and washer
10 R.WIP 15 A Rear window wiper and washer
11 ENG 5 A Main relay
12 METER 10 A Instrument cluster
13 SAS 10 A Supplemental restraint systems
14 S.WARM 15 A Seat warmer
í
15 ABS/DSC 5 A ABS
16 EHPAS 5 A EHPAS
17 ENG2 15 A ―
18 P/W 30 A Power windows
19 P/W ――
Maintenance and Care
Owner Maintenance
8-47íSome models.
Mazda5_8X53-EA-07I_Edition3 Page311
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (372,1)
A
Accessory Socket .............................. 6-74
Add-On Non-Genuine Parts and
Accessories ....................................... 9-17
Air Bag Systems ............................... 2-39
Ambient Temperature Display .......... 6-66
Antenna ............................................. 6-17
Anti-Lock Brake System (ABS) ......... 5-7Warning light ............................... 5-8
Appearance Care ............................... 8-48
Audio System ................................... 6-17 Audio control switch .................. 6-38
Audio set .................................... 6-23
AUX mode ................................. 6-40
Operating tips for audio
system ........................................ 6-17
Safety certification ..................... 6-43
Automatic Transaxle Driving tips ................................ 5-16
Fluid ........................................... 8-23
Manual shift mode ..................... 5-13
Shift-lock override ..................... 5-13
Shift-lock system ....................... 5-13
Transaxle ranges ........................ 5-12
B
BatteryEmergency starting .................... 7-15
Maintenance ............................... 8-29
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-44
Lights-on reminder ..................... 5-44
Seat belt warning beep ............... 5-44
Tire inflation pressure warning
beep ............................................ 5-44
B
Before Starting the Engine .................. 4-5After getting in ............................. 4-5
Before getting in .......................... 4-5
Bluetooth Hands-Free ....................... 6-44 Basic Bluetooth Hands-Free
Operation ................................... 6-48
Convenient Use of the Hands-Free
System ........................................ 6-51
Hands-Free Telephone Setting .... 6-56
Safety certification ..................... 6-61
When the Bluetooth Hands-Free
cannot be used ............................ 6-60
Body Lubrication .............................. 8-25
Bottle Holder ..................................... 6-69
Brake/Clutch Fluid ........................................... 8-22
Brakes Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-35
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops ...................... 6-73
Cargo Sub-Compartment .................. 6-73
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-18
Center Console .................................. 6-70
Child Restraint
Child restraint precautions ......... 2-26
LATCH child-restraint
systems ....................................... 2-36
11-2
Index
Mazda5_8X53-EA-07I_Edition3 Page372
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (374,1)
G
Glove Box ......................................... 6-69
H
Hazard Warning Flasher .................... 5-55
Hazardous Driving .............................. 4-7
HeadlightsControl ....................................... 5-45
Flashing ...................................... 5-47
High-low beam .......................... 5-47
Leveling ..................................... 5-47
On reminder ............................... 5-47
Hood Release .................................... 3-17
Horn .................................................. 5-54
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-62
Immobilizer System .......................... 3-20
Indicator Lights ................................. 5-33 Cruise ......................................... 5-43
Headlight high-beam .................. 5-42
Power steering malfunction ........ 5-43
Security ...................................... 5-42
Shift position .............................. 5-42
Turn-signal/hazard warning ....... 5-44
Information Display .......................... 6-64 Ambient temperature display ..... 6-66
Audio display ............................. 6-66
Climate control display .............. 6-66
Clock .......................................... 6-65
Information display functions .... 6-65
Instrument Cluster ............................. 5-28
Interior Care ...................................... 8-53
Interior Lights ................................... 6-62
J
Jump-Starting .................................... 7-16
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-48
Liftgate .............................................. 3-11
Light Bulbs Replacement ............................... 8-35
Specifications ............................. 10-6
Lighting Control ............................... 5-45
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-63
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting.... 5-10
Map Lights ........................................ 6-63
Mirror Defroster ................................ 5-54
Mirrors Outside mirrors .......................... 3-25
Rearview mirror ......................... 3-26
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-18
11-4
Index
Mazda5_8X53-EA-07I_Edition3 Page374
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I
