Black plate (28,1)
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing ”(page 8-54).
Ring
q Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return to the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
2-16
Essential Safety Equipment
Seat Belt Systems
Mazda5_8X53-EA-07I_Edition3 Page28
Thursday, March 20 2008 4:10 PM
Form No.8X53-EA-07I

Black plate (85,1)

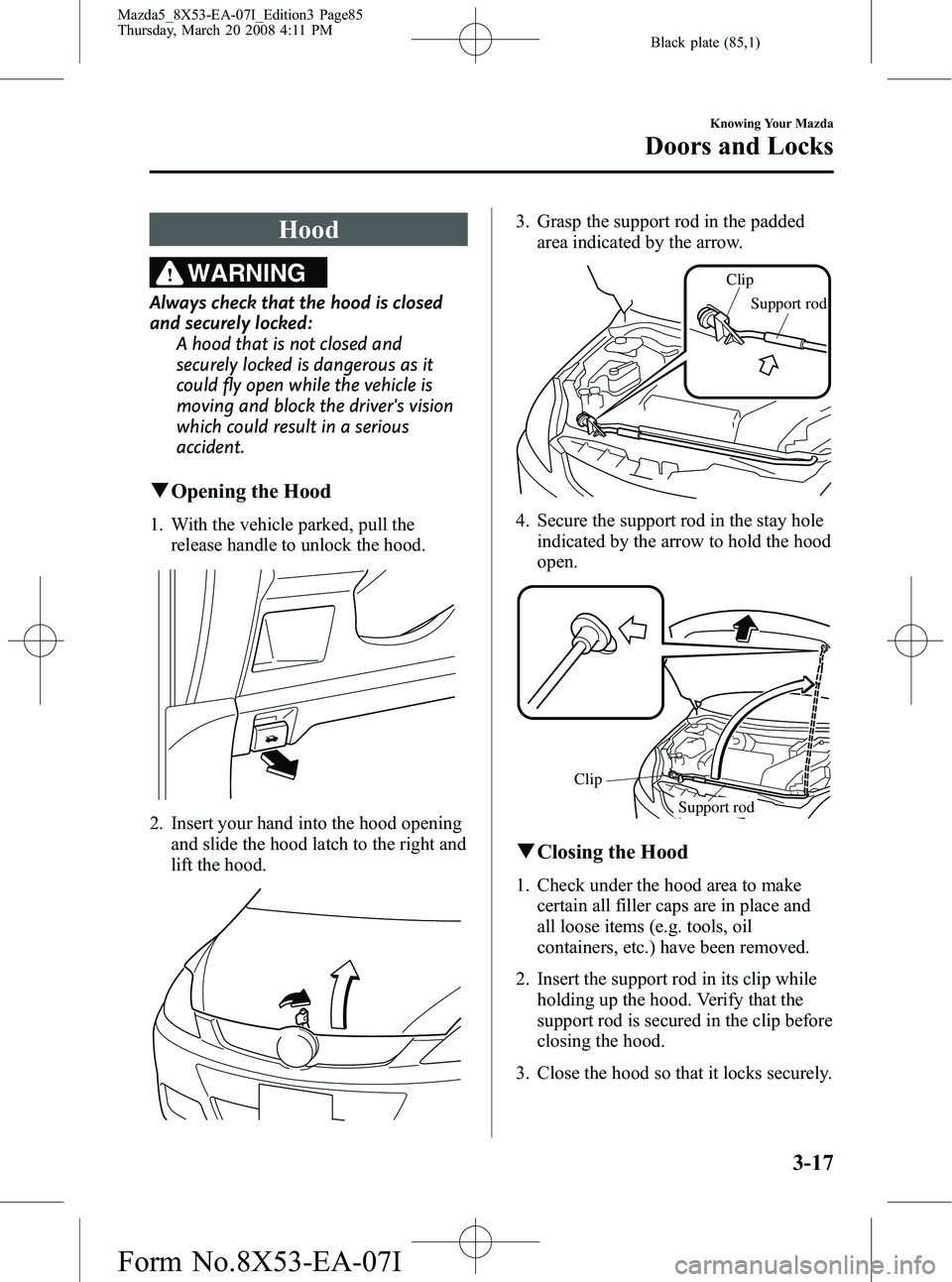

Hood
WARNING
Always check that the hood is closed
and securely locked:A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Insert your hand into the hood opening
and slide the hood latch to the right and
lift the hood.
3. Grasp the support rod in the paddedarea indicated by the arrow.
Support rod
Clip
4. Secure the support rod in the stay hole
indicated by the arrow to hold the hood
open.
Support rod
Clip
q
Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
Knowing Your Mazda
Doors and Locks
3-17
Mazda5_8X53-EA-07I_Edition3 Page85
Thursday, March 20 2008 4:11 PM
Form No.8X53-EA-07I

Black plate (101,1)
Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
fluid leaks.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake/clutch fluid,
washer fluid, and other fluid levels should be
inspected. See Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?lIs the seat adjusted properly?lAre the inside and outside mirrors
adjusted?
lIs everyone's seat belt fastened?lCheck all gauges.lCheck all warning lights when the
ignition switch is turned to the ON
position.
lRelease the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
Before Driving Your Mazda
Before Starting the Engine
4-5
Mazda5_8X53-EA-07I_Edition3 Page101
Thursday, March 20 2008 4:11 PM
Form No.8X53-EA-07I

Black plate (141,1)
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas
SignalWarning/Indicator Lights Page
Brake System Warning Light 5-35
Charging System Warning Light5-36
Engine Oil Pressure Warning Light5-36
Check Engine Light5-37
ABS Warning Light5-35
Air Bag/Front Seat Belt Pretensioner System Warning Light5-37
Low Fuel Warning Light5-38
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-33
Mazda5_8X53-EA-07I_Edition3 Page141
Thursday, March 20 2008 4:11 PM
Form No.8X53-EA-07I

Black plate (145,1)
If the light illuminates while driving:
1. Drive to the side of the road and parkoff the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 8-19). If it's low, add oil.
4. Start the engine and check the warning light.
If the light remains illuminated even after
you add oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
CAUTION
Don't run the engine if oil pressure is
low. It could result in extensive
engine damage.
q Check Engine Light
This indicator light illuminates when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer. The check engine light may come on in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly illuminates or
does not illuminate at all when the
ignition switch is turned to the ON
position. If any of these occur, consult an
Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-37
Mazda5_8X53-EA-07I_Edition3 Page145
Thursday, March 20 2008 4:11 PM
Form No.8X53-EA-07I

Black plate (287,1)
Power Steering Fluid
qInspecting Power Steering Fluid
Level
CAUTION
To avoid damage to the power
steering pump, don't operate the
vehicle for long periods when the
power steering fluid level is low.
NOTE
Use specified power steering fluid (page 10-4).
Inspect the fluid level in the reservoir at
each engine oil change with the engine off
and cold. Add fluid if necessary; it does
not require periodic changing.
The level must be kept between MIN and
MAX.
Visually examine the lines and hoses for
leaks and damage.
If new fluid is required frequently, consult
an Authorized Mazda Dealer.
Automatic transaxle Fluid
(ATF)
q Inspecting Automatic transaxle
Fluid Level
The automatic transaxle fluid level should
be inspected regularly. Measure it as
described below.
CAUTION
Ø Always check the automatic
transaxle fluid level according to
the following procedure. If the
procedure is not done correctly,
the automatic transaxle fluid level
cannot be measured accurately
which could lead to automatic
transaxle damage.
Ø A low fluid level can cause
transaxle slippage. Overfilling can
cause foaming, loss of fluid, and
transaxle malfunction.
Ø Use only the specified fluid. A non-
specified fluid could result in
transaxle malfunction and failure.
1. Park on a level surface and set the parking brake firmly.
2. Make sure there is no ATF leakage from the ATF hose or the housing.
3. Shift the shift lever to the park position (P), start the engine and warm it up.
CAUTION
Do not shift the shift lever while the
engine is warming up. If the ATF level
is extremely low, the automatic
transaxle could be damaged.
Maintenance and Care
Owner Maintenance
8-23
Mazda5_8X53-EA-07I_Edition3 Page287
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (367,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil 2.77 L (2.93 US qt, 2.44 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length 4,620 mm (181.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,630 mm (64.2 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
(Manual transaxle)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,090 kg (4,608 lb)
GAWR (Gross Axle Weight Rating) Front
1,015 kg (2,238 lb)
Rear 1,090 kg (2,403 lb)
(Automatic transaxle) Item Weight
GVWR (Gross Vehicle Weight Rating) 2,116 kg (4,665 lb)
GAWR (Gross Axle Weight Rating) Front
1,046 kg (2,306 lb)
Rear 1,085 kg (2,392 lb)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
Mazda5_8X53-EA-07I_Edition3 Page367
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (376,1)
S
Sunshade ........................................... 3-19
Sunvisors .......................................... 6-62
T
Tachometer ........................................ 5-30
Temporary Spare Tire ....................... 8-33
Theft-Deterrent System ..................... 3-22
Third-Row seat ................................. 2-10
TiedownHook .......................................... 7-21
Tire Information ................................ 9-21
Tire Pressure Monitoring System ...... 5-22 System error activation .............. 5-26
Tire pressure monitoring system
warning light .............................. 5-24
Tires and wheels ......................... 5-26
Tires Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-31
Replacement ............................... 8-32
Rotation ...................................... 8-32
Snow tires .................................... 4-8
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................... 4-8
Uniform tire quality grading system
(UTQGS) ................................... 9-19
Tool ..................................................... 7-3
Towing Description ................................. 7-20
Emergency towing ..................... 7-20
Hook .......................................... 7-21
Recreational towing ................... 7-23
Trailer towing ............................. 4-11
Trailer Towing ................................... 4-11
Trip Meter ......................................... 5-29
Turn and Lane-Change Signals ......... 5-48
U
Underseat Storage ............................. 6-70
V
Vanity Mirrors ................................... 6-62
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-33 ABS ............................................ 5-35
Air bag system ........................... 5-37
Automatic transaxle ................... 5-40
Brake system .............................. 5-35
Charging system ......................... 5-36
Check engine .............................. 5-37
Door-ajar .................................... 5-39
Engine oil pressure ..................... 5-36
Front seat belt pretensioner
system ........................................ 5-37
Low fuel ..................................... 5-38
Low washer fluid level ............... 5-39
Seat belt ...................................... 5-38
Tire pressure monitoring
system ........................................ 5-40
Warranty ............................................ 9-13
Washer Fluid ..................................... 8-24
Weights ............................................. 10-5
Wheel Replacement .......................... 8-34
Windows Power windows .......................... 3-13
Windshield Washer ........................... 5-52
Windshield Wipers ............................ 5-50 Blades replacement .................... 8-26
Winter Driving .................................... 4-8
11-6
Index
Mazda5_8X53-EA-07I_Edition3 Page376
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I
