emergency towing MAZDA MODEL 5 2008 Owners Manual

Black plate (241,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-7
Overheating ................................................................................. 7-13 Overheating ............................................................................. 7-13
Emergency Starting .................................................................... 7-15 Starting a Flooded Engine ....................................................... 7-15
Jump-Starting .......................................................................... 7-16
Push-Starting ........................................................................... 7-19
Emergency Towing ..................................................................... 7-20 Towing Description ................................................................. 7-20
Tiedown Hooks ....................................................................... 7-21
Recreational Towing ............................................................... 7-23
7-1
Mazda5_8X53-EA-07I_Edition3 Page241
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (259,1)

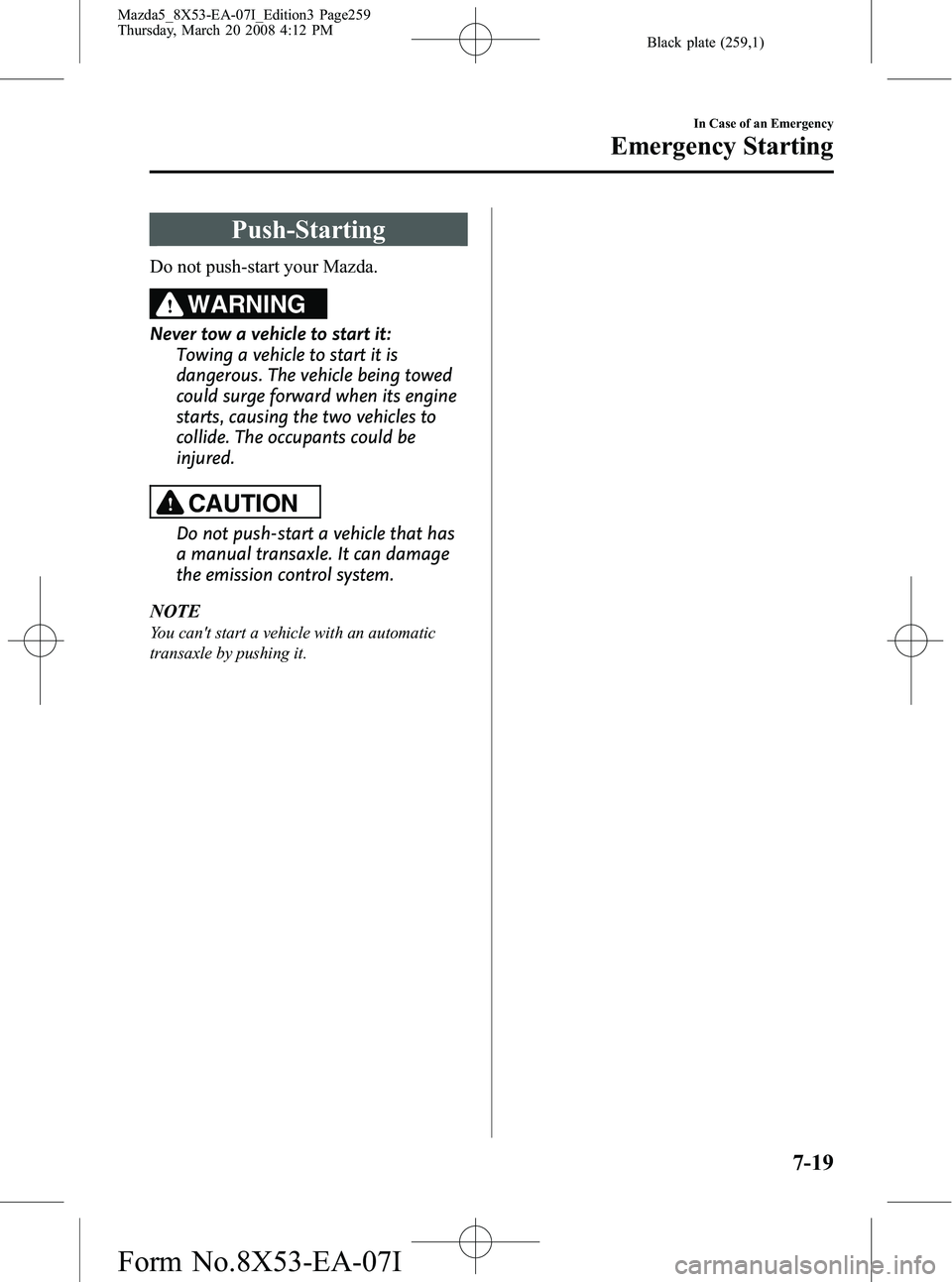

Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transaxle. It can damage
the emission control system.
NOTE
You can't start a vehicle with an automatic
transaxle by pushing it.
In Case of an Emergency
Emergency Starting
7-19
Mazda5_8X53-EA-07I_Edition3 Page259
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (260,1)

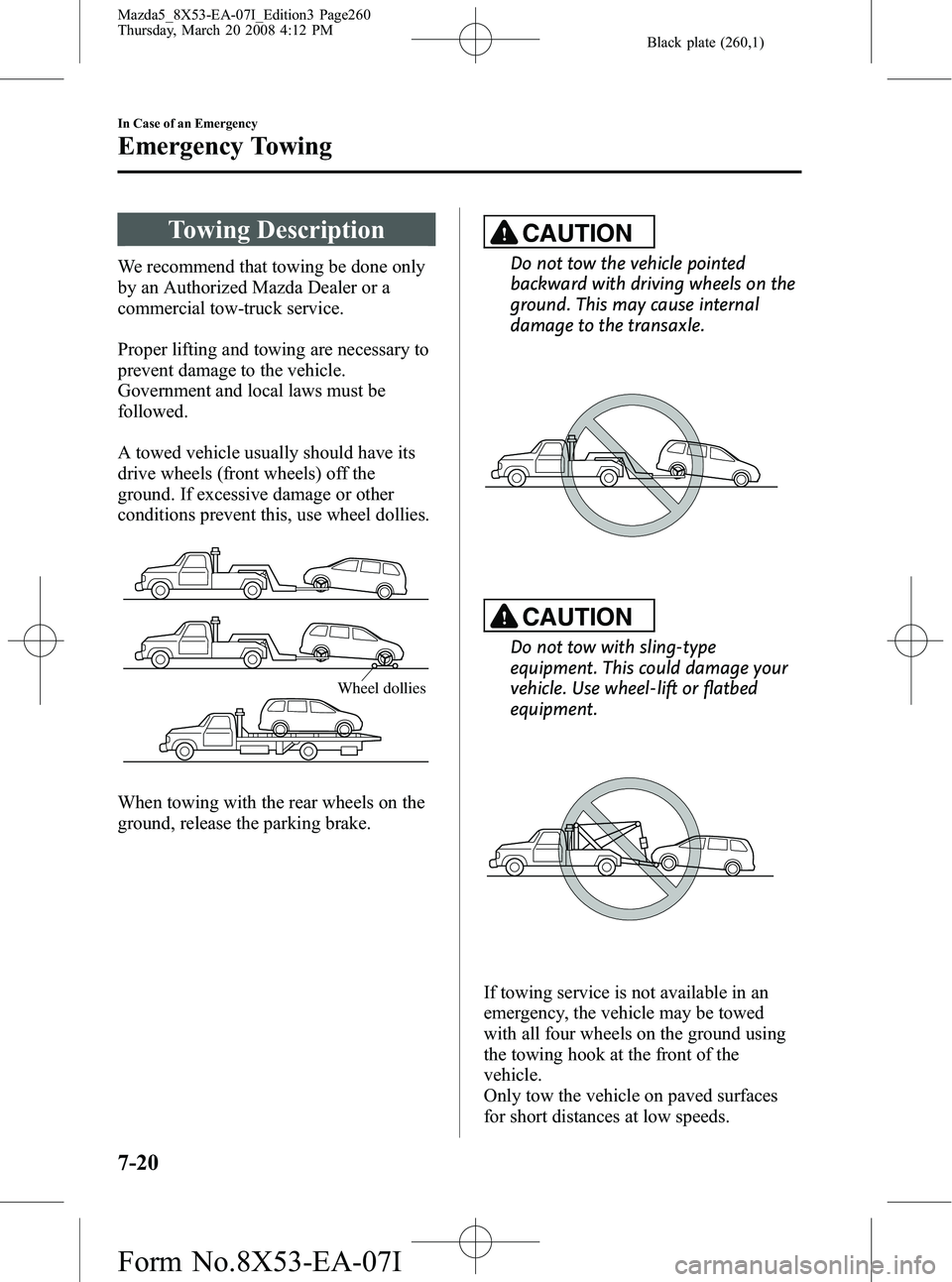

Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
Do not tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
CAUTION
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
equipment.
If towing service is not available in an
emergency, the vehicle may be towed
with all four wheels on the ground using
the towing hook at the front of the
vehicle.
Only tow the vehicle on paved surfaces
for short distances at low speeds.
7-20
In Case of an Emergency
Emergency Towing
Mazda5_8X53-EA-07I_Edition3 Page260
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (261,1)
CAUTION
Follow these instructions when
towing the vehicle with all wheels on
the ground.
1. Shift to neutral (MT), or the Nposition (AT).
2. Turn the ignition switch to the ACC position to prevent the steering
from locking up.
3. Release the parking brake.
Remember that power assist for the
brakes and steering will not be
available when the engine is not
running.
Tiedown Hooks
CAUTION
Don't use the tiedown hooks under
the front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing
will damage the bumper.
q Tiedown Hook-Front
1. Remove the tiedown eyelet, lug
wrench, and jack lever from the trunk
(page 7-3).
2. Wrap the jack lever with a soft cloth to prevent damage to the bumper and
open the cap located on the front
bumper.
CAUTION
The cap cannot be completely
removed. Do not use excessive force
as it may damage the cap or scratch
the painted bumper surface.
In Case of an Emergency
Emergency Towing
7-21
Mazda5_8X53-EA-07I_Edition3 Page261
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (262,1)

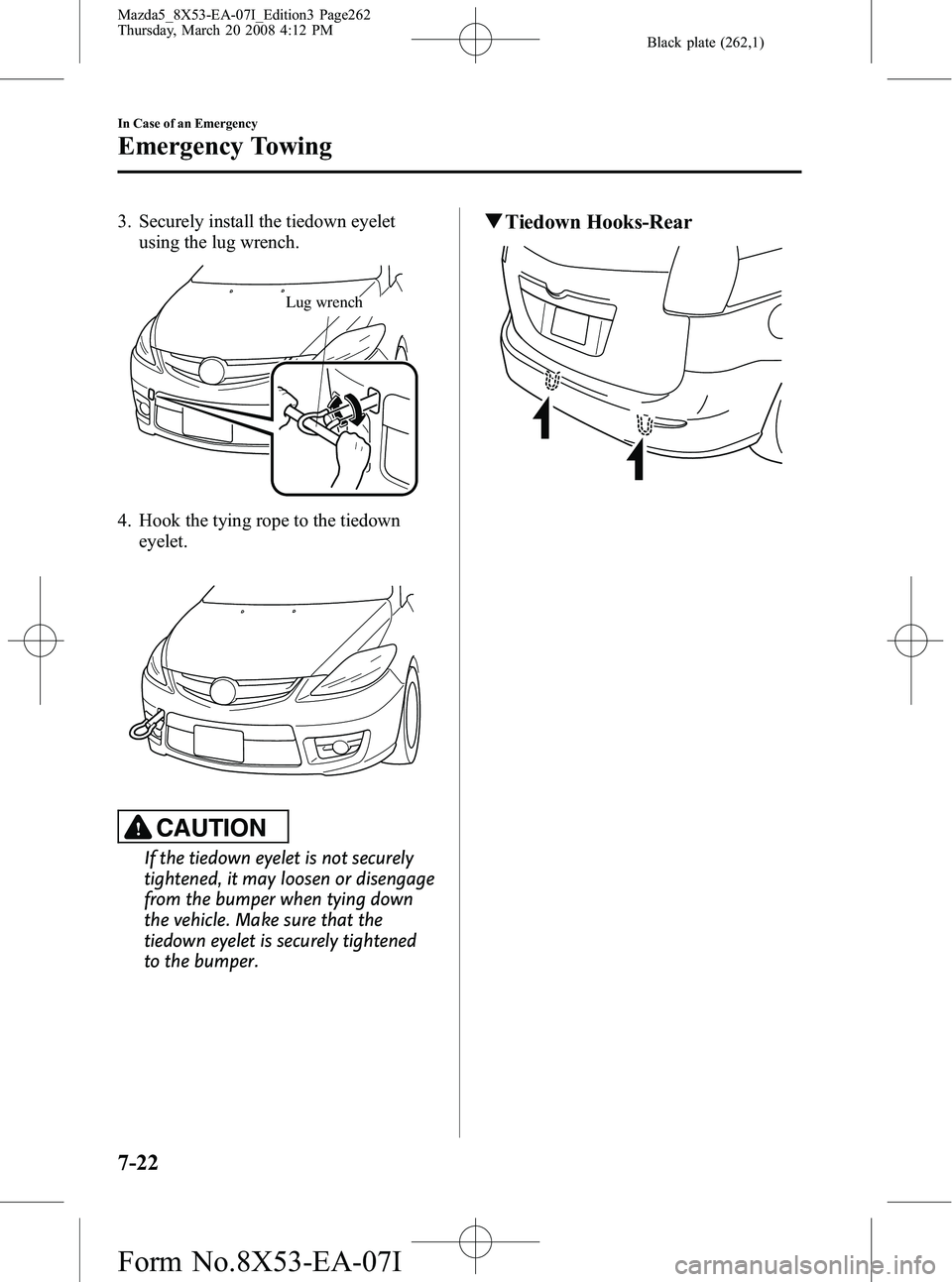

3. Securely install the tiedown eyeletusing the lug wrench.
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
qTiedown Hooks-Rear
7-22
In Case of an Emergency
Emergency Towing
Mazda5_8X53-EA-07I_Edition3 Page262
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (263,1)

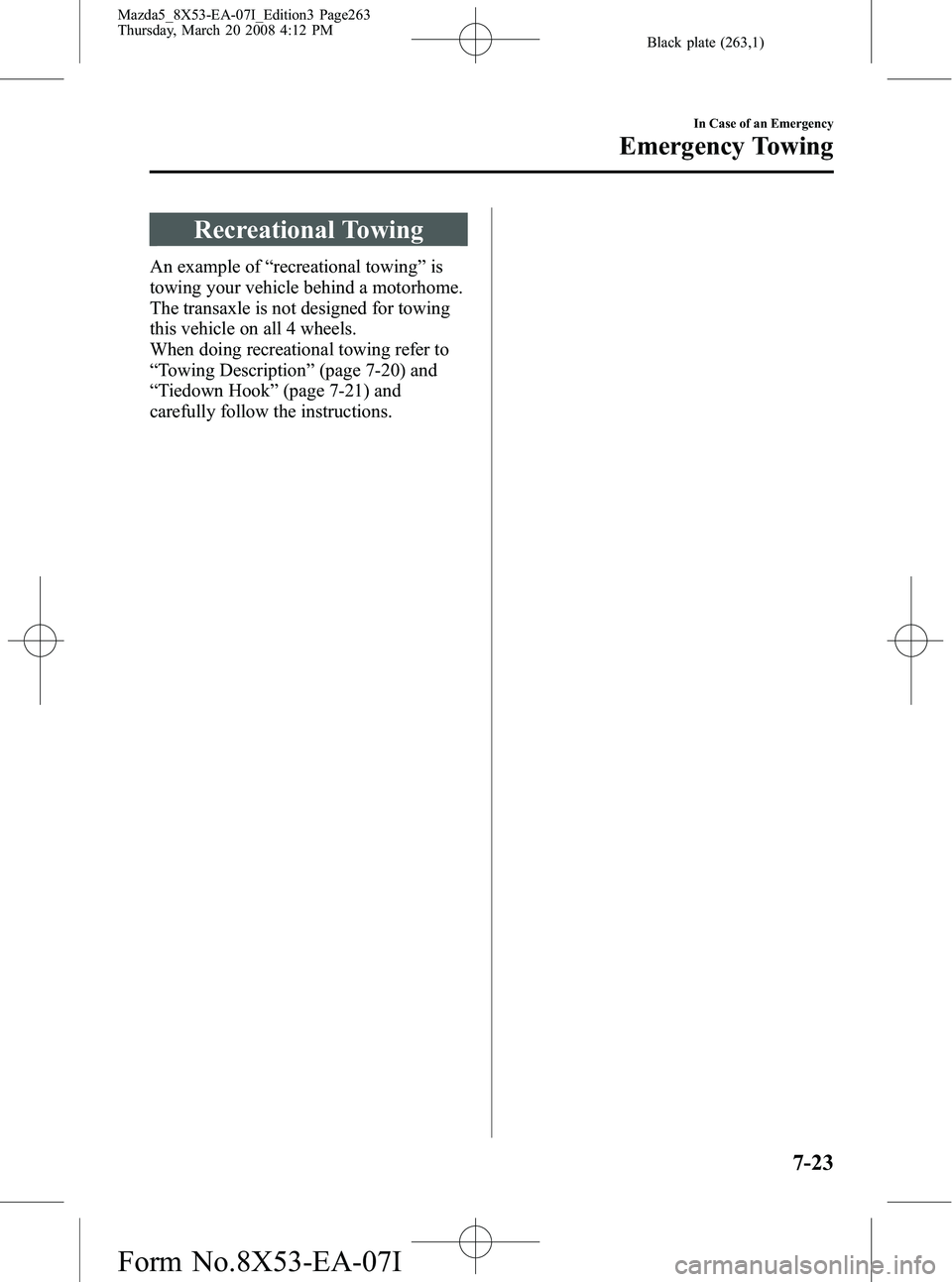

Recreational Towing
An example of“recreational towing ”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-20) and
“ Tiedown Hook ”(page 7-21) and
carefully follow the instructions.
In Case of an Emergency
Emergency Towing
7-23
Mazda5_8X53-EA-07I_Edition3 Page263
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I
