MAZDA MODEL 5 2009 User Guide

Black plate (11,1)
Rear window defroster ....................................................................................... page 5-54
Rear wiper blade ................................................................................................ page 8-27
Light bulbs ......................................................................................................... page 8-35
Liftgate .............................................................................................................. page 3-12
Antenna ............................................................................................................. page 6-18
Fuel-filler lid ...................................................................................................... page 3-16
Sliding doors ........................................................................................................ page 3-9
Power windows ................................................................................................. page 3-14
Outside mirror .................................................................................................... page 3-26
Child safety locks .............................................................................................. page 3-11
Tires ................................................................................................................... page 8-31
Hood .................................................................................................................. page 3-17
Windshield wiper blades .................................................................................... page 8-26
Moonroof ........................................................................................................... page 3-19
Doors and keys .................................................................................................... page 3-7
Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle
Mazda5_8Z98-EA-08F_Edition1 Page11
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

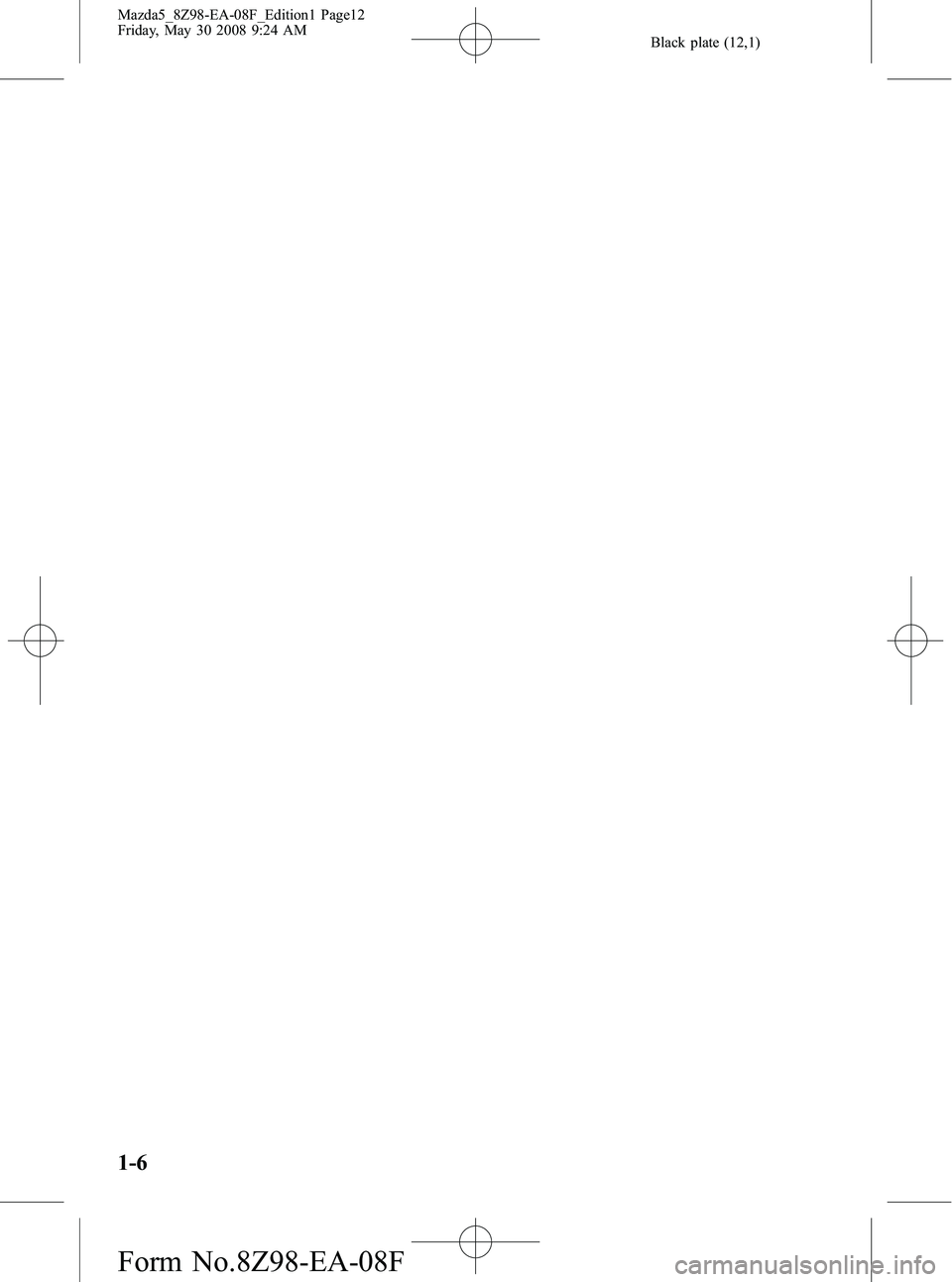

Black plate (12,1)
1-6
Mazda5_8Z98-EA-08F_Edition1 Page12
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (13,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2Front Seats ................................................................................ 2-2
Second-Row Seats .................................................................... 2-5
Third-Row Seat ......................................................................... 2-9
Head Restraints ....................................................................... 2-11
Seat Warmer
í......................................................................... 2-12
Seat Belt Systems ........................................................................ 2-14 Seat Belt Precautions .............................................................. 2-14
Seat Belt .................................................................................. 2-18
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-20
Seat Belt Extender ................................................................... 2-22
Seat Belt Warning Light/Beep ................................................ 2-23
Child Restraint ............................................................................ 2-25 Child Restraint Precautions ..................................................... 2-25
Installing Child-Restraint Systems .......................................... 2-29
LATCH Child-Restraint Systems ............................................ 2-35
SRS Air Bags ............................................................................... 2-38 Supplemental Restraint Systems (SRS) Precautions ............... 2-38
Supplemental Restraint System Components ......................... 2-42
How the Air Bags Work .......................................................... 2-44
2-1íSome models.
Mazda5_8Z98-EA-08F_Edition1 Page13
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (14,1)
Front Seats
WARNING
Do not modify or replace the front
seats:Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
Make sure the adjustable components
of a seat are locked in place: Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
qSeat Slide
WARNING
Adjust the driver's seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
2-2
Essential Safety Equipment
Seats
Mazda5_8Z98-EA-08F_Edition1 Page14
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (15,1)
qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the passenger seat
properly with the seatback upright and
feet on the floor: Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor. Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
Mazda5_8Z98-EA-08F_Edition1 Page15
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (16,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qHeight Adjustment (Driver's Seat)
By moving the seat lever up or down, the
driver's seat bottom height can be
adjusted.
DownUp
q
Lumbar Support Adjustment
(Driver's Seat)
Move the lever forwards to adjust the
lumbar support as required.
qArmrest
The armrest can be used or placed upright.
WARNING
Never position the shoulder portion of
a front seat belt over the armrest:
Positioning the shoulder portion of a
front seat belt over the armrest is
dangerous as it cannot provide
adequate protection in a collision
and could result in serious injuries.
2-4
Essential Safety Equipment
Seats
Mazda5_8Z98-EA-08F_Edition1 Page16
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (17,1)
Second-Row Seats
WARNING
Do not stack cargo higher than the
seatbacks:Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo is
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place by
attempting to slide the seat forward
and backward and rocking the
seatback: Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Adjust the seat only when the vehicle is
stopped: Adjusting the seat while the vehicle is
moving is dangerous. Sudden
braking or a collision could cause
serious injury. Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving: Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
NOTE
lThe second-row seats cannot be removed.lWhen returning a second-row seat to its
original position, also replace the seat belt
to its normal position. Verify that the seat
belt pulls out and retracts.
Essential Safety Equipment
Seats
2-5
Mazda5_8Z98-EA-08F_Edition1 Page17
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (18,1)
qSeat Slide
To move the seat forward or backward,
raise the lever and slide the seat to the
desired position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from the seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Do not recline a second-row seatback
when the third row seat is occupied: Reclining the second-row seatback
when the third-row seat is occupied
is dangerous.Because the clearance
in the third-row seat is limited,
occupants in the third-row seat could
be hurt seriously on a reclined
second-row seatback.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
2-6
Essential Safety Equipment
Seats
Mazda5_8Z98-EA-08F_Edition1 Page18
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (19,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qArmrest
The armrest can be used or placed upright.
WARNING
Never position the shoulder portion of
a second-row seat belt over the
armrest:
Positioning the shoulder portion of a
second-row seat belt over the
armrest is dangerous as it cannot
provide adequate protection in a
collision and could result in serious
injuries.
qThird-Row Seat Access
Passenger ingress
To reach the third-row seat, raise the lever
of the second-row seat. The seatback will
tilt forward.
After entering the vehicle, return the
seatback to its upright position.
Passenger egress
Pull the belt and fold the seatback
forward. The seatback will tilt forward.
After exiting the vehicle, return the
seatback to its upright position.
Essential Safety Equipment
Seats
2-7
Mazda5_8Z98-EA-08F_Edition1 Page19
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (20,1)
qFolding the Second-Row Seats
To create a flat luggage compartment
space, lift the seat-bottoms of the second-
row seats and fold the seatbacks forward.
Folding the seatbacks
1. Insert the second-row outboard seat
belts in the retainers.
2. Move the seat all the way back.
3. Lower the head restraint all the waydown (page 2-11).
4. Pull the strap and lift the end of the seat-bottom up and forward.
5. If the armrest and storage box are inthe position for use, store them.
Refer to Storage Box on page 6-73. 6. Raise the lever and fold the seatback
forward.
CAUTION
ØWhen folding a seatback, always
hold onto the seatback with your
other hand while operating the
lever. If the seatback is not
supported, it will flip forward
suddenly and could cause injury.
Ø When folding the seatback of the
right second-row seat, make sure
the storage box is stowed. If the
storage box is not stowed, it could
be damaged.
2-8
Essential Safety Equipment
Seats
Mazda5_8Z98-EA-08F_Edition1 Page20
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F
