audio MAZDA MODEL 5 2009 Owners Manual

Black plate (5,1)
Mazda5_8Z98-EA-08F_Edition1 Page5
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F
Table of Contents
Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.1
Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.2
Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.3
Before Driving Your Mazda
Important information about driving your Mazda.4
Driving Your Mazda
Explanation of instruments and controls.5
Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.6
In Case of an Emergency
Helpful information on what to do in an emergency.7
Maintenance and Care
How to keep your Mazda in top condition.8
Customer Information
Important consumer information including warranties and add-on equipment.9
Specifications
Technical information about your Mazda.10
Index11

Black plate (9,1)
Power window switches .................................................................................... page 3-14
Lighting control ................................................................................................. page 5-45
Turn and lane-change signals ............................................................................ page 5-48
Instrument cluster .............................................................................................. page 5-28
Air bags ............................................................................................................. page 2-38
Wiper and washer lever ..................................................................................... page 5-49
Hazard warning flasher switch .......................................................................... page 5-55
Information display ............................................................................................ page 6-66
Audio system ..................................................................................................... page 6-18
Climate control system ........................................................................................ page 6-2
Glove box .......................................................................................................... page 6-71
Rear ventilation system ..................................................................................... page 6-17
Cup holder ......................................................................................................... page 6-68
Parking brake ....................................................................................................... page 5-6
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-11
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-26
Hood release handle .......................................................................................... page 3-17
Outside mirror switch ........................................................................................ page 3-26
Power window lock switch ................................................................................ page 3-15
Interior light ....................................................................................................... page 6-64
Seat belts ............................................................................................................ page 2-14
Sunvisor ............................................................................................................. page 6-64
Map light ........................................................................................................... page 6-65
Rearview mirror ................................................................................................. page 3-27
Vanity mirror ...................................................................................................... page 6-64
Front seats ............................................................................................................ page 2-2
Second-row seat ................................................................................................... page 2-5
Third-row seat ..................................................................................................... page 2-9
Navigation system (if equipped) .......................................... Refer to the separate manual
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle
Mazda5_8Z98-EA-08F_Edition1 Page9
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (163,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type
í.......................................................................... 6-6
Fully Automatic Typeí........................................................... 6-11
Rear Ventilation Systemí....................................................... 6-17
Audio System ............................................................................... 6-18 Antenna ................................................................................... 6-18
Operating Tips for Audio System ........................................... 6-18
Audio Set ................................................................................ 6-25
Audio Control Switch Operation (Steering Wheel)
í............. 6-40
AUX Mode (Auxiliary input) ................................................. 6-42
Safety Certification ................................................................. 6-45
Bluetooth Hands-Free ................................................................. 6-46 Bluetooth Hands-Free
í.......................................................... 6-46
Basic Bluetooth Hands-Free Operation ................................... 6-50
Convenient Use of the Hands-Free System ............................. 6-53
Hands-Free Telephone Setting ................................................ 6-58
When Bluetooth Hands-Free cannot be used .......................... 6-62
Safety Certification ................................................................. 6-63
Mazda Bluetooth Hands-Free Customer Service .................... 6-63
Interior Equipment ..................................................................... 6-64 Sunvisors ................................................................................. 6-64
Interior Lights ......................................................................... 6-64
Information Display ................................................................ 6-66
Cup Holder .............................................................................. 6-68
Bottle Holder ........................................................................... 6-70
Storage Compartments ............................................................ 6-71
Accessory Sockets .................................................................. 6-76
6-1íSome models.
Mazda5_8Z98-EA-08F_Edition1 Page163
Friday, May 30 2008 9:26 AM
Form No.8Z98-EA-08F

Black plate (180,1)
Antenna
qDetachable Type
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.
Install
Remove
CAUTION
Ø To prevent damage to the
antenna, remove it before entering
a car wash facility or passing
beneath a low overhead clearance.
Ø Be careful around the antenna
when removing snow from the
roof. Otherwise the antenna could
be damaged.
NOTE
When leaving your vehicle unattended, we
recommend that you remove the antenna and
store it inside the vehicle.
Operating Tips for Audio
System
WARNING
Do not adjust the audio control
switches while driving the vehicle: Adjusting the audio while driving the
vehicle is dangerous as it could
distract your attention from the
vehicle operation which could lead to
a serious accident. Always adjust the
audio while the vehicle is stopped.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep
your maximum attention on the road
while driving the vehicle.
CAUTION
For the purposes of safe driving,
adjust the audio volume to a level
that allows you to hear sounds
outside of the vehicle including car
horns and particularly emergency
vehicle sirens.
NOTE
lTo prevent the battery from being
discharged, do not leave the audio system
on for a long period of time when the
engine is not running.
lIf a cellular phone or CB radio is used in
or near the vehicle, it could cause noise to
occur from the audio system, however, this
does not indicate that the system has been
damaged.
6-18
Interior Comfort
Audio System
Mazda5_8Z98-EA-08F_Edition1 Page180
Friday, May 30 2008 9:26 AM
Form No.8Z98-EA-08F

Black plate (181,1)

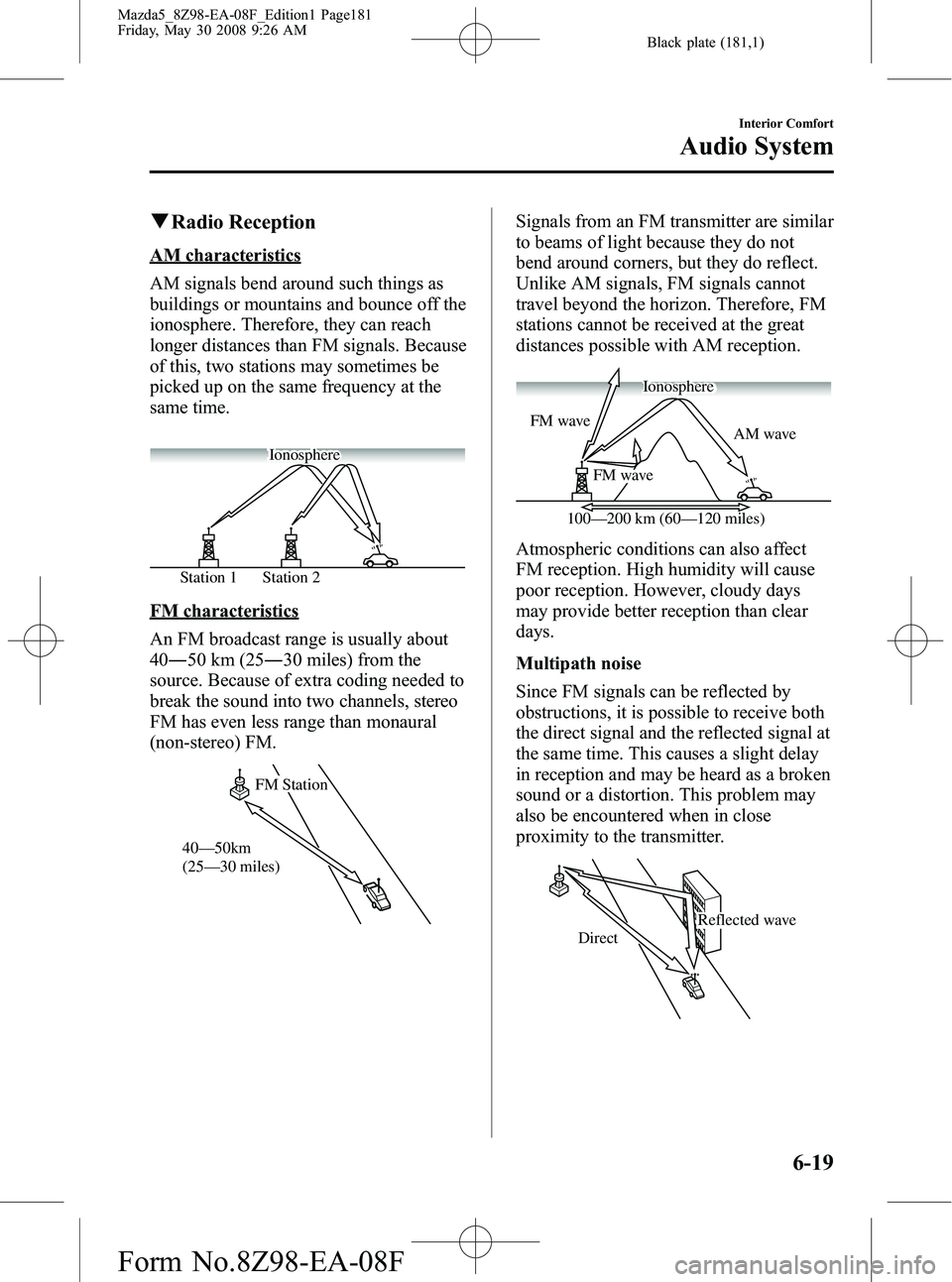

qRadio Reception
AM characteristics
AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere. Therefore, they can reach
longer distances than FM signals. Because
of this, two stations may sometimes be
picked up on the same frequency at the
same time.
Station 2
Station 1 Ionosphere
FM characteristics
An FM broadcast range is usually about
40
―50 km (25 ―30 miles) from the
source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.
FM Station
40—50km
(25—30 miles)
Signals from an FM transmitter are similar
to beams of light because they do not
bend around corners, but they do reflect.
Unlike AM signals, FM signals cannot
travel beyond the horizon. Therefore, FM
stations cannot be received at the great
distances possible with AM reception.
AM wave
FM wave
FM wave
100—200 km (60—120 miles) Ionosphere
Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days
may provide better reception than clear
days.
Multipath noise
Since FM signals can be reflected by
obstructions, it is possible to receive both
the direct signal and the reflected signal at
the same time. This causes a slight delay
in reception and may be heard as a broken
sound or a distortion. This problem may
also be encountered when in close
proximity to the transmitter.
Reflected wave
Direct
Interior Comfort
Audio System
6-19
Mazda5_8Z98-EA-08F_Edition1 Page181
Friday, May 30 2008 9:26 AM
Form No.8Z98-EA-08F

Black plate (182,1)
Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.
Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from
the transmitter. Reception in such fringe
areas is characterized by sound breakup.
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz
Station 1
88.1 MHz
6-20
Interior Comfort
Audio System
Mazda5_8Z98-EA-08F_Edition1 Page182
Friday, May 30 2008 9:26 AM
Form No.8Z98-EA-08F

Black plate (183,1)
qOperating Tips for CD Player/In-
Dash CD Changer
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or
optical components (prism and lens) in the
CD player/In-dash CD changer may
become clouded with condensation. At
this time, the CD will eject immediately
when placed in the unit. A clouded CD
can be corrected simply by wiping it with
a soft cloth. Clouded optical components
will clear naturally in about an hour. Wait
for normal operation to return before
attempting to use the unit.
Handling the CD player/In-dash CD
changer
The following precautions should be
observed.
lDo not spill any liquid on the audio
system.
lDo not insert any objects, other than
CDs, into the slot.
lThe CD revolves at high speed within
the unit. Defective (cracked or badly
bent) CDs should never be used.
lDo not use non-conventional discs
such as heart-shaped, octagonal discs,
etc. The disc may not eject resulting in
a malfunction.
lIf the memory portion of the CD is
transparent or translucent, do not use
the disc.
Transparent
Interior Comfort
Audio System
6-21
Mazda5_8Z98-EA-08F_Edition1 Page183
Friday, May 30 2008 9:26 AM
Form No.8Z98-EA-08F

Black plate (184,1)
lA new CD may have rough edges on
its inner and outer perimeters. If a disc
with rough edges is used, proper
setting will not be possible and the CD
player/In-dash CD changer will not
play the CD. In addition, the disc may
not eject resulting in a malfunction.
Remove the rough edges in advance by
using a ball-point pen or pencil as
shown below. To remove the rough
edges, rub the side of the pen or pencil
against the inner and outer perimeter of
the CD.
lWhen driving over uneven surfaces,
the sound may jump.
lThe CD player/In-dash CD changer has
been designed to play CDs bearing the
identification logo as shown. No other
discs can be played.
lUse discs that have been legitimately
produced. If illegally-copied discs such
as pirated discs are used, the system
may not operate properly.CD Player
In-dash CD changer
lBe sure never to touch the signal
surface when handling the CDs. Pick
up a CD by grasping the outer edge or
the edge of the hole and the outer edge.
lDo not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction.
lDust, finger smudges, and dirt can
decrease the amount of light reflected
from the signal surface, thus affecting
sound quality. If the CD should
become soiled, gently wipe it with a
soft cloth from the center of the CD to
the edge.
6-22
Interior Comfort
Audio System
Mazda5_8Z98-EA-08F_Edition1 Page184
Friday, May 30 2008 9:26 AM
Form No.8Z98-EA-08F

Black plate (185,1)
lDo not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.
lInsert discs one by one. If two discs are
inserted at the same time, the system
may not operate properly.
lThe CD player/In-dash CD changer
ejects the CD if the CD is inserted
upside down. Also dirty and/or
defective CDs may be ejected.
lAn 8 cm (3 in) CD can be played in the
CD player.
The In-dash CD changer is specially
made for 12 cm (5 in) CDs.
An 8 cm (3 in) CD cannot be played in
the In-dash CD changer even if an 8
cm (3 in) CD adapter is used.
lDo not insert cleaning discs in the CD
player/In-dash CD changer.
lDo not insert any disc with a peel-off
seal affixed to it.
Handling the In-dash CD changer
lThis unit may not be able to play
certain CD-R/CD-RWs made using a
computer or music CD recorder due to
disc characteristics, scratches,
smudges, dirt, etc., or due to dust or
condensation on the lens inside the
unit.
lStoring CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.
lCD-R/CD-RW exceeding 700 MB
cannot be played.
lThis unit may not be able to play
certain discs made using a computer
due to the application (writing
software) setting used. (For details,
consult the store where the application
was purchased.)
lIt is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical
data (CD-DA) is playing.
lThe period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.
lCompletely read the instruction manual
and cautions for CD-R/CD-RWs.
lDo not use discs with cellophane tape
adhering, partially peeled off labels, or
adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label affixed. The disc may not
eject resulting in a malfunction.
Interior Comfort
Audio System
6-23
Mazda5_8Z98-EA-08F_Edition1 Page185
Friday, May 30 2008 9:26 AM
Form No.8Z98-EA-08F

Black plate (187,1)
Audio Set
Audio information is displayed on the information display.
Illustration is of a representative audio unit.
CD Player
(non-MP3 compatible)In-Dash CD Changer (non-MP3 compatible)
Power/Volume/Sound Controls .............................................................................. page 6-26
Operating the Radio ............................................................................................... page 6-30
Operating the Compact Disc (CD) Player .............................................................. page 6-34
Operating the In-Dash CD Changer ....................................................................... page 6-36
Operating the Auxiliary jack .................................................................................. page 6-38
Error Indications ..................................................................................................... page 6-39
Interior Comfort
Audio System
6-25
Mazda5_8Z98-EA-08F_Edition1 Page187
Friday, May 30 2008 9:26 AM
Form No.8Z98-EA-08F
