fuel MAZDA MODEL 5 2009 Owners Manual

Black plate (11,1)
Rear window defroster ....................................................................................... page 5-54
Rear wiper blade ................................................................................................ page 8-27
Light bulbs ......................................................................................................... page 8-35
Liftgate .............................................................................................................. page 3-12
Antenna ............................................................................................................. page 6-18
Fuel-filler lid ...................................................................................................... page 3-16
Sliding doors ........................................................................................................ page 3-9
Power windows ................................................................................................. page 3-14
Outside mirror .................................................................................................... page 3-26
Child safety locks .............................................................................................. page 3-11
Tires ................................................................................................................... page 8-31
Hood .................................................................................................................. page 3-17
Windshield wiper blades .................................................................................... page 8-26
Moonroof ........................................................................................................... page 3-19
Doors and keys .................................................................................................... page 3-7

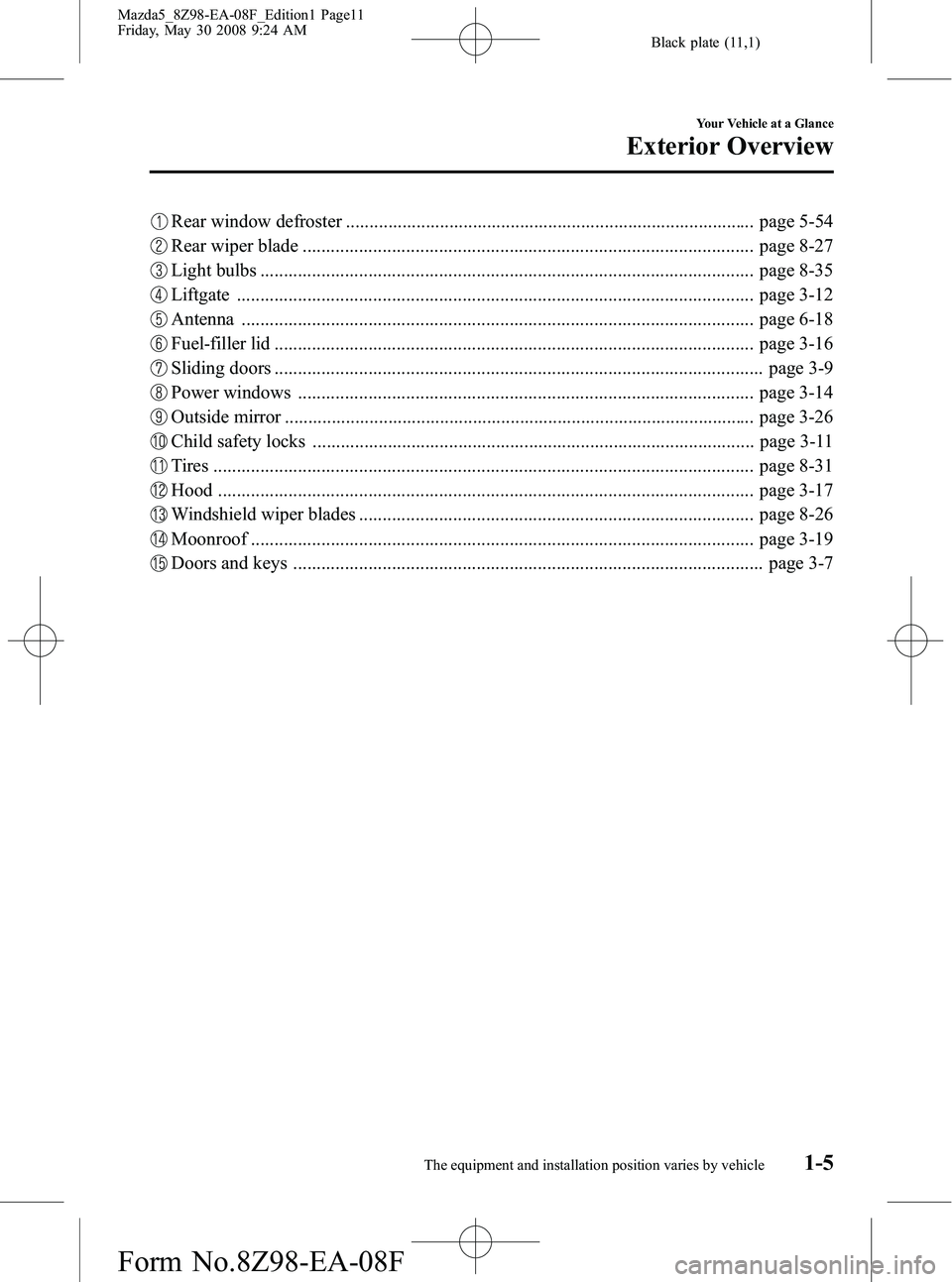

Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle
Mazda5_8Z98-EA-08F_Edition1 Page11
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (67,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2Keys .......................................................................................... 3-2
Keyless Entry System ............................................................... 3-3
Door Locks ............................................................................... 3-7
Liftgate .................................................................................... 3-12
Power Windows ...................................................................... 3-14
Fuel-Filler Lid and Cap ........................................................... 3-16
Hood ....................................................................................... 3-17
Moonroof
í............................................................................. 3-19
Security System ........................................................................... 3-21 Immobilizer System ................................................................ 3-21
Theft-Deterrent System
í........................................................ 3-23
Steering Wheel and Mirrors ...................................................... 3-26 Steering Wheel ........................................................................ 3-26
Mirrors .................................................................................... 3-26
3-1íSome models.
Mazda5_8Z98-EA-08F_Edition1 Page67
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (76,1)
CAUTION
When opening/closing a sliding door,
follow the cautions below. If the
cautions are not heeded, hands, feet,
or even a head may be caught in a
door resulting in an injury.
ØUse the door handle.
Ø Keep your hands, feet, and head
away from the sliding door
openings.
Ø Make sure that there is nothing
behind the sliding doors.
Ø Keep your hands and feet away
from the sliding door rails, arms
and pillars.
Pillar
Arm
Rail Door handle
NOTE
When you leave the vehicle, stop the engine
and lock the doors. And do not put valuables
in your vehicle to prevent theft.
Opening/closing from inside
To open, pull the inner door handle
toward the back.
To close, push the inner door handle
toward the front.
Open
Close
Opening/closing from outside
Pull the outer door handle and slide the
door.
NOTE
The right sliding door cannot fully open when
the fuel-filler lid is open. Close the fuel filler
lid before opening the sliding door.
3-10
Knowing Your Mazda
Doors and Locks
Mazda5_8Z98-EA-08F_Edition1 Page76
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (82,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel cap, loosen the
cap slightly and wait for any hissing to
stop. Then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel
filler cap or not using a fuel filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
NOTE
The fuel-filler lid cannot be opened when the
right-side sliding door is open. Close the
sliding door to open the fuel-filler lid.
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
To close the fuel-filler cap, turn it
clockwise until two or more click sounds
are heard.
Open Close
3-16
Knowing Your Mazda
Doors and Locks
Mazda5_8Z98-EA-08F_Edition1 Page82
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (83,1)
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap is
not tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.
Hood
WARNING
Always check that the hood is closed
and securely locked:A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Insert your hand into the hood opening
and slide the hood latch to the right and
lift the hood.
Knowing Your Mazda
Doors and Locks
3-17
Mazda5_8Z98-EA-08F_Edition1 Page83
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (95,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-3
Engine Exhaust (Carbon Monoxide) ......................................... 4-4
Before Starting the Engine ........................................................... 4-5 Before Getting In ...................................................................... 4-5
After Getting In ......................................................................... 4-5
Driving Tips ................................................................................... 4-6 Break-In Period ......................................................................... 4-6
Money-Saving Suggestions ...................................................... 4-6
Hazardous Driving .................................................................... 4-7
Rocking the Vehicle .................................................................. 4-7
Winter Driving .......................................................................... 4-8
Driving In Flooded Area ........................................................... 4-9
Overloading ............................................................................ 4-10
Towing .......................................................................................... 4-11 Trailer Towing ......................................................................... 4-11
4-1
Mazda5_8Z98-EA-08F_Edition1 Page95
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (96,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
FuelOctane Rating*(Anti-knock index)
Regular unleaded fuel 87 [ (R+M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
Ø USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
Ø Your vehicle can only use oxygenated fuels containing no more than 10% ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
Ø Never add fuel system additives. Never add cleaning agents other than those
specified by Mazda. Other cleaning agents and additives may damage the system.
Consult an Authorized Mazda Dealer.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name “Gasohol ”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10% ethanol.lGasoline or gasohol containing methanol.lLeaded fuel or leaded gasohol.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda5_8Z98-EA-08F_Edition1 Page96
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (97,1)
Emission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything flammable:Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system remains very hot after normal use and
could ignite anything flammable. A resulting fire could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst
inside the converter or cause the converter to get very hot. Either condition will
damage the converter and cause poor performance.
ØUSE ONLY UNLEADED FUEL.
Ø Do not drive your Mazda with any sign of engine malfunction.
Ø Do not coast with the ignition switch turned off.
Ø Do not descend steep grades in gear with the ignition switch turned off.
Ø Do not operate the engine at high idle for more than 2 minutes.
Ø Do not tamper with the emission control system. All inspections and adjustments
must be made by a qualified technician.
Ø Do not push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control system before
the first sale and registration of a vehicle is subject to penalties. In some states, such modification
made on a used vehicle is also subject to penalties.
NOTE
While the engine is off, the sound of a valve opening and closing can be heard at the middle rear of
the vehicle, however this does not indicate an abnormality. Your vehicle has a self-checking device
and it operates while the engine is off.
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
4-3
Mazda5_8Z98-EA-08F_Edition1 Page97
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (98,1)
Engine Exhaust (Carbon Monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine: Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine: Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda5_8Z98-EA-08F_Edition1 Page98
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (100,1)
Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDo not race the engine.lDo not maintain one constant speed,
either slow or fast, for a long period of
time.
lDo not drive constantly at full-throttle
or high engine rpm for extended
periods of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDo not carry unnecessary weight.lDo not rest your foot on the brake
pedal while driving.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going
down a hill:Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause
damage to the drivetrain. Any loss of
steering or braking control could
cause an accident.
4-6
Before Driving Your Mazda
Driving Tips
Mazda5_8Z98-EA-08F_Edition1 Page100
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F
