MAZDA MODEL 5 2010 Owners Manual

Black plate (231,1)
When Bluetooth Hands-
Free cannot be used
Bluetooth Hands-Free cannot be used
under the following conditions:
lThe mobile telephone is outside of the
communication area.
lThe mobile telephone has a
malfunction.
lThe mobile telephone is not connected
to the hands-free unit equipped on the
vehicle.
lThe mobile telephone battery is weak.lThe mobile telephone is turned off.lThe mobile telephone is placed where
radio reception is difficult.
Safety Certification
FCC ID: CB2MBLUEC07 IC:279B-
MBLUEC07
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmfulinterference, and
(2) This device must accept any interference received, including
interference that may cause undesired
operation.
WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
The term “IC: ”before the radio
certification number only signifies that
Industry Canada technical specifications
were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter. End-users and installers must
be provided with installation instructions
and transmitter operating conditions for
satisfying RF exposure compliance.
Interior Comfort
Bluetooth Hands-Free
6-63
Mazda5_8AU7-EA-09H_Edition4 Page231
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (232,1)

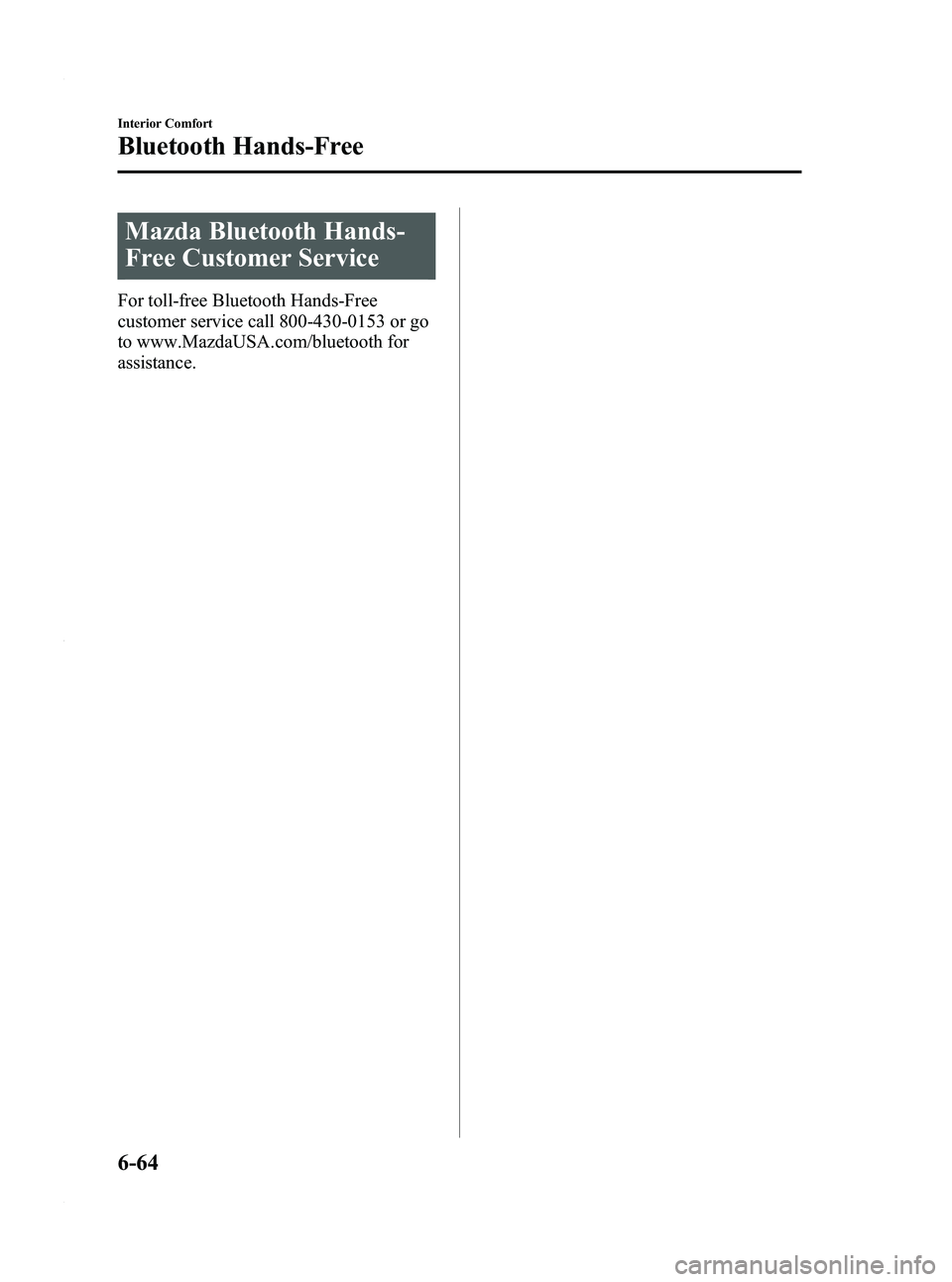

Mazda Bluetooth Hands-
Free Customer Service
For toll-free Bluetooth Hands-Free
customer service call 800-430-0153 or go
to www.MazdaUSA.com/bluetooth for
assistance.
6-64
Interior Comfort
Bluetooth Hands-Free
Mazda5_8AU7-EA-09H_Edition4 Page232
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (233,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
Interior Lights
qIlluminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) turns on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition
switch is in the LOCK position (with
the ignition key removed).
lAbout 15 seconds after all doors are
closed.
lAbout 15 seconds after the ignition
switch is in the LOCK position (with
the ignition key removed) with all
doors closed.
The light also turns off when:
lThe ignition switch is turned to the ON
position and all doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light turns off
after about 30 minutes to save the battery.
The light turns on again when the ignition
switch is turned to the ON position, or when
any door is opened after all doors have been
closed.
Interior Comfort
Interior Equipment
6-65
Mazda5_8AU7-EA-09H_Edition4 Page233
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (234,1)
qOverhead Lights
Front
Switch Position Front Overhead Lights
Light off
lLight is on when any door is
open
lLight is on or off when the
illuminated entry system is
on
Rear
Switch Position Rear Overhead Lights
Light off
lLight is on when any door is
open
lLight is on or off when the
illuminated entry system is
on
Light on
qMap Lights
The map lights are switched on or off by
pressing the switches.
Switches
qLuggage Compartment Light
Switch
Position Luggage Compartment Light
Light off
Light on when the liftgate is open
6-66
Interior Comfort
Interior Equipment
Mazda5_8AU7-EA-09H_Edition4 Page234
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (235,1)
Information Display
ClockAudio display Climate control display/
Ambient temperature display
q
Information Display Functions
The information display has the following functions:lClocklAmbient Temperature Display (Outside Temperature Display, Fully Automatic Type Air
Conditioning System)
lClimate Control Display (Fully Automatic Type Air Conditioning System)lAudio Display
Interior Comfort
Interior Equipment
6-67
Mazda5_8AU7-EA-09H_Edition4 Page235
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (236,1)
qClock
Time setting
1. Turn the ignition switch to the ACC or
ON position.
2. Adjust the time using the time setting buttons (
,).
The hours advance while the time
setting button (
) is pressed.
The minutes advance while the time
setting button (
) is pressed.
Time resetting
1. Turn the ignition switch to the ACC or ON position.
2. Press and hold the :00 button for 1.5 seconds or more. The displayed time
flashes.
3. When the button is released, the time will be reset as follows:
(Example)
12:01 ―12:29 →12:00
12:30 ―12:59 →1:00
NOTE
When the :00 button is released, the seconds
will start at “00 ”.
Switching between 12 and 24-hour
clock time
1. Turn the ignition switch to the ACC or
ON position.
2. Press both time setting buttons (
,)
simultaneously for 1.5 seconds or
more.
3. “12h ”or “24h ”is displayed.
4. The selected clock time will be displayed within three seconds.
qAmbient Temperature Display
(Fully Automatic Type)
When the ignition switch is in the ON
position, press the AMB switch (page
6-10) to display the ambient temperature.
6-68
Interior Comfort
Interior Equipment
Mazda5_8AU7-EA-09H_Edition4 Page236
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (237,1)
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the AMB switch for a few seconds or
more to switch the display from Fahrenheit
to Centigrade or vice versa.
lPress the AMB switch again to switch the
display from ambient temperature to the
temperature set for the air conditioner.
qClimate Control Display (Fully
Automatic Type)
The climate control system status is
displayed. To operate the climate control
system, refer to “Climate Control System ”
(page 6-2).
q Audio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System ”(page 6-17).
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders: Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.
Interior Comfort
Interior Equipment
6-69
Mazda5_8AU7-EA-09H_Edition4 Page237
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (238,1)
qFront
Type A
To use, open the cover.
Type B
qRear
Second-row Seat
Storage box (Second-row right-side
seat)
í
To use, pull out the storage box (page
6-74).
Top of the center console (Type A)
6-70
Interior Comfort
íSome models.
Interior Equipment
Mazda5_8AU7-EA-09H_Edition4 Page238
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (239,1)
Inside of the center console (Type A)
To use the cup holder, open the cover.
Third-row seat
Two cup holders are in the side-trim on
both the left and right sides.
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Interior Comfort
Interior Equipment
6-71
Mazda5_8AU7-EA-09H_Edition4 Page239
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (240,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.
Lock
Unlock
q
Center Console
To open, pull the left release latch.
Type A
Type B
Small items can be placed in the tray of
the center console lid.
To open it, pull the right release latch.
6-72
Interior Comfort
Interior Equipment
Mazda5_8AU7-EA-09H_Edition4 Page240
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H
