Page 79 of 440

Black plate (79,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2Keys .......................................................................................... 3-2
Keyless Entry System ............................................................... 3-3
Door Locks ............................................................................... 3-9
Liftgate .................................................................................... 3-13
Power Windows ...................................................................... 3-16
Fuel-Filler Lid and Cap ........................................................... 3-19
Hood ....................................................................................... 3-20
Moonroof
í............................................................................. 3-22
Security System ........................................................................... 3-25 Immobilizer System ................................................................ 3-25
Theft-Deterrent System
í........................................................ 3-29
Steering Wheel and Mirrors ...................................................... 3-32 Steering Wheel ........................................................................ 3-32
Mirrors .................................................................................... 3-32
3-1íSome models.
Mazda5_8BR9-EA-10J_Edition3 Page79
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
Page 80 of 440

Black plate (80,1)
Keys
WARNING
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these new
kinds of keys to be an interesting toy
to play with and could cause the
power windows or other controls to
operate, or even make the vehicle
move.
NOTE
lRefer to Immobilizer System (page 3-25) for
information regarding keys and engine
starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-29)
for information regarding keys and the
prevention of vehicle and vehicle contents
theft.
The keys operate all locks.
Key code number plate
Retractable
type key
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
lWrite down the code number and keep it in
a separate, safe and convenient place, but
not in the vehicle.
If your key is lost, consult your Authorized
Mazda Dealer and have your code number
ready.
lSome types of key chains cannot be
attached to the retractable type key. In this
case, use the key ring provided with the
transmitter which has the key code number
plate attached.
Key ring
3-2
Knowing Your Mazda
Doors and Locks
Mazda5_8BR9-EA-10J_Edition3 Page80
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
Page 87 of 440

Black plate (87,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving: Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and the
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended: Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders. After closing the doors, always verify
that they are securely closed:
Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.
Always confirm the safety around the
vehicle before opening a door: Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Transmitter
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
Knowing Your Mazda
Doors and Locks
3-9
Mazda5_8BR9-EA-10J_Edition3 Page87
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
Page 94 of 440

Black plate (94,1)
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches: Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
qOperating the Driver's Side
Power Window
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Open
Driver's window
Close
Master control switches
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
3-16
Knowing Your Mazda
Doors and Locks
Mazda5_8BR9-EA-10J_Edition3 Page94
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
Page 95 of 440

Black plate (95,1)
NOTE
If the battery was disconnected during vehicle
maintenance, or for other reasons (such as a
switch continues to be operated after the
window is fully open/closed), the window will
not fully open and close automatically. Carry
out the following procedure to resume
operation:
1. Switch the ignition ON.
2. Press the switch and fully open the window.
3. Pull up the switch to fully close the windowand continue holding the switch for about 2
seconds after the window fully closes.
Two-step down function
With the window completely closed, press
the switch lightly and the window will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.
NOTE
lPressing the power window switch once
when the window is fully closed will only
open it about 3 cm (1 in) to allow
convenient ventilation of the cabin.
lThe two-step down function can be
canceled.
Refer to Personalization Features on page
10-8.
Jam-safe window
If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch: Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
NOTE
Depending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is similar
to something blocking it.
In the event the jam-safe function activates and
the power window cannot be closed
automatically, pull and hold the switch and the
window will close.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.
NOTE
lFor engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
lThe two-step down function is inoperable
during engine-off operation.
Knowing Your Mazda
Doors and Locks
3-17
Mazda5_8BR9-EA-10J_Edition3 Page95
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
Page 96 of 440

Black plate (96,1)

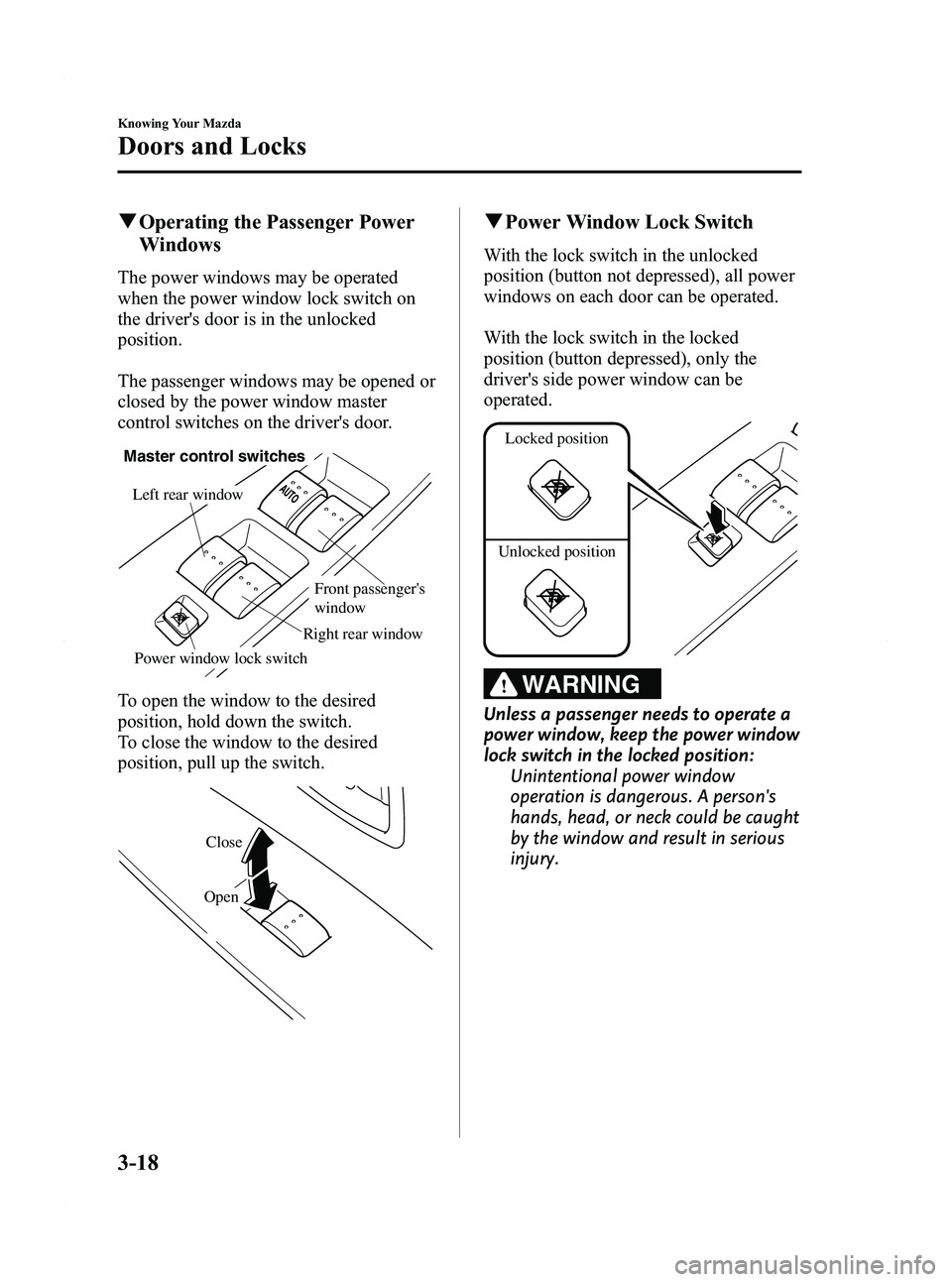

qOperating the Passenger Power
Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The passenger windows may be opened or
closed by the power window master
control switches on the driver's door.
Power window lock switch Front passenger's
window
Right rear window
Left rear window
Master control switches
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
q Power Window Lock Switch
With the lock switch in the unlocked
position (button not depressed), all power
windows on each door can be operated.
With the lock switch in the locked
position (button depressed), only the
driver's side power window can be
operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position: Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
3-18
Knowing Your Mazda
Doors and Locks
Mazda5_8BR9-EA-10J_Edition3 Page96
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
Page 107 of 440

Black plate (107,1)
Theft-Deterrent Systemí
If the theft deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
Refer to Operation on page 3-29.
NOTE
lThe theft-deterrent system operates with the
key or the keyless entry system transmitter.
lThe system will not function unless it is
properly armed. To properly secure the
vehicle, always make sure all windows are
completely closed and all doors and the
liftgate are locked before leaving the
vehicle. Remember to take your key and
transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
liftgate.
lUnlocking a door with the inside door-
lock knob.
lUnlocking a door with the door lock
switch.
lOpening the hood by operating the
hood release handle.
lSwitching the ignition ON without the
key.
If the system is triggered again, the lights
and horn will activate until a door or the
liftgate is unlocked with the key or with
the transmitter. NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights will
flash when the battery is charged or replaced.
q
How to Arm the System
1. Close the windows and the moonroofí
securely.
2. Remove the key from the ignition switch.
3. Make sure all the windows, the moonroof
í, and the hood are closed.
Close and lock all doors and the
liftgate from the outside using the key
or press the lock button on your
keyless entry system transmitter.
The hazard warning lights will flash
once.
The following method will also arm the
theft-deterrent system:
Close the hood and the liftgate. Press
the area on the door-lock switch
marked “LOCK ”once. Close all doors.
The security indicator light in the
instrument panel flashes twice per
second for 20 seconds.
The theft deterrent system can also be
armed by activating the auto re-lock
function with all the doors, the liftgate and
the hood closed.
NOTE
Locking the doors with the inside door-lock
knob will not arm the system.
Knowing Your Mazda
Security System
3-29íSome models.
Mazda5_8BR9-EA-10J_Edition3 Page107
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
Page 109 of 440

Black plate (109,1)

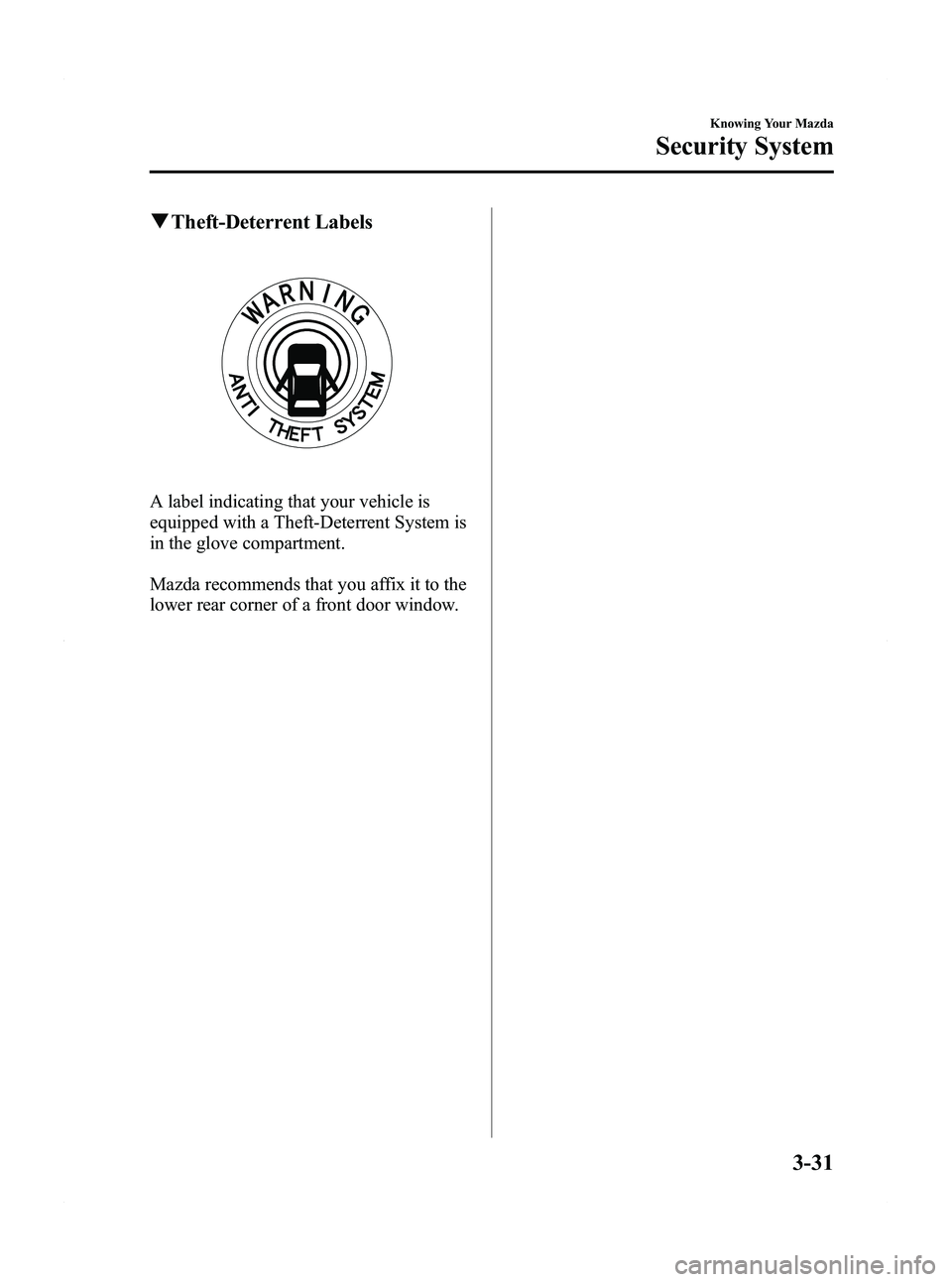

qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
Knowing Your Mazda
Security System
3-31
Mazda5_8BR9-EA-10J_Edition3 Page109
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
Page 111 of 440

Black plate (111,1)
2. Depress the mirror switch in theappropriate direction.
Mirror switchSelector switch
After adjusting the mirror, lock the control
by placing the selector switch in the
center position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
qRearview Mirror
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Reducing glare from headlights
Adjust the mirror with the day/night lever
in the day position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night
Day Day/Night lever
Knowing Your Mazda
Steering Wheel and Mirrors
3-33
Mazda5_8BR9-EA-10J_Edition3 Page111
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
Page 116 of 440

Black plate (116,1)
Engine Exhaust (Carbon Monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine: Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine: Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda5_8BR9-EA-10J_Edition3 Page116
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
