Vehicle Loading
WARNING
Do not tow a trailer with this vehicle:Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will
provide maximum return of vehicle design performance. Before loading your vehicle,
familiarize yourself with the following terms for determining your vehicle's weight ratings,
from the vehicle's Safety Certification Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle: Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's
suspension system can cause spring or shock absorber failure, brake failure,
handling or steering problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the
distance required for stopping. In cases of serious overloading, brakes can fail
completely, particularly on steep grades. The load a tire will carry safely is a
combination of the size of the tire, its load range, and corresponding inflation
pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.
Customer Information
Tire Information (U.S.A.)
9-35
Mazda5_8BR9-EA-10J_Edition3 Page415
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (419,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not tow a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
Customer Information
Tire Information (U.S.A.)
9-39
Mazda5_8BR9-EA-10J_Edition3 Page419
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (421,1)
Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement“The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs ”on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load
capacity. For example, if the “XXX ”amount equals 1400 lbs. and there
will be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 _
750 (5 × 150) = 650
lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle. Consult this manual to determine how this
reduces the available cargo and luggage load capacity of your vehicle.
Customer Information
Tire Information (U.S.A.)
9-41
Mazda5_8BR9-EA-10J_Edition3 Page421
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (423,1)

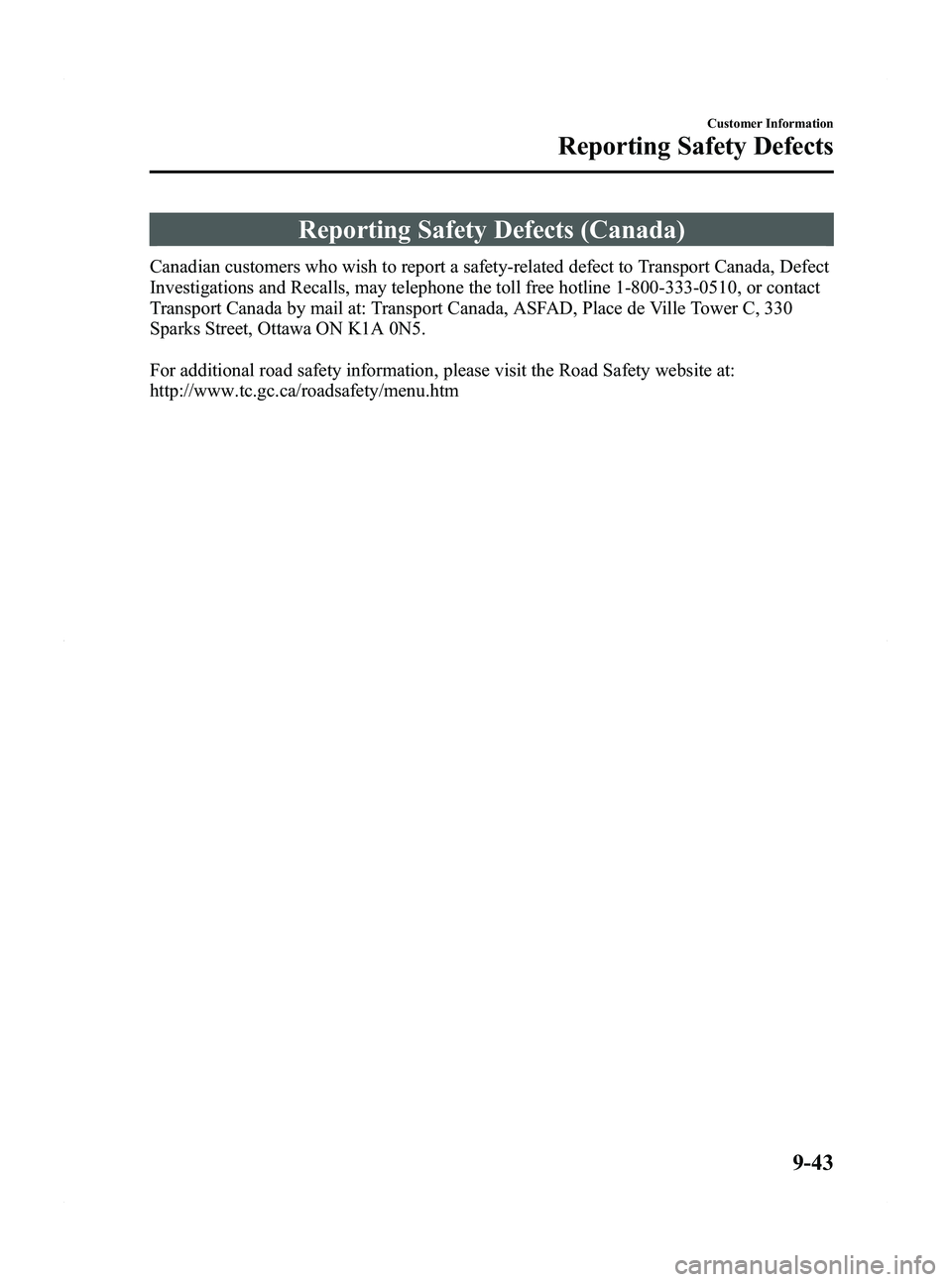

Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information
Reporting Safety Defects
9-43
Mazda5_8BR9-EA-10J_Edition3 Page423
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (435,1)
C
Child RestraintChild restraint precautions ......... 2-30
Child-restraint system installation
position ...................................... 2-35
Installing child-restraint
systems ....................................... 2-36
LATCH child-restraint
systems ....................................... 2-43
Child Safety Locks for Rear Doors ... 3-13
Climate Control System ...................... 6-2 Gas specifications ...................... 10-6
Clock ................................................. 6-92
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-96
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-35
Daytime Running Lights ................... 5-55
Defroster Mirror ......................................... 5-61
Rear window .............................. 5-61
Dimensions ....................................... 10-5
Door Locks ......................................... 3-9
Driving In Flooded Area ................... 4-10
Driving on Uneven Road .................. 4-11
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-18
Break-in period ............................ 4-6
Driving in flooded area .............. 4-10
Driving on uneven road .............. 4-11
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-8
D
Dynamic Stability Control (DSC) ..... 5-24DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-25
TCS/DSC indicator light ............ 5-24
E
Emergency Starting ........................... 7-16Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-21
Emergency Towing ........................... 7-22
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-20
Exhaust gas .................................. 4-4
Hood release .............................. 3-20
Oil .............................................. 8-18
Overheating ................................ 7-14
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-14
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-55
F
Flasher Hazard warning .......................... 5-62
Headlights .................................. 5-51
Flat Tire ............................................... 7-3 Changing ...................................... 7-7
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-56
Foot Brake .......................................... 5-5
Index
11-3
Mazda5_8BR9-EA-10J_Edition3 Page435
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (437,1)
L
Light BulbsReplacement ............................... 8-40
Specifications ............................. 10-6
Lighting Control ............................... 5-51
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-90
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............. 5-10 Recommendations for shifting .... 5-11
Map Lights ........................................ 6-90
Meters and Gauges ........................... 5-32
Mirror Defroster ................................ 5-61
Mirrors Outside mirrors .......................... 3-32
Rearview mirror ......................... 3-33
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-22
O
Odometer and Trip Meter .................. 5-33
Outside Mirrors ................................. 3-32
Overhead Lights ................................ 6-90
Overheating ....................................... 7-14
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-53
Parking Brake ..................................... 5-6
P
Parking in an Emergency .................... 7-2
Personalization Features ................... 10-8
Power Door Locks ............................ 3-11
Power Steering .................................. 5-18 Fluid ........................................... 8-22
Power steering malfunction indicator
light ............................................ 5-18
Power Windows ................................ 3-16
Push-Starting ..................................... 7-21
R
Rear Coat Hooks ............................. 6-104
Rear Door Child Safety Locks .......... 3-13
Rear Window Defroster .................... 5-61
Rear Window Washer ....................... 5-60
Rear Window Wiper .......................... 5-60
Rearview Mirror ................................ 3-33
Recreational Towing ......................... 7-25
Registering Your Vehicle in A Foreign
Country ............................................. 9-18
Rocking the Vehicle ............................ 4-8
S
Safety Defects, Reporting ................. 9-42
Seat Belt System 3-point type ................................ 2-22
Automatic locking ...................... 2-21
Emergency locking .................... 2-20
Extender ..................................... 2-27
Pregnant women ........................ 2-20
Pretensioner and load limiting .... 2-24
Seat belt precautions .................. 2-18
Seat belt reminder ....................... 2-29
Warning light ............................. 2-28
Index
11-5
Mazda5_8BR9-EA-10J_Edition3 Page437
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (439,1)
T
TowingDescription ................................. 7-22
Emergency towing ..................... 7-22
Hook .......................................... 7-23
Recreational towing ................... 7-25
Trailer towing ............................. 4-12
Traction Control System (TCS) ........ 5-23
TCS/DSC indicator light ............ 5-23
Trailer Towing .................................. 4-12
Trip Meter ......................................... 5-33
Turn and Lane-Change Signals ......... 5-55
U
Underseat Storage ........................... 6-100
V
Vanity Mirrors ................................... 6-89
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-36 ABS ............................................ 5-39
Air bag system ........................... 5-42
Automatic transaxle ................... 5-43
Brake system .............................. 5-38
Charging system ......................... 5-40
Check engine .............................. 5-41
Check fuel cap ........................... 5-42
Door-ajar .................................... 5-43
Engine oil pressure ..................... 5-40
Front seat belt pretensioner
system ........................................ 5-42
High engine coolant
temperature ................................ 5-41
Low fuel ..................................... 5-42
Low washer fluid level ............... 5-43
Malfunction ................................ 5-39
Seat belt ...................................... 5-43
Tire pressure monitoring
system ........................................ 5-44
Warranty ............................................ 9-15
Washer Fluid ..................................... 8-24
Weights ............................................. 10-5
Wheel Replacement .......................... 8-38
Windows Power windows .......................... 3-16
Windshield Washer ........................... 5-60
Windshield Wipers ............................ 5-57
Blades replacement .................... 8-26
Winter Driving .................................... 4-8
Index
11-7
Mazda5_8BR9-EA-10J_Edition3 Page439
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
