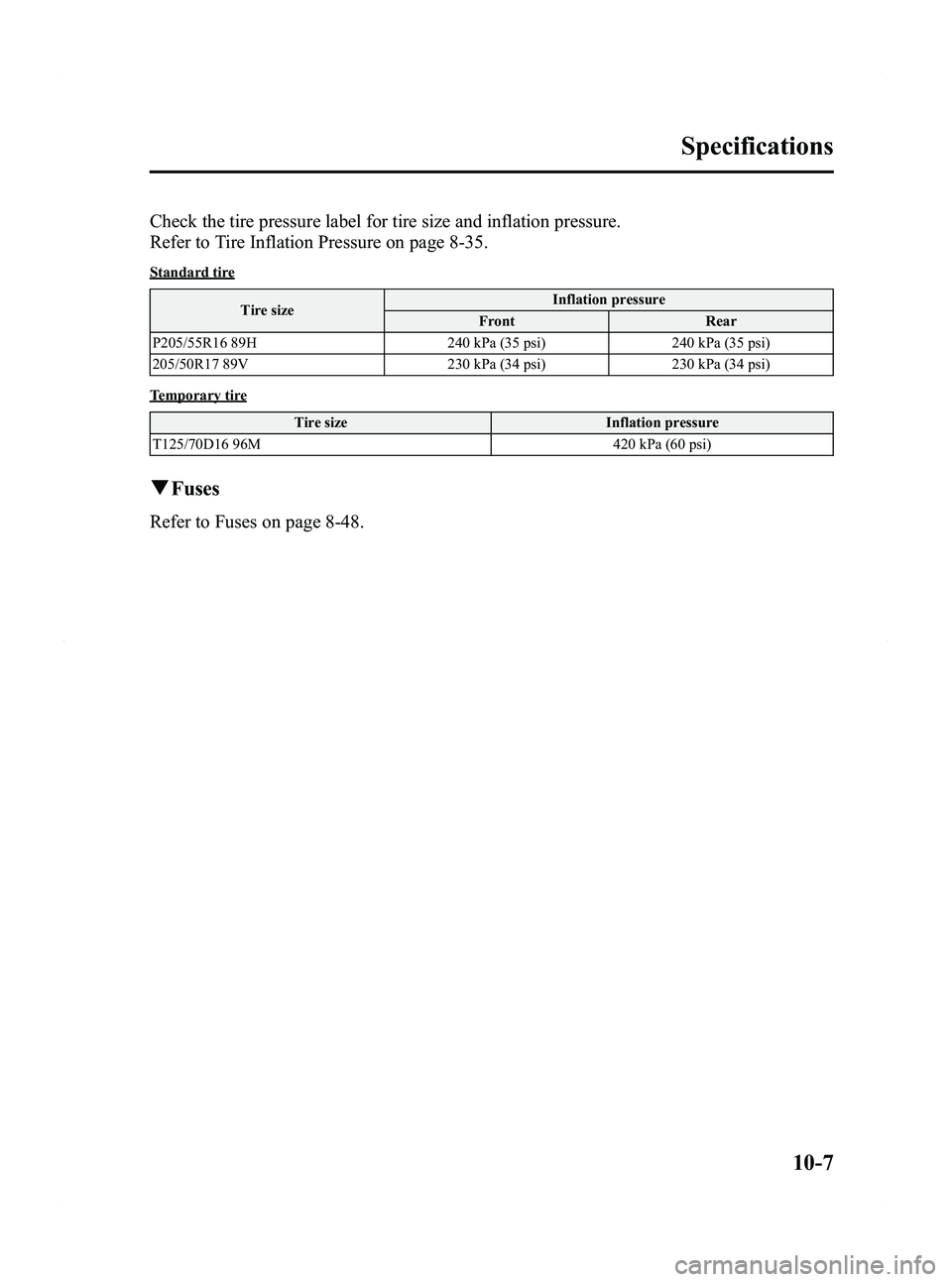

Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-35.
Standard tireTire size Inflation pressure
Front Rear
P205/55R16 89H 240 kPa (35 psi)240 kPa (35 psi)
205/50R17 89V 230 kPa (34 psi)230 kPa (34 psi)
Temporary tire
Tire size Inflation pressure
T125/70D16 96M 420 kPa (60 psi)
q Fuses
Refer to Fuses on page 8-48.
Specifications
10-7
Mazda5_8BR9-EA-10J_Edition3 Page431
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (432,1)
Personalization Features
The following“Personalization Features ”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Setting Function Initial Setting After Setting Change
Key reminder
warning alarm The volume of the key reminder warning alarm
can be changed
High Low
Lights-on reminder
warning alarm The volume of the lights-on reminder warning
alarm can be changed
High Low/Deactivated
Turn indicator The beep volume level can be changed High Low/Deactivated
Illumination entry The time required for the interior lamp to turn
off automatically after all the doors are closed
can be changed
15 seconds 7.5/30/60 seconds
The time required for the interior lamp to
illuminate after unlocking any door can be
changed 30 seconds 7.5/15/60 seconds
The function that allows the interior lamp to
illuminate automatically when the doors are
unlocked can be changed Activated Deactivated
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar) 30 minutes 10/60 minutes
Keyless entry The unlocking method using the retractable key
can be changed
Press × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed 30 seconds 60/90 seconds
The flashing of the hazard warning lights when
the doors are locked/unlocked can be changed Activated Deactivated
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be changed Activated Deactivated
Auto headlight on/off The headlight illumination on/off timing based
on surrounding lightness/darkness can be
changed Standard
(Illuminates under
average levels of darkness) Earlier/
Somewhat earlier/
Somewhat later/ Later
Two-step down
power window The two-step down power window function can
be changed
Activated Deactivated
10-8
Personalization Features
Mazda5_8BR9-EA-10J_Edition3 Page432
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (433,1)

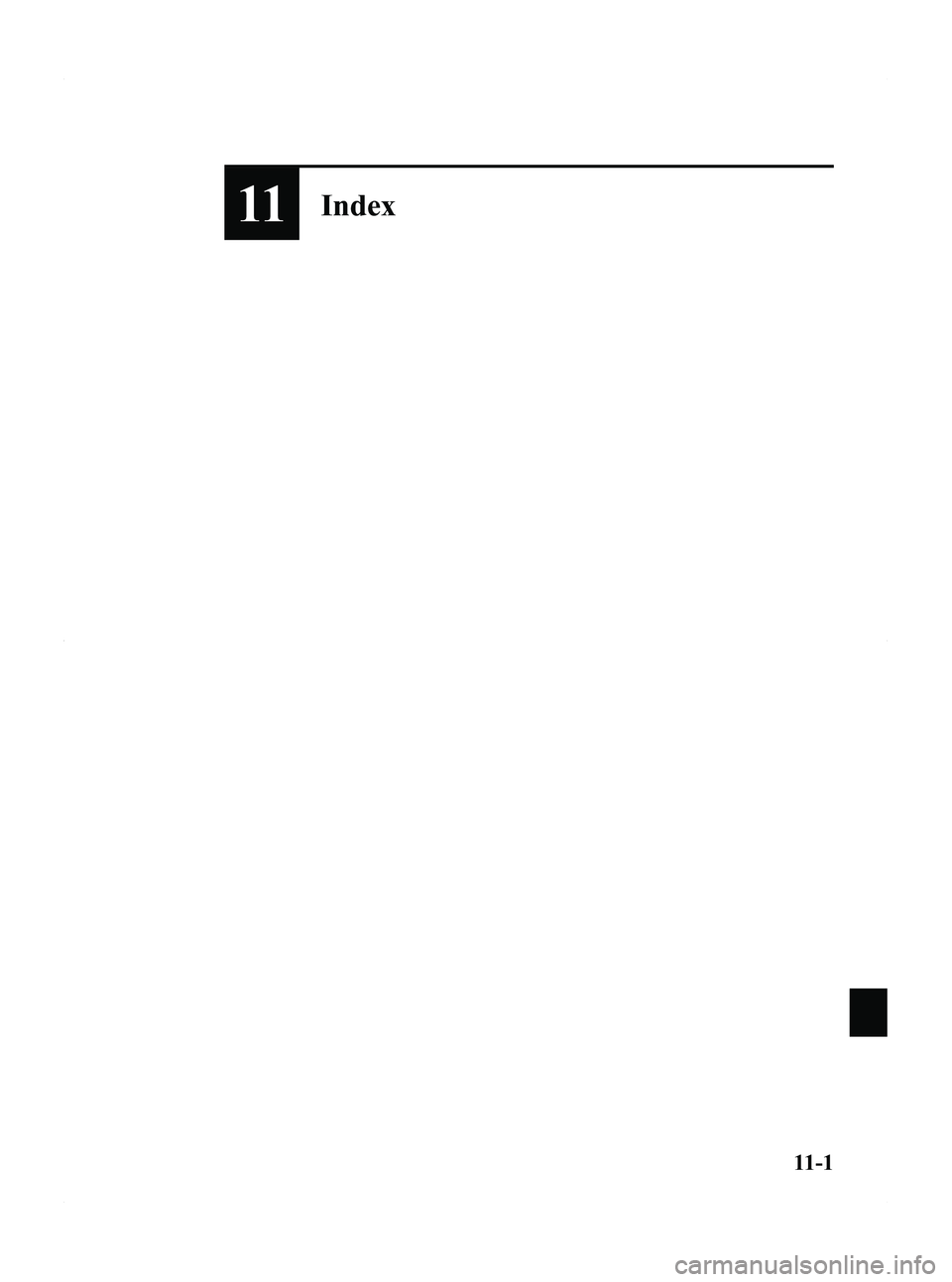

11Index
11-1
Mazda5_8BR9-EA-10J_Edition3 Page433
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (434,1)
A
Accessory Socket ............................ 6-105
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Air Bag Systems ............................... 2-46
Ambient Temperature Display .......... 6-92
Antenna ............................................. 6-11
Anti-Lock Brake System (ABS) ......... 5-8Warning light ............................... 5-8
Appearance Care ............................... 8-53
Audio System .................................... 6-11 Audio control switch .................. 6-50
Audio set .................................... 6-21
AUX mode ................................. 6-53
Operating tips for audio
system ........................................ 6-12
Safety certification ..................... 6-55
Automatic Transaxle Driving tips ................................ 5-18
Fluid ........................................... 8-23
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
BatteryEmergency starting .................... 7-16
Maintenance ............................... 8-30
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-50
Lights-on reminder ..................... 5-50
Seat belt warning ........................ 5-50
Tire inflation pressure warning ... 5-50
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
B
Bluetooth Audio ............................... 6-56
Bluetooth Hands-Free ....................... 6-66
Bluetooth Hands-Free
(Voice Recognition)
Bluetooth Hands-Free cannot be
used ............................................ 6-87
Bluetooth Hands-Free
operation .................................... 6-70
Convenient use of the hands-free
system ........................................ 6-75
Hands-free setting ...................... 6-81
Mazda Bluetooth Hands-Free
customer service ......................... 6-88
Safety certification ..................... 6-88
Body Lubrication .............................. 8-25
Bottle Holder ..................................... 6-97
Brake/Clutch
Fluid ........................................... 8-21
Brakes Anti-lock brake system (ABS) ..... 5-8
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-40
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-103
Cargo Sub-Compartment ................ 6-103
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-20
Center Console ................................ 6-100
11-2
Index
Mazda5_8BR9-EA-10J_Edition3 Page434
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (435,1)
C
Child RestraintChild restraint precautions ......... 2-30
Child-restraint system installation
position ...................................... 2-35
Installing child-restraint
systems ....................................... 2-36
LATCH child-restraint
systems ....................................... 2-43
Child Safety Locks for Rear Doors ... 3-13
Climate Control System ...................... 6-2 Gas specifications ...................... 10-6
Clock ................................................. 6-92
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-96
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-35
Daytime Running Lights ................... 5-55
Defroster Mirror ......................................... 5-61
Rear window .............................. 5-61
Dimensions ....................................... 10-5
Door Locks ......................................... 3-9
Driving In Flooded Area ................... 4-10
Driving on Uneven Road .................. 4-11
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-18
Break-in period ............................ 4-6
Driving in flooded area .............. 4-10
Driving on uneven road .............. 4-11
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-8
D
Dynamic Stability Control (DSC) ..... 5-24DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-25
TCS/DSC indicator light ............ 5-24
E
Emergency Starting ........................... 7-16Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-21
Emergency Towing ........................... 7-22
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-20
Exhaust gas .................................. 4-4
Hood release .............................. 3-20
Oil .............................................. 8-18
Overheating ................................ 7-14
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-14
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-55
F
Flasher Hazard warning .......................... 5-62
Headlights .................................. 5-51
Flat Tire ............................................... 7-3 Changing ...................................... 7-7
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-56
Foot Brake .......................................... 5-5
Index
11-3
Mazda5_8BR9-EA-10J_Edition3 Page435
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (436,1)
F
Front Seats .......................................... 2-2
FuelFiller lid and cap ........................ 3-19
Gauge ......................................... 5-34
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-48
Panel description ........................ 8-50
Replacement ............................... 8-48
G
Gauges .............................................. 5-32
Glove Compartment ........................ 6-100
H
Hazard Warning Flasher .................... 5-62
Hazardous Driving .............................. 4-7
Head Restraint .................................. 2-14
HeadlightsControl ....................................... 5-51
Flashing ...................................... 5-54
High-low beam .......................... 5-54
Leveling ..................................... 5-54
On reminder ............................... 5-54
Hood Release .................................... 3-20
Horn .................................................. 5-62
I
Ignition Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-89
Immobilizer System .......................... 3-25
I
Indicator Lights ................................. 5-36 Cruise ......................................... 5-47
DSC OFF .................................... 5-47
Headlight high-beam .................. 5-46
Low engine coolant
temperature ................................ 5-47
Power steering malfunction ........ 5-48
Security ...................................... 5-46
Shift position .............................. 5-46
TCS/DSC ................................... 5-47
Turn signal/hazard warning ........ 5-48
Information Display .......................... 6-91 Ambient temperature display ..... 6-92
Audio display ............................. 6-92
Climate control display .............. 6-92
Clock .......................................... 6-92
Information display functions .... 6-91
Trip computer ............................. 6-93
Instrument Cluster ............................. 5-32
Interior Care ...................................... 8-59
Interior Lights ................................... 6-89
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-55
Liftgate .............................................. 3-13
11-4
Index
Mazda5_8BR9-EA-10J_Edition3 Page436
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (437,1)
L
Light BulbsReplacement ............................... 8-40
Specifications ............................. 10-6
Lighting Control ............................... 5-51
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-90
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............. 5-10 Recommendations for shifting .... 5-11
Map Lights ........................................ 6-90
Meters and Gauges ........................... 5-32
Mirror Defroster ................................ 5-61
Mirrors Outside mirrors .......................... 3-32
Rearview mirror ......................... 3-33
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-22
O
Odometer and Trip Meter .................. 5-33
Outside Mirrors ................................. 3-32
Overhead Lights ................................ 6-90
Overheating ....................................... 7-14
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-53
Parking Brake ..................................... 5-6
P
Parking in an Emergency .................... 7-2
Personalization Features ................... 10-8
Power Door Locks ............................ 3-11
Power Steering .................................. 5-18 Fluid ........................................... 8-22
Power steering malfunction indicator
light ............................................ 5-18
Power Windows ................................ 3-16
Push-Starting ..................................... 7-21
R
Rear Coat Hooks ............................. 6-104
Rear Door Child Safety Locks .......... 3-13
Rear Window Defroster .................... 5-61
Rear Window Washer ....................... 5-60
Rear Window Wiper .......................... 5-60
Rearview Mirror ................................ 3-33
Recreational Towing ......................... 7-25
Registering Your Vehicle in A Foreign
Country ............................................. 9-18
Rocking the Vehicle ............................ 4-8
S
Safety Defects, Reporting ................. 9-42
Seat Belt System 3-point type ................................ 2-22
Automatic locking ...................... 2-21
Emergency locking .................... 2-20
Extender ..................................... 2-27
Pregnant women ........................ 2-20
Pretensioner and load limiting .... 2-24
Seat belt precautions .................. 2-18
Seat belt reminder ....................... 2-29
Warning light ............................. 2-28
Index
11-5
Mazda5_8BR9-EA-10J_Edition3 Page437
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (438,1)
S
SeatsFront seat ...................................... 2-2
Head restraint ............................. 2-14
Seat arrangements ...................... 2-12
Seat warmer ................................ 2-16
Second-row seats ......................... 2-5
Third-row seat ............................ 2-10
Second-Row Seats .............................. 2-5
Security System Immobilizer system .................... 3-25
Theft-deterrent system ............... 3-29
Service Publications .......................... 9-44
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-33
SRS Air Bags Driver and front passenger occupant
classification system .................. 2-59
How the SRS air bags work ....... 2-52
Limitations to SRS air bag ......... 2-57
Monitoring and maintenance ..... 2-64
SRS air bag deployment
criteria ........................................ 2-56
SRS Air Bags Supplemental restraint system
(SRS) precautions ...................... 2-46
SRS Air Bags Supplemental restraint system
components ................................ 2-51
Steering Wheel .................................. 3-32 Horn ........................................... 5-62
Storage Box .................................... 6-101
S
Storage Compartments ...................... 6-98 Cargo securing loops ................ 6-103
Cargo sub-compartment ........... 6-103
Center console .......................... 6-100
Glove compartment .................. 6-100
Rear coat hooks ........................ 6-104
Storage box .............................. 6-101
Underseat storage ..................... 6-100
Sunshade ........................................... 3-24
Sunvisors .......................................... 6-89
T
Tachometer ........................................ 5-34
Temporary Spare Tire ....................... 8-37
Theft-Deterrent System ..................... 3-29
Third-Row Seat ................................. 2-10
Tiedown Hook .......................................... 7-23
Tire Information ................................ 9-23
Tire Pressure Monitoring System ...... 5-26 System error activation .............. 5-30
Tire pressure monitoring system
warning light .............................. 5-28
Tires and wheels ......................... 5-30
Tires Flat tire ......................................... 7-3
Inflation pressure ........................ 8-35
Replacement ............................... 8-37
Rotation ...................................... 8-36
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................... 4-9
Uniform tire quality grading system
(UTQGS) ................................... 9-21
Tool ..................................................... 7-3
11-6
Index
Mazda5_8BR9-EA-10J_Edition3 Page438
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (439,1)
T
TowingDescription ................................. 7-22
Emergency towing ..................... 7-22
Hook .......................................... 7-23
Recreational towing ................... 7-25
Trailer towing ............................. 4-12
Traction Control System (TCS) ........ 5-23
TCS/DSC indicator light ............ 5-23
Trailer Towing .................................. 4-12
Trip Meter ......................................... 5-33
Turn and Lane-Change Signals ......... 5-55
U
Underseat Storage ........................... 6-100
V
Vanity Mirrors ................................... 6-89
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-36 ABS ............................................ 5-39
Air bag system ........................... 5-42
Automatic transaxle ................... 5-43
Brake system .............................. 5-38
Charging system ......................... 5-40
Check engine .............................. 5-41
Check fuel cap ........................... 5-42
Door-ajar .................................... 5-43
Engine oil pressure ..................... 5-40
Front seat belt pretensioner
system ........................................ 5-42
High engine coolant
temperature ................................ 5-41
Low fuel ..................................... 5-42
Low washer fluid level ............... 5-43
Malfunction ................................ 5-39
Seat belt ...................................... 5-43
Tire pressure monitoring
system ........................................ 5-44
Warranty ............................................ 9-15
Washer Fluid ..................................... 8-24
Weights ............................................. 10-5
Wheel Replacement .......................... 8-38
Windows Power windows .......................... 3-16
Windshield Washer ........................... 5-60
Windshield Wipers ............................ 5-57
Blades replacement .................... 8-26
Winter Driving .................................... 4-8
Index
11-7
Mazda5_8BR9-EA-10J_Edition3 Page439
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (440,1)
11-8
Mazda5_8BR9-EA-10J_Edition3 Page440
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
