Page 374 of 440

Black plate (374,1)
CAUTION
ØDo not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plated
or anodized aluminum parts. This
may damage the protective
coating; also, cleaners and
detergents may discolor or
deteriorate the paint.
Ø To prevent damaging the antenna,
remove it before entering a car
wash facility or passing beneath a
low overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal: Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
When using a high water pressure car
wash
High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the sealability of parts,
and allow water to penetrate the interior.
Keep a sufficient space (30 cm or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives. Waxes containing abrasive will remove
paint and could damage bright metal
parts.
8-56
Maintenance and Care
Appearance Care
Mazda5_8BR9-EA-10J_Edition3 Page374
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J
Page 376 of 440

Black plate (376,1)
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal:Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels. NOTE
lDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-30.
q Plastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
8-58
Maintenance and Care
Appearance Care
Mazda5_8BR9-EA-10J_Edition3 Page376
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

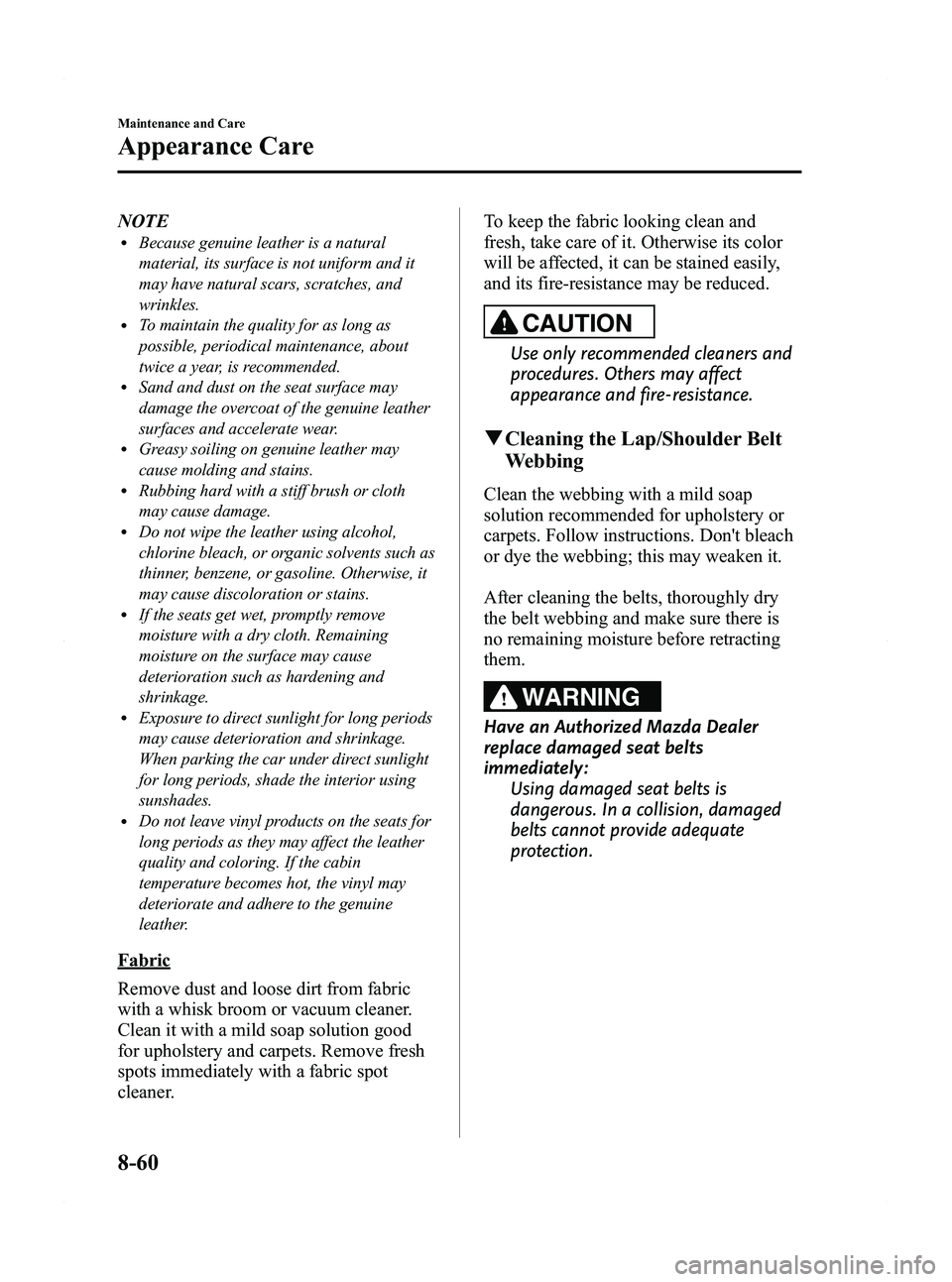

Page 378 of 440

Black plate (378,1)
NOTElBecause genuine leather is a natural
material, its surface is not uniform and it
may have natural scars, scratches, and
wrinkles.
lTo maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
lSand and dust on the seat surface may
damage the overcoat of the genuine leather
surfaces and accelerate wear.
lGreasy soiling on genuine leather may
cause molding and stains.
lRubbing hard with a stiff brush or cloth
may cause damage.
lDo not wipe the leather using alcohol,
chlorine bleach, or organic solvents such as
thinner, benzene, or gasoline. Otherwise, it
may cause discoloration or stains.
lIf the seats get wet, promptly remove
moisture with a dry cloth. Remaining
moisture on the surface may cause
deterioration such as hardening and
shrinkage.
lExposure to direct sunlight for long periods
may cause deterioration and shrinkage.
When parking the car under direct sunlight
for long periods, shade the interior using
sunshades.
lDo not leave vinyl products on the seats for
long periods as they may affect the leather
quality and coloring. If the cabin
temperature becomes hot, the vinyl may
deteriorate and adhere to the genuine
leather.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
q
Cleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
8-60
Maintenance and Care
Appearance Care
Mazda5_8BR9-EA-10J_Edition3 Page378
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J
Page 404 of 440

Black plate (404,1)
11. Max. load rating
12. Tread wear, traction and temperature grades
13. Max. permissible inflation pressure
14. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing Association).
215
“215 ”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
65
“ 65 ”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R” is the tire construction symbol. R indicates “Radial ply construction ”.
15
“15 ”is the wheel rim diameter in inches.
95
“95 ”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
9-24
Customer Information
Tire Information (U.S.A.)
Mazda5_8BR9-EA-10J_Edition3 Page404
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
Page 432 of 440

Black plate (432,1)
Personalization Features
The following“Personalization Features ”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Setting Function Initial Setting After Setting Change
Key reminder
warning alarm The volume of the key reminder warning alarm
can be changed
High Low
Lights-on reminder
warning alarm The volume of the lights-on reminder warning
alarm can be changed
High Low/Deactivated
Turn indicator The beep volume level can be changed High Low/Deactivated
Illumination entry The time required for the interior lamp to turn
off automatically after all the doors are closed
can be changed
15 seconds 7.5/30/60 seconds
The time required for the interior lamp to
illuminate after unlocking any door can be
changed 30 seconds 7.5/15/60 seconds
The function that allows the interior lamp to
illuminate automatically when the doors are
unlocked can be changed Activated Deactivated
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar) 30 minutes 10/60 minutes
Keyless entry The unlocking method using the retractable key
can be changed
Press × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed 30 seconds 60/90 seconds
The flashing of the hazard warning lights when
the doors are locked/unlocked can be changed Activated Deactivated
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be changed Activated Deactivated
Auto headlight on/off The headlight illumination on/off timing based
on surrounding lightness/darkness can be
changed Standard
(Illuminates under
average levels of darkness) Earlier/
Somewhat earlier/
Somewhat later/ Later
Two-step down
power window The two-step down power window function can
be changed
Activated Deactivated
10-8
Personalization Features
Mazda5_8BR9-EA-10J_Edition3 Page432
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
Page 434 of 440

Black plate (434,1)
A
Accessory Socket ............................ 6-105
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Air Bag Systems ............................... 2-46
Ambient Temperature Display .......... 6-92
Antenna ............................................. 6-11
Anti-Lock Brake System (ABS) ......... 5-8Warning light ............................... 5-8
Appearance Care ............................... 8-53
Audio System .................................... 6-11 Audio control switch .................. 6-50
Audio set .................................... 6-21
AUX mode ................................. 6-53
Operating tips for audio
system ........................................ 6-12
Safety certification ..................... 6-55
Automatic Transaxle Driving tips ................................ 5-18
Fluid ........................................... 8-23
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
BatteryEmergency starting .................... 7-16
Maintenance ............................... 8-30
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-50
Lights-on reminder ..................... 5-50
Seat belt warning ........................ 5-50
Tire inflation pressure warning ... 5-50
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
B
Bluetooth Audio ............................... 6-56
Bluetooth Hands-Free ....................... 6-66
Bluetooth Hands-Free
(Voice Recognition)
Bluetooth Hands-Free cannot be
used ............................................ 6-87
Bluetooth Hands-Free
operation .................................... 6-70
Convenient use of the hands-free
system ........................................ 6-75
Hands-free setting ...................... 6-81
Mazda Bluetooth Hands-Free
customer service ......................... 6-88
Safety certification ..................... 6-88
Body Lubrication .............................. 8-25
Bottle Holder ..................................... 6-97
Brake/Clutch
Fluid ........................................... 8-21
Brakes Anti-lock brake system (ABS) ..... 5-8
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-40
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-103
Cargo Sub-Compartment ................ 6-103
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-20
Center Console ................................ 6-100
11-2
Index
Mazda5_8BR9-EA-10J_Edition3 Page434
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
Page 435 of 440

Black plate (435,1)
C
Child RestraintChild restraint precautions ......... 2-30
Child-restraint system installation
position ...................................... 2-35
Installing child-restraint
systems ....................................... 2-36
LATCH child-restraint
systems ....................................... 2-43
Child Safety Locks for Rear Doors ... 3-13
Climate Control System ...................... 6-2 Gas specifications ...................... 10-6
Clock ................................................. 6-92
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-96
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-35
Daytime Running Lights ................... 5-55
Defroster Mirror ......................................... 5-61
Rear window .............................. 5-61
Dimensions ....................................... 10-5
Door Locks ......................................... 3-9
Driving In Flooded Area ................... 4-10
Driving on Uneven Road .................. 4-11
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-18
Break-in period ............................ 4-6
Driving in flooded area .............. 4-10
Driving on uneven road .............. 4-11
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-8
D
Dynamic Stability Control (DSC) ..... 5-24DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-25
TCS/DSC indicator light ............ 5-24
E
Emergency Starting ........................... 7-16Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-21
Emergency Towing ........................... 7-22
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-20
Exhaust gas .................................. 4-4
Hood release .............................. 3-20
Oil .............................................. 8-18
Overheating ................................ 7-14
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-14
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-55
F
Flasher Hazard warning .......................... 5-62
Headlights .................................. 5-51
Flat Tire ............................................... 7-3 Changing ...................................... 7-7
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-56
Foot Brake .......................................... 5-5
Index
11-3
Mazda5_8BR9-EA-10J_Edition3 Page435
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
Page 436 of 440

Black plate (436,1)
F
Front Seats .......................................... 2-2
FuelFiller lid and cap ........................ 3-19
Gauge ......................................... 5-34
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-48
Panel description ........................ 8-50
Replacement ............................... 8-48
G
Gauges .............................................. 5-32
Glove Compartment ........................ 6-100
H
Hazard Warning Flasher .................... 5-62
Hazardous Driving .............................. 4-7
Head Restraint .................................. 2-14
HeadlightsControl ....................................... 5-51
Flashing ...................................... 5-54
High-low beam .......................... 5-54
Leveling ..................................... 5-54
On reminder ............................... 5-54
Hood Release .................................... 3-20
Horn .................................................. 5-62
I
Ignition Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-89
Immobilizer System .......................... 3-25
I
Indicator Lights ................................. 5-36 Cruise ......................................... 5-47
DSC OFF .................................... 5-47
Headlight high-beam .................. 5-46
Low engine coolant
temperature ................................ 5-47
Power steering malfunction ........ 5-48
Security ...................................... 5-46
Shift position .............................. 5-46
TCS/DSC ................................... 5-47
Turn signal/hazard warning ........ 5-48
Information Display .......................... 6-91 Ambient temperature display ..... 6-92
Audio display ............................. 6-92
Climate control display .............. 6-92
Clock .......................................... 6-92
Information display functions .... 6-91
Trip computer ............................. 6-93
Instrument Cluster ............................. 5-32
Interior Care ...................................... 8-59
Interior Lights ................................... 6-89
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-55
Liftgate .............................................. 3-13
11-4
Index
Mazda5_8BR9-EA-10J_Edition3 Page436
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
Page 437 of 440

Black plate (437,1)
L
Light BulbsReplacement ............................... 8-40
Specifications ............................. 10-6
Lighting Control ............................... 5-51
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-90
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............. 5-10 Recommendations for shifting .... 5-11
Map Lights ........................................ 6-90
Meters and Gauges ........................... 5-32
Mirror Defroster ................................ 5-61
Mirrors Outside mirrors .......................... 3-32
Rearview mirror ......................... 3-33
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-22
O
Odometer and Trip Meter .................. 5-33
Outside Mirrors ................................. 3-32
Overhead Lights ................................ 6-90
Overheating ....................................... 7-14
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-53
Parking Brake ..................................... 5-6
P
Parking in an Emergency .................... 7-2
Personalization Features ................... 10-8
Power Door Locks ............................ 3-11
Power Steering .................................. 5-18 Fluid ........................................... 8-22
Power steering malfunction indicator
light ............................................ 5-18
Power Windows ................................ 3-16
Push-Starting ..................................... 7-21
R
Rear Coat Hooks ............................. 6-104
Rear Door Child Safety Locks .......... 3-13
Rear Window Defroster .................... 5-61
Rear Window Washer ....................... 5-60
Rear Window Wiper .......................... 5-60
Rearview Mirror ................................ 3-33
Recreational Towing ......................... 7-25
Registering Your Vehicle in A Foreign
Country ............................................. 9-18
Rocking the Vehicle ............................ 4-8
S
Safety Defects, Reporting ................. 9-42
Seat Belt System 3-point type ................................ 2-22
Automatic locking ...................... 2-21
Emergency locking .................... 2-20
Extender ..................................... 2-27
Pregnant women ........................ 2-20
Pretensioner and load limiting .... 2-24
Seat belt precautions .................. 2-18
Seat belt reminder ....................... 2-29
Warning light ............................. 2-28
Index
11-5
Mazda5_8BR9-EA-10J_Edition3 Page437
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
Page 438 of 440

Black plate (438,1)
S
SeatsFront seat ...................................... 2-2
Head restraint ............................. 2-14
Seat arrangements ...................... 2-12
Seat warmer ................................ 2-16
Second-row seats ......................... 2-5
Third-row seat ............................ 2-10
Second-Row Seats .............................. 2-5
Security System Immobilizer system .................... 3-25
Theft-deterrent system ............... 3-29
Service Publications .......................... 9-44
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-33
SRS Air Bags Driver and front passenger occupant
classification system .................. 2-59
How the SRS air bags work ....... 2-52
Limitations to SRS air bag ......... 2-57
Monitoring and maintenance ..... 2-64
SRS air bag deployment
criteria ........................................ 2-56
SRS Air Bags Supplemental restraint system
(SRS) precautions ...................... 2-46
SRS Air Bags Supplemental restraint system
components ................................ 2-51
Steering Wheel .................................. 3-32 Horn ........................................... 5-62
Storage Box .................................... 6-101
S
Storage Compartments ...................... 6-98 Cargo securing loops ................ 6-103
Cargo sub-compartment ........... 6-103
Center console .......................... 6-100
Glove compartment .................. 6-100
Rear coat hooks ........................ 6-104
Storage box .............................. 6-101
Underseat storage ..................... 6-100
Sunshade ........................................... 3-24
Sunvisors .......................................... 6-89
T
Tachometer ........................................ 5-34
Temporary Spare Tire ....................... 8-37
Theft-Deterrent System ..................... 3-29
Third-Row Seat ................................. 2-10
Tiedown Hook .......................................... 7-23
Tire Information ................................ 9-23
Tire Pressure Monitoring System ...... 5-26 System error activation .............. 5-30
Tire pressure monitoring system
warning light .............................. 5-28
Tires and wheels ......................... 5-30
Tires Flat tire ......................................... 7-3
Inflation pressure ........................ 8-35
Replacement ............................... 8-37
Rotation ...................................... 8-36
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................... 4-9
Uniform tire quality grading system
(UTQGS) ................................... 9-21
Tool ..................................................... 7-3
11-6
Index
Mazda5_8BR9-EA-10J_Edition3 Page438
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
