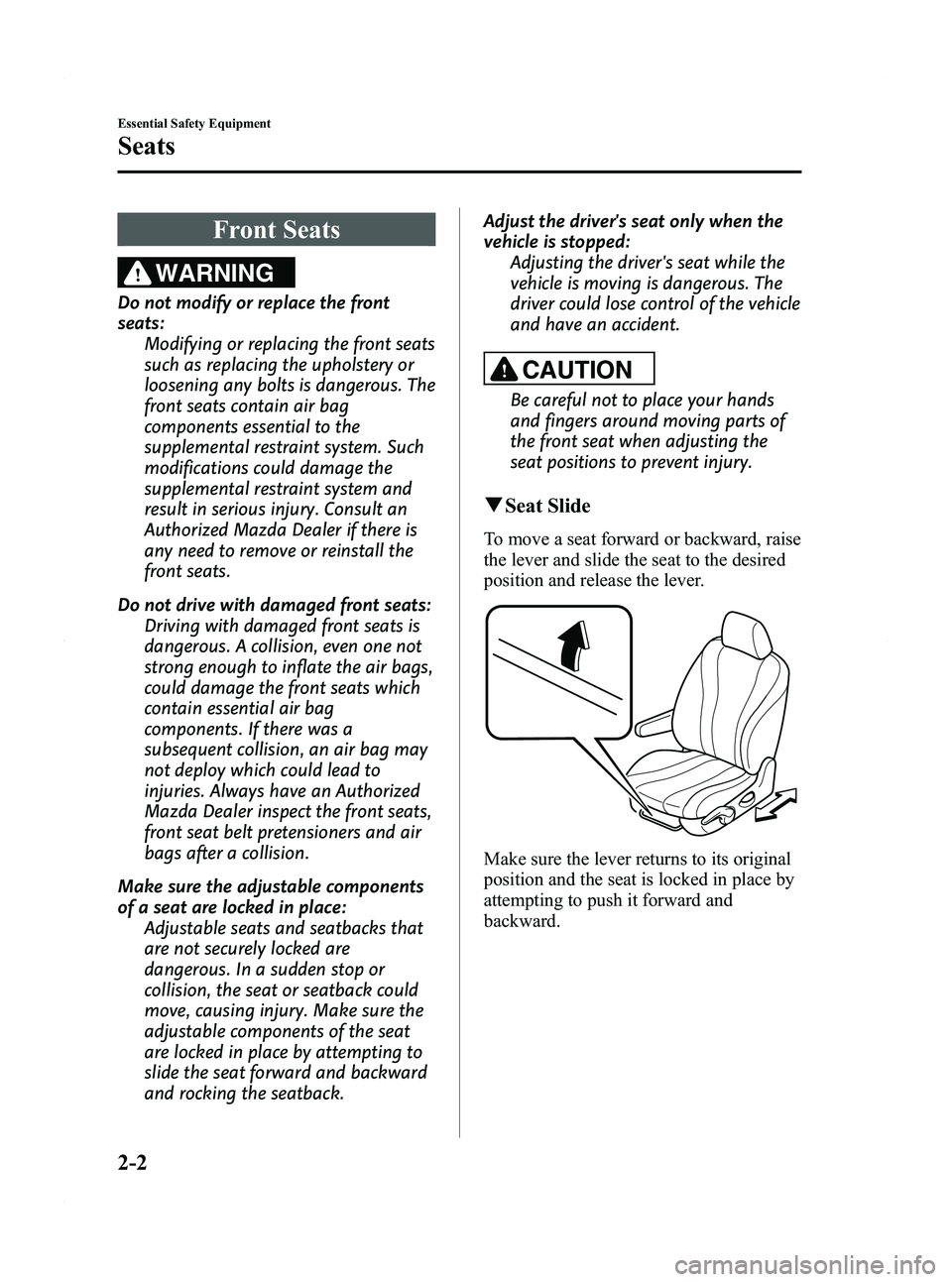

Front Seats
WARNING
Do not modify or replace the front
seats:Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
Make sure the adjustable components
of a seat are locked in place: Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback. Adjust the driver's seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
CAUTION
Be careful not to place your hands
and fingers around moving parts of
the front seat when adjusting the
seat positions to prevent injury.
qSeat Slide
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
2-2
Essential Safety Equipment
Seats
Mazda5_8BR9-EA-10J_Edition3 Page14
Monday, February 21 2011 1:43 PM
Form No.8BR9-EA-10J

Black plate (17,1)

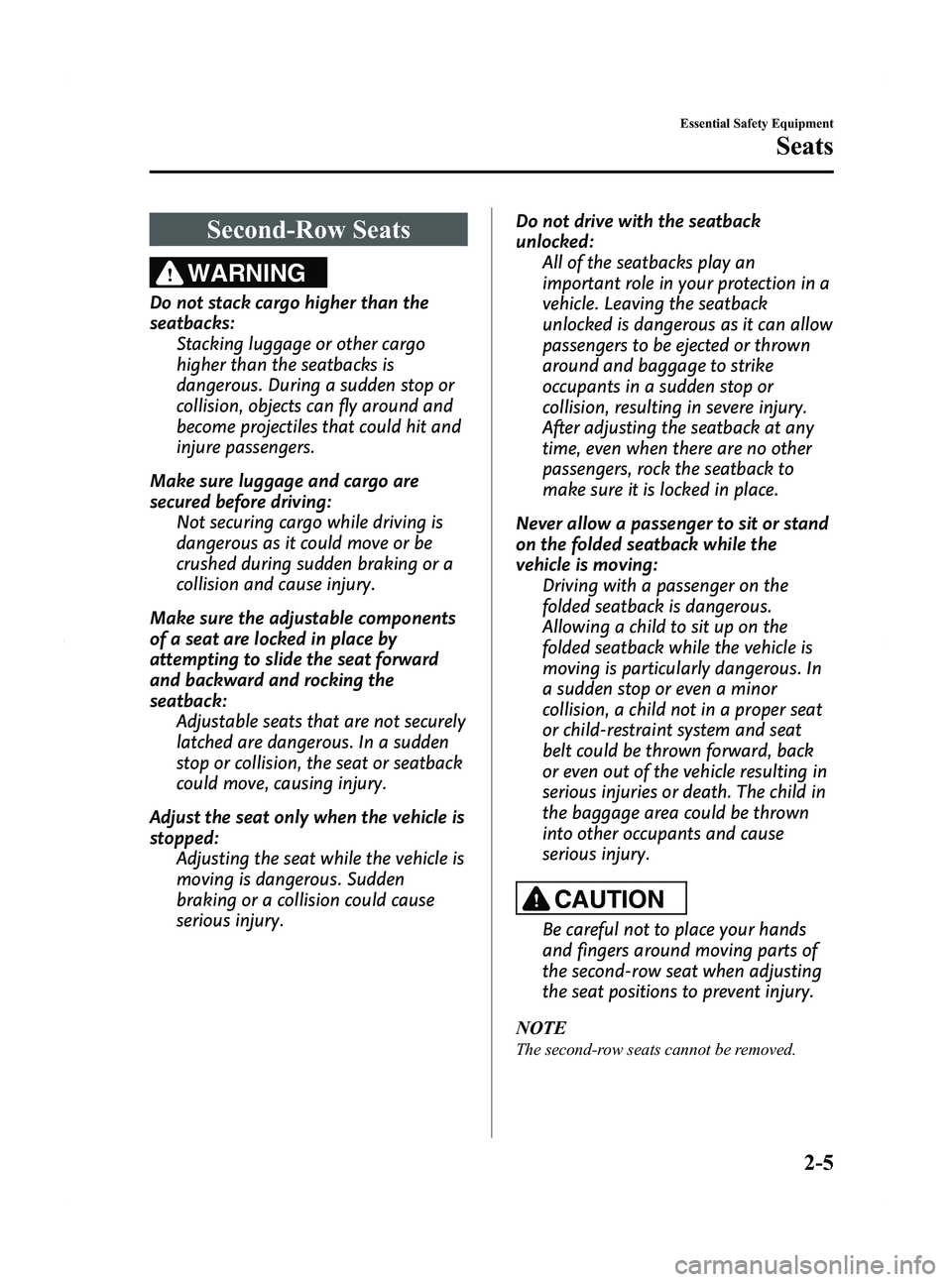

Second-Row Seats
WARNING
Do not stack cargo higher than the
seatbacks:Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo are
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place by
attempting to slide the seat forward
and backward and rocking the
seatback: Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Adjust the seat only when the vehicle is
stopped: Adjusting the seat while the vehicle is
moving is dangerous. Sudden
braking or a collision could cause
serious injury. Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving: Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
CAUTION
Be careful not to place your hands
and fingers around moving parts of
the second-row seat when adjusting
the seat positions to prevent injury.
NOTE
The second-row seats cannot be removed.
Essential Safety Equipment
Seats
2-5
Mazda5_8BR9-EA-10J_Edition3 Page17
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (20,1)
CAUTION
ØWhen folding a seatback, always
hold onto the seatback with your
other hand while operating the
lever. If the seatback is not
supported, it will flip forward
suddenly and could cause injury.
Ø After entering/exiting the third-
row seat area, return the seatback
to its upright position. Otherwise,
it could move unexpectedly and
cause injury.
qFolding the Second-Row Seats
To create a flat luggage compartment
space, lift the seat-bottoms of the second-
row seats and fold the seatbacks forward.
Folding the seatbacks
1. Insert the second-row outboard seat
belts in the retainers.
2. Move the seat all the way back.
3. Fold the head restraint all the waydown (page 2-14). 4. Pull the strap and lift the end of the
seat-bottom up and forward.
5. If the armrest and storage box are in
the position for use, store them.
Refer to Storage Box on page 6-101.
6. Raise the lever and fold the seatback forward. Make sure the seatback is
secured by attempting to lightly move
it up and down.
2-8
Essential Safety Equipment
Seats
Mazda5_8BR9-EA-10J_Edition3 Page20
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (21,1)
CAUTION
ØWhen folding a seatback, always
hold onto the seatback with your
other hand while operating the
lever. If the seatback is not
supported, it will flip forward
suddenly and could cause injury.
Ø When folding the seatback of the
right second-row seat, make sure
the storage box is stowed. If the
storage box is not stowed, it could
be damaged.
NOTE
To create a flat luggage compartment space
from the rear of the vehicle to the back of the
front seats, fold the second-row and third-row
seats (page 2-10).
Returning seatbacks to their original
positions
1. Return the seatback to its original position while raising its lever.
Make sure the seatback is secured by
attempting to lightly move it forward
and back.
2. Return the seat-bottom to its original
position and secure it. After returning
the seat-bottom to its original position,
make sure the seat-bottom is secured
by attempting to lightly move it up and
down.
3. Lift the head restraint upward to its upright position.
Essential Safety Equipment
Seats
2-9
Mazda5_8BR9-EA-10J_Edition3 Page21
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (22,1)
Third-Row Seat
WARNING
Do not stack cargo higher than the
seatbacks:Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo are
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Do not drive with the seatback
unlocked: All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After returning the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place. Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
NOTE
The third-row seat cannot be removed.
q Folding the Third-Row Seat
To create a flat luggage compartment
space, fold the seatbacks forward.
To fold third-row seat
1. Slide the second-row seat all the way
forward.
2. Insert the third-row outboard seat belts in the retainers.
2-10
Essential Safety Equipment
Seats
Mazda5_8BR9-EA-10J_Edition3 Page22
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (23,1)
3. Lower the head restraints all the waydown (page 2-14).
4. Pull the strap and fold the seatback forward.
5. Lock the seatback in place by pushing
it down. Make sure the seatback is
secured by attempting to lightly move
it up and down.
NOTE
To create a flat luggage compartment space
from the rear of the vehicle to the back of the
front seats, fold the second-row and third-row
seats (page 2-8).
To return third-row seat to its original
position
Return the seatback to its original position
while pulling its strap. Make sure the seatback is secured by
attempting to lightly move it forward and
back.
Essential Safety Equipment
Seats
2-11
Mazda5_8BR9-EA-10J_Edition3 Page23
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (24,1)
Seat Arrangements
Illustrations are of representative seat arrangements.
WARNING
Do not arrange the seats while driving:Arranging the seats while driving is dangerous because you do not get the full
protection from seat belts and you cannot keep your balance. During sudden
braking or a collision, it could cause serious injuries.
Do not ride on seatbacks that are folded flat: Sitting or lying on seats that are folded flat is a dangerous way to ride. During
sudden braking or a collision you could be thrown around inside the vehicle and
seriously injured.
Make sure the adjustable components of a seat are locked in place: Adjustable seats that are not securely locked are dangerous. In a sudden stop or
collision, the seat or seatback could move, causing injury.
2-12
Essential Safety Equipment
Seats
Mazda5_8BR9-EA-10J_Edition3 Page24
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (27,1)
Front outboard seat
Third-Row outboard seat
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, press the
uprights into the holes while pressing the
stop-catch.
WARNING
Always drive with the head restraints
set up when seats are being used and
make sure they are properly set up:Driving with the head restraints not
set up is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
Folding down/up
The second-row seats are equipped with
foldable head restraints.
To fold the head restraint, pull the strap
and fold the head restraint downward. To
return the head restraint to its upright
position, lift it upward.
WARNING
Always drive with the head restraints in
their upright positions when the
second-row seats are occupied, and
make sure they are securely locked in
place:
Driving with the head restraints
folded down is dangerous. With no
support behind your head, your neck
could be seriously injured in a
collision.
Essential Safety Equipment
Seats
2-15
Mazda5_8BR9-EA-10J_Edition3 Page27
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (30,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
Your vehicle has the following types of seat belts.
With Driver and Front Passenger Occupant Classification System model
Seating PositionTypes of seat belt
Front seat Driver side 3-point type seat belt with emergency locking mode retractor
Passenger side 3-point type seat belt with emergency locking mode
retractor/automatic locking mode retractor
Second-row seat
Third-row seat
Except above
Seating Position Types of seat belt
Front seat Driver side
3-point type seat belt with emergency looking mode retractor
Passenger side
Second-row seat 3-point type seat belt with emergency looking mode
retractor/automatic locking mode retractor
Third-row seat
3-point type seat belt with emergency locking mode retractor
This belt has retractors with an inertia lock that keep the belt retracted when not in use.
The lock allows the belt to remain comfortable on the user, but it will lock in position
during a collision.
Refer to Emergency Locking Mode on page 2-20.
3-point type seat belt with emergency locking mode retractor/automatic locking mode
retractor
In addition to the emergency locking mode function, this belt has retractors that operate in
another mode, the automatic locking mode, for the child-restraint system.
Refer to Automatic Locking Mode on page 2-21.
Refer to Installing Child-Restraint Systems on page 2-36.
We recommend you put all children in the rear seats, if you must use the front passenger
seat for a child, slide the front passenger seat as far back as possible and make sure any
child-restraint system is secured properly.
2-18
Essential Safety Equipment
Seat Belt Systems
Mazda5_8BR9-EA-10J_Edition3 Page30
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (35,1)
qUnfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
To secure the outboard-rear row seat belts
when not in use, insert the belts into their
seat belt retainers.
Seat belt
retainer
qFront Shoulder Belt Adjuster
Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, pull the adjuster and slide it
down. Make sure the adjuster is locked.
To raise To lower
WARNING
Positioning the Shoulder Portion of the
Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
Essential Safety Equipment
Seat Belt Systems
2-23
Mazda5_8BR9-EA-10J_Edition3 Page35
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
