Black plate (16,1)

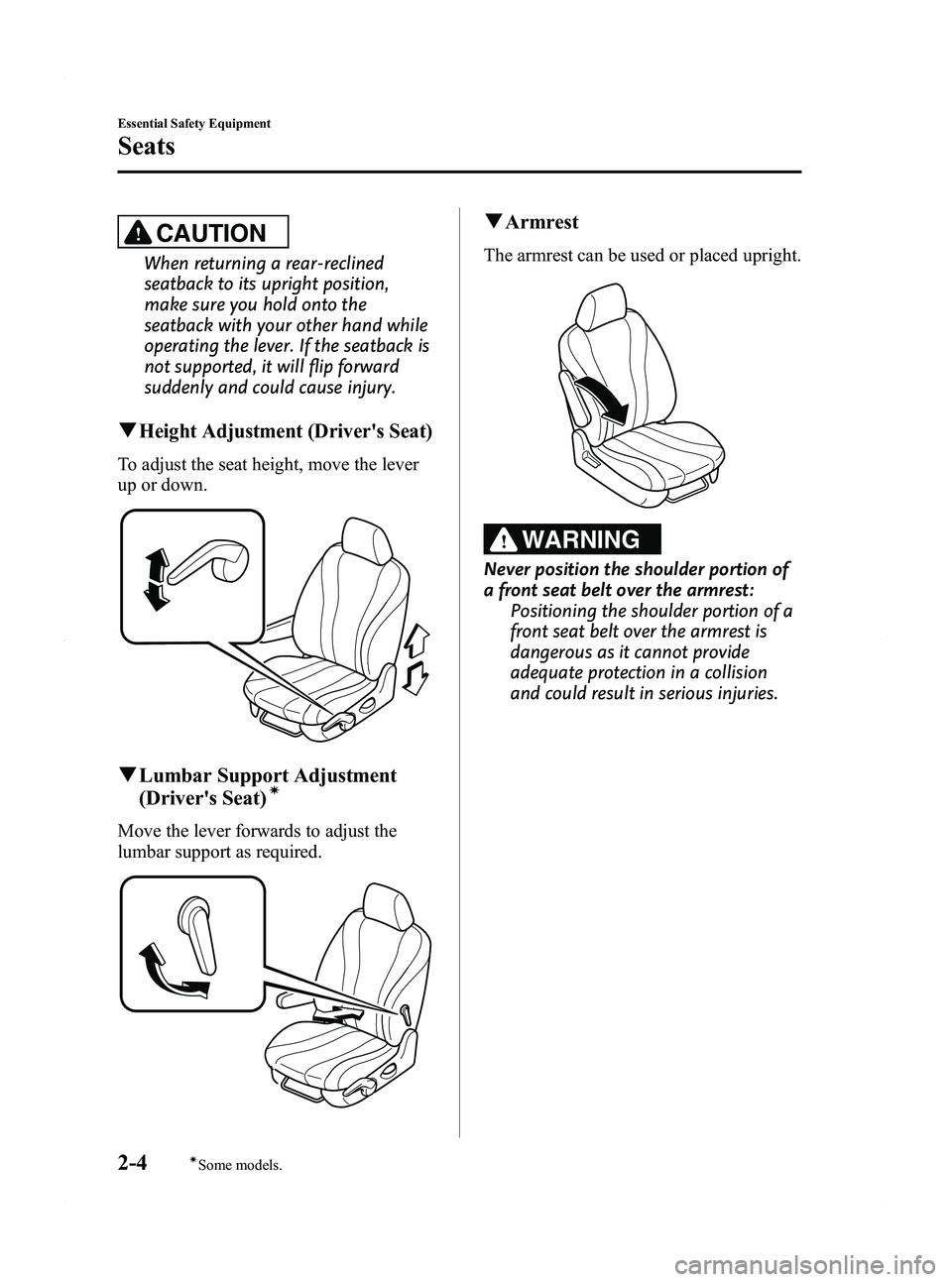

CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qHeight Adjustment (Driver's Seat)
To adjust the seat height, move the lever
up or down.
qLumbar Support Adjustment
(Driver's Seat)í
Move the lever forwards to adjust the
lumbar support as required.
qArmrest
The armrest can be used or placed upright.
WARNING
Never position the shoulder portion of
a front seat belt over the armrest:
Positioning the shoulder portion of a
front seat belt over the armrest is
dangerous as it cannot provide
adequate protection in a collision
and could result in serious injuries.
2-4
Essential Safety Equipment
íSome models.
Seats
Mazda5_8BR9-EA-10J_Edition3 Page16
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (26,1)
2. Fold the second-row seats.Refer toFolding the Second-Row Seats on page
2-8.
To return the seats to their road positions,
reverse the procedures above.Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats. The head
restraints are intended to help protect you
and the passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted. In addition, always raise the
head restraints on all second-row and
third-row seats when they are being
used: Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
NOTE
The second-row outboard head restraints are
non-adjustable.
