MAZDA MODEL 5 2013 Owners Manual
Manufacturer: MAZDA, Model Year: 2013, Model line: MODEL 5, Model: MAZDA MODEL 5 2013Pages: 456, PDF Size: 5.67 MB
Page 91 of 456
Black plate (91,1)
NOTE
When closing the sliding door from the fully-
opened position and from outside the vehicle,
pull the outside door handle outward to
release the latch, and slide the door toward the
front.
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
sliding doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
Unlock
Lock
Liftgate
WARNING
Never allow a person to ride in the
luggage compartment: Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open: Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
Do not stack or leave loaded luggage
unsecured in the luggage
compartment: Otherwise, the luggage may move or
collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may affect the side or rear field of
view.
Knowing Your Mazda
Doors and Locks
3-13
Mazda5_8CN3-EA-12I_Edition2 Page91
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 92 of 456
Black plate (92,1)
CAUTION
ØWhen loading or unloading
luggage in the luggage
compartment, turn off the engine.
Otherwise, you could get burned
by the heat of the exhaust gas.
Ø Be careful not to apply excessive
force to the damper stay on the
liftgate such as by putting your
hand on the stay. Otherwise, the
damper stay may bend and affect
the liftgate operation.
Damper stay
qLocking, Unlocking with Key
The liftgate can be locked/unlocked by
inserting the key into the driver's door key
cylinder, refer to Power Door Locks (page
3-11).
qLocking, Unlocking with Transmitter
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-11).
qOpening and Closing the Liftgate
Opening the liftgate
Grasp the lower end of the liftgate, press
the electric liftgate opener on the liftgate,
and then raise the liftgate when the latch
releases.
Electric liftgate
opener
While the ignition is switched ON, the
liftgate can be opened only when the
vehicle is stopped with the parking brake
applied (manual transaxle), or with the
selector lever in the P position (automatic
transaxle).
3-14
Knowing Your Mazda
Doors and Locks
Mazda5_8CN3-EA-12I_Edition2 Page92
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 93 of 456
Black plate (93,1)
NOTElWhen the liftgate is unlocked by pressing
the electric liftgate opener button, the
liftgate raises slightly to allow it to be
opened. If the liftgate is not operated for a
certain period of time after the electric
liftgate opener button has been pressed, the
liftgate cannot be raised any more from its
slightly raised position. Press the electric
liftgate opener button again to fully open
the liftgate. To close the liftgate from its
slightly raised position, open it first by
pressing the electric liftgate opener button
and wait for 1 second or longer, then close
it.
The door-ajar warning light will illuminate
if the liftgate is not fully closed.
lThe sound of the latch may be heard for a
few seconds after the electric liftgate
opener has been pressed, however, this does
not indicate a malfunction.
When the liftgate cannot be opened
If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate cannot be unlocked, perform
the following procedure as an emergency
measure to unlock it:
1. Remove the cap on the interior surfaceof the liftgate with a flathead
screwdriver.
Cover
2. Turn the lever to the right to unlock theliftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Closing the liftgate
To close, lower the liftgate slowly using
the liftgate grip recess, and then push the
liftgate closed using both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.
Liftgate grip
recess
Knowing Your Mazda
Doors and Locks
3-15
Mazda5_8CN3-EA-12I_Edition2 Page93
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 94 of 456
Black plate (94,1)
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Never allow children to play with
power window switches: Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
qOperating the Driver's Side
Power Window
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Open
Driver's window
Close
Master control switches
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
3-16
Knowing Your Mazda
Doors and Locks
Mazda5_8CN3-EA-12I_Edition2 Page94
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 95 of 456
Black plate (95,1)
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically. Carry out the following
procedure to resume operation:
1. Switch the ignition ON.
2. Press the switch and fully open thewindow.
3. Pull up the switch to fully close the window and continue holding the
switch for about 2 seconds after the
window fully closes.
Two-step down function
With the window completely closed, press
the switch lightly and the window will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.
NOTE
lPressing the power window switch once
when the window is fully closed will only
open it about 3 cm (1 in) to allow
convenient ventilation of the cabin.
lThe two-step down function can be
canceled.
Refer to Personalization Features on page
10-8.
Jam-safe window
If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch: Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
NOTE
Depending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is similar
to something blocking it.
In the event the jam-safe function activates and
the power window cannot be closed
automatically, pull and hold the switch and the
window will close.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.
NOTE
lFor engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
lThe two-step down function is inoperable
during engine-off operation.
Knowing Your Mazda
Doors and Locks
3-17
Mazda5_8CN3-EA-12I_Edition2 Page95
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 96 of 456
Black plate (96,1)

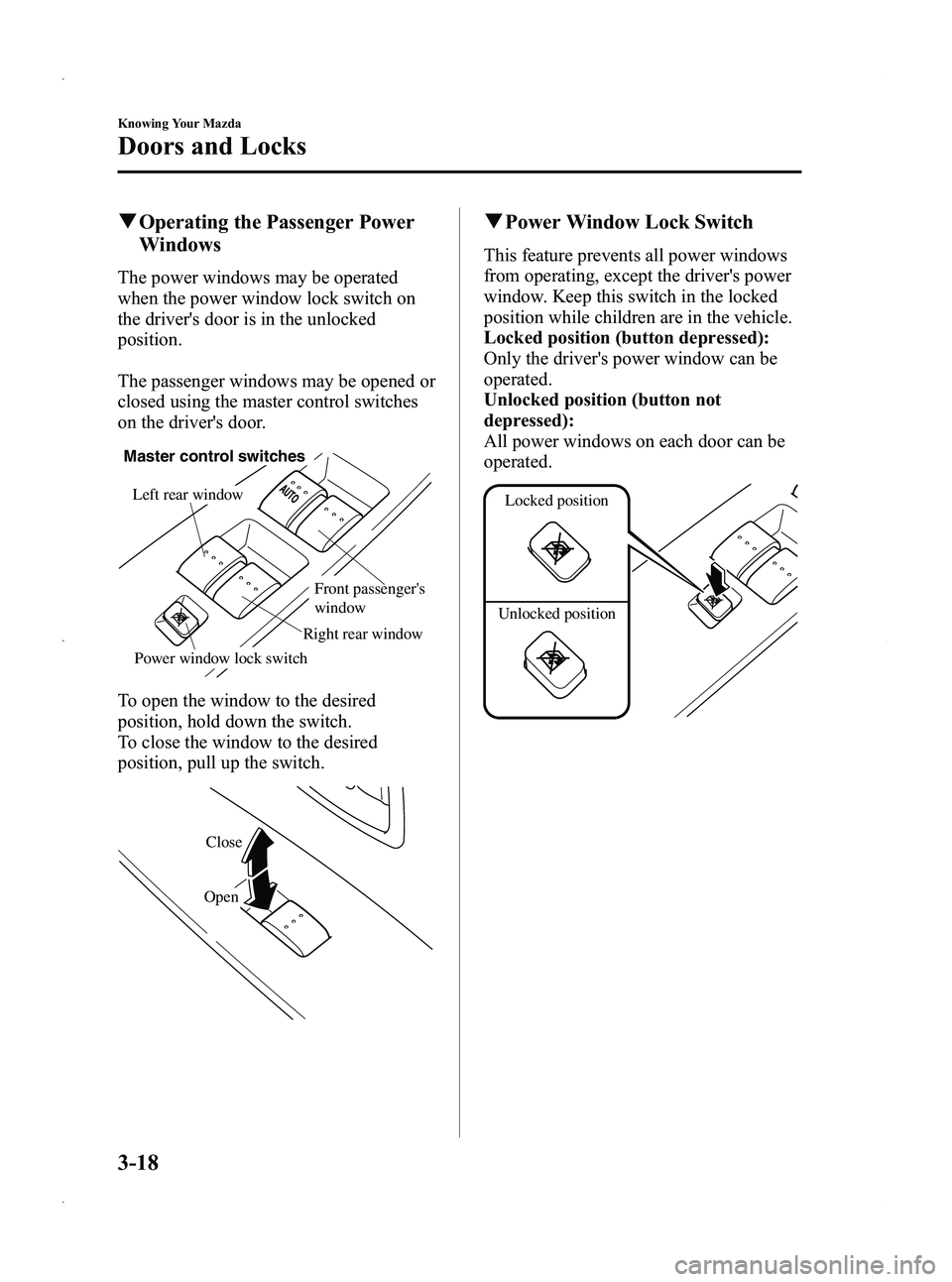

qOperating the Passenger Power
Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The passenger windows may be opened or
closed using the master control switches
on the driver's door.
Power window lock switch Front passenger's
window
Right rear window
Left rear window
Master control switches
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
q Power Window Lock Switch
This feature prevents all power windows
from operating, except the driver's power
window. Keep this switch in the locked
position while children are in the vehicle.
Locked position (button depressed):
Only the driver's power window can be
operated.
Unlocked position (button not
depressed):
All power windows on each door can be
operated.
Locked position
Unlocked position
3-18
Knowing Your Mazda
Doors and Locks
Mazda5_8CN3-EA-12I_Edition2 Page96
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 97 of 456
Black plate (97,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
NOTE
The fuel-filler lid cannot be opened when the
right-side sliding door is open. Close the
sliding door to open the fuel-filler lid.
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
To close the fuel-filler cap, turn it
clockwise until a click is heard.
OpenClose
Knowing Your Mazda
Doors and Locks
3-19
Mazda5_8CN3-EA-12I_Edition2 Page97
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 98 of 456
Black plate (98,1)
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap is
not tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.
Hood
WARNING
Always check that the hood is closed
and securely locked:A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Insert your hand into the hood opening,
slide the hood latch lever, and lift the
hood.
3-20
Knowing Your Mazda
Doors and Locks
Mazda5_8CN3-EA-12I_Edition2 Page98
Wednesday, November 7 2012 11:47 AM
Form No.8CN3-EA-12I
Page 99 of 456
Black plate (99,1)
3. Grasp the support rod in the paddedarea and secure it in the support rod
hole indicated by the arrow to hold the
hood open.
Support rod
Clip
Pad
q
Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on the stay, and secure the stay in the clip.
Verify that the support rod is secured in
the clip before closing the hood.
Pad
3. Lower the hood slowly from a heightof about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push
it excessively such as by applying
your weight. Otherwise, the hood
could be deformed.
Knowing Your Mazda
Doors and Locks
3-21
Mazda5_8CN3-EA-12I_Edition2 Page99
Wednesday, November 7 2012 11:47 AM
Form No.8CN3-EA-12I
Page 100 of 456
Black plate (100,1)
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt switch
Slide switch
WARNING
Do not let passengers stand up or
extend part of their body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof: A closing moonroof is dangerous. The
hands, head, or even neck of a
person, especially a child, could be
caught in it as it closes, causing
serious injury or even death. NOTE
Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.
q
Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the rear of the tilt switch.
To stop tilting partway, press any part of
the tilt or slide switch.
To close to the desired position, press the
front of the tilt or slide switch.
Close Tilt up
Close
q Slide Operation
To fully open automatically, momentarily
press the rear of the slide switch.
To stop sliding partway, press any part of
the tilt or slide switch.
3-22
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda5_8CN3-EA-12I_Edition2 Page100
Wednesday, November 7 2012 11:47 AM
Form No.8CN3-EA-12I
