Page 82 of 456
Black plate (82,1)
qTransmitter
Lock button
Unlock button
Panic button
Operation
indicator light
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once. To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound and the
hazard warning lights will flash once.
The system can be set not to sound the
horn.
Refer to Personalization Features on page
10-8.
NOTE
lDoors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. However, the
hazard warning lights will not flash and the
horn will not sound.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to Theft-Deterrent System on page
3-28.
lThe hazard warning lights can be set to not
flash when the doors are locked or
unlocked.
Refer to Personalization Features on page
10-8.
lAll doors and the liftgate cannot be locked
when the key is in the ignition switch.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
3-4
Knowing Your Mazda
Doors and Locks
Mazda5_8CN3-EA-12I_Edition2 Page82
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I

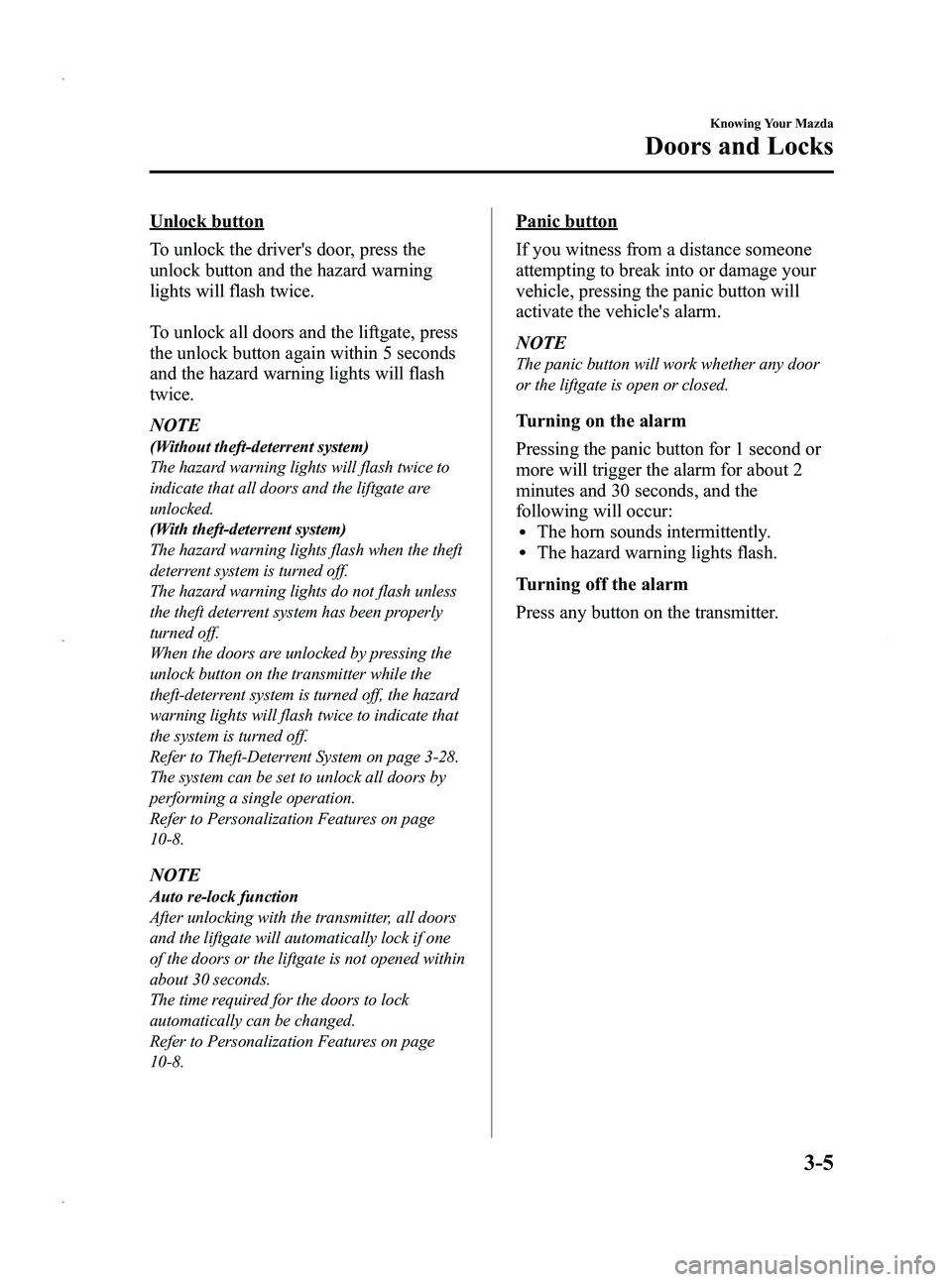

Page 83 of 456
Black plate (83,1)
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors and the liftgate, press
the unlock button again within 5 seconds
and the hazard warning lights will flash
twice.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors and the liftgate are
unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
unlock button on the transmitter while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to Theft-Deterrent System on page 3-28.
The system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-8.
NOTE
Auto re-lock function
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if one
of the doors or the liftgate is not opened within
about 30 seconds.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
10-8.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
Knowing Your Mazda
Doors and Locks
3-5
Mazda5_8CN3-EA-12I_Edition2 Page83
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 93 of 456
Black plate (93,1)
NOTElWhen the liftgate is unlocked by pressing
the electric liftgate opener button, the
liftgate raises slightly to allow it to be
opened. If the liftgate is not operated for a
certain period of time after the electric
liftgate opener button has been pressed, the
liftgate cannot be raised any more from its
slightly raised position. Press the electric
liftgate opener button again to fully open
the liftgate. To close the liftgate from its
slightly raised position, open it first by
pressing the electric liftgate opener button
and wait for 1 second or longer, then close
it.
The door-ajar warning light will illuminate
if the liftgate is not fully closed.
lThe sound of the latch may be heard for a
few seconds after the electric liftgate
opener has been pressed, however, this does
not indicate a malfunction.
When the liftgate cannot be opened
If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate cannot be unlocked, perform
the following procedure as an emergency
measure to unlock it:
1. Remove the cap on the interior surfaceof the liftgate with a flathead
screwdriver.
Cover
2. Turn the lever to the right to unlock theliftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Closing the liftgate
To close, lower the liftgate slowly using
the liftgate grip recess, and then push the
liftgate closed using both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.
Liftgate grip
recess
Knowing Your Mazda
Doors and Locks
3-15
Mazda5_8CN3-EA-12I_Edition2 Page93
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 94 of 456
Black plate (94,1)
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Never allow children to play with
power window switches: Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
qOperating the Driver's Side
Power Window
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Open
Driver's window
Close
Master control switches
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
3-16
Knowing Your Mazda
Doors and Locks
Mazda5_8CN3-EA-12I_Edition2 Page94
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 95 of 456
Black plate (95,1)
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically. Carry out the following
procedure to resume operation:
1. Switch the ignition ON.
2. Press the switch and fully open thewindow.
3. Pull up the switch to fully close the window and continue holding the
switch for about 2 seconds after the
window fully closes.
Two-step down function
With the window completely closed, press
the switch lightly and the window will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.
NOTE
lPressing the power window switch once
when the window is fully closed will only
open it about 3 cm (1 in) to allow
convenient ventilation of the cabin.
lThe two-step down function can be
canceled.
Refer to Personalization Features on page
10-8.
Jam-safe window
If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch: Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
NOTE
Depending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is similar
to something blocking it.
In the event the jam-safe function activates and
the power window cannot be closed
automatically, pull and hold the switch and the
window will close.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.
NOTE
lFor engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
lThe two-step down function is inoperable
during engine-off operation.
Knowing Your Mazda
Doors and Locks
3-17
Mazda5_8CN3-EA-12I_Edition2 Page95
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 97 of 456
Black plate (97,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
NOTE
The fuel-filler lid cannot be opened when the
right-side sliding door is open. Close the
sliding door to open the fuel-filler lid.
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
To close the fuel-filler cap, turn it
clockwise until a click is heard.
OpenClose
Knowing Your Mazda
Doors and Locks
3-19
Mazda5_8CN3-EA-12I_Edition2 Page97
Wednesday, November 7 2012 11:46 AM
Form No.8CN3-EA-12I
Page 98 of 456
Black plate (98,1)
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap is
not tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.
Hood
WARNING
Always check that the hood is closed
and securely locked:A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Insert your hand into the hood opening,
slide the hood latch lever, and lift the
hood.
3-20
Knowing Your Mazda
Doors and Locks
Mazda5_8CN3-EA-12I_Edition2 Page98
Wednesday, November 7 2012 11:47 AM
Form No.8CN3-EA-12I
Page 106 of 456
Black plate (106,1)
Theft-Deterrent Systemí
If the theft deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
Refer to Operation on page 3-28.
NOTE
lThe theft-deterrent system operates with the
key or the keyless entry system transmitter.
lThe system will not function unless it is
properly armed. To properly secure the
vehicle, always make sure all windows are
completely closed and all doors and the
liftgate are locked before leaving the
vehicle. Remember to take your key and
transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
liftgate.
lUnlocking a door with the inside door-
lock knob.
lUnlocking a door with the door lock
switch.
lOpening the hood by operating the
hood release handle.
lSwitching the ignition ON without the
key.
If the system is triggered again, the lights
and horn will activate until a door or the
liftgate is unlocked with the key or with
the transmitter. NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights will
flash when the battery is charged or replaced.
q
How to Arm the System
1. Close the windows and the moonroofí
securely.
2. Remove the key from the ignition switch.
3. Make sure all the windows, the moonroof
í, and the hood are closed.
Close and lock all doors and the
liftgate from the outside using the key
or press the lock button on your
keyless entry system transmitter.
The hazard warning lights will flash
once.
The following method will also arm the
theft-deterrent system:
Close the hood and the liftgate. Press
the area on the door-lock switch
marked “LOCK ”once. Close all doors.
The security indicator light in the
instrument panel flashes twice per
second for 20 seconds.
The theft deterrent system can also be
armed by activating the auto re-lock
function with all the doors, the liftgate and
the hood closed.
NOTE
Locking the doors with the inside door-lock
knob will not arm the system.
3-28
Knowing Your Mazda
íSome models.
Security System
Mazda5_8CN3-EA-12I_Edition2 Page106
Wednesday, November 7 2012 11:47 AM
Form No.8CN3-EA-12I
Page 107 of 456
Black plate (107,1)
4. After 20 seconds, the system is fullyarmed.
NOTE
lAuto re-lock function
After unlocking with the transmitter, all
doors and the liftgate will automatically
lock if one of the doors or the liftgate is not
opened within about 30 seconds.
lThe system will disarm if one of the
following operations takes place within 20
seconds after closing the hood and locking
all the doors and the liftgate:
lPressing the unlock button on the
transmitter.
lAny door or the liftgate is opened.lUnlocking a door with the inside door-
lock knob.
lUnlocking a door with the door lock
switch.
lUnlocking the driver's door with the key.lThe hood is opened.lThe key is inserted in the ignition switch.lThe ignition is switched ON.
To rearm the system, do the arming
procedure again.
lWhen the doors are locked by pressing the
lock button on the transmitter or using the
key while the theft-deterrent system is
armed, the hazard warning lights will flash
once to indicate that the system is armed.
lThe method for setting the theft-deterrent
system can be changed.
Refer to Personalization Features on page
10-8.
q To Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock the driver's door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and switch the ignition ON. The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
When the doors are unlocked by pressing the
unlock button on the transmitter or using the
key while the theft-deterrent system is turned
off, the hazard warning lights will flash twice
to indicate that the system is turned off.
q
To Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock the driver's door with the key.lPress the unlock button on the keyless
entry system transmitter.
lThe engine is started with the ignition
key.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
q Modification and Add-On
Equipment
Mazda cannot guarantee the theft-
deterrent system's operation if the system
has been modified or if any add-on
equipment has been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the theft-
deterrent system or the vehicle.
Knowing Your Mazda
Security System
3-29
Mazda5_8CN3-EA-12I_Edition2 Page107
Wednesday, November 7 2012 11:47 AM
Form No.8CN3-EA-12I
Page 110 of 456
Black plate (110,1)
2. Depress the mirror switch in theappropriate direction.
Mirror switchSelector switch
After adjusting the mirror, lock the control
by placing the selector switch in the
center position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
qRearview Mirror
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Reducing glare from headlights
Adjust the mirror with the day/night lever
in the day position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night
Day Day/Night lever
3-32
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda5_8CN3-EA-12I_Edition2 Page110
Wednesday, November 7 2012 11:47 AM
Form No.8CN3-EA-12I
