Black plate (290,1)
qClock
When the ignition is switched to ACC or
ON, the time is displayed.
Time setting
1. Switch the ignition to ACC or ON.
2. Adjust the time using the time setting
buttons (
,).
The hours advance while the time
setting button (
) is pressed.
The minutes advance while the time
setting button (
) is pressed.
Time resetting
1. Switch the ignition to ACC or ON.
2. Press the :00 button.
3. When the button is pressed, the time will be reset as follows:
(Example)
12:01 ―12:29 →12:00
12:30 ―12:59 →1:00
NOTE
When the button is pressed, the seconds will
start at “00 ”.
q Ambient Temperature Display
When the ignition is switched ON, the
ambient temperature is displayed.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the AUTO switch(page 6-5) for 3
seconds or more to switch the display from
Fahrenheit to Centigrade or vice versa.
qClimate Control Display
The climate control system status is
displayed. To operate the climate control
system, refer to “Climate Control System ”
(page 6-2).
q Audio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System ”(page 6-11).
6-98
Interior Comfort
Interior Equipment
Mazda5_8CN3-EA-12I_Edition2 Page290
Wednesday, November 7 2012 11:48 AM
Form No.8CN3-EA-12I

Black plate (291,1)
qTrip Computerí
The trip computer can display the
following:
lThe current fuel economy.lThe average fuel economy.lThe approximate distance you can
travel on the available fuel.
lThe average vehicle speed.
Switch the ignition ON.
Press the INFO switch to change the
display mode.
Average vehicle speed mode Distance-to-empty mode
Average fuel economy mode
Current fuel economy mode
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of
fuel consumption and the distance
traveled. Current fuel economy will be calculated
and displayed every 2 seconds.
When this mode is selected, CURRENT
will be displayed.
U.S.A.
CANADA
When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - -mpg) will be
displayed.
Interior Comfort
Interior Equipment
6-99íSome models.
Mazda5_8CN3-EA-12I_Edition2 Page291
Wednesday, November 7 2012 11:48 AM
Form No.8CN3-EA-12I

Black plate (292,1)
Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total traveled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed
every minute.
When this mode is selected, AVG will be
displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second.After pressing the INFO switch, - - - L/
100 km (- - - mpg) will be displayed for
about 1 minute before the fuel economy is
recalculated and displayed.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.
When this mode is selected, RANGE will
be displayed.
U.S.A.
CANADA
6-100
Interior Comfort
Interior Equipment
Mazda5_8CN3-EA-12I_Edition2 Page292
Wednesday, November 7 2012 11:48 AM
Form No.8CN3-EA-12I

Black plate (293,1)
NOTElEven though the distance-to-empty display
may indicate a sufficient amount of
remaining mileage before refueling is
required, refuel as soon as possible if the
fuel gauge needle nears E or the low fuel
warning light illuminates.
lThe display won't change unless you add
more than approximately 5 L (6 US qt, 5
Imp qt) of fuel.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
When this mode is selected, AVG will be
displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second. After pressing the INFO switch, -
- - km/h (- - - mile/h) will be displayed for
about 1 minute before the vehicle speed is
recalculated and displayed.
Interior Comfort
Interior Equipment
6-101
Mazda5_8CN3-EA-12I_Edition2 Page293
Wednesday, November 7 2012 11:48 AM
Form No.8CN3-EA-12I

Black plate (332,1)

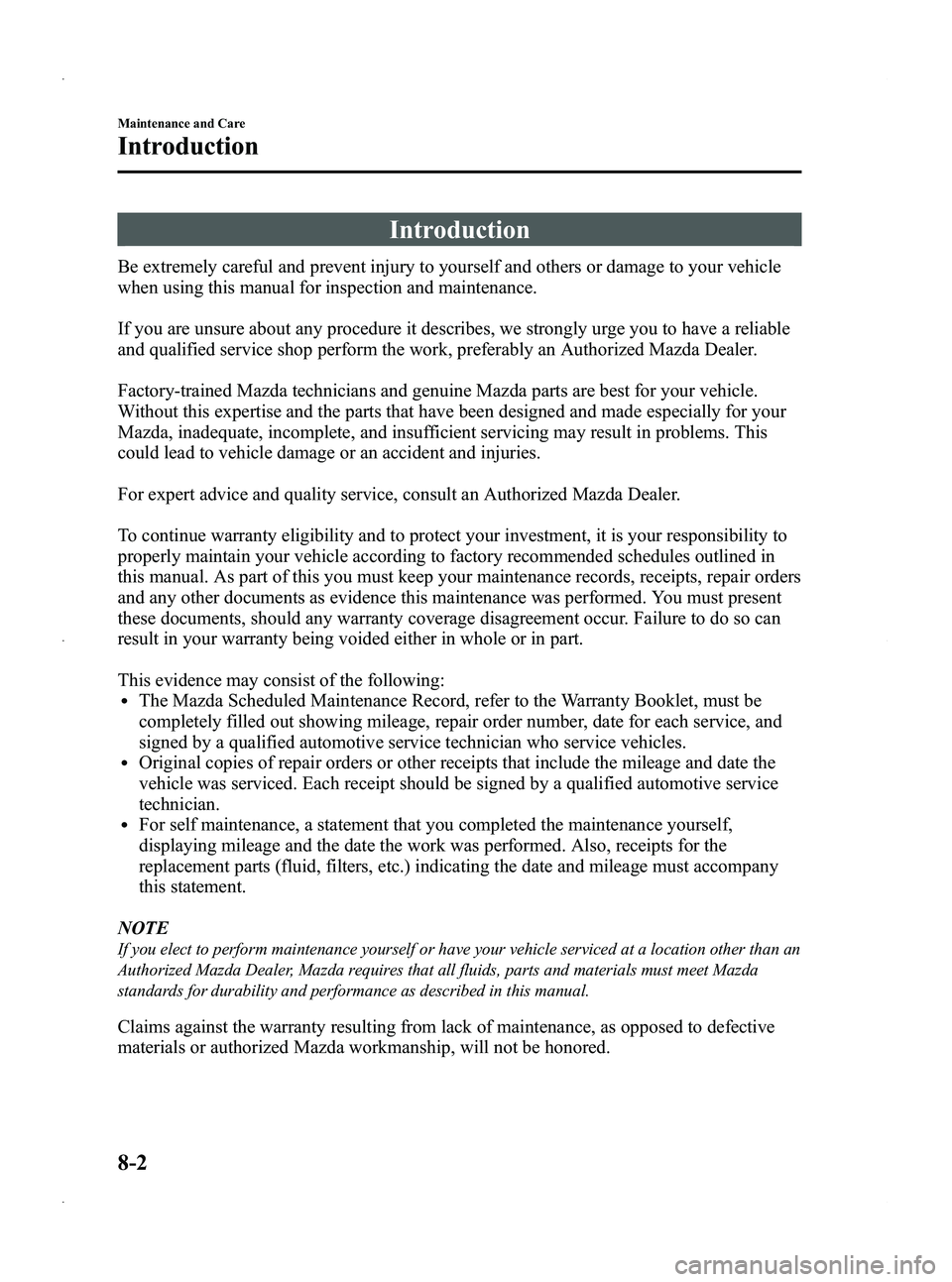

Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in
this manual. As part of this you must keep your maintenance records, receipts, repair orders
and any other documents as evidence this maintenance was performed. You must present
these documents, should any warranty coverage disagreement occur. Failure to do so can
result in your warranty being voided either in whole or in part.
This evidence may consist of the following:
lThe Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.
lOriginal copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
lFor self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany
this statement.
NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location other than an
Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials must meet Mazda
standards for durability and performance as described in this manual.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
8-2
Maintenance and Care
Introduction
Mazda5_8CN3-EA-12I_Edition2 Page332
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

Black plate (450,1)
A
Accessory Socket ............................ 6-111
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Air Bag Systems ............................... 2-46
Ambient Temperature Display .......... 6-98
Antenna ............................................. 6-11
Anti-Lock Brake System (ABS) ......... 5-8Warning light ............................... 5-8
Appearance Care ............................... 8-56
Audio System .................................... 6-11 Audio control switch .................. 6-49
Audio set .................................... 6-25
AUX/USB/iPod Mode ............... 6-52
Operating tips for audio
system ........................................ 6-12
Safety certification ..................... 6-61
Automatic Transaxle Driving tips ................................ 5-18
Fluid ........................................... 8-25
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
BatteryEmergency starting .................... 7-16
Maintenance ............................... 8-32
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-56
Lights-on reminder ..................... 5-56
Seat belt warning ........................ 5-56
Tire inflation pressure warning ... 5-56
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
B
Bluetooth® Audio ............................ 6-62
Bluetooth® Hands-Free .................... 6-72
Basic Bluetooth® Hands-Free
operation .................................... 6-76
Convenient use of the hands-free
system ........................................ 6-81
Hands-free setting ...................... 6-87
Mazda Bluetooth® Hands-Free
customer service ......................... 6-94
Safety certification ..................... 6-94
When Bluetooth® Hands-Free cannot
be used ....................................... 6-93
Body Lubrication .............................. 8-27
Bottle Holder ................................... 6-103
Brake/Clutch Fluid ........................................... 8-23
Brakes Anti-lock brake system (ABS) ..... 5-8
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-42
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-109
Cargo Sub-Compartment ................ 6-109
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-20
Center Console ................................ 6-106
11-2
Index
Mazda5_8CN3-EA-12I_Edition2 Page450
Wednesday, November 7 2012 11:50 AM
Form No.8CN3-EA-12I

Black plate (452,1)
F
Foot Brake .......................................... 5-5
Front Seats .......................................... 2-2
FuelFiller lid and cap ........................ 3-19
Gauge ......................................... 5-40
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-50 Panel description ........................ 8-53
Replacement ............................... 8-50
G
Gauges .............................................. 5-38
Glove Compartment ........................ 6-106
H
Hazard Warning Flasher .................... 5-68
Hazardous Driving .............................. 4-7
Head Restraint .................................. 2-14
HeadlightsControl ....................................... 5-57
Flashing ...................................... 5-60
High-low beam .......................... 5-60
Leveling ..................................... 5-60
On reminder ............................... 5-60
Hood Release .................................... 3-20
Horn .................................................. 5-68
I
Ignition Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-95
Immobilizer System .......................... 3-24
I
Indicator Lights ................................. 5-42
Cruise ......................................... 5-53
DSC OFF .................................... 5-53
Headlight high-beam .................. 5-52
Low engine coolant
temperature ................................ 5-53
Power steering malfunction ........ 5-54
Security ...................................... 5-52
Shift position .............................. 5-52
TCS/DSC ................................... 5-53
Turn signal/hazard warning ........ 5-54
Information Display .......................... 6-97 Ambient temperature display ..... 6-98
Audio display ............................. 6-98
Climate control display .............. 6-98
Clock .......................................... 6-98
Information display functions .... 6-97
Trip computer ............................. 6-99
Instrument Cluster ............................. 5-38
Interior Care ...................................... 8-62
Interior Lights ................................... 6-95
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-61
Liftgate .............................................. 3-13
11-4
Index
Mazda5_8CN3-EA-12I_Edition2 Page452
Wednesday, November 7 2012 11:50 AM
Form No.8CN3-EA-12I
