Front
Hood .................................................................................................................. page 3-21
Windshield wiper blades .................................................................................... page 8-27
Moonroof ........................................................................................................... page 3-22
Outside mirror .................................................................................................... page 3-32
Child safety locks .............................................................................................. page 3-13
Tires ................................................................................................................... page 8-35
Light bulbs ......................................................................................................... page 8-42
Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle
Mazda5_8DH4-EA-13H_Edition3 Page11
Tuesday, January 14 2014 9:19 AM
Form No.8DH4-EA-13H
Page 12 of 456
Black plate (12,1)
Rear
Rear wiper blade ................................................................................................ page 8-29
Liftgate .............................................................................................................. page 3-13
Antenna .............................................................................................................. page 6-11
Sliding doors ...................................................................................................... page 3-11
Door lock ............................................................................................................. page 3-9
Tires ................................................................................................................... page 8-35
Fuel-filler lid ...................................................................................................... page 3-19
Light bulbs ......................................................................................................... page 8-42
1-6
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Exterior Overview
Mazda5_8DH4-EA-13H_Edition3 Page12
Tuesday, January 14 2014 9:19 AM
Form No.8DH4-EA-13H
Page 13 of 456
Black plate (13,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2Front Seats ................................................................................ 2-2
Second-Row Seats .................................................................... 2-5
Third-Row Seat ....................................................................... 2-10
Seat Arrangements .................................................................. 2-12
Head Restraints ....................................................................... 2-14
Seat Warmer
í......................................................................... 2-16
Seat Belt Systems ........................................................................ 2-18 Seat Belt Precautions .............................................................. 2-18
Seat Belt .................................................................................. 2-22
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-24
Seat Belt Extender ................................................................... 2-27
Seat Belt Warning Light .......................................................... 2-28
Seat Belt Reminder ................................................................. 2-29
Child Restraint ............................................................................ 2-30 Child Restraint Precautions ..................................................... 2-30
Child-Restraint System Installation Position .......................... 2-35
Installing Child-Restraint Systems .......................................... 2-36
LATCH Child-Restraint Systems ............................................ 2-43
SRS Air Bags ............................................................................... 2-46 Supplemental Restraint System (SRS) Precautions ................ 2-46
Supplemental Restraint System Components ......................... 2-51
How the SRS Air Bags Work .................................................. 2-52
SRS Air Bag Deployment Criteria .......................................... 2-56
Limitations to SRS Air Bag .................................................... 2-57
Driver and Front Passenger Occupant Classification
System
í.................................................................................. 2-59
Monitoring and Maintenance .................................................. 2-64
2-1íSome models.
Mazda5_8DH4-EA-13H_Edition3 Page13
Tuesday, January 14 2014 9:19 AM
Form No.8DH4-EA-13H
Page 14 of 456
Black plate (14,1)
Front Seats
WARNING
Do not modify or replace the front
seats:Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
Make sure the adjustable components
of a seat are locked in place: Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback. Never allow children to adjust a seat:
Allowing children to adjust a seat is
dangerous as it could result in
serious injury if a child's hands or
feet become caught in the seat.
Adjust the driver's seat only when the
vehicle is stopped: Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
CAUTION
Be careful not to place your hands
and fingers around moving parts of
the front seat when adjusting the
seat positions to prevent injury.
qSeat Slide
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
2-2
Essential Safety Equipment
Seats
Mazda5_8DH4-EA-13H_Edition3 Page14
Tuesday, January 14 2014 9:19 AM
Form No.8DH4-EA-13H
Page 15 of 456
Black plate (15,1)
qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the front passenger seat
properly with the seatback upright and
feet on the floor (With Driver and Front
Passenger Occupant Classification
System): Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor. Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
Mazda5_8DH4-EA-13H_Edition3 Page15
Tuesday, January 14 2014 9:19 AM
Form No.8DH4-EA-13H
Page 16 of 456
Black plate (16,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qHeight Adjustment (Driver's Seat)
To adjust the seat height, move the lever
up or down.
qLumbar Support Adjustment
(Driver's Seat)í
Move the lever forwards to adjust the
lumbar support as required.
qArmrest
The armrest can be used or placed upright.
WARNING
Never position the shoulder portion of
a front seat belt over the armrest:
Positioning the shoulder portion of a
front seat belt over the armrest is
dangerous as it cannot provide
adequate protection in a collision
and could result in serious injuries.
Never put your hands and fingers
around the moving parts of the seat
and armrest: Putting your hands and fingers
around the moving parts of the seat
and armrest is dangerous as they
could get injured.
2-4
Essential Safety Equipment
íSome models.
Seats
Mazda5_8DH4-EA-13H_Edition3 Page16
Tuesday, January 14 2014 9:19 AM
Form No.8DH4-EA-13H
Page 17 of 456
Black plate (17,1)
Second-Row Seats
WARNING
Do not stack cargo higher than the
seatbacks:Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo are
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place by
attempting to slide the seat forward
and backward and rocking the
seatback: Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Never allow children to adjust a seat: Allowing children to adjust a seat is
dangerous as it could result in
serious injury if a child's hands or
feet become caught in the seat.
Adjust the seat only when the vehicle is
stopped: Adjusting the seat while the vehicle is
moving is dangerous. Sudden
braking or a collision could cause
serious injury. Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving: Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
CAUTION
Be careful not to place your hands
and fingers around moving parts of
the second-row seat when adjusting
the seat positions to prevent injury.
NOTE
The second-row seats cannot be removed.
Essential Safety Equipment
Seats
2-5
Mazda5_8DH4-EA-13H_Edition3 Page17
Tuesday, January 14 2014 9:19 AM
Form No.8DH4-EA-13H
Page 18 of 456
Black plate (18,1)
qSeat Slide
To move the seat forward or backward,
raise the lever and slide the seat to the
desired position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from the seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Do not recline a second-row seatback
when the third row seat is occupied: Reclining the second-row seatback
when the third-row seat is occupied
is dangerous.Because the clearance
in the third-row seat is limited,
occupants in the third-row seat could
be hurt seriously on a reclined
second-row seatback.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
2-6
Essential Safety Equipment
Seats
Mazda5_8DH4-EA-13H_Edition3 Page18
Tuesday, January 14 2014 9:19 AM
Form No.8DH4-EA-13H
Page 19 of 456
Black plate (19,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qArmrest
The armrest can be used or placed upright.
WARNING
Never position the shoulder portion of
a second-row seat belt over the
armrest:
Positioning the shoulder portion of a
second-row seat belt over the
armrest is dangerous as it cannot
provide adequate protection in a
collision and could result in serious
injuries.
Never put your hands and fingers
around the moving parts of the seat
and armrest: Putting your hands and fingers
around the moving parts of the seat
and armrest is dangerous as they
could get injured.
qThird-Row Seat Access
After folding the second-row seat
seatback and sliding the seat forward, you
can access the third-row seat easily.
Entering/exiting the third-row seat area
Raise the lever on the side of the second-
row seat or pull the strap behind the
second-row seat to fold the seatback
forward and slide the seat forward.
After entering/exiting the third-row
seat area
Return the second-row seatback to its
upright position and lock it after sliding it
backward. Make sure it is locked by
attempting to lightly move it forward and
backward.
Essential Safety Equipment
Seats
2-7
Mazda5_8DH4-EA-13H_Edition3 Page19
Tuesday, January 14 2014 9:19 AM
Form No.8DH4-EA-13H
Page 20 of 456
Black plate (20,1)
CAUTION
ØWhen folding a seatback, always
hold onto the seatback with your
other hand while operating the
lever. If the seatback is not
supported, it will flip forward
suddenly and could cause injury.
Ø After entering/exiting the third-
row seat area, return the seatback
to its upright position. Otherwise,
it could move unexpectedly and
cause injury.

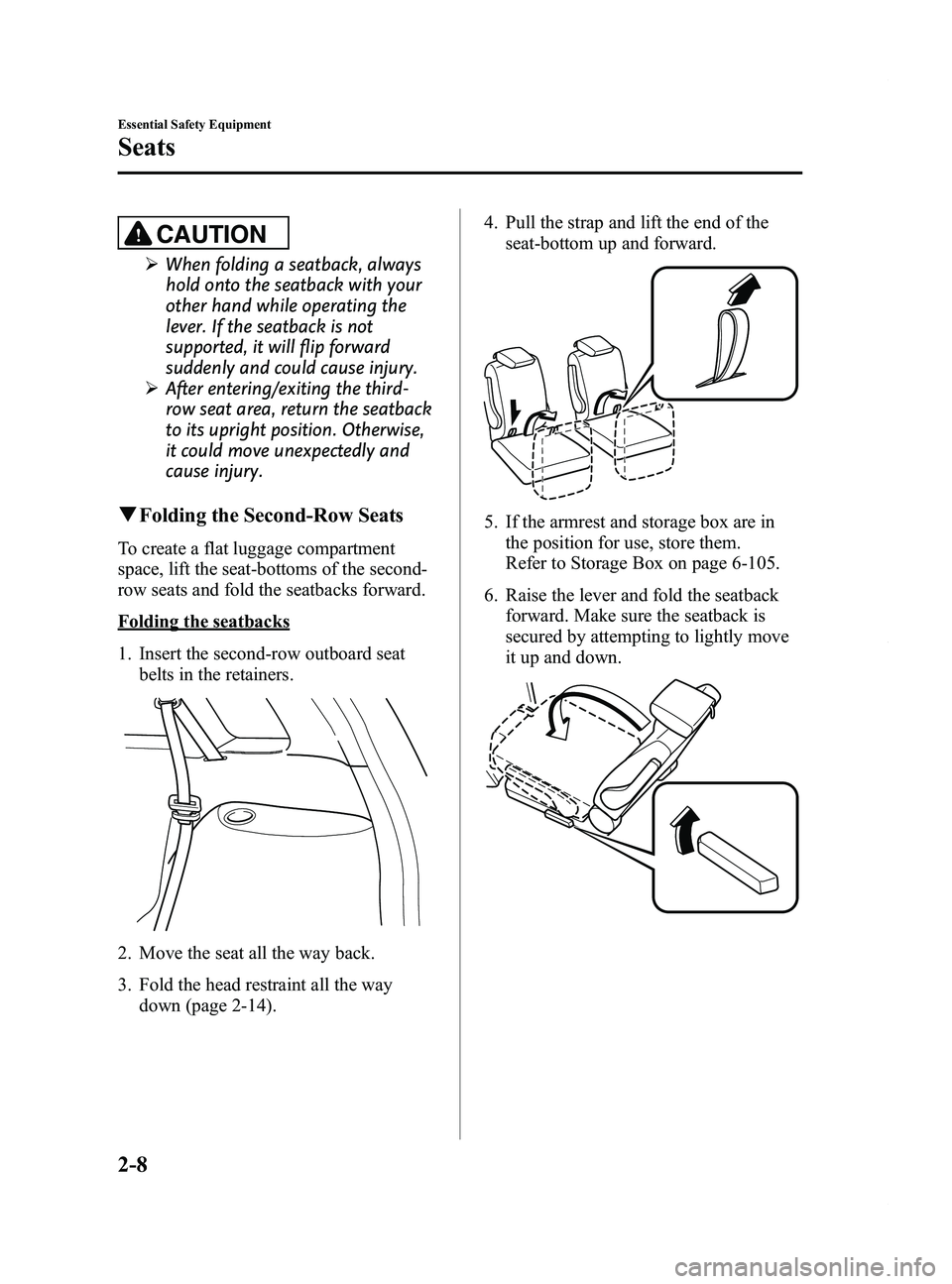

qFolding the Second-Row Seats
To create a flat luggage compartment
space, lift the seat-bottoms of the second-
row seats and fold the seatbacks forward.
Folding the seatbacks
1. Insert the second-row outboard seat
belts in the retainers.
2. Move the seat all the way back.
3. Fold the head restraint all the waydown (page 2-14). 4. Pull the strap and lift the end of the
seat-bottom up and forward.
5. If the armrest and storage box are in
the position for use, store them.
Refer to Storage Box on page 6-105.
6. Raise the lever and fold the seatback forward. Make sure the seatback is
secured by attempting to lightly move
it up and down.
2-8
Essential Safety Equipment
Seats
Mazda5_8DH4-EA-13H_Edition3 Page20
Tuesday, January 14 2014 9:19 AM
Form No.8DH4-EA-13H
