check engine MAZDA MODEL 5 2015 User Guide

Black plate (176,1)
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qLow Fuel Warning Light
This warning light signals that the fuel
tank will soon be empty.
Refuel as soon as possible.
qCheck Fuel Cap Warning Light
This warning light illuminates for a few
seconds when the ignition is switched
ON.
If the check fuel cap warning light
illuminates while driving, the fuel-filler
cap may not be installed properly. Stop
the engine and reinstall the fuel-filler cap.
Refer to Fuel-Filler Cap on page 3-20.
5-50
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda5_8DW3-EA-14H_Edition3 Page176
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (198,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switched ON
when the engine is not running.
qClearing the Air Inlet
Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air mode for ventilation or
windshield defrosting. The recirculate
mode should be used when the air inside
tunnels or while in traffic jams is polluted,
or you would like to shut off outside air
for quick cooling of the interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient.
The refrigerant specifications are
indicated on a label attached to the inside
of the engine compartment. Check the
label before refilling the refrigerant. If the
wrong type of refrigerant is used, it could
result in a serious malfunction of the air
conditioner.
For details, consult an Authorized Mazda
Dealer.
qReplacement of the Cabin Air Filter
Your vehicle is equipped with an air filter
for the air conditioner. It is necessary to
change the filter periodically as indicated
in scheduled maintenance (page 8-4).
Consult an Authorized Mazda Dealer for
replacement of the cabin air filter.
6-2
Interior Comfort
Climate Control System
Mazda5_8DW3-EA-14H_Edition3 Page198
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (320,1)
Overheating
If the High engine coolant temperature
warning light illuminates, the vehicle
loses power, or you hear a loud knocking
or pinging noise, the engine is probably
too hot.
WARNING
Switch the ignition to off and
make sure the fan is not running before
attempting to work near the cooling
fan: Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either cooling
system caps when the engine and
radiator are hot:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
Open the hood ONLY after steam is no
longer escaping from the engine: Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the High engine coolant temperature
warning light illuminates:
1. Drive safely to the side of the road and park off the right-of-way. 2. Put a vehicle with an automatic
transaxle in park (P), a manual
transaxle in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.
6. Make sure the cooling fan is operating, then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant reservoir level.
If it's low, look for coolant leaks from
the radiator and hoses.
7-14
In Case of an Emergency
Overheating
Mazda5_8DW3-EA-14H_Edition3 Page320
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (350,1)
WARNING
Do not perform maintenance work if you lack sufficient knowledge and experience or
the proper tools and equipment to do the work. Have maintenance work done by a
qualified technician:Performing maintenance work on a vehicle is dangerous if not done properly. You
can be seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly: Working under the hood with the engine running is dangerous. It becomes even
more dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Switch the ignition to off and make sure the fan is not running before attempting to
work near the cooling fan: Working near the cooling fan when it is running is dangerous. The fan could
continue running indefinitely even if the engine has stopped and the engine
compartment temperature is high. You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment: After you have finished checking or doing servicing in the engine compartment, do
not forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a
fire leading to an unexpected accident.
8-18
Maintenance and Care
Owner Maintenance
Mazda5_8DW3-EA-14H_Edition3 Page350
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (357,1)

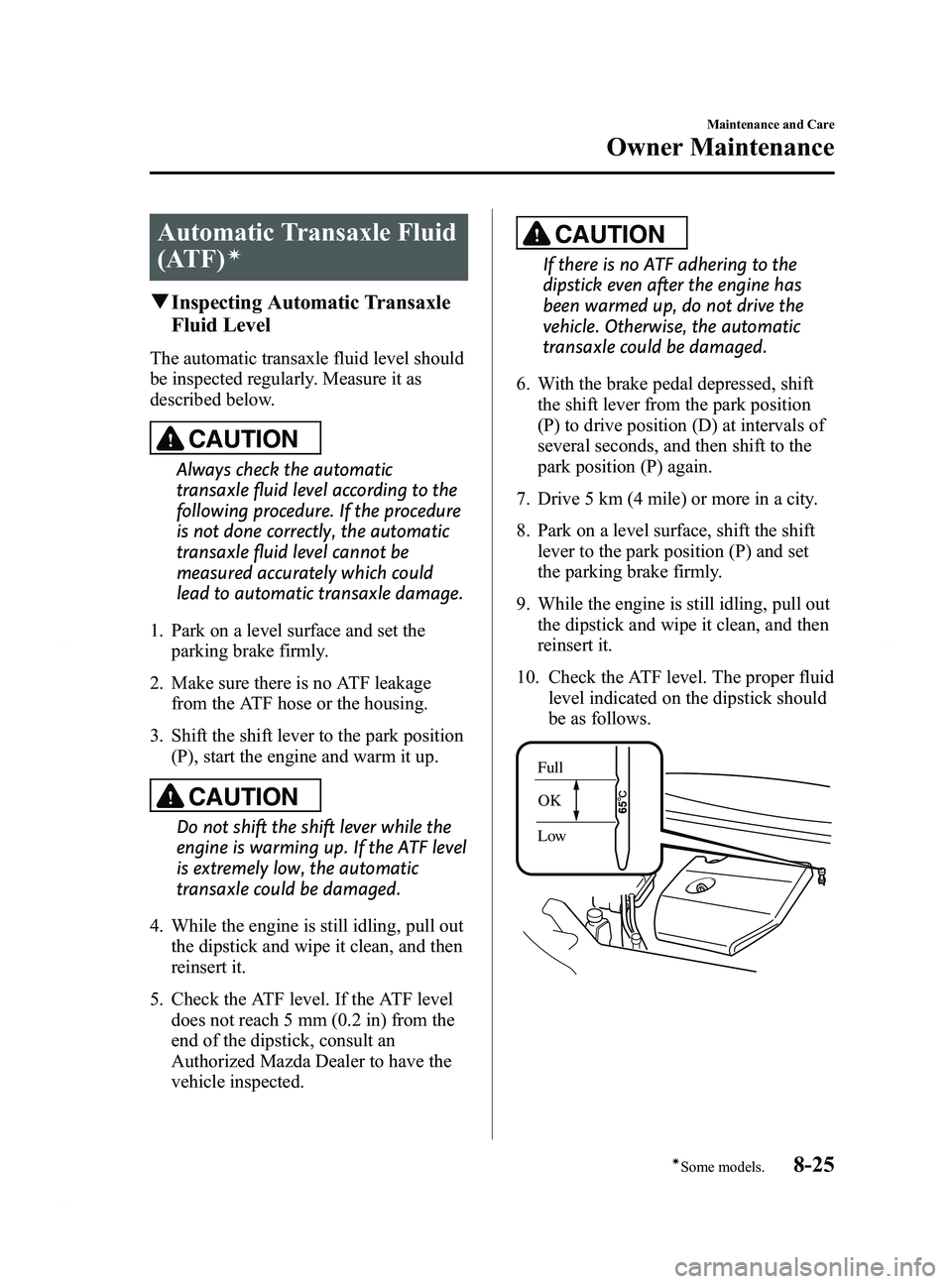

Automatic Transaxle Fluid
(ATF)
í
qInspecting Automatic Transaxle
Fluid Level
The automatic transaxle fluid level should
be inspected regularly. Measure it as
described below.
CAUTION
Always check the automatic
transaxle fluid level according to the
following procedure. If the procedure
is not done correctly, the automatic
transaxle fluid level cannot be
measured accurately which could
lead to automatic transaxle damage.
1. Park on a level surface and set the parking brake firmly.
2. Make sure there is no ATF leakage from the ATF hose or the housing.
3. Shift the shift lever to the park position (P), start the engine and warm it up.
CAUTION
Do not shift the shift lever while the
engine is warming up. If the ATF level
is extremely low, the automatic
transaxle could be damaged.
4. While the engine is still idling, pull out the dipstick and wipe it clean, and then
reinsert it.
5. Check the ATF level. If the ATF level does not reach 5 mm (0.2 in) from the
end of the dipstick, consult an
Authorized Mazda Dealer to have the
vehicle inspected.
CAUTION
If there is no ATF adhering to the
dipstick even after the engine has
been warmed up, do not drive the
vehicle. Otherwise, the automatic
transaxle could be damaged.
6. With the brake pedal depressed, shift the shift lever from the park position
(P) to drive position (D) at intervals of
several seconds, and then shift to the
park position (P) again.
7. Drive 5 km (4 mile) or more in a city.
8. Park on a level surface, shift the shift lever to the park position (P) and set
the parking brake firmly.
9. While the engine is still idling, pull out the dipstick and wipe it clean, and then
reinsert it.
10. Check the ATF level. The proper fluid level indicated on the dipstick should
be as follows.
Full
OK
Low
Maintenance and Care
Owner Maintenance
8-25íSome models.
Mazda5_8DW3-EA-14H_Edition3 Page357
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (394,1)

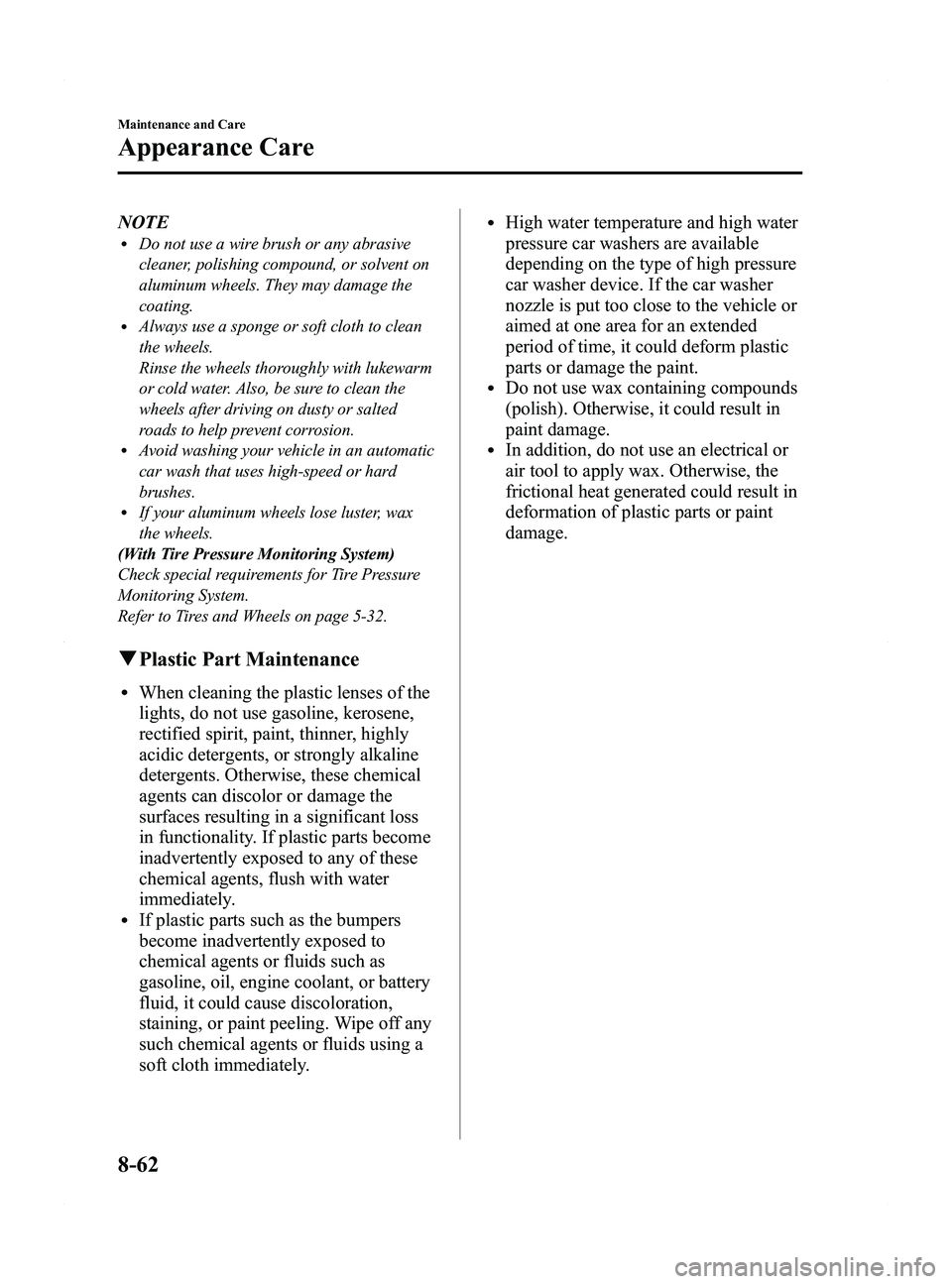

NOTElDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-32.
q Plastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
lHigh water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended
period of time, it could deform plastic
parts or damage the paint.
lDo not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
lIn addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
8-62
Maintenance and Care
Appearance Care
Mazda5_8DW3-EA-14H_Edition3 Page394
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (447,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement 5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant U.S.A. and
Canada Manual transaxle 6.7 L (7.1 US qt, 5.9 Imp qt)
Automatic transaxle 6.6 L (7.0 US qt, 5.8 Imp qt)
Except U.S.A. and Canada 6.8 L (7.2 US qt, 6.0 Imp qt)
Manual transaxle oil 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length 4,585 mm (180.5 in)
Overall width 1,750 mm (68.9 in)
Overall height 1,615 mm (63.6 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,520 mm (59.8 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
(Manual transaxle)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,091 kg (4,610 lb)
GAWR (Gross Axle Weight Rating) Front 1,021 kg (2,251 lb)
Rear 1,085 kg (2,392 lb)
(Automatic transaxle) Item Weight
GVWR (Gross Vehicle Weight Rating) 2,125 kg (4,685 lb)
GAWR (Gross Axle Weight Rating) Front 1,056 kg (2,328 lb)
Rear 1,084 kg (2,390 lb)
Specifications
10-5
Mazda5_8DW3-EA-14H_Edition3 Page447
Thursday, December 18 2014 9:29 AM
Form No.8DW3-EA-14H

Black plate (457,1)
T
TiresFlat tire ......................................... 7-3
Inflation pressure ........................ 8-37
Replacement ............................... 8-39
Rotation ...................................... 8-38
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................... 4-9
Uniform tire quality grading system
(UTQGS) ................................... 9-21
Tool ..................................................... 7-3
Towing Description ................................. 7-22
Emergency towing ..................... 7-22
Hook .......................................... 7-23
Recreational towing ................... 7-25
Trailer towing ............................. 4-12
Traction Control System (TCS) ........ 5-24 TCS/DSC indicator light ............ 5-25
Trailer Towing .................................. 4-12
Trip Meter ......................................... 5-41
Turn and Lane-Change Signals ......... 5-63
U
Underseat Storage ........................... 6-104
V
Vanity Mirrors ................................... 6-93
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-44 ABS ............................................ 5-47
Air bag system ........................... 5-50
Automatic transaxle ................... 5-51
Brake system .............................. 5-46
Charging system ......................... 5-48
Check engine .............................. 5-49
Check fuel cap ........................... 5-50
Door-ajar .................................... 5-51
Engine oil pressure ..................... 5-48
Front seat belt pretensioner
system ........................................ 5-50
High engine coolant
temperature ................................ 5-49
Low fuel ..................................... 5-50
Low washer fluid level ............... 5-51
Malfunction ................................ 5-47
Seat belt ...................................... 5-51
Tire pressure monitoring
system ........................................ 5-52
Warranty ............................................ 9-14
Washer Fluid ..................................... 8-26
Weights ............................................. 10-5
Wheel Replacement .......................... 8-40
Windows Power windows .......................... 3-17
Windshield Washer ........................... 5-68
Windshield Wipers ............................ 5-65
Blades replacement .................... 8-28
Winter Driving .................................... 4-8
Index
11-7
Mazda5_8DW3-EA-14H_Edition3 Page457
Thursday, December 18 2014 9:29 AM
Form No.8DW3-EA-14H
