Lighting Control
qHeadlights
Turn the headlight switch to turn the headlights, other exterior lights and dashboard
illumination on or off.
NOTE
To prevent discharging the battery, do not leave the lights on while the engine is off unless safety
requires them.
Without AUTO position
Switch Position
Headlights OffOff On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illumination Off
OnOn
With AUTO position
Driving Your Mazda
Switches and Controls
5-59
Mazda5_8DW3-EA-14H_Edition3 Page185
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (186,1)
Switch Position
HeadlightsOff
Auto Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illumination Off On On
AUTO (Auto-light control)
When the headlight switch is in the AUTO position and the ignition is switched ON, the
light sensor senses the surrounding lightness or darkness and automatically turns the
headlights, other exterior lights and dashboard illumination on or off (see chart above).
CAUTION
Ø
Do not shade the light sensor by adhering a sticker or a label on the windshield.
Otherwise the light sensor will not operate correctly.
ØThe light sensor also works as a rain sensor for the auto-wiper control. Keep
hands and scrapers clear of the windshield when the wiper lever is in the AUTO
position and the ignition is switched ON as fingers could be pinched or the wipers
and wiper blades damaged when the wipers activate automatically. If you are
going to clean the windshield, be sure the wipers are turned off completely ―this
is particularly important when clearing ice and snow ―when it is particularly
tempting to leave the engine running.
5-60
Driving Your Mazda
Switches and Controls
Mazda5_8DW3-EA-14H_Edition3 Page186
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (187,1)
NOTElThe headlights, other exterior lights and dashboard illumination may not turn off immediately
even if the surrounding area becomes well-lit because the light sensor determines that it is
nighttime if the surrounding area is continuously dark for several minutes such as inside long
tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the light turns off if the light switch is turned to the OFF position.
lThe dashboard illumination can be adjusted by rotating the knob in the instrument cluster. Also,
the day/night mode can be changed by pressing the knob. To adjust the brightness of the
dashboard illumination: Refer to Dashboard Illumination on page 5-43.
lWhen the headlight switch is in the AUTO position and the ignition is switched to ACC or the
ignition is switched off, the headlights, other exterior lights and dashboard illumination will turn
off.
lThe sensitivity of the AUTO lights may be changed by an Authorized Mazda Dealer. Refer to
Personalization Features on page 10-8.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights have xenon fusion bulbs that produce a bright white
beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs yourselfReplacing the xenon fusion bulbs yourself is dangerous. Because the xenon fusion
bulbs require high voltage, you could receive an electric shock if the bulbs are
handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is
necessary.
NOTE
If the headlights flicker, or the brightness weakens, the bulb-life may be depleted and a replacement is
necessary. Consult an Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-61íSome models.
Mazda5_8DW3-EA-14H_Edition3 Page187
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (189,1)
Select the proper headlight angle from the following
chart.Front seat Rear
seat
*1Load Switch
Position
Driver Passenger
× ――― 0
×× ――0
×× × ―1
×× ×× 2
× ―― ×3
×: Yes
― :No
*1 Second-row and third-row seats
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition is
switched ON.
NOTE
The Daytime Running Lights turn off when the
parking brake is applied.
Turn and Lane-Change
Signals
Turn signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn
Right lane change
Left lane change OFF
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever halfway toward the
direction of the change
―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
NOTE
lIf an indicator light stays on without
flashing or if it flashes abnormally, one of
the turn signal bulbs may be burned out.
lA personalized function is available to
change the turn indicator sound volume.
Refer to Personalization Features on page
10-8.
Driving Your Mazda
Switches and Controls
5-63
Mazda5_8DW3-EA-14H_Edition3 Page189
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (190,1)
Fog Lightsí
The fog lights will improve visibility at
night and during foggy conditions.
The headlights must be turned on to turn
on the fog lights.
To turn the fog lights on, rotate the fog
light switch to the
position.
Fog light switch
To turn the fog lights off, rotate the fog
light switch to the OFF position or turn
the headlights off.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the headlight switch is in the AUTO
position, the fog lights can be turned on
when the headlights, the exterior lights and
dashboard illumination are on.
Windshield Wipers and
Washer
The ignition must be switched ON.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions: Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid.
5-64
Driving Your Mazda
íSome models.
Switches and Controls
Mazda5_8DW3-EA-14H_Edition3 Page190
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (200,1)

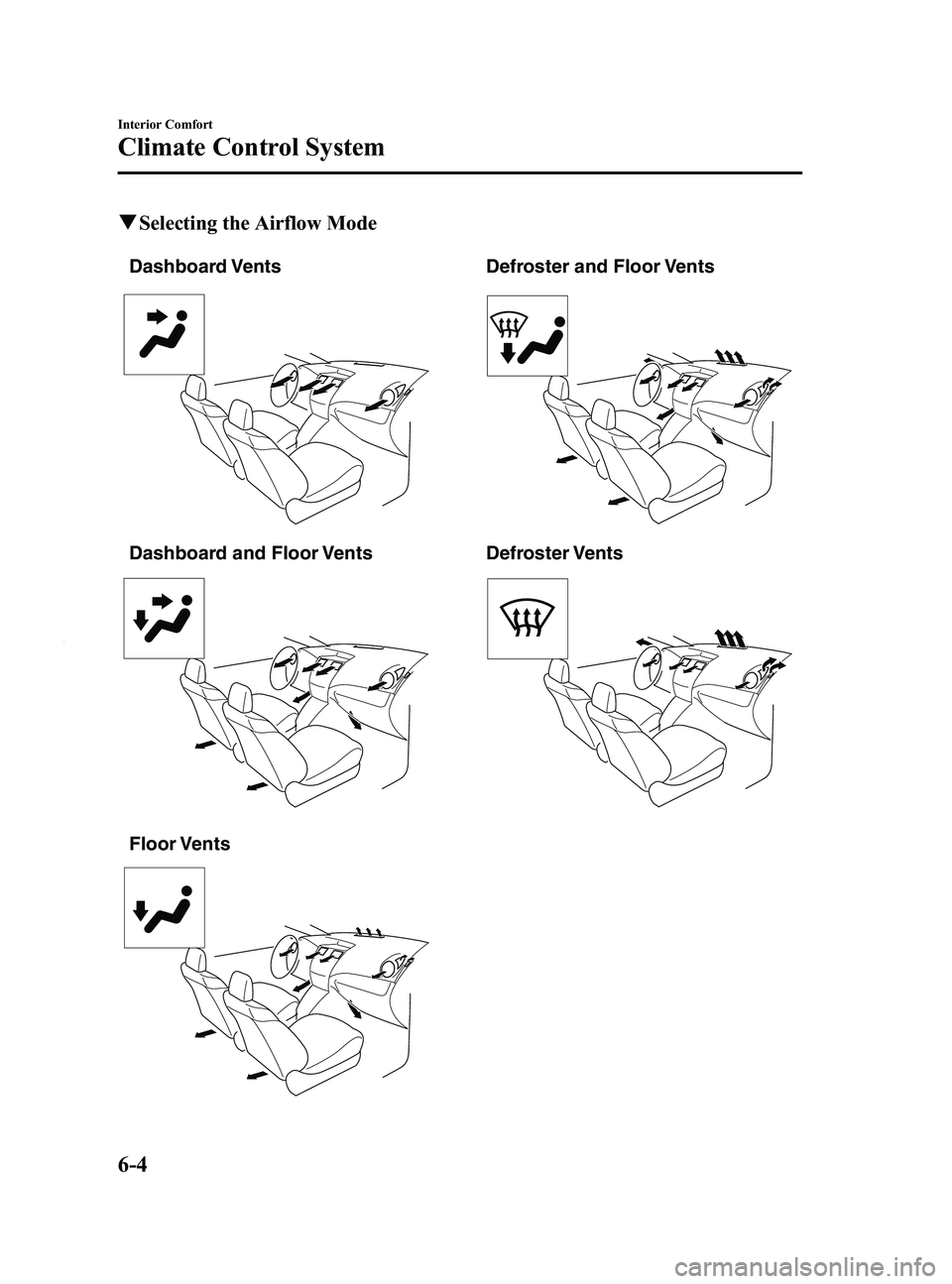

qSelecting the Airflow Mode
Floor Vents Dashboard and Floor Vents Dashboard Vents Defroster and Floor Vents
Defroster Vents
6-4
Interior Comfort
Climate Control System
Mazda5_8DW3-EA-14H_Edition3 Page200
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (243,1)
Audio Control Switch
Operation
When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.
NOTE
Because the audio unit will be turned off under
the following conditions, the switches will be
inoperable.
lWhen the ignition is switched off.lWhen the power button on the audio unit is
pressed and the audio unit is turned off.
Without Bluetooth® Hands-Free
With Bluetooth® Hands-Free
Talk buttonHang-up
button
Pick-up button
NOTElThe talk button, pick-up button, and hang-
up button are operable with the audio unit
turned off.
lMazda has installed this system to prevent
distraction while driving the vehicle and
using audio controls on the dashboard.
Always make safe driving your first priority.
q
Adjusting the Volume
To increase the volume, press up the
volume switch.
To decrease the volume, press down the
volume switch.
Without Bluetooth® Hands-Free
With Bluetooth® Hands-Free
Interior Comfort
Audio System
6-47
Mazda5_8DW3-EA-14H_Edition3 Page243
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (387,1)
Fuse block (Passenger's side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 P/W 30 A Power window
2 M.DEF ――
3 STARTER 10 A Engine control system
4 ENG3 20 A Engine control system
5 P/W ――
6 P.OUTLET 15 A Accessory sockets (Cargo compartment)
7 SHIFT/L 5 A Transaxle control system
8 CIGAR 15 A Accessory sockets (Dashboard)
9 MIRROR 7.5 A Power control mirror
10 A/C 10 A Air conditioner
11 F.WIP 25 A Front window wiper and washer
12 R.WIP 15 A Rear window wiper
13 ENG ――
14 METER 10 A Instrument cluster
15 SAS 10 A Air bag
16 S.WARM 15 A Seat warmer
í
17 ABS/DSC ――
18 EHPAS 5 A Power assist steering
19 ENG2 15 A Engine control system
Maintenance and Care
Owner Maintenance
8-55íSome models.
Mazda5_8DW3-EA-14H_Edition3 Page387
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (395,1)
Interior Care
WARNING
Do not spray water in the cabin:Splashing water on electrical parts
such as the audio unit and switches
is dangerous as it could cause a
malfunction or a fire.
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor
the dashboard. If these solutions get on
the dashboard, wipe them off
immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Remove dust and sand first using a
vacuum cleaner or other means, then wipe
dirt off using a soft cloth with a leather
cleaner or a soft cloth soaked in mild
soap.
Wipe off the remaining cleaner or soap
using a cloth soaked in clean water and
wrung out well.
Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, shaded area. If the leather
gets wet such as from rain, also remove
moisture and dry it as soon as possible.
Maintenance and Care
Appearance Care
8-63íSome models.
Mazda5_8DW3-EA-14H_Edition3 Page395
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (444,1)

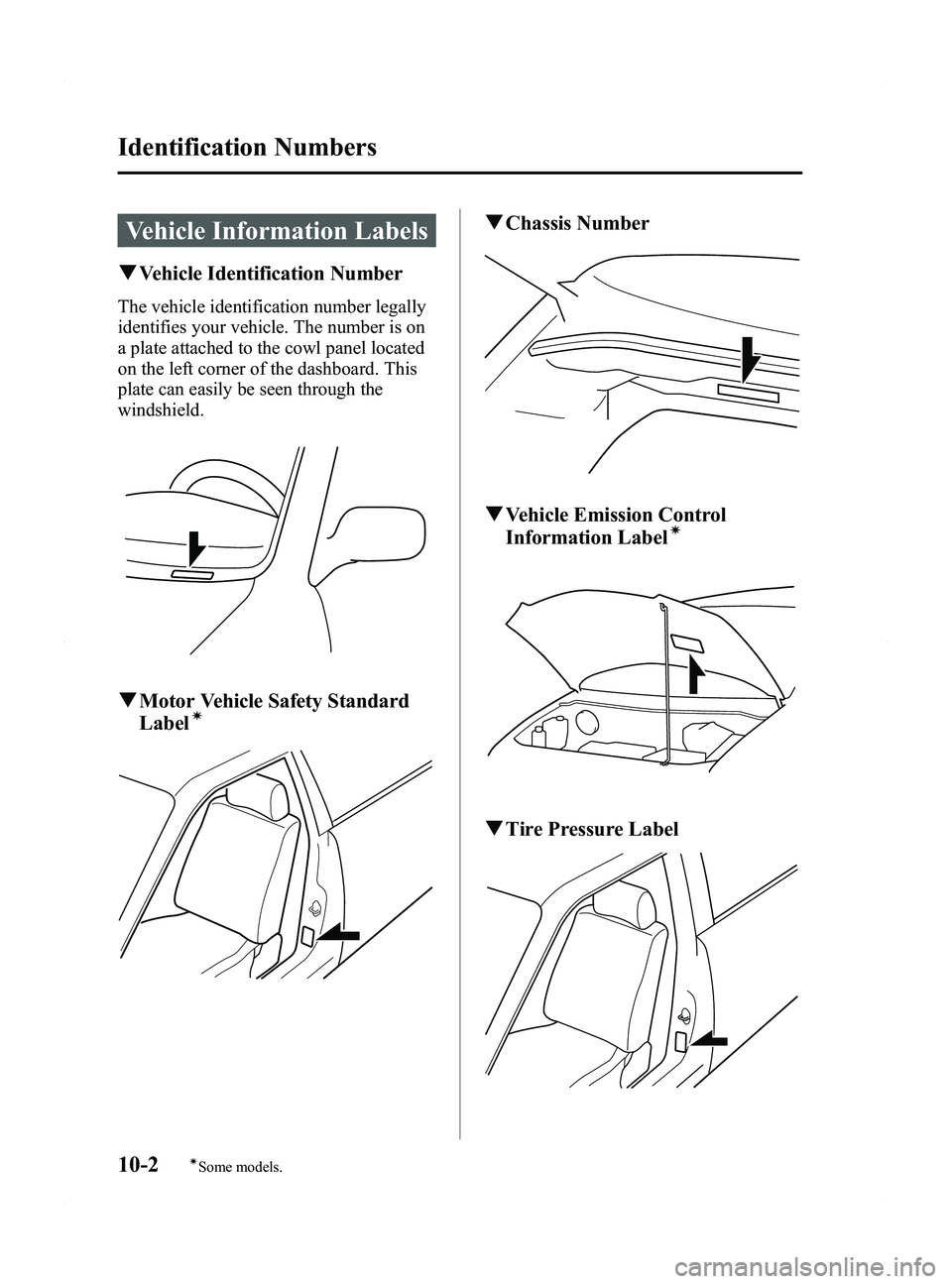

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard
Labelí
qChassis Number
qVehicle Emission Control
Information Labelí
qTire Pressure Label
10-2íSome models.
Identification Numbers
