qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
NOTE
A personalized function is available to change
the sound volume for the lights-on reminder.
Refer to Personalization Features on page
10-8.
qHeadlight High-Low Beam
Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
towards you (the headlight switch does
not need to be on). The lever will return to
the normal position when released.
OFF
Flashing
q Headlight Levelingí
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The headlight leveling switch is used to
adjust the angle of the headlights
manually.
5-62
Driving Your Mazda
íSome models.
Switches and Controls
Mazda5_8DW3-EA-14H_Edition3 Page188
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (189,1)
Select the proper headlight angle from the following
chart.Front seat Rear
seat
*1Load Switch
Position
Driver Passenger
× ――― 0
×× ――0
×× × ―1
×× ×× 2
× ―― ×3
×: Yes
― :No
*1 Second-row and third-row seats
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition is
switched ON.
NOTE
The Daytime Running Lights turn off when the
parking brake is applied.
Turn and Lane-Change
Signals
Turn signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn
Right lane change
Left lane change OFF
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever halfway toward the
direction of the change
―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
NOTE
lIf an indicator light stays on without
flashing or if it flashes abnormally, one of
the turn signal bulbs may be burned out.
lA personalized function is available to
change the turn indicator sound volume.
Refer to Personalization Features on page
10-8.
Driving Your Mazda
Switches and Controls
5-63
Mazda5_8DW3-EA-14H_Edition3 Page189
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (194,1)
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
Washer
OFF
NOTE
With the wiper lever in the OFF or intermittent
position/AUTO position, the wipers will
operate continuously until the lever is
released.
If the washer does not work, inspect the
fluid level (page 8-26). If it's normal,
consult an Authorized Mazda Dealer.
Rear Window Wiper and
Washer
The ignition must be switched ON.
q
Rear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
Switch Position
Wiper operation
No. Type
A Type
B
INT Intermittent
ON Normal
q Rear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer does not work, inspect the
fluid level (page 8-26). If it's normal and
the washer still does not work, consult an
Authorized Mazda Dealer.
5-68
Driving Your Mazda
Switches and Controls
Mazda5_8DW3-EA-14H_Edition3 Page194
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (196,1)
Horn
To sound the horn, press themark on
the steering wheel.
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
5-70
Driving Your Mazda
Switches and Controls
Mazda5_8DW3-EA-14H_Edition3 Page196
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (210,1)
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz
Station 1
88.1 MHz
q
Operating Tips for CD Player
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or
optical components (prism and lens) in the
CD player may become clouded with
condensation. At this time, the CD will
eject immediately when placed in the unit.
A clouded CD can be corrected simply by
wiping it with a soft cloth. Clouded
optical components will clear naturally in
about an hour. Wait for normal operation
to return before attempting to use the unit.
Handling the CD player
The following precautions should be
observed.
lDo not spill any liquid on the audio
system.
lDo not insert any objects, other than
CDs, into the slot.
6-14
Interior Comfort
Audio System
Mazda5_8DW3-EA-14H_Edition3 Page210
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (300,1)
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
qCenter Console
qUnderseat Storage
If your vehicle has a right second-row
storage box (page 6-105), when using the
storage box, small items can be stored
under the both bottoms of the second-row
seats.
To use the under seat storage
Pull the strap and lift the seat bottom up
and forward.
6-104
Interior Comfort
Interior Equipment
Mazda5_8DW3-EA-14H_Edition3 Page300
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (301,1)

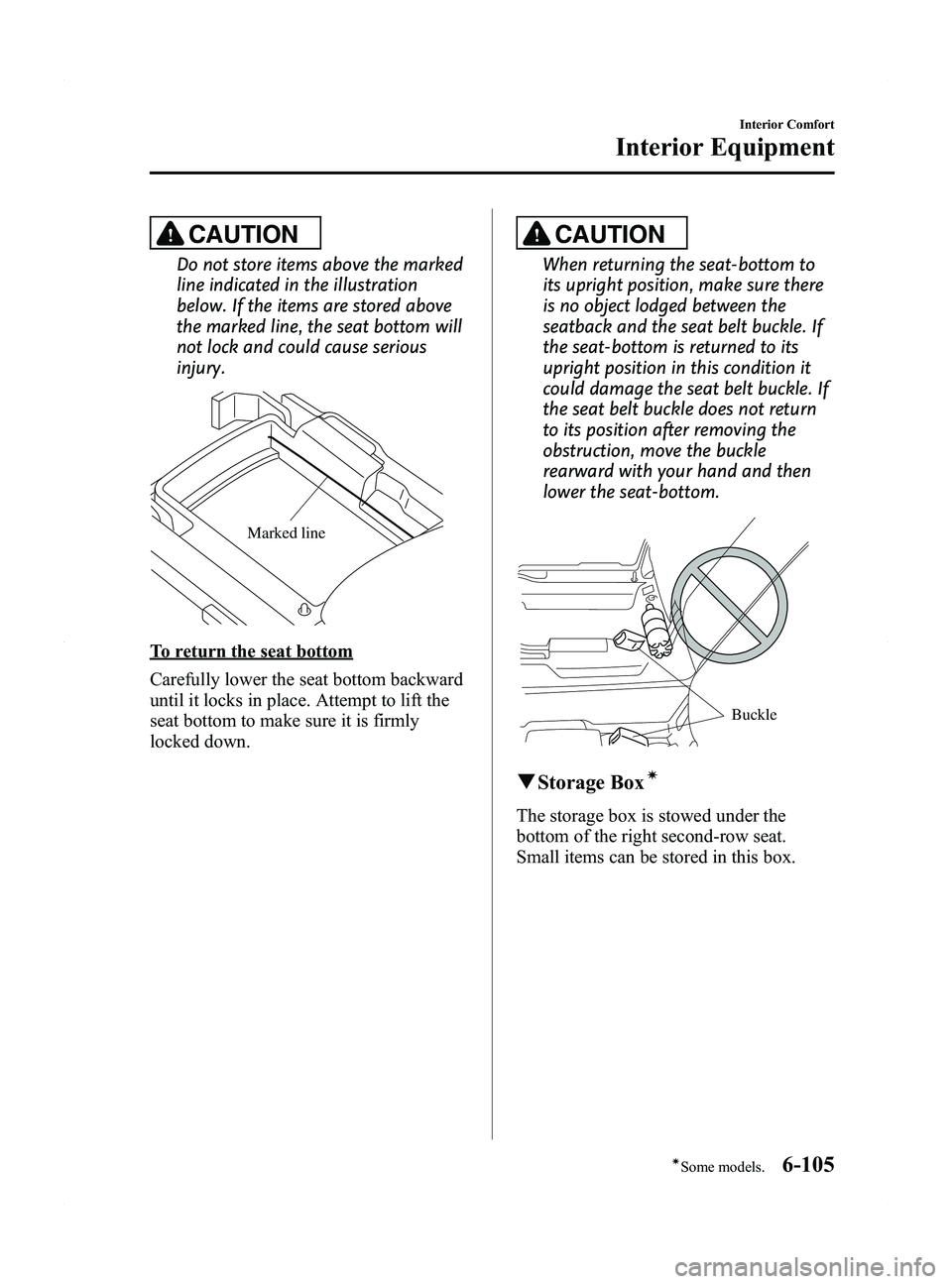

CAUTION
Do not store items above the marked
line indicated in the illustration
below. If the items are stored above
the marked line, the seat bottom will
not lock and could cause serious
injury.
Marked line
To return the seat bottom
Carefully lower the seat bottom backward
until it locks in place. Attempt to lift the
seat bottom to make sure it is firmly
locked down.
CAUTION
When returning the seat-bottom to
its upright position, make sure there
is no object lodged between the
seatback and the seat belt buckle. If
the seat-bottom is returned to its
upright position in this condition it
could damage the seat belt buckle. If
the seat belt buckle does not return
to its position after removing the
obstruction, move the buckle
rearward with your hand and then
lower the seat-bottom.
Buckle
qStorage Boxí
The storage box is stowed under the
bottom of the right second-row seat.
Small items can be stored in this box.
Interior Comfort
Interior Equipment
6-105íSome models.
Mazda5_8DW3-EA-14H_Edition3 Page301
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (302,1)

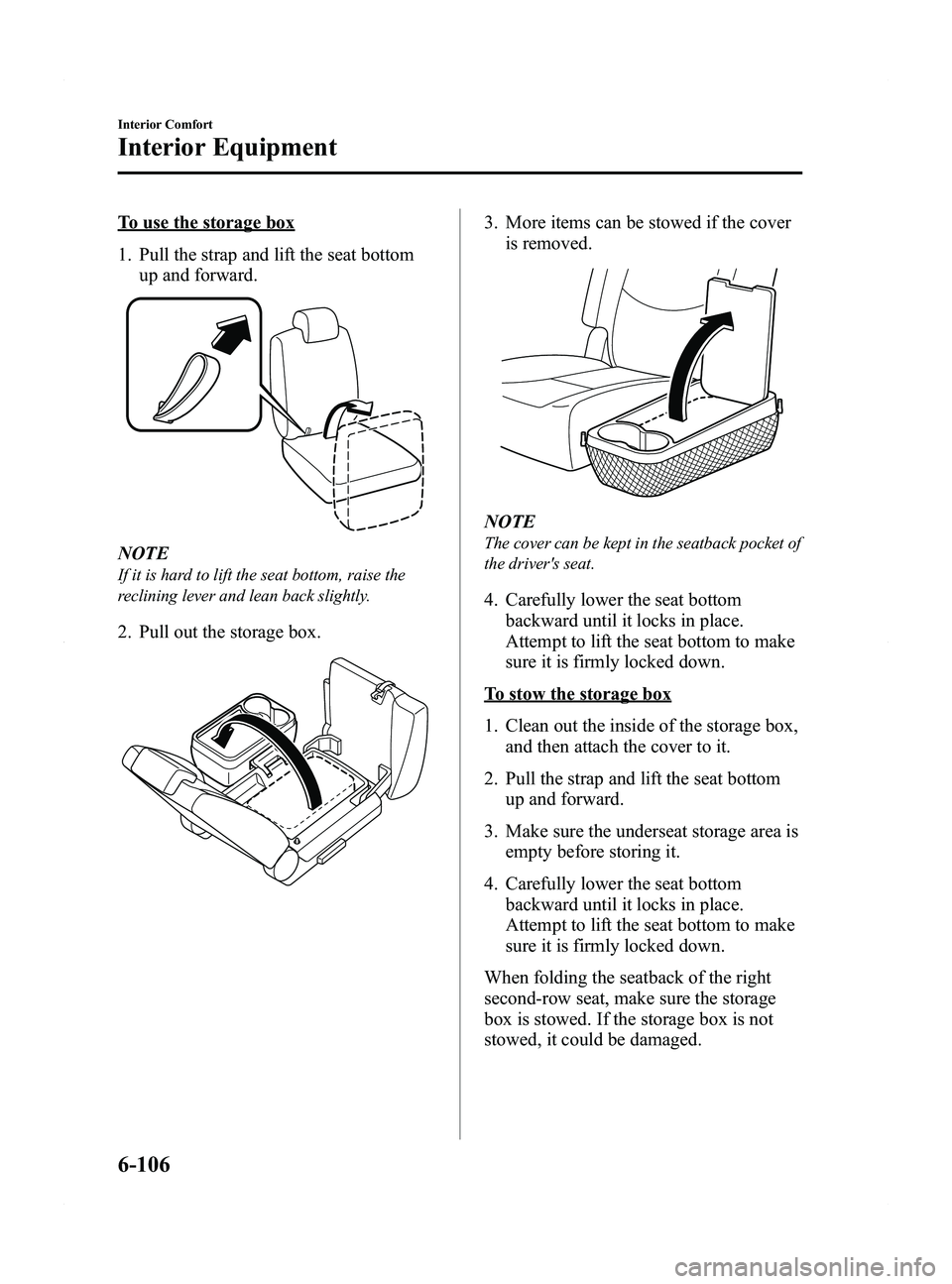

To use the storage box
1. Pull the strap and lift the seat bottomup and forward.
NOTE
If it is hard to lift the seat bottom, raise the
reclining lever and lean back slightly.
2. Pull out the storage box.
3. More items can be stowed if the coveris removed.
NOTE
The cover can be kept in the seatback pocket of
the driver's seat.
4. Carefully lower the seat bottom
backward until it locks in place.
Attempt to lift the seat bottom to make
sure it is firmly locked down.
To stow the storage box
1. Clean out the inside of the storage box,and then attach the cover to it.
2. Pull the strap and lift the seat bottom up and forward.
3. Make sure the underseat storage area is empty before storing it.
4. Carefully lower the seat bottom backward until it locks in place.
Attempt to lift the seat bottom to make
sure it is firmly locked down.
When folding the seatback of the right
second-row seat, make sure the storage
box is stowed. If the storage box is not
stowed, it could be damaged.
6-106
Interior Comfort
Interior Equipment
Mazda5_8DW3-EA-14H_Edition3 Page302
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (307,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
