Page 29 of 458
Black plate (29,1)
WARNING
ØBe careful when using the seat
warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.
ØInfants, small babies, elderly
people, and physically
challenged people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who are intoxicated
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
Ø Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.
Ø Do not use the seat warmer even
when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.
Ø Do not place heavy objects with
sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater. NOTE
lUse the seat warmer when the engine is
running, and do not continue to use it for a
long period of time.
lThe temperature of the seat warmer cannot
be adjusted because the seat warmer is
controlled by a thermostat.
Essential Safety Equipment
Seats
2-17
Mazda5_8DW3-EA-14H_Edition3 Page29
Thursday, December 18 2014 9:26 AM
Form No.8DW3-EA-14H
Page 37 of 458

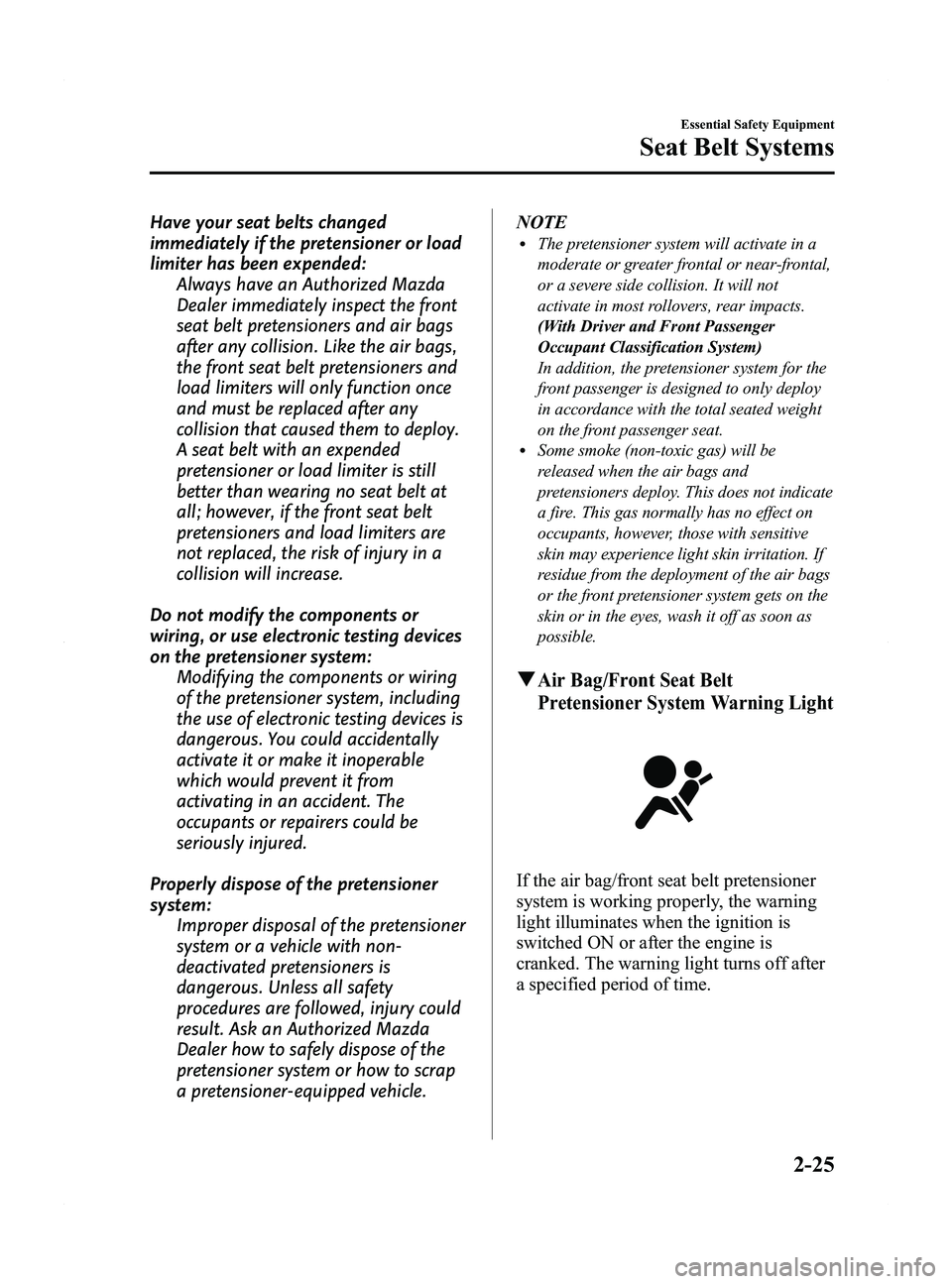

Black plate (37,1)
Have your seat belts changed
immediately if the pretensioner or load
limiter has been expended:Always have an Authorized Mazda
Dealer immediately inspect the front
seat belt pretensioners and air bags
after any collision. Like the air bags,
the front seat belt pretensioners and
load limiters will only function once
and must be replaced after any
collision that caused them to deploy.
A seat belt with an expended
pretensioner or load limiter is still
better than wearing no seat belt at
all; however, if the front seat belt
pretensioners and load limiters are
not replaced, the risk of injury in a
collision will increase.
Do not modify the components or
wiring, or use electronic testing devices
on the pretensioner system: Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable
which would prevent it from
activating in an accident. The
occupants or repairers could be
seriously injured.
Properly dispose of the pretensioner
system: Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap
a pretensioner-equipped vehicle. NOTElThe pretensioner system will activate in a
moderate or greater frontal or near-frontal,
or a severe side collision. It will not
activate in most rollovers, rear impacts.
(With Driver and Front Passenger
Occupant Classification System)
In addition, the pretensioner system for the
front passenger is designed to only deploy
in accordance with the total seated weight
on the front passenger seat.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not indicate
a fire. This gas normally has no effect on
occupants, however, those with sensitive
skin may experience light skin irritation. If
residue from the deployment of the air bags
or the front pretensioner system gets on the
skin or in the eyes, wash it off as soon as
possible.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.
Essential Safety Equipment
Seat Belt Systems
2-25
Mazda5_8DW3-EA-14H_Edition3 Page37
Thursday, December 18 2014 9:26 AM
Form No.8DW3-EA-14H
Page 69 of 458
Black plate (69,1)
qAir Bag/Front Seat Belt Pretensioner System Warning Light
If the air bag/front seat belt pretensioner system is working properly, the warning light
illuminates when the ignition is switched ON or after the engine is cranked. The warning
light turns off after a specified period of time.
A system malfunction is indicated if the warning light constantly flashes, constantly
illuminates or does not illuminate at all when the ignition is switched ON. If any of these
occur, consult an Authorized Mazda Dealer as soon as possible. The system may not
operate in an accident.
WARNING
Never tamper with the air bag/pretensioner systems and always have an Authorized
Mazda Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner
could accidentally activate or become disabled causing serious injury or death.
qAir Bag/Front Seat Belt Pretensioner System Warning Beep
If a malfunction is detected in the air bag/front seat belt pretensioner systems and the
warning light, a warning beep sound will be heard for about 5 seconds every minute.
The air bag and seat belt pretensioner system warning beep sound will continue to be heard
for approximately 35 minutes.
Have your vehicle inspected at an Authorized Mazda Dealer as soon as possible.
WARNING
Do not drive the vehicle with the air bag/front seat belt pretensioner system warning
beep sounding:
Driving the vehicle with the air bag/front seat belt pretensioner system warning beep
sounding is dangerous. In a collision, the air bags and the front seat belt
pretensioner system will not deploy and this could result in death or serious injury.
Contact an Authorized Mazda Dealer to have the vehicle inspected as soon as
possible.
Essential Safety Equipment
SRS Air Bags
2-57
Mazda5_8DW3-EA-14H_Edition3 Page69
Thursday, December 18 2014 9:26 AM
Form No.8DW3-EA-14H
Page 82 of 458
Black plate (82,1)
Keys
WARNING
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these new
kinds of keys to be an interesting toy
to play with and could cause the
power windows or other controls to
operate, or even make the vehicle
move.
NOTE
lRefer to Immobilizer System (page 3-25) for
information regarding keys and engine
starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-29)
for information regarding keys and the
prevention of vehicle and vehicle contents
theft.
The keys operate all locks.
Key code number plate
Retractable
type key
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
lWrite down the code number and keep it in
a separate, safe and convenient place, but
not in the vehicle.
If your key is lost, consult your Authorized
Mazda Dealer and have your code number
ready.
lSome types of key chains cannot be
attached to the retractable type key. In this
case, use the key ring provided with the
transmitter which has the key code number
plate attached.
Key ring
3-2
Knowing Your Mazda
Doors and Locks
Mazda5_8DW3-EA-14H_Edition3 Page82
Thursday, December 18 2014 9:26 AM
Form No.8DW3-EA-14H
Page 92 of 458
Black plate (92,1)
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when LOCK is pressed.
They all unlock when the unmarked part
of the door-lock switch is pressed.
UnlockLock
Locking, unlocking with transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3).
q Sliding Door Open/Close
WARNING
Do not leave a sliding door open while
parked on an incline:
Leaving a sliding door open is
dangerous. The door may open
unexpectedly resulting in injury.
CAUTION
When opening/closing a sliding door,
follow the cautions below. If the
cautions are not heeded, hands, feet,
or even a head may be caught in a
door resulting in an injury.
ØUse the door handle.
Ø Keep your hands, feet, and head
away from the sliding door
openings.
Ø Make sure that there is nothing
behind the sliding doors.
Ø Keep your hands and feet away
from the sliding door rails, arms
and pillars.
Pillar
Arm
Rail Door handle
NOTE
When you leave the vehicle, stop the engine
and lock the doors. And do not put valuables
in your vehicle to prevent theft.
3-12
Knowing Your Mazda
Doors and Locks
Mazda5_8DW3-EA-14H_Edition3 Page92
Thursday, December 18 2014 9:26 AM
Form No.8DW3-EA-14H
Page 94 of 458
Black plate (94,1)
Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open: Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
Do not stack or leave loaded luggage
unsecured in the luggage
compartment: Otherwise, the luggage may move or
collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may affect the side or rear field of
view.
CAUTION
ØBefore opening the liftgate,
remove any snow and ice
accumulation on it. Otherwise, the
liftgate could close under the
weight of the snow and ice
resulting in injury.
Ø Be careful when opening/closing
the liftgate during strong winds. If
a strong gust blows against the
liftgate, it could close suddenly
resulting in injury.
Ø Fully open the liftgate and make
sure that it stays open. If the
liftgate is only opened partially, it
could slam shut by vibration or
wind gusts resulting in injury.
Ø When loading or unloading
luggage in the luggage
compartment, turn off the engine.
Otherwise, you could get burned
by the heat of the exhaust gas.
Ø Be careful not to apply excessive
force to the damper stay on the
liftgate such as by putting your
hand on the stay. Otherwise, the
damper stay may bend and affect
the liftgate operation.
Damper stay
3-14
Knowing Your Mazda
Doors and Locks
Mazda5_8DW3-EA-14H_Edition3 Page94
Thursday, December 18 2014 9:26 AM
Form No.8DW3-EA-14H
Page 98 of 458
Black plate (98,1)
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically. Carry out the following
procedure to resume operation:
1. Switch the ignition ON.
2. Press the switch and fully open thewindow.
3. Pull up the switch to fully close the window and continue holding the
switch for about 2 seconds after the
window fully closes.
Two-step down function
With the window completely closed, press
the switch lightly and the window will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.
NOTE
lPressing the power window switch once
when the window is fully closed will only
open it about 3 cm (1 in) to allow
convenient ventilation of the cabin.
lThe two-step down function can be
canceled.
Refer to Personalization Features on page
10-8.
Jam-safe window
If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch: Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
NOTE
Depending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is similar
to something blocking it.
In the event the jam-safe function activates and
the power window cannot be closed
automatically, pull and hold the switch and the
window will close.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.
NOTE
lFor engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
lThe two-step down function is inoperable
during engine-off operation.
3-18
Knowing Your Mazda
Doors and Locks
Mazda5_8DW3-EA-14H_Edition3 Page98
Thursday, December 18 2014 9:26 AM
Form No.8DW3-EA-14H
Page 100 of 458
Black plate (100,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
Do not continue refueling after the fuel
pump nozzle shuts off automatically: Continuing to add fuel after the fuel
pump nozzle has shut off
automatically is dangerous because
overfilling the fuel tank may cause
fuel overflow or leakage. Fuel
overflow and leakage could damage
the vehicle and if the fuel ignites it
could cause a fire and explosion
resulting in serious injury or death.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
NOTE
The fuel-filler lid cannot be opened when the
right-side sliding door is open. Close the
sliding door to open the fuel-filler lid.
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
3-20
Knowing Your Mazda
Doors and Locks
Mazda5_8DW3-EA-14H_Edition3 Page100
Thursday, December 18 2014 9:26 AM
Form No.8DW3-EA-14H
Page 101 of 458
Black plate (101,1)
To close the fuel-filler cap, turn it
clockwise until a click is heard.
OpenClose
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap is
not tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.
Hood
WARNING
Always check that the hood is closed
and securely locked:A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Insert your hand into the hood opening,
slide the hood latch lever, and lift the
hood.
Knowing Your Mazda
Doors and Locks
3-21
Mazda5_8DW3-EA-14H_Edition3 Page101
Thursday, December 18 2014 9:26 AM
Form No.8DW3-EA-14H
Page 105 of 458
Black plate (105,1)
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not being
transmitted correctly.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the key grip.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
ØDevices for electronic purchases, or
security passage which touch or
come near the key.
Knowing Your Mazda
Security System
3-25
Mazda5_8DW3-EA-14H_Edition3 Page105
Thursday, December 18 2014 9:26 AM
Form No.8DW3-EA-14H
