5-12
Driving Your Mazda
Starting and Driving
Form No. 8R29-EA-02I

Shift-Lock System
The shift-lock system prevents shifting
out of P unless the brake pedal is
depressed.

To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Move the shift lever.

Manual Shift Mode
This mode gives you the feel of driving a
manual transaxle vehicle by tapping the
shift lever forward and back while in this
mode.
To change to manual shift mode, shift the
lever from D to M.To return to automatic shift mode, shift
the lever from M to D.

Indicators
Shift position indicator
In manual shift mode, the "M" of the shift
position indicator in the instrument panel
illuminates.
Gear position indicator
In manual shift mode, the numeral for the
selected gear illuminates below the shift
position indicator.
NOTE
•
When the ignition switch is in the
LOCK position, the transaxle
cannot be shifted from P.
•
To be sure the vehicle is in park,
the ignition key cannot be
removed unless the shift lever is in
P.
NOTE
•
If you change to manual shift mode
when the vehicle is stopped, the
gear will shift to M1.
•
If you tap the shift lever back when
the vehicle is stopped and the gear
is at M1, the gear will shift to M2.
M2 is helpful for starting on
slippery surfaces.
Shift position
indicator
Gear position
indicator
shuseizumi_J56J_8R29_EA_02I.book Page 12 Wednesday, October 16, 2002 9:51 AM

5-13
Driving Your Mazda
Starting and Driving
Form No. 8R29-EA-02I

Shifting
Shifting up
(M1→M2→M3→M4→M5*)
To shift up to a higher gear, tap the shift
lever back ( ) once.
*3.0-liter engine model
Shifting down
(M5*→M4→M3→M2→M1)
To shift down to a lower gear, tap the shift
lever forward ( ) once.
*3.0-liter engine model
NOTE
If the gears cannot be shifted down
when driving at higher speeds, the gear
position indicator will flash twice to
signal that the gears cannot be shifted
down (page 5-14).
NOTE
•
When driving slowly, the gears may
not shift up depending on vehicle
speed (page 5-14).
•
In manual shift mode, gears do not
shift up automatically. Don’t run the
engine with the tachometer needle
in the RED ZONE. If the
tachometer needle enters the RED
ZONE, you may feel engine-
braking because the fuel delivery
will be stopped to protect the
engine. However, this does not
indicate an abnormality.
•
Gears may not be shifted from M1
to M2 right after shifting the lever
from D to M. Wait a few seconds
and then shift up to M2.
•
When depressing the accelerator
fully, the transaxle will shift to a
lower gear, depending on vehicle
speed.
shuseizumi_J56J_8R29_EA_02I.book Page 13 Wednesday, October 16, 2002 9:51 AM

5-14
Driving Your Mazda
Starting and Driving
Form No. 8R29-EA-02I

Shifting Specification
2.3-liter engine model
Shifting up
If the vehicle speed is lower than the
speed specified for each gear, the gear
cannot be shifted up to a higher gear.
At kickdown, shifting up to each gear is
only possible at the following speeds or
higher:
Shifting down
If the vehicle speed is higher than the
speed specified for each gear, the gear
cannot be shifted down to a lower gear.
During deceleration, the gears shift down
automatically when speed is reduced to
the following:
If the vehicle is kicked down at the
following speeds or lower, the gears shift
down automatically:Sudden Engine-Braking:Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking, which is dangerous.
The sudden change in tire speed
could cause the tires to skid. This
could lead to loss of vehicle control
and an accident. Do not use sudden
engine braking on slippery road
surfaces or at high speeds.
NOTE
•
When driving at high speeds, the
gear may not shift down depending
on vehicle speed (page 5-14).
•
During deceleration, the gear may
automatically shift down depending
on vehicle speed (page 5-14).
•
When depressing the accelerator
fully, the transaxle will shift to a
lower gear, depending on vehicle
speed.
WARNING
Gear Vehicle speed
M1
→M2You can shift up to M2
whether the vehicle is
stopped or moving.
M2
→M3 20 km/h (12 mph)
M3
→M4 35 km/h (22 mph)
Gear Vehicle speed
M2
→M3 61 km/h (37 mph)
M3
→M4 154 km/h (95 mph)
Gear Vehicle speed
M4
→M3 157 km/h (98 mph)
M3
→M2 111 km/h (64 mph)
M2
→M1 45 km/h (28 mph)
Gear Vehicle speed
M4
→M3 31 km/h (19 mph)
M3 or M2
→M1 8 km/h (5 mph)
Gear Vehicle speed
M4
→M3 149 km/h (92 mph)
M3
→M2 56 km/h (34 mph)
shuseizumi_J56J_8R29_EA_02I.book Page 14 Wednesday, October 16, 2002 9:51 AM

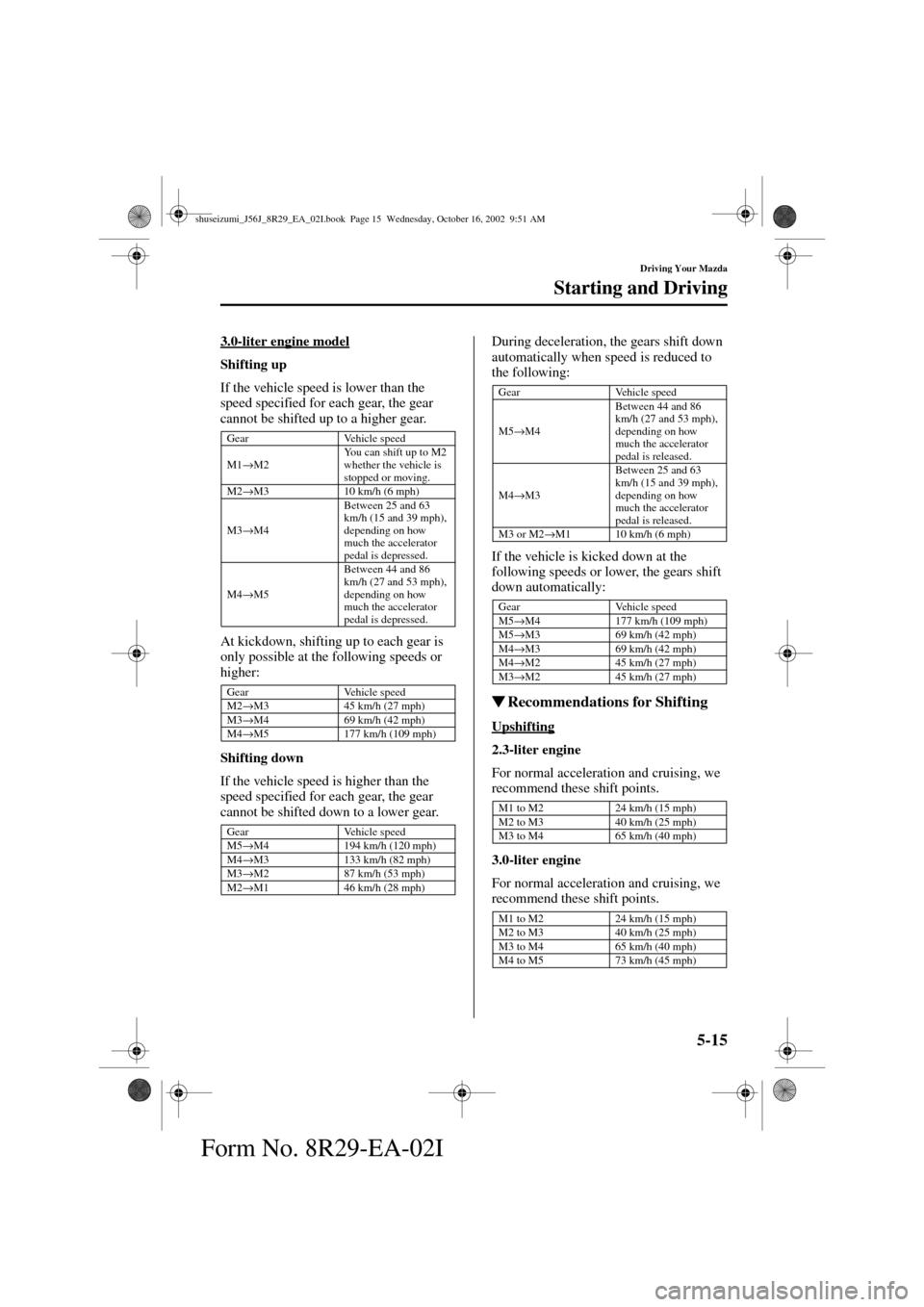

5-15
Driving Your Mazda
Starting and Driving
Form No. 8R29-EA-02I
3.0-liter engine model
Shifting up
If the vehicle speed is lower than the
speed specified for each gear, the gear
cannot be shifted up to a higher gear.
At kickdown, shifting up to each gear is
only possible at the following speeds or
higher:
Shifting down
If the vehicle speed is higher than the
speed specified for each gear, the gear
cannot be shifted down to a lower gear.During deceleration, the gears shift down
automatically when speed is reduced to
the following:
If the vehicle is kicked down at the
following speeds or lower, the gears shift
down automatically:

Recommendations for Shifting
Upshifting
2.3-liter engine
For normal acceleration and cruising, we
recommend these shift points.
3.0-liter engine
For normal acceleration and cruising, we
recommend these shift points.
Gear Vehicle speed
M1
→M2You can shift up to M2
whether the vehicle is
stopped or moving.
M2
→M3 10 km/h (6 mph)
M3
→M4Between 25 and 63
km/h (15 and 39 mph),
depending on how
much the accelerator
pedal is depressed.
M4
→M5Between 44 and 86
km/h (27 and 53 mph),
depending on how
much the accelerator
pedal is depressed.
Gear Vehicle speed
M2
→M3 45 km/h (27 mph)
M3
→M4 69 km/h (42 mph)
M4
→M5 177 km/h (109 mph)
Gear Vehicle speed
M5
→M4 194 km/h (120 mph)
M4
→M3 133 km/h (82 mph)
M3
→M2 87 km/h (53 mph)
M2
→M1 46 km/h (28 mph)
Gear Vehicle speed
M5
→M4Between 44 and 86
km/h (27 and 53 mph),
depending on how
much the accelerator
pedal is released.
M4
→M3Between 25 and 63
km/h (15 and 39 mph),
depending on how
much the accelerator
pedal is released.
M3 or M2
→M1 10 km/h (6 mph)
Gear Vehicle speed
M5
→M4 177 km/h (109 mph)
M5
→M3 69 km/h (42 mph)
M4
→M3 69 km/h (42 mph)
M4
→M2 45 km/h (27 mph)
M3
→M2 45 km/h (27 mph)
M1 to M2 24 km/h (15 mph)
M2 to M3 40 km/h (25 mph)
M3 to M4 65 km/h (40 mph)
M1 to M2 24 km/h (15 mph)
M2 to M3 40 km/h (25 mph)
M3 to M4 65 km/h (40 mph)
M4 to M5 73 km/h (45 mph)
shuseizumi_J56J_8R29_EA_02I.book Page 15 Wednesday, October 16, 2002 9:51 AM

5-16
Driving Your Mazda
Starting and Driving
Form No. 8R29-EA-02I
Downshifting
When you must slow down in heavy
traffic or on a steep upgrade
, downshift
before the engine starts to overwork. This
gives better acceleration when you need
more speed.
On a steep downgrade
, downshifting
helps maintain safe speed and prolongs
brake life.

Driving Tips
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transaxle will
shift to a lower gear, depending on vehicle
speed.
Climbing steep grades from a stop
To climb a steep grade from a stopped
position:
1. Depress the brake pedal.
2. Shift to D or M1, depending on the
load weight and grade steepness.
3. Release all brakes while gradually
accelerating.
Descending steep grades
When descending a steep grade, shift to
lower gears, depending on load weight
and grade steepness. Descend slowly,
using the brakes only occasionally to
prevent them from overheating.Power steering is only operable when the
engine is running. If the engine is off or if
the power steering system is inoperable,
you can still steer, but it requires more
physical effort.
If the steering feels rigid during normal
driving, consult an Authorized Mazda
Dealer.
Power Steering
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running.
This could damage the power steering
system.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 16 Wednesday, October 16, 2002 9:51 AM

5-29
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R29-EA-02I

Brake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-15).
2. After adding fluid, check the light
again.If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-31).
shuseizumi_J56J_8R29_EA_02I.book Page 29 Wednesday, October 16, 2002 9:51 AM

5-30
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R29-EA-02I

Charging System Warning Light
This warning light comes on when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
If the warning light comes on while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.

Engine Oil Pressure Warning
Light
This warning light indicates low engine
oil pressure.
If the light comes on while driving:
1. Drive to the side of the road and park
off the right-of-way.
Brake Warning Light:Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, after checking that
the parking brake is released, have
the brakes inspected immediately.
Don’t drive with this light on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
Don’t continue driving when the
charging system warning light is
illuminated.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 30 Wednesday, October 16, 2002 9:51 AM

5-33
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R29-EA-02I

Door-Ajar Warning Light
This warning light comes on when any
door isn’t securely closed.

Low Washer Fluid Level
Warning Light
This warning light reveals that little
windshield washer fluid remains. Add
fluid (page 8-19).

Automatic Transaxle Warning
Light
This warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
The light illuminates when the transaxle
has a problem.

Security Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.
If the engine doesn’t start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
If the automatic transaxle warning
light flashes, the transaxle has an
electrical problem. Continuing to drive
your Mazda in this condition could
cause damage to your transaxle.
Consult an Authorized Mazda Dealer
as soon as possible.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 33 Wednesday, October 16, 2002 9:51 AM

6-31
Interior Comfort
Au d i o S y s t e m
Form No. 8R29-EA-02I
Fast-forward/Rewind
Press the fast-forward button ( ) to
fast-forward.
Press the rewind button ( ) to rewind.
To stop this operation and play the
cassette tape, press the button again.
Reversing
Press the program button ( ) to
change cassette tape-playing direction.
Automatic program control (APC)
APC is used to find the beginning of
either the next program or the one being
played.
Press the APC button ( ) to the
beginning of the next selection.
Press the APC button ( ) to the
beginning of the one being played. To
stop this operation and play the cassette
tape, press the button again.Repeat play
This operation makes it possible to listen
to a selection repeatedly.
Press the repeat button ( ) during play.
The current selection playing will be
repeated ("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
NOTE
The cassette tape can be ejected when
the ignition switch is in the OFF
position.
NOTE
When the cassette tape ends during
fast forward or rewind, it automatically
stops and starts playing.
NOTE
When the cassette tape ends, the unit
automatically reverses play.
NOTE
APC may not operate properly if
•
A tape was recorded at a low level.
•
A tape has long, silent intervals.
•
A tape is a live recording.
•
A tape has very short intervals of
less than 3 seconds.
NOTE
RPT may not operate properly if
•
A tape was recorded at a low level.
•
A tape has long, silent intervals.
•
A tape is a live recording.
•
A tape has very short intervals of
less than 3 seconds.
shuseizumi_J56J_8R29_EA_02I.book Page 31 Wednesday, October 16, 2002 9:51 AM

6-50
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I
To use, open the cover.
To remove, open the cover and pull up the
ashtray.
Ashtray
Don’t use the ashtray for trash. You
might start a fire.
CAUTION
Cup Holder
Using Cup Holder:Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use a cup
holder to hold hot liquids while the
vehicle is moving.
Don’t Put Anything Other Than Cups
or Drink-cans in Cup Holder:Putting objects other than cups or
drink-cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink-cans.
To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.
WARNING
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 50 Wednesday, October 16, 2002 9:51 AM
