MAZDA MODEL 6 2003 (in English) Workshop Manual

2-41
Essential Safety Equipment
SRS Air Bags
Form No. 8R29-EA-02I
Limitations to front air bag activation
Depending on the severity of impact, the front air bags may not inflate in the following
cases:
Impacts involving trees or poles cause severe
cosmetic damage but may not have enough
impact to activate the air bag.Rear-ending or running under a truck's tail
gate may not provide the stopping force
necessary for air bag deployment.
Frontal offset impact to the vehicle may not
provide the stopping force necessary for air
bag deployment.
shuseizumi_J56J_8R29_EA_02I.book Page 41 Wednesday, October 16, 2002 9:51 AM

2-42
Essential Safety Equipment
SRS Air Bags
Form No. 8R29-EA-02I
Non-activation of front air bags
Front air bags will not normally inflate in the following cases:
Side* and curtain* air bag activation (*If equipped.)
Greater than moderate impact to one side of the vehicle (driver or passenger side areas) will
cause the side and curtain air bags to inflate, but it will not normally deploy the front air
bags.
Collision from the rear.
Impact to the side, but it may deploy the
side*
and curtain*
air bags.Vehicle roll-over, may deploy the side*
and
curtain*
air bags but not the front air bags.
*
If equipped.
shuseizumi_J56J_8R29_EA_02I.book Page 42 Wednesday, October 16, 2002 9:51 AM

2-43
Essential Safety Equipment
SRS Air Bags
Form No. 8R29-EA-02I
Limitations to side* and curtain* air bag activation (*If equipped.)
Depending on the severity of impact, the side and curtain air bags may not inflate in the
following cases:
Non-activation of side* and curtain* air bag (*If equipped.)
The side and curtain air bags will not normally inflate in the following cases:
Side impacts involving trees or poles can
cause severe cosmetic damage but may not
have enough impact force to activate the
side*
and curtain*
air bags.Side impacts with two-wheeled vehicles
may not provide enough force to deploy the
side*
and curtain*
air bags. Vehicle roll-over may not provide enough
side force to deploy the side*
and curtain*

air bags. Frontal offset impact may not provide
enough side impact to deploy the side*
and
curtain*
air bags.
Collision from the rear. Collision from the front, but it may deploy
the front air bags.
shuseizumi_J56J_8R29_EA_02I.book Page 43 Wednesday, October 16, 2002 9:51 AM

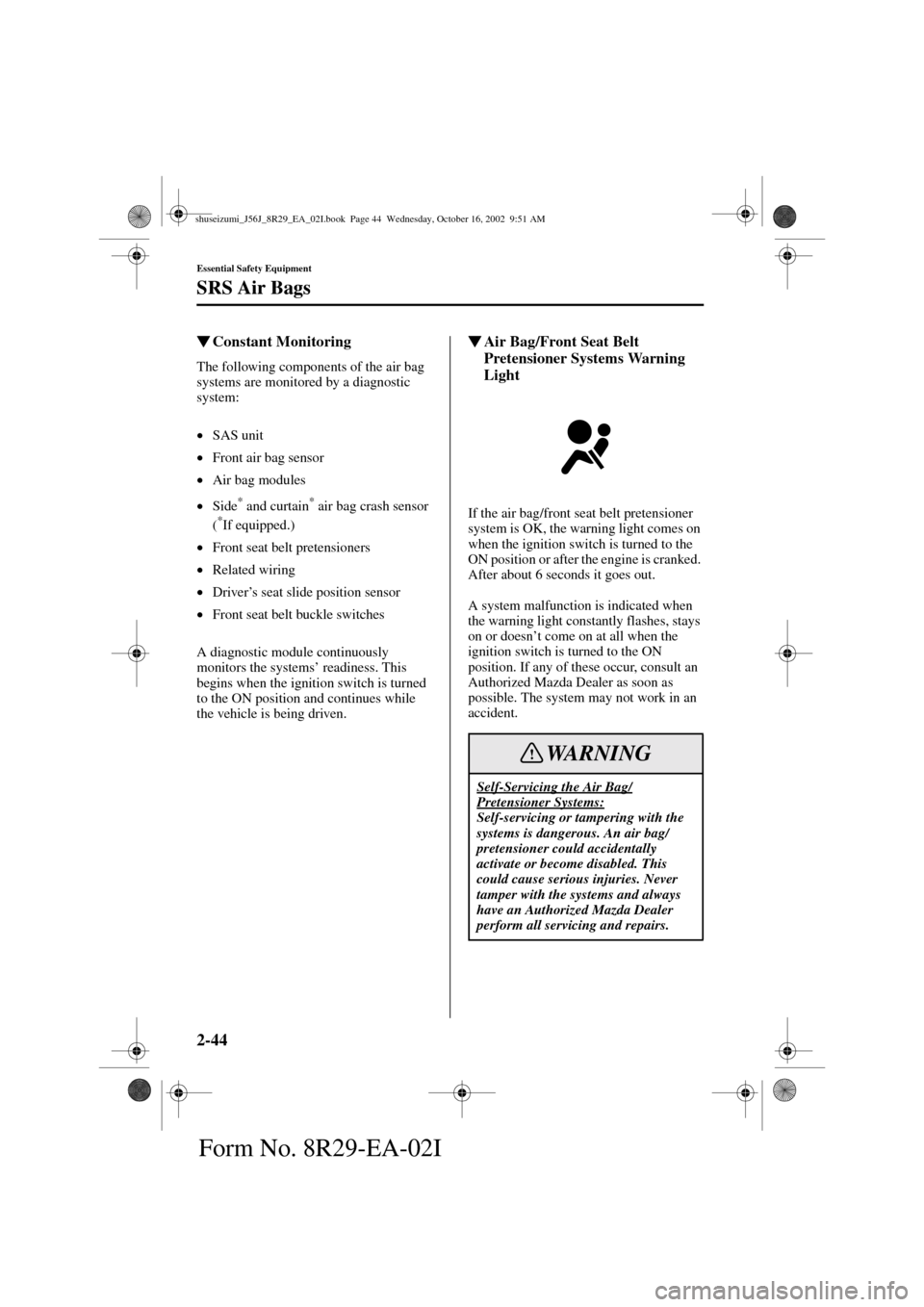

2-44
Essential Safety Equipment
SRS Air Bags
Form No. 8R29-EA-02I

Constant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
•
SAS unit
•
Front air bag sensor
•
Air bag modules
•
Side
* and curtain* air bag crash sensor
(*If equipped.)
•
Front seat belt pretensioners
•
Related wiring
•
Driver’s seat slide position sensor
•
Front seat belt buckle switches
A diagnostic module continuously
monitors the systems’ readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.

Air Bag/Front Seat Belt
Pretensioner Systems Warning
Light
If the air bag/front seat belt pretensioner
system is OK, the warning light comes on
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out.
A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn’t come on at all when the
ignition switch is turned to the ON
position. If any of these occur, consult an
Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
Self-Servicing the Air Bag/Pretensioner Systems:Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 44 Wednesday, October 16, 2002 9:51 AM

2-45
Essential Safety Equipment
SRS Air Bags
Form No. 8R29-EA-02I

Maintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
•
The air bag system warning light
flashes.
•
The air bag system warning light stays
on.
•
The air bag system warning light stays
off when the ignition switch is turned
to the ON position.
•
The air bags inflate.
Damaged Air Bag Sensors:Driving with damaged air bag sensors
is dangerous. A collision, even one
not strong enough to inflate the air
bags, could damage the sensors. If
there was a subsequent collision, a
damaged sensor would not inflate the
air bags. Always have an Authorized
Mazda Dealer inspect the air bag
systems after a collision.
Removing Interior Parts:
Removing any components such as
the front seat, front dashboard, the
steering wheel or parts on the front
and rear window pillars
* and along
the roof edge*, containing air bag
parts or sensors is dangerous. These
parts contain essential air bag parts.
The air bag could accidentally
activate and cause serious injuries.
Always have an Authorized Mazda
Dealer remove these parts.
*If equipped with side or curtain air
bags.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 45 Wednesday, October 16, 2002 9:51 AM

2-46
Form No. 8R29-EA-02I
shuseizumi_J56J_8R29_EA_02I.book Page 46 Wednesday, October 16, 2002 9:51 AM

3-1
Form No. 8R29-EA-02I
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks
............................................................................ 3-2
Keys ........................................................................................... 3-2
Keyless Entry System ................................................................ 3-3
Door Locks ................................................................................ 3-7
Trunk Lid ................................................................................. 3-10
Trunk Release Slide Lever ....................................................... 3-12
Power Windows ....................................................................... 3-14
Fuel-Filler Lid and Cap ........................................................... 3-16
Hood ........................................................................................ 3-17
Sunroof .................................................................................... 3-18
Security System
........................................................................... 3-20
Immobilizer System ................................................................ 3-20
Theft-Deterrent System ........................................................... 3-22
Steering Wheel and Mirrors
...................................................... 3-25
Steering Wheel ........................................................................ 3-25
Mirrors ..................................................................................... 3-25
shuseizumi_J56J_8R29_EA_02I.book Page 1 Wednesday, October 16, 2002 9:51 AM

3-2
Knowing Your Mazda
Form No. 8R29-EA-02I
Doors and Locks
Your Mazda has two kinds of keys:
primary and secondary.
Here’s what the keys are used for:
If you must leave your vehicle with
another person, such as a parking
attendant, protect items by locking the
glove box and trunk lid with the primary
key. Keep that key and give the other
person only the secondary key.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.Keys
Keys and Children:Leaving children in a vehicle with the
ignition key is dangerous. This could
result in someone being badly injured
or even killed. They could play with
power windows or other controls, or
even make the vehicle move. Don’t
leave the keys in your vehicle with
children.
•
To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic field.
Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
•
When starting the engine, do not let
the following materials touch the
key grip. The engine may not start:
Spare keys.
Keys for other vehicles equipped
with an immobilizer system.
Metal objects that touch or pass
through the hole in the key.
Devices for electronic purchases,
and security passage.
WARNING
CAUTIONLock Operates Primary
key Secondary
key
Ignition switch and
steering column lockYe s Ye s
Doors Yes Yes
Glove box Yes No
Trunk lid Yes No
Key code number plateSecondary key
(Gray) Primary key
(Black)
shuseizumi_J56J_8R29_EA_02I.book Page 2 Wednesday, October 16, 2002 9:51 AM

3-3
Knowing Your Mazda
Doors and Locks
Form No. 8R29-EA-02I
This system locks and unlocks the doors
and opens the trunk.
It can also help you signal for attention in
an emergency.
Press the button slowly and accurately.
Keyless Entry System
To avoid damage to the transmitter, do
not:
•
Drop it.
•
Get it wet.
•
Disassemble it.
•
Expose it to heat or sunlight.
CAUTION
NOTE
•
The keyless entry system is
designed to operate up to about 2.5
m (8 ft) from the center of the
vehicle, but this may vary because
of local conditions.
•
The system doesn’t operate when
the ignition switch is in the ON
position.
•
If the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-5).
•
Additional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be
reset.
shuseizumi_J56J_8R29_EA_02I.book Page 3 Wednesday, October 16, 2002 9:51 AM

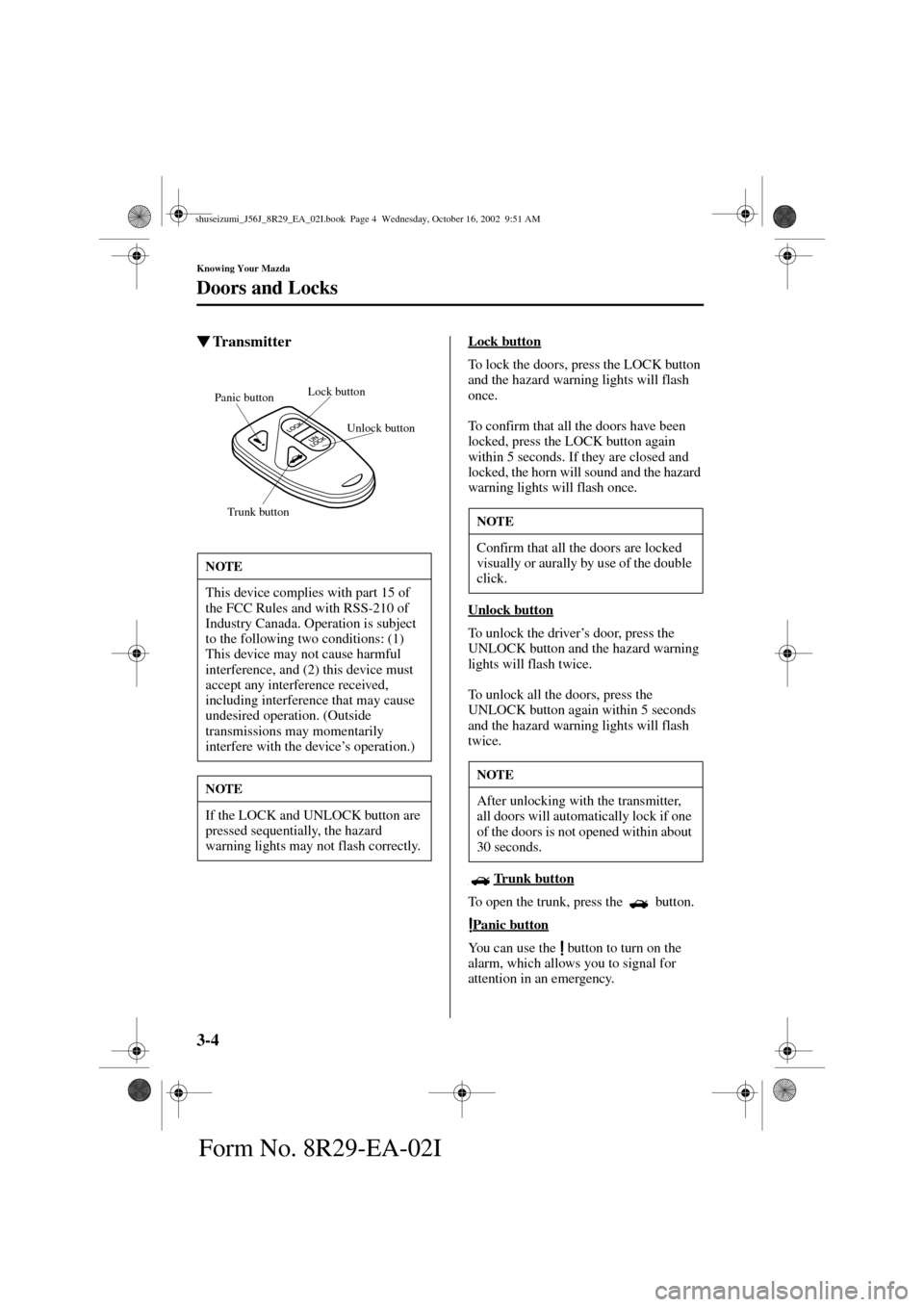

3-4
Knowing Your Mazda
Doors and Locks
Form No. 8R29-EA-02I

TransmitterLock button
To lock the doors, press the LOCK button
and the hazard warning lights will flash
once.
To confirm that all the doors have been
locked, press the LOCK button again
within 5 seconds. If they are closed and
locked, the horn will sound and the hazard
warning lights will flash once.
Unlock button
To unlock the driver’s door, press the
UNLOCK button and the hazard warning
lights will flash twice.
To unlock all the doors, press the
UNLOCK button again within 5 seconds
and the hazard warning lights will flash
twice.
Trunk button
To open the trunk, press the button.
Panic button
You can use the button to turn on the
alarm, which allows you to signal for
attention in an emergency.
NOTE
This device complies with part 15 of
the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation. (Outside
transmissions may momentarily
interfere with the device’s operation.)
NOTE
If the LOCK and UNLOCK button are
pressed sequentially, the hazard
warning lights may not flash correctly.
Panic buttonLock button
Trunk buttonUnlock button
NOTE
Confirm that all the doors are locked
visually or aurally by use of the double
click.
NOTE
After unlocking with the transmitter,
all doors will automatically lock if one
of the doors is not opened within about
30 seconds.
shuseizumi_J56J_8R29_EA_02I.book Page 4 Wednesday, October 16, 2002 9:51 AM
