8-1
Form No. 8R29-EA-02I
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................... 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance
................................................................ 8-3
Scheduled Maintenance ............................................................. 8-3
Owner Maintenance
...................................................................... 8-7
Owner Maintenance Schedule ................................................... 8-7
Owner Maintenance Precautions ............................................... 8-8
Engine Compartment Overview ................................................ 8-9
Engine Oil ................................................................................ 8-10
Engine Coolant ........................................................................ 8-13
Brake/Clutch Fluid .................................................................. 8-15
Power Steering Fluid ............................................................... 8-17
Automatic transaxle Fluid (ATF) ............................................ 8-18
Washer Fluid ............................................................................ 8-19
Body Lubrication ..................................................................... 8-20
Air Filter .................................................................................. 8-20
Wiper Blades ........................................................................... 8-22
Battery ..................................................................................... 8-24
Tires ......................................................................................... 8-25
Light Bulbs .............................................................................. 8-29
Fuses ........................................................................................ 8-35
Appearance Care
......................................................................... 8-40
How to Minimize Environmental Paint Damage ..................... 8-40
Exterior Care ........................................................................... 8-42
Interior Care ............................................................................ 8-45
shuseizumi_J56J_8R29_EA_02I.book Page 1 Wednesday, October 16, 2002 9:51 AM

8-6
Maintenance and Care
Scheduled Maintenance
Form No. 8R29-EA-02I
I: Inspect and repair, clean, adjust, or replace if necessary.
L: Lubricate
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if installed)Maintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Brake lines, hoses and connections
II
Brake and clutch fluid level
IIIIIIIIIIII
Disc brakes
IIII
Tire inflation pressure and tire wear
IIIIIIIIIIII
Steering operation and linkages
II
Power steering fluid level
IIIIIIIIIIII
Front suspension ball joints
II
Driveshaft dust boots
II
Bolts and nuts on chassis and body
IIII
Exhaust system heat shields
II
All locks and hinges
LLLLLLLLLLLL
Washer fluid level
IIIIIIIIIIII
Cabin air filter
Replace every 40,000km (25,000miles) or 24 months
shuseizumi_J56J_8R29_EA_02I.book Page 6 Wednesday, October 16, 2002 9:51 AM

8-7
Maintenance and Care
Form No. 8R29-EA-02I
Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.

When Refueling
•
Brake and clutch fluid level (page 8-15)
•
Engine coolant level (page 8-13)
•
Engine oil level (page 8-10)
•
Washer fluid level (page 8-19)

At Least Monthly
•
Tire inflation pressures (page 8-25)

At Least Twice a Year (For Example, Every Spring and Fall)
•
Automatic transaxle fluid level (page 8-18)
•
Power steering fluid level (page 8-17)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
•
Air filter (page 8-20)
•
Engine coolant (page 8-13)
•
Engine oil (page 8-10)
Owner Maintenance Schedule
shuseizumi_J56J_8R29_EA_02I.book Page 7 Wednesday, October 16, 2002 9:51 AM

8-9
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I
Engine Compartment Overview
Automatic transaxle fluid-level dipstick
(only for automatic transaxle)
Cooling system cap Power steering
fluid reservoirWindshield washer
fluid reservoir
Engine oil dipstickEngine oil-filler cap
Engine coolant
reservoirBattery
Fuse block
Air filter Brake/Clutch fluid reservoir
Automatic transaxle fluid-level dipstick
(only for automatic transaxle)
Engine oil-filler cap Cooling system cap
Power steering
fluid reservoir Windshield washer
fluid reservoir
Engine oil dipstick Engine coolant
reservoir
Battery
Fuse block
Air filter Brake/Clutch fluid reservoir 2.3-liter engine
3.0-liter engine
shuseizumi_J56J_8R29_EA_02I.book Page 9 Wednesday, October 16, 2002 9:51 AM

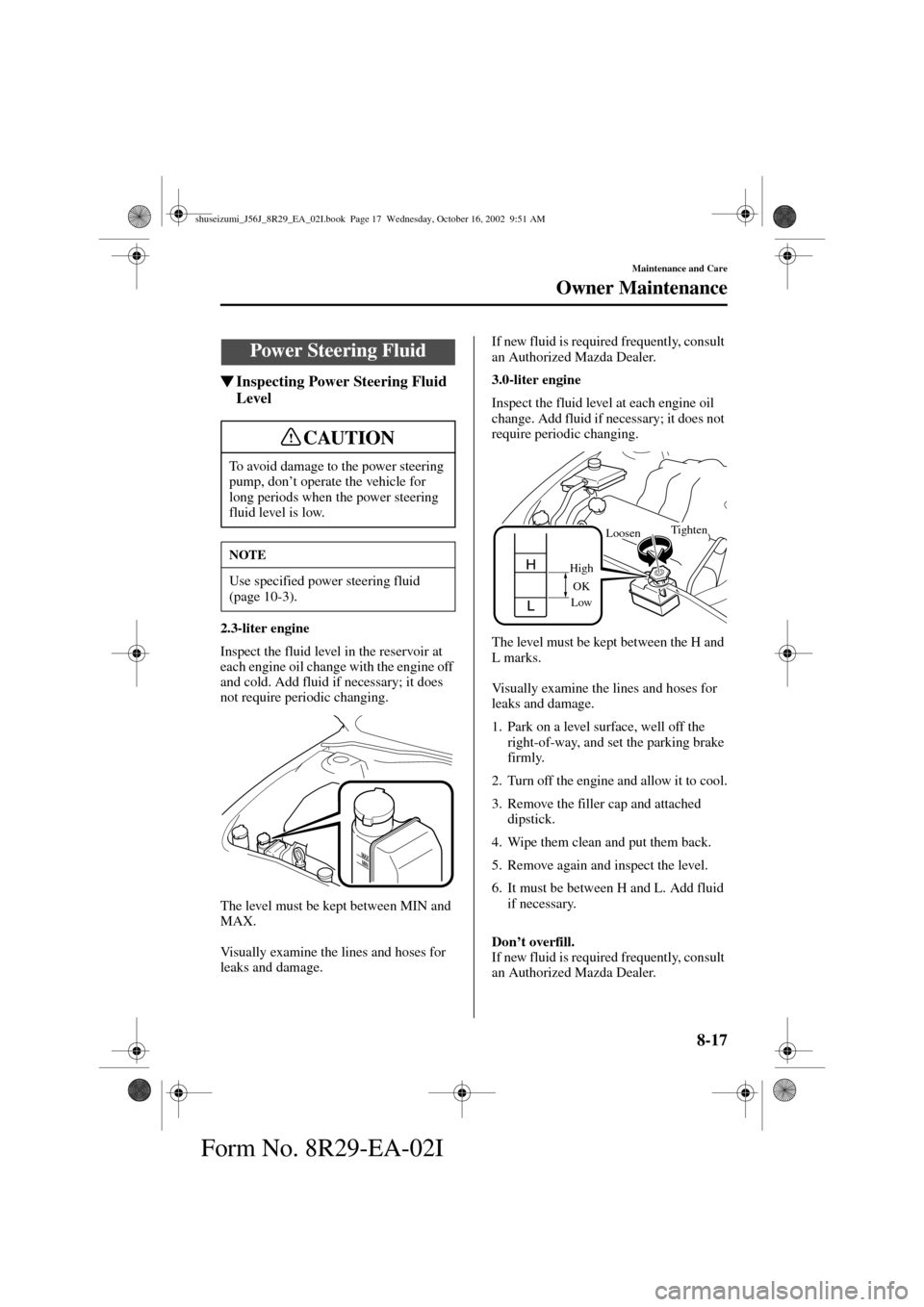

8-17
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I

Inspecting Power Steering Fluid
Level
2.3-liter engine
Inspect the fluid level in the reservoir at
each engine oil change with the engine off
and cold. Add fluid if necessary; it does
not require periodic changing.
The level must be kept between MIN and
MAX.
Visually examine the lines and hoses for
leaks and damage.If new fluid is required frequently, consult
an Authorized Mazda Dealer.
3.0-liter engine
Inspect the fluid level at each engine oil
change. Add fluid if necessary; it does not
require periodic changing.
The level must be kept between the H and
L marks.
Visually examine the lines and hoses for
leaks and damage.
1. Park on a level surface, well off the
right-of-way, and set the parking brake
firmly.
2. Turn off the engine and allow it to cool.
3. Remove the filler cap and attached
dipstick.
4. Wipe them clean and put them back.
5. Remove again and inspect the level.
6. It must be between H and L. Add fluid
if necessary.
Don’t overfill.

If new fluid is required frequently, consult
an Authorized Mazda Dealer.
Power Steering Fluid
To avoid damage to the power steering
pump, don’t operate the vehicle for
long periods when the power steering
fluid level is low.
NOTE
Use specified power steering fluid
(page 10-3).
CAUTION
High
OK
LowTighten
Loosen
shuseizumi_J56J_8R29_EA_02I.book Page 17 Wednesday, October 16, 2002 9:51 AM

10-3
Form No. 8R29-EA-02I
Specifications

Engine

Electrical System

Lubricant Quality
*Refer to the recommended SAE viscosity numbers on page 8-10.
Specifications
ItemModel
2.3-liter engine 3.0-liter engine
Type DOHC-16V in-line, 4-cylinder DOHC-24V 60
°V, 6-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in) 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 9.7 10.0
Item Classification
Battery 12V-50AH/5HR
Alternator2.3-liter engine 12 V - 90 A
3.0-liter engine 12 V - 110 A
Starter 12 V - 1.4 kW
Spark-plug number2.3-liter engine NGK ITR6F-13
3.0-liter engine Motorcraft AGSF 22FSCM
Spark-plug gap2.3-liter engine 1.25—1.35 mm (0.049—0.053 in)
3.0-liter engine 1.29—1.45 mm (0.051—0.057 in)
LubricantClassification
API Service ILSAC
Engine oil
*SL GF-III
Lubricant Classification
Manual transmission oil2.3-liter engineAny temperatureAPI Service GL-4 or GL-5
SAE 75W-90
Above 10
°C (50
°F)API Service GL-4 or GL-5
SAE 80W-90
3.0-liter engineAPI Service GL-4 or GL-5
SAE 75W-90
Automatic transaxle fluid ATF M-V
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
shuseizumi_J56J_8R29_EA_02I.book Page 3 Wednesday, October 16, 2002 9:51 AM

11-5
Index
Form No. 8R29-EA-02I
M
Mirrors
Outside mirrors
......................... 3-25
Rearview mirror
........................ 3-26
Money-Saving Suggestions
............... 4-6
O
Odometer and Trip Meter ................ 5-24
Outside Mirrors
................................ 3-25
Overhead Console
............................ 6-52
Overhead Lights
............................... 6-44
Overheating
...................................... 7-12
Overloading
........................................ 4-9
P
Paint Damage ................................... 8-40
Parking Brake
..................................... 5-5
Parking in an Emergency
................... 7-2
Power Door Locks
............................. 3-9
Power Steering
................................. 5-16
Fluid
.......................................... 8-17
Power Windows
............................... 3-14
Push-Starting
.................................... 7-16
R
Rear Door Child Safety Locks ........... 3-9
Rear Seat
............................................ 2-7
Rear Window Defroster
................... 5-41
Rearview Mirror
............................... 3-26
Recreational Towing
........................ 7-18
Registering Your Vehicle in
A Foreign Country
........................... 9-10
Rocking the Vehicle
........................... 4-7
S
Safety Defects, Reporting ................9-16
Seat Belt System
3-point type
...............................2-13
Automatic locking
.....................2-12
Emergency locking
...................2-12
Extender
....................................2-19
Pregnant women
........................2-12
Pretensioner and load
limiting
......................................2-15
Rear-center lap/shoulder
...........2-17
Seat belt precautions
.................2-10
Warning light
............................2-20
Seats
Front seat
.....................................2-2
Rear seat
......................................2-7
Security System
Immobilizer system
...................3-20
Theft-deterrent system
..............3-22
Service Publications
.........................9-17
Spare Tire and Tool Storage
...............7-3
Specifications
...................................10-3
Speedometer
.....................................5-24
SRS Air Bags
Air bag system description
........2-38
Supplemental restraint systems
precautions
................................2-33
Warning light
............................2-44
Starting the Engine
.............................5-3
Steering Wheel
.................................3-25
Horn
..........................................5-42
Storage Compartments
.....................6-52
Center box
.................................6-52
Center console
...........................6-53
Glove box
..................................6-53
Overhead console
......................6-52
Storage pocket
...........................6-52
Storage Pocket
..................................6-52
