keyless MAZDA MODEL 6 2004 Owners Manual (in English)

11-4
Index
Form No. 8R29-EA-02I
H
Hazard Warning Flasher .................. 5-42
Hazardous Driving
............................. 4-7
Headlights
Control
...................................... 5-37
Flashing
.................................... 5-37
High-low beam
......................... 5-37
On reminder
.............................. 5-37
HomeLink Wireless Control
System
.............................................. 5-43
Hood Release
................................... 3-17
Horn
................................................. 5-42
I
Ignition
Keys
............................................ 3-2
Switch
......................................... 5-2
Illuminated Entry System
................ 6-43
Immobilizer System
......................... 3-20
Indicator Lights
................................ 5-27
Cruise Main
.............................. 5-36
Cruise set
.................................. 5-36
Headlight high-beam
................ 5-34
Security
..................................... 5-33
Shift position
............................ 5-34
TCS
........................................... 5-35
TCS OFF
.................................. 5-35
Information Display
......................... 6-46
Ambient temperature display
... 6-48
Audio display
............................ 6-48
Climate control display
............. 6-48
Clock
......................................... 6-47
Display dimmer cancel
function
..................................... 6-48
Information display functions
... 6-46
Instrument Cluster
........................... 5-23
Instrument Cluster Dimmer Cancel
Button
.............................................. 5-26
I
Interior Care ..................................... 8-45
Interior Lights
.................................. 6-43
J
Jump-Starting ................................... 7-14
K
Keyless Entry System ........................ 3-3
Keys
...................................................3-2
L
Label Information ............................ 10-2
Lane-Change Signals
....................... 5-38
Light Bulbs
Replacement
.............................. 8-29
Specifications
............................ 10-5
Lighter
.............................................. 6-49
Lighting Control
............................... 5-37
Lubricant Quality
............................. 10-3
M
Maintenance
Introduction
................................. 8-2
Owner maintenance
precautions
.................................. 8-8
Owner maintenance schedule
..... 8-7
Scheduled
.................................... 8-3
Manual Transaxle Operation
.............. 5-9
Recommendations for shifting
.... 5-9
Map Lights
....................................... 6-45
Meters and Gauges
........................... 5-23
shuseizumi_J56J_8R29_EA_02I.book Page 4 Saturday, September 7, 2002 12:58 PM

3-1
Form No. 8R29-EA-02I
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks
............................................................................ 3-2
Keys ........................................................................................... 3-2
Keyless Entry System ................................................................ 3-3
Door Locks ................................................................................ 3-7
Trunk Lid ................................................................................. 3-10
Trunk Release Slide Lever ....................................................... 3-12
Power Windows ....................................................................... 3-14
Fuel-Filler Lid and Cap ........................................................... 3-16
Hood ........................................................................................ 3-17
Sunroof .................................................................................... 3-18
Security System
........................................................................... 3-20
Immobilizer System ................................................................ 3-20
Theft-Deterrent System ........................................................... 3-22
Steering Wheel and Mirrors
...................................................... 3-25
Steering Wheel ........................................................................ 3-25
Mirrors ..................................................................................... 3-25
shuseizumi_J56J_8R29_EA_02I.book Page 1 Saturday, September 7, 2002 12:58 PM

3-3
Knowing Your Mazda
Doors and Locks
Form No. 8R29-EA-02I
This system locks and unlocks the doors
and opens the trunk.
It can also help you signal for attention in
an emergency.
Press the button slowly and accurately.
Keyless Entry System
To avoid damage to the transmitter, do
not:
•
Drop it.
•
Get it wet.
•
Disassemble it.
•
Expose it to heat or sunlight.
CAUTION
NOTE
•
The keyless entry system is
designed to operate up to about 2.5
m (8 ft) from the center of the
vehicle, but this may vary because
of local conditions.
•
The system doesn’t operate when
the ignition switch is in the ON
position.
•
If the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-5).
•
Additional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be
reset.
shuseizumi_J56J_8R29_EA_02I.book Page 3 Saturday, September 7, 2002 12:58 PM

3-6
Knowing Your Mazda
Doors and Locks
Form No. 8R29-EA-02I
Replacing the transmitter battery
1. Insert a small screwdriver into the slot
and gently pry open the transmitter.
2. Press the portion of the battery
indicated by A and remove the battery.3. Install a new battery (CR2025 or the
equivalent) into the front portion of the
holder with the positive pole ( )
facing up. Press on the B portion of the
battery to set the battery.
4. Align the front and back covers and
snap the transmitter shut.
Slot
Back cover
A
Do not press any buttons when
replacing the battery. The electronic
code could be altered and cause the
keyless entry system to malfunction.
If the keyless entry system fails to
operate, contact an Authorized Mazda
Dealer.
BBack cover
Front
coverFront o
fholder
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 6 Saturday, September 7, 2002 12:58 PM

3-7
Knowing Your Mazda
Doors and Locks
Form No. 8R29-EA-02I

Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
•
Changes or modifications could
cause malfunctions and void the
keyless entry system warranty.
•
Damage to your keyless entry
system may prevent other systems
from operating properly and may
affect the vehicle warranty
coverage.
CAUTION
Door Locks
Unattended Children and Pets:Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
ignition key is dangerous. This could
result in someone being badly injured
or even killed. They could play with
power windows or other controls, or
even make the vehicle move. Don’t
leave the keys in your vehicle with
children.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors when leaving your
vehicle unattended. This discourages
intruders and thieves.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 7 Saturday, September 7, 2002 12:58 PM

3-8
Knowing Your Mazda
Doors and Locks
Form No. 8R29-EA-02I

Locking, Unlocking with Key
The driver’s door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.

Locking, Unlocking with
Transmitter
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to keyless entry system
(page 3-3).

Locking, Unlocking with Door-
Lock Button
To lock any door from the inside, push its
door-lock button.
To unlock, pull it out.
This does not operate the other door lock.To lock any door with the door-lock
button from the outside, push its door-
lock button and close the door.
This does not operate the other door lock.
Unlock
Lock
UnlockLock
NOTE
•
Lockout prevention keeps you from
locking the driver’s door with the
key in the ignition switch at ACC or
LOCK.
If you try to lock the driver’s door
when the key is in the ignition
switch and any door is open, the
door lock immediately unlocks.
•
When locking the doors this way, be
careful not to leave the key inside
the vehicle.
Door-lock button
shuseizumi_J56J_8R29_EA_02I.book Page 8 Saturday, September 7, 2002 12:58 PM

3-11
Knowing Your Mazda
Doors and Locks
Form No. 8R29-EA-02I
Opening the trunk lid with the key
Insert the primary key into the slot and
turn it clockwise.
The secondary key will not operate this
lock (page 3-2).
Opening the trunk lid with the
transmitter
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).
Opening the trunk lid with the remote
release button
Push the release button.Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.

Remote Trunk Lid Release Lock-
Out
As an added security feature, the remote
release may be canceled to prevent
anyone from opening the trunk without
the primary key.
With the switch in the OFF position, the
remote trunk lid release cannot be
operated.
With the switch in the ON position, the
remote trunk lid release can be operated.
Open
OFF position
ON position
shuseizumi_J56J_8R29_EA_02I.book Page 11 Saturday, September 7, 2002 12:58 PM

3-22
Knowing Your Mazda
Security System
Form No. 8R29-EA-02I

Modification and Add-On
Equipment
Mazda cannot guarantee the system’s
operation if the system has been modified
or if any add-on equipment has been
installed to it.The optional theft-deterrent system is
designed to prevent your vehicle or its
contents from being stolen when all the
doors, hood, and trunk lid are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
The system won’t function unless it’s
properly armed. So when you leave the
vehicle, lock all the doors, close all the
windows, take your key, your transmitter.

Operation
What turns it on:
•
Forcing open a door, the hood or the
trunk lid.
•
Opening a door , the hood or the trunk
lid by operating an inside door-lock
button , the hood release handle or the
trunk lid release button.
What it does:
•
The horn sounds intermittently and the
hazard warning lights flash.
•
The alarm continues for about 3
minutes, then stops.
If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
NOTE
•
The keys carry a unique electronic
code. For this reason, and to assure
your safety, replacement keys
require some waiting time to obtain.
They are only available through an
Authorized Mazda Dealer.
•
Always keep a replacement key, in
case one is lost. If a key is lost,
contact an Authorized Mazda
Dealer as soon as possible.
•
If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system.
Starting the vehicle with a key that
has not been reset is not possible.
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
CAUTION
Theft-Deterrent System
NOTE
The theft-deterrent system operates
without the keyless entry system
transmitter, as well.
shuseizumi_J56J_8R29_EA_02I.book Page 22 Saturday, September 7, 2002 12:58 PM

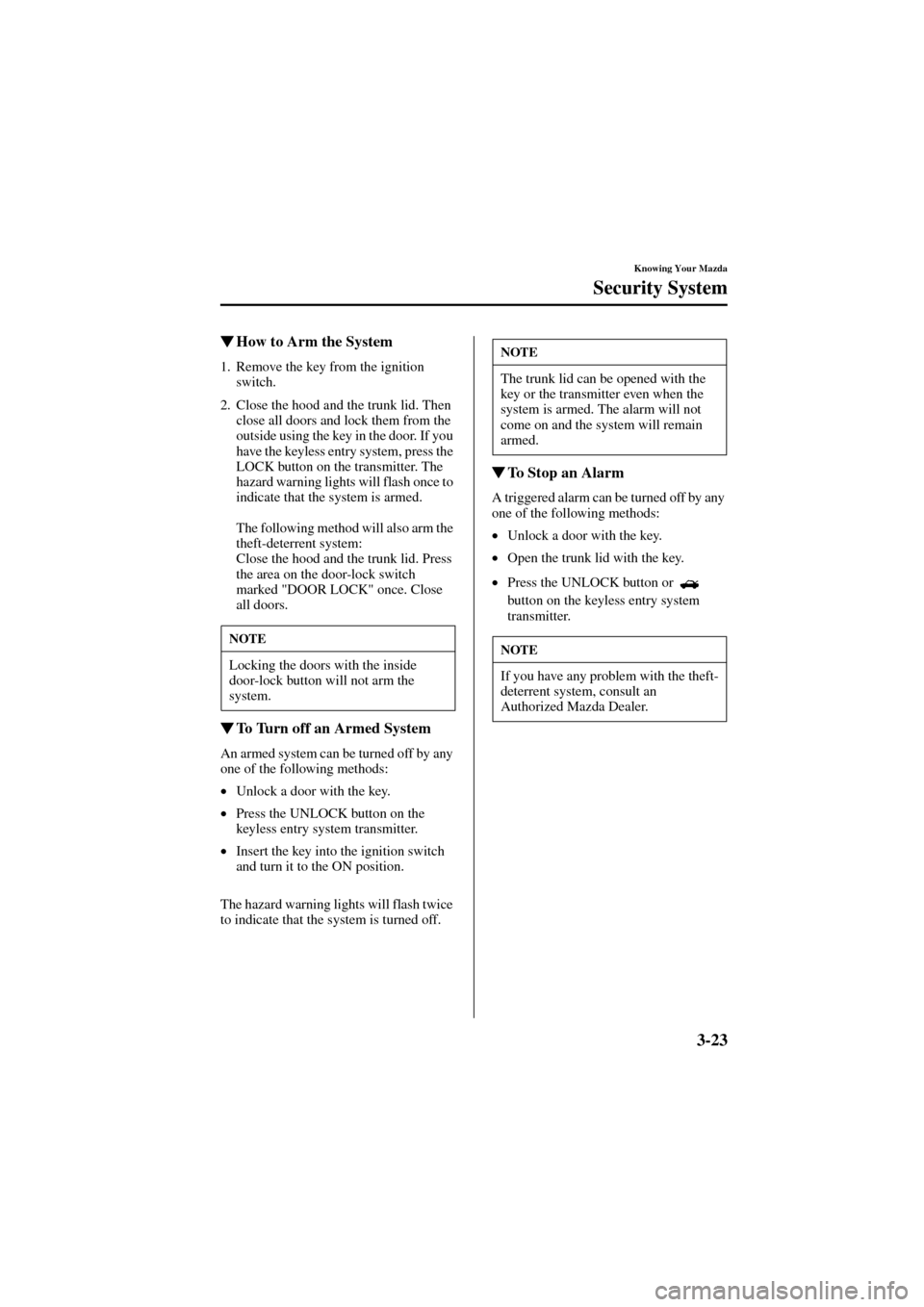

3-23
Knowing Your Mazda
Security System
Form No. 8R29-EA-02I

How to Arm the System
1. Remove the key from the ignition
switch.
2. Close the hood and the trunk lid. Then
close all doors and lock them from the
outside using the key in the door. If you
have the keyless entry system, press the
LOCK button on the transmitter. The
hazard warning lights will flash once to
indicate that the system is armed.
The following method will also arm the
theft-deterrent system:
Close the hood and the trunk lid. Press
the area on the door-lock switch
marked "DOOR LOCK" once. Close
all doors.

To Tu r n o f f a n A r m e d S y s t e m
An armed system can be turned off by any
one of the following methods:
•
Unlock a door with the key.
•
Press the UNLOCK button on the
keyless entry system transmitter.
•
Insert the key into the ignition switch
and turn it to the ON position.
The hazard warning lights will flash twice
to indicate that the system is turned off.

To Stop an Alarm
A triggered alarm can be turned off by any
one of the following methods:
•
Unlock a door with the key.
•
Open the trunk lid with the key.
•
Press the UNLOCK button or
button on the keyless entry system
transmitter.
NOTE
Locking the doors with the inside
door-lock button will not arm the
system.
NOTE
The trunk lid can be opened with the
key or the transmitter even when the
system is armed. The alarm will not
come on and the system will remain
armed.
NOTE
If you have any problem with the theft-
deterrent system, consult an
Authorized Mazda Dealer.
shuseizumi_J56J_8R29_EA_02I.book Page 23 Saturday, September 7, 2002 12:58 PM
