Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Sedan/5-Door
Spare tire
Tire hold-down bolt
(Gold)
Sport Wagon
Spare tire
Jack Lug wrench Lug wrenchJack
With sub-woofer
Tire hold-down bolt
(Gold)With sub-woofer
In Case of an Emergency
Flat Tire
7-3
Mazda6_8T56-EC-04G_Edition2 Page231
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (232,1)
qJack
To remove the jack
(Sedan)
1. Remove the jack container lid.
2. Turn the wing bolt counterclockwise.
(5-Door/Sport Wagon)
1. Turn the knob and remove the cover.
2. Remove the jack container lid.
3. Turn the wing bolt counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
7-4
In Case of an Emergency
Flat Tire
Mazda6_8T56-EC-04G_Edition2 Page232
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (233,1)
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare is lighter and smaller
than a conventional tire, and is designed
only for emergency use and should be
used only for VERY short periods.
Temporary spares should NEVER be used
for long drives or extended periods.
WARNING
Driving with a Temporary Spare Tireon Ice or Snow:
Driving with a spare tire on the front
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the rear axle and move a
regular tire to the front.
CAUTION
To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
lDon't exceed 80 km/h (50 mph).
lAvoid driving over obstacles. Also,
don't drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the
ground clearance is reduced about 43
mm (1.7 in).
lDo not use tire chains on any type of
tire, including the spare tire.
lDon't use your temporary spare on
any other vehicle, it has been
designed only for your Mazda.
lUse only one temporary spare tire on
your vehicle at the same time.
To remove the spare tire
(Sedan)
1. Remove the trunk board.
In Case of an Emergency
Flat Tire
7-5
Mazda6_8T56-EC-04G_Edition2 Page233
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (234,1)
2. Turn the tire wing bolt
counterclockwise.
(5-Door)
1. For vehicles equipped with a sub-
woofer, uncouple the connector.
Connector
NOTE
Extra strength may be required to
uncouple the connector. Be sure to
squeeze the tab firmly.
If uncoupling is very difficult, remove
the wiring from the groove in the trunk
board. Then, pull the driver's side of the
trunk board up to remove the spare tire.2. Remove the trunk board.
3. For vehicles equipped with a sub-
woofer, loosen the wing bolt and
remove the woofer and spare tire.
Lock washerWing bolt
(Black)
Sub-woofer
For vehicles not equipped with a sub-
woofer, loosen the hold-down bolt and
remove the spare tire.
7-6
In Case of an Emergency
Flat Tire
Mazda6_8T56-EC-04G_Edition2 Page234
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (235,1)
(Sport Wagon)
1. Remove trunk board A and open trunk
board B.
Trunk board B
Trunk board A
2. For vehicles equipped with a cargo
sub-compartment, remove the cargo
sub-compartment.
3. For vehicles equipped with a sub-
woofer, loosen the wing bolt and
remove the woofer and spare tire.
Lock washerWing bolt
(Black)
Sub-woofer
For vehicles not equipped with a sub-
woofer, loosen the hold-down bolt and
remove the spare tire.
NOTE
For vehicles equipped with a sub-
woofer, put the sub-woofer on the left
side of the luggage compartment when
removing the spare tire.
To secure the spare tire
Perform the removal procedure in reverse.
In Case of an Emergency
Flat Tire
7-7
Mazda6_8T56-EC-04G_Edition2 Page235
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (236,1)

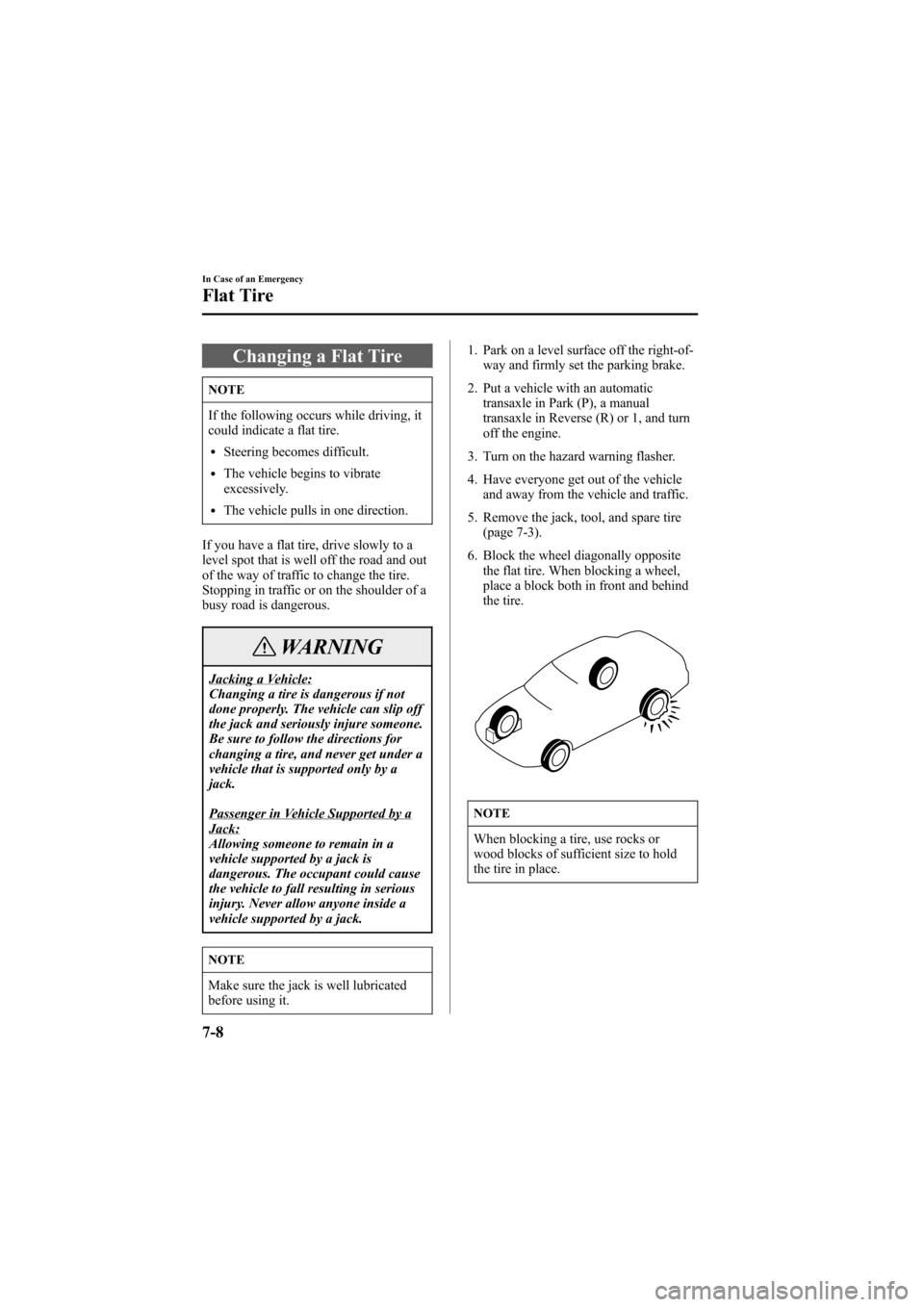

Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
lSteering becomes difficult.
lThe vehicle begins to vibrate
excessively.
lThe vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WARNING
Jacking a Vehicle:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack.
Passenger in Vehicle Supported by aJack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury. Never allow anyone inside a
vehicle supported by a jack.
NOTE
Make sure the jack is well lubricated
before using it.1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic
transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire
(page 7-3).
6. Block the wheel diagonally opposite
the flat tire. When blocking a wheel,
place a block both in front and behind
the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size to hold
the tire in place.
7-8
In Case of an Emergency
Flat Tire
Mazda6_8T56-EC-04G_Edition2 Page236
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (237,1)

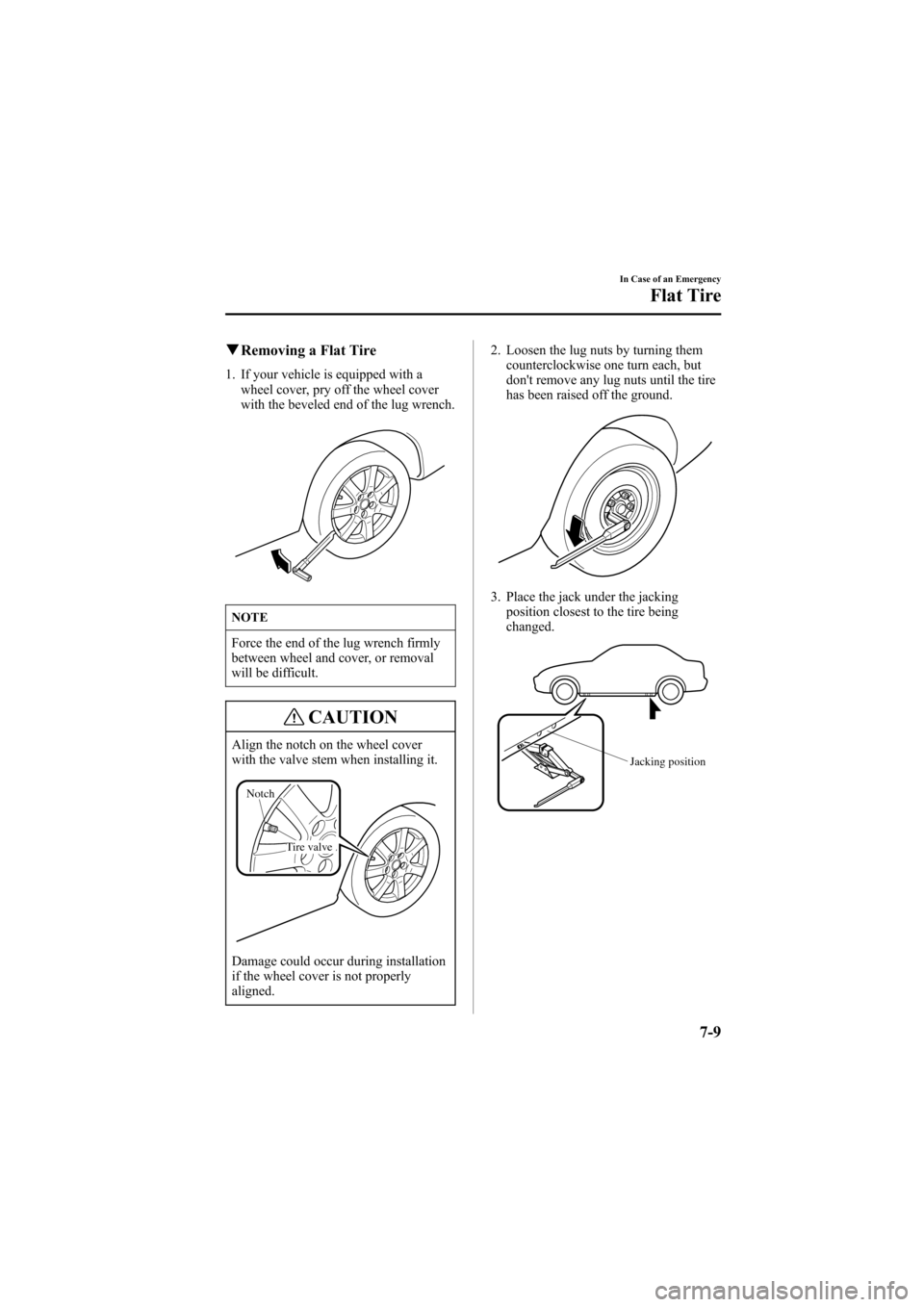

qRemoving a Flat Tire
1. If your vehicle is equipped with a
wheel cover, pry off the wheel cover
with the beveled end of the lug wrench.
NOTE
Force the end of the lug wrench firmly
between wheel and cover, or removal
will be difficult.
CAUTION
Align the notch on the wheel cover
with the valve stem when installing it.
Notch
Tire valve
Damage could occur during installation
if the wheel cover is not properly
aligned.2. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don't remove any lug nuts until the tire
has been raised off the ground.
3. Place the jack under the jacking
position closest to the tire being
changed.
Jacking position
In Case of an Emergency
Flat Tire
7-9
Mazda6_8T56-EC-04G_Edition2 Page237
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (238,1)
WARNING
Incorrect Jacking Position:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Improper Jack:
Using a jack that isn't designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone. Use only the jack
provided with your Mazda.
Placing Objects Under the Jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle. Never place objects
under the jack.
4. Insert the lug wrench into the jack.5. Turn the lug wrench clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
6. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel.
7-10
In Case of an Emergency
Flat Tire
Mazda6_8T56-EC-04G_Edition2 Page238
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (239,1)
qLocking Lug Nutsí
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it
in the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer's
order form, which is with the registration
card.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure
to hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don't use a power
impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.
qMounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Removing Dirt and Grime fromWheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
2. Mount the spare tire.
In Case of an Emergency
Flat Tire
7-11íSome models. Mazda6_8T56-EC-04G_Edition2 Page239
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (240,1)
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Don't Apply Oil or Grease to LugNuts, Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident.
In addition, lug nuts and bolts could
be damaged if tightened more than
necessary. Do not apply oil or grease
to lug nuts and bolts and do not
tighten the lug nuts beyond the
recommended tightening torque.4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you're unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf)88―118
(9―12, 65―87)
WARNING
Loose Lug Nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.
7-12
In Case of an Emergency
Flat Tire
Mazda6_8T56-EC-04G_Edition2 Page240
Monday, November 15 2004 4:35 PM
