cruise control MAZDA MODEL 6 2005 Owners Manual (in English)

Black plate (125,1)
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2
Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-3
Brake System ............................................................................ 5-4
Manual Transaxle Operation ..................................................... 5-8
Automatic Transaxle Controls ................................................ 5-10
Power Steering ........................................................................ 5-16
Cruise Control ......................................................................... 5-16
Traction Control System (TCS)
í........................................... 5-20
Instrument Cluster and Indicators ............................................ 5-23
Meters and Gauges .................................................................. 5-23
Warning/Indicator Lights and Beep Sounds ............................ 5-27
Warning/Indicator Lights ........................................................ 5-27
Beep Sounds ........................................................................... 5-37
Switches and Controls ................................................................ 5-38
Lighting Control ..................................................................... 5-38
Turn and Lane-Change Signals ............................................... 5-39
Fog Lights
í............................................................................ 5-40
Windshield Wipers and Washer .............................................. 5-40
Rear Window Wiper and Washer
í......................................... 5-42
Rear Window Defroster ........................................................... 5-42
Horn ........................................................................................ 5-43
Hazard Warning Flasher .......................................................... 5-44
HomeLink Wireless Control System
í.................................... 5-44
5-1íSome models.
Mazda6_8T56-EC-04G_Edition2 Page125
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (140,1)
Power Steering
Power steering is only operable when the
engine is running. If the engine is off or if
the power steering system is inoperable,
you can still steer, but it requires more
physical effort.
If the steering feels rigid during normal
driving, consult an Authorized Mazda
Dealer.
CAUTION
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running.
This could damage the power steering
system.
Cruise Control
With cruise control, you can set and
automatically maintain any speed of more
than about 30 km/h (19 mph).
WARNING
Cruise Control Use:
Using cruise control in the following
conditions could cause you to lose
control of the vehicle:
lHilly terrainlSteep inclineslHeavy or unsteady trafficlSlippery or winding roadslSimilar restrictions that require
inconsistent speed
Don't use cruise control in these
situations.
qCruise Main Indicator Light
This light comes on when the ON/OFF
switch is pressed and the cruise control
system is activated.
5-16
Driving Your Mazda
Starting and Driving
Mazda6_8T56-EC-04G_Edition2 Page140
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (141,1)
qCruise Set Indicator Light
This light comes on when a cruising speed
is set.
qActivation/Deactivation
To activate the system, press the ON/OFF
switch.
The cruise main indicator light
illuminates.
To deactivate the system, press the switch
again.
The cruise main indicator light turns off.
WARNING
Cruise Main Switch:
Leaving the ON/OFF switch on when
not using the cruise control is
dangerous as it may be switched on
accidentally. This could result in loss
of vehicle control. Keep the ON/OFF
switch off when cruise control is not in
use.
qTo Set Speed
1. Activate the cruise control system.
2. Accelerate to the desired speed, which
must be more than 30 km/h (19 mph).
3. Press the SET/COAST button and
release it at the speed you want.
Release the accelerator at the same
time.
Don't continue to hold in the button. Until
you release it, speed will continue to drop
(unless you continue to accelerate) and
you'll miss the desired speed.
Driving Your Mazda
Starting and Driving
5-17
Mazda6_8T56-EC-04G_Edition2 Page141
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (142,1)

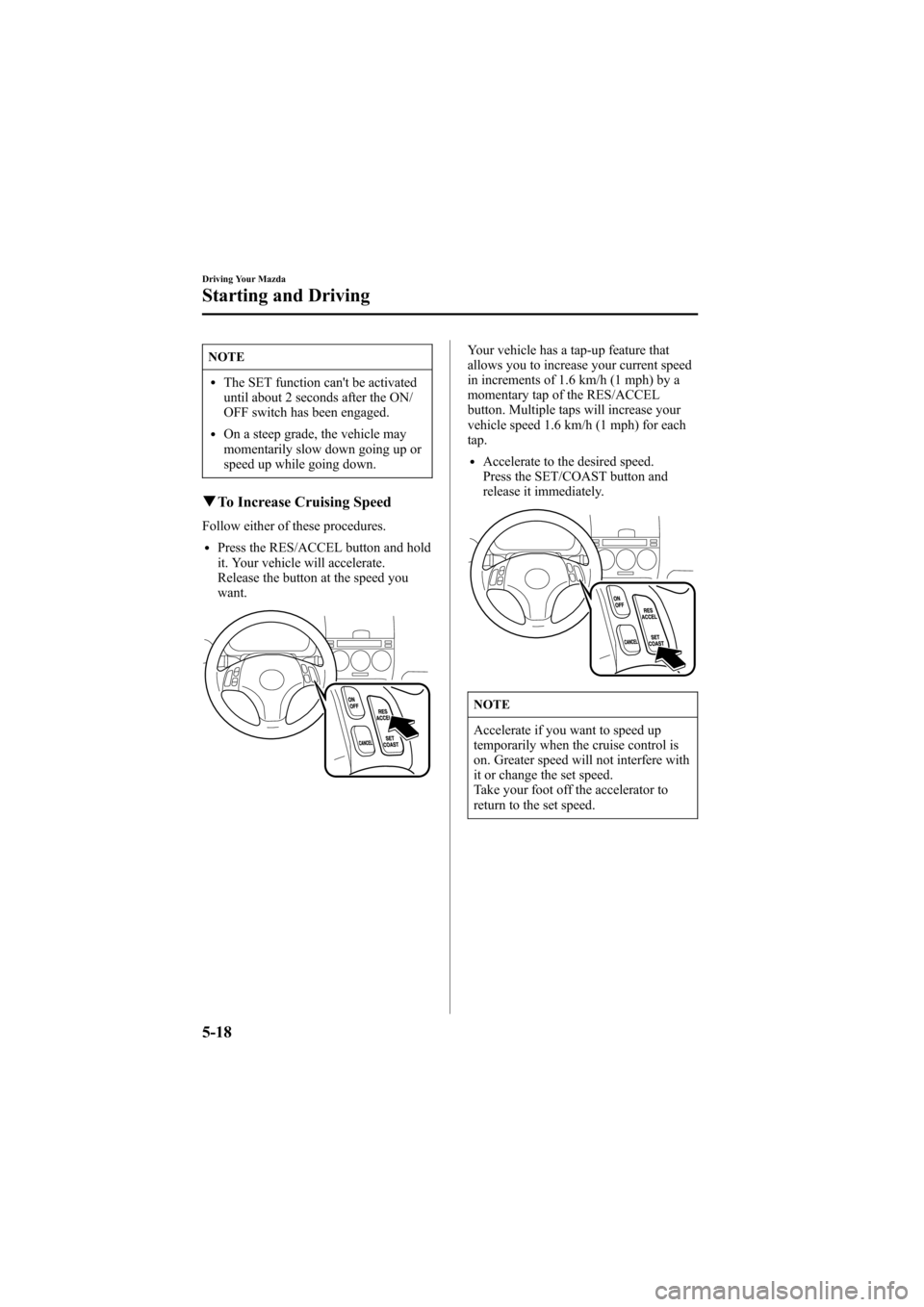

NOTE
lThe SET function can't be activated
until about 2 seconds after the ON/
OFF switch has been engaged.
lOn a steep grade, the vehicle may
momentarily slow down going up or
speed up while going down.
qTo Increase Cruising Speed
Follow either of these procedures.
lPress the RES/ACCEL button and hold
it. Your vehicle will accelerate.
Release the button at the speed you
want.
Your vehicle has a tap-up feature that
allows you to increase your current speed
in increments of 1.6 km/h (1 mph) by a
momentary tap of the RES/ACCEL
button. Multiple taps will increase your
vehicle speed 1.6 km/h (1 mph) for each
tap.
lAccelerate to the desired speed.
Press the SET/COAST button and
release it immediately.
NOTE
Accelerate if you want to speed up
temporarily when the cruise control is
on. Greater speed will not interfere with
it or change the set speed.
Take your foot off the accelerator to
return to the set speed.
5-18
Driving Your Mazda
Starting and Driving
Mazda6_8T56-EC-04G_Edition2 Page142
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (144,1)
lPress the CANCEL button.
The system is off when the ignition is off.
NOTE
Cruise control will cancel at about 15
km/h (9 mph) below the preset speed or
below 30 km/h (19 mph).
Traction Control System
(TCS)í
The Traction Control System (TCS)
enhances traction and safety by
controlling engine torque. When the TCS
detects driving wheel slippage, it lowers
engine torque to prevent loss of traction.
This means that on a slick surface, the
engine adjusts automatically to provide
optimum power to the drive wheels
without causing them to spin and lose
traction.
WARNING
TCS and Unsafe Driving:
The traction control system (TCS)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road contact
because of water on the road surface).
You can still have an accident. So
don't rely on the traction control
system as a substitute for safe driving.
TCS and Snow and Ice:
Driving without proper traction
devices on snow and/or ice-covered
roads is dangerous. The traction
control system (TCS) alone cannot
provide adequate traction and you
could still have an accident. Use snow
tires and drive at reduced speeds when
roads are covered with ice and/or
snow.
5-20
Driving Your Mazda
íSome models.
Starting and Driving
Mazda6_8T56-EC-04G_Edition2 Page144
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (159,1)
Gear position indicator
When the shift lever is in the D or M
position, the numeral for the selected gear
illuminates.
qTCS Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS is
operating, the indicator light flashes.
If the light stays on, the TCS may have a
malfunction and it may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
NOTE
lIn addition to the indicator light
flashing, a slight lugging sound will
come from the engine. This indicates
that the TCS is operating properly.
lOn slippery surfaces, such as fresh
snow, it will be impossible to
achieve high rpm when the TCS is
on.
qTCS OFF Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also comes on when the TCS OFF
switch is pressed and TCS is switched off.
If the light stays on when the TCS is not
switched off, take your vehicle to an
Authorized Mazda Dealer. The TCS may
have a malfunction.
NOTE
After starting the engine when the
coolant temperature is extremely low,
the TCS is automatically turned off. At
this time, the TCS OFF indicator light
will remain on, but this does not
indicate an abnormality. After the
engine has warmed, TCS will resume
normal operation and the indicator light
will go out.
qCruise Main Indicator Light
This light comes on when the ON/OFF
switch is pressed and the cruise control
system is activated.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-35íSome models. Mazda6_8T56-EC-04G_Edition2 Page159
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (334,1)
A
Accessory Socket .............................. 6-55
Add-On Non-Genuine Parts and
Accessories ....................................... 9-13
Air Bag Systems ............................... 2-44
Air Filter ............................................ 8-21
Ambient Temperature Display .......... 6-47
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-7
Warning light ............................... 5-7
Appearance Care ............................... 8-47
Ashtray .............................................. 6-49
Audio System ................................... 6-16
Audio control switch .................. 6-40
Audio set .................................... 6-23
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-42
Automatic Transaxle
Driving tips ................................ 5-15
Fluid ........................................... 8-18
Manual shift mode ..................... 5-12
Shift-lock system ........................ 5-11
Transaxle ranges ........................ 5-10
B
Battery
Emergency starting .................... 7-16
Maintenance ............................... 8-28
Specifications ............................. 10-4
Beep sounds
Ignition key reminder ................. 5-37
Lights-on reminder ..................... 5-37
Seat belt warning beep ............... 5-37
Before Starting the Engine .................. 4-6
After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-21
B
Bottle Holder ..................................... 6-51
Brake/Clutch
Fluid ........................................... 8-16
Brakes
Anti-lock brake system (ABS) ..... 5-7
Foot brake .................................... 5-4
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-33
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-53
Cargo Sub-Compartment .................. 6-54
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-14
Center Box ........................................ 6-52
Center Console .................................. 6-52
Child Restraint
Installing child-restraint
systems ....................................... 2-32
LATCH child-restraint
systems ....................................... 2-39
Child Safety Locks for Rear Doors ..... 3-9
Cigarette Lighter ............................... 6-48
Climate Control System ...................... 6-2
Gas specifications ...................... 10-6
Clock ................................................. 6-47
Courtesy Lights ................................. 6-45
Cruise Control ................................... 5-16
Cup Holder ........................................ 6-50
Customer Assistance ........................... 9-2
11-2
Index
Mazda6_8T56-EC-04G_Edition2 Page334
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (336,1)
H
Headlights
Control ....................................... 5-38
Flashing ...................................... 5-38
High-low beam .......................... 5-38
On reminder ............................... 5-38
HomeLink Wireless Control
System .............................................. 5-44
Hood Release .................................... 3-26
Horn .................................................. 5-43
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-43
Immobilizer System .......................... 3-29
Indicator Lights ................................. 5-27
Cruise Main ................................ 5-35
Cruise set .................................... 5-36
Headlight high-beam .................. 5-34
Security ...................................... 5-34
Shift position .............................. 5-34
TCS ............................................ 5-35
TCS OFF .................................... 5-35
Turn-signal/hazard warning ....... 5-36
Information Display .......................... 6-46
Ambient temperature display ..... 6-47
Audio display ............................. 6-48
Climate control display .............. 6-48
Clock .......................................... 6-47
Information display functions .... 6-46
Instrument Cluster ............................. 5-23
Interior Care ...................................... 8-52
Interior Lights ................................... 6-43
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-39
Trunk Release lever ........................... 3-21
Liftgate .............................................. 3-12
Luggage compartment cover ...... 3-14
Luggage compartment net .......... 3-15
Light Bulbs
Replacement ............................... 8-33
Specifications ............................. 10-6
Lighter ............................................... 6-48
Lighting Control ............................... 5-38
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-45
M
Maintenance
Introduction .................................. 8-2
Owner maintenance precautions ... 8-8
Owner maintenance schedule ....... 8-7
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-8
Recommendations for shifting ..... 5-9
Map Lights ........................................ 6-44
Mirrors
Outside mirrors .......................... 3-34
Rearview mirror ......................... 3-35
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-27
11-4
Index
Mazda6_8T56-EC-04G_Edition2 Page336
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G
