qCruise Set Indicator Light
This light comes on when a cruising speed
is set.
qLight-On Indicator Light (Black-
out meter)
This indicator light comes on when the
exterior lights are on.
qTurn-Signal/Hazard Warning
Indicator Lights
When operating the turn-signal lights, the
left or right turn-signal indicator light
flashes to indicate which turn-signal light
is operating (page 5-39).
When operating the hazard warning
lights, both turn-signal indicator lights
flash (page 5-44).
NOTE
If an indicator light remains illuminated
(does not flash) or if it flashes
abnormally, the turn signal bulb may be
burned out.
5-36
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda6_8T56-EC-04G_Edition2 Page160
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (163,1)
qDaytime Running Lights
(Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turnOFFRight lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Driving Your Mazda
Switches and Controls
5-39
Mazda6_8T56-EC-04G_Edition2 Page163
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (283,1)
Light Bulbs
Luggage compartment
light (Hatchback)
High-mount brake light
(Sedan)
Headlights
(High beam)Headlights
(Low beam) Overhead light/
Map lights
Luggage compartment light Sport Wagon
Taillights
Side-marker lights
License plate lightsCourtesy lights
Front turn signal lightsParking lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights
High-mount brake light Fog lights Sedan/5-Door
Taillights Side-marker lights
License plate lightsCourtesy lights
Front turn signal lightsParking lights
Reverse lights Rear turn signal lights Brake lights/TaillightsTrunk light
Fog lights
High-mount brake light (Hatchback)Headlights
(High beam)(Low beam) HeadlightsMap lights Overhead light/
Maintenance and Care
Owner Maintenance
8-33
Mazda6_8T56-EC-04G_Edition2 Page283
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (284,1)
Your Mazda's headlights and fog lights
have replaceable halogen bulbs.
WARNING
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
qReplacing Exterior Light Bulbs
Replacing the headlight, fog light andparking light bulbs
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Front turn signal lights
1. Turn the socket and bulb assembly
counterclockwise and remove it.2. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.
3. Install the new bulb in the reverse order
of removal.
Side-marker lights
1. Turn the screw counterclockwise and
remove it, then partially peel back the
mudguard.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
8-34
Maintenance and Care
Owner Maintenance
Mazda6_8T56-EC-04G_Edition2 Page284
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (285,1)
3. Disconnect the bulb from the socket.
Brake lights/Taillights, Rear turn signallights
(Sedan)
1. Pull the center section of the plastic
retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.Brake lights/Taillights
Rear turn signal lights
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-35
Mazda6_8T56-EC-04G_Edition2 Page285
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (286,1)
(5-Door)

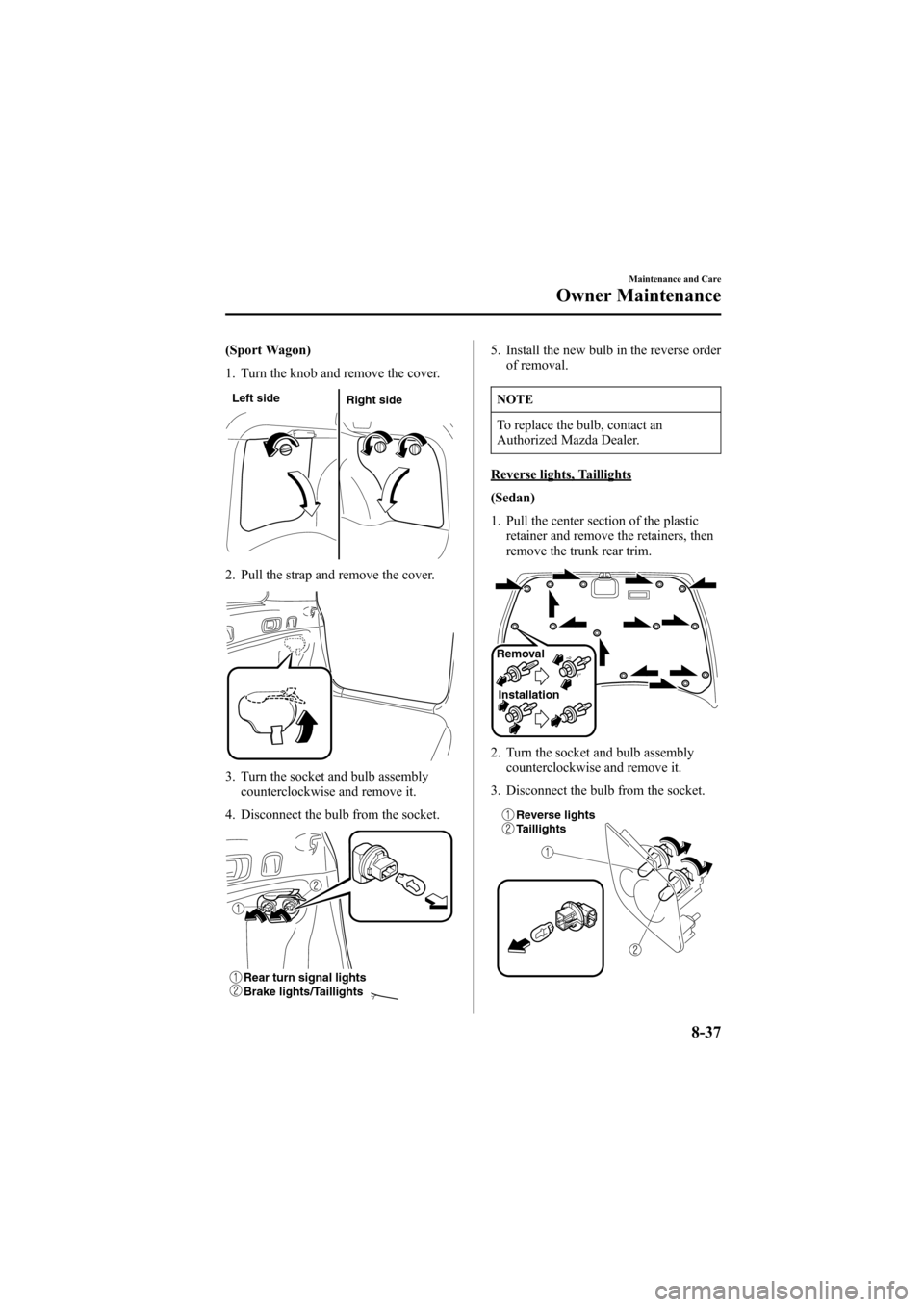

1. Turn the knob and remove the cover.
Left side
Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.Brake lights/Taillights
Rear turn signal lights
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
8-36
Maintenance and Care
Owner Maintenance
Mazda6_8T56-EC-04G_Edition2 Page286
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (287,1)
(Sport Wagon)
1. Turn the knob and remove the cover.
Left side
Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Rear turn signal lights
Brake lights/Taillights
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Reverse lights, Taillights
(Sedan)
1. Pull the center section of the plastic
retainer and remove the retainers, then
remove the trunk rear trim.
Installation Removal
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Reverse lights
Taillights
Maintenance and Care
Owner Maintenance
8-37
Mazda6_8T56-EC-04G_Edition2 Page287
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (330,1)

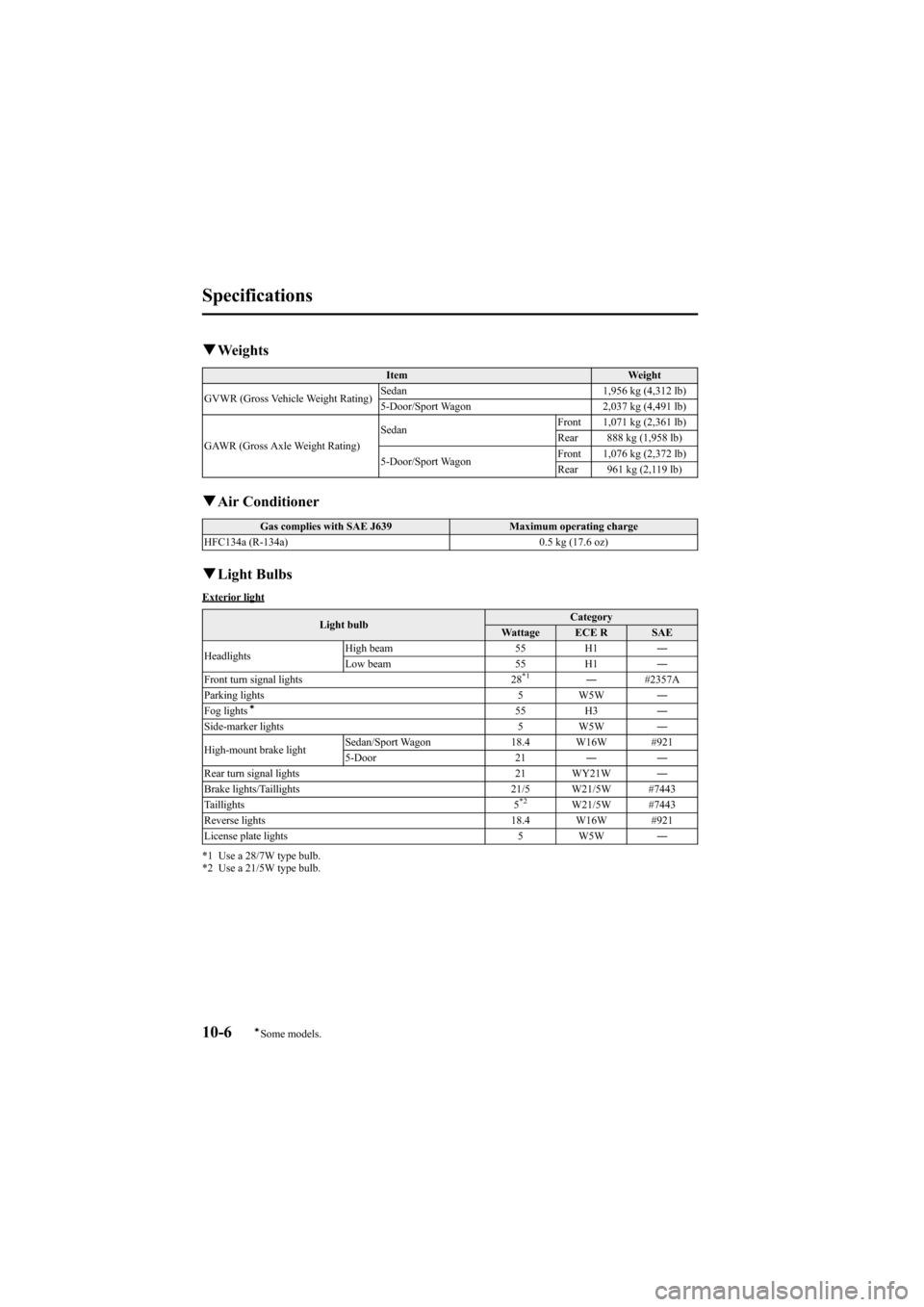

qWeights
Item Weight
GVWR (Gross Vehicle Weight Rating)Sedan 1,956 kg (4,312 lb)
5-Door/Sport Wagon 2,037 kg (4,491 lb)
GAWR (Gross Axle Weight Rating)SedanFront 1,071 kg (2,361 lb)
Rear 888 kg (1,958 lb)
5-Door/Sport WagonFront 1,076 kg (2,372 lb)
Rear 961 kg (2,119 lb)
qAir Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.6 oz)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R SAE
HeadlightsHigh beam 55 H1―
Low beam 55 H1―
Front turn signal lights 28
*1―#2357A
Parking lights 5 W5W―
Fog lights
í55 H3―
Side-marker lights 5 W5W―
High-mount brake lightSedan/Sport Wagon 18.4 W16W #921
5-Door 21――
Rear turn signal lights 21 WY21W―
Brake lights/Taillights 21/5 W21/5W #7443
Taillights 5
*2W21/5W #7443
Reverse lights 18.4 W16W #921
License plate lights 5 W5W―
*1 Use a 28/7W type bulb.
*2 Use a 21/5W type bulb.
10-6íSome models.
