Black plate (86,1)
NOTE
If it is difficult to remove the battery by
pressing with a finger, use a screwdriver
to press out the battery.
5. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and
snap the transmitter shut.
7. Install the key to the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
3-8
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page86
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (87,1)
Door Locks
WARNING
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident. So keep all doors locked
when driving.
WARNING
Vehicles Left Unlocked:
(Except sedan)
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders. Always close
all the windows, lock the doors and
take the key with you when leaving
your vehicle unattended.
(Sedan)
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, or become
trapped by climbing into the trunk,
which could result in death. Also, a
vehicle left unlocked becomes an easy
target for thieves and intruders.
Always close all the windows, lock the
doors and take the key with you when
leaving your vehicle unattended.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Lock Unlock
Knowing Your Mazda
Doors and Locks
3-9
Mazda6_8U66-EA-05F_Edition1 Page87
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (88,1)
qLocking, Unlocking with Transmitter
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Knob
To lock any door from the inside, push the
door-lock knob.
To unlock, pull it out.
This does not operate the other door
locks.
Lock
Unlock
To lock any door with the door-lock knob
from the outside, push the door-lock knob
to the lock position and close the door.
This does not operate the other door
locks.
Door-lock knob
NOTE
lLockout prevention keeps you from
locking the driver's door with the key
in the ignition switch.
If you try to lock the driver's door
when the key is in the ignition switch
and any door is open, the door lock
immediately unlocks.
lWhen locking the doors this way, be
careful not to leave the key inside the
vehicle.
qPower Door Locks
Vehicle lock-out prevention
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the hatch/liftgate will
automatically unlock if they are locked
using the power door locks with any door
open.
Locking, unlocking with key
All doors and the hatch/liftgate lock
automatically when the driver's door is
locked with the key. All doors and the
hatch/liftgate unlock when the driver's
door is unlocked and the key is held in the
unlock position for one second or longer.
Lock Unlock
3-10
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page88
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (89,1)
NOTE
Holding the key in the unlocked
position in the driver's door lock for
about a second unlocks all doors and
the hatch/liftgate. To unlock only the
driver's door, insert the key into the
driver's door lock and turn the key
briefly to the unlock position and then
immediately return it to the center
position.
Locking, unlocking with door-lockswitch
All doors and the hatch/liftgate lock
automatically when LOCK is pushed.
They all unlock when the unmarked part
of the door-lock switch is pushed.
LockUnlock
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
UnlockLock
Knowing Your Mazda
Doors and Locks
3-11
Mazda6_8U66-EA-05F_Edition1 Page89
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (90,1)
Hatch (5-Door)
WARNING
Open Hatch and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death. Because
exhaust gas can get into the cabin
through an open hatch, keep the hatch
closed when driving.
qLocking, Unlocking with Key
The hatch can be locked/unlocked by
inserting the key into the driver's door key
slot, refer to Power Door Locks (page
3-10).
qLocking, Unlocking with Transmitter
The hatch can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Switch
The hatch can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-10).
qOpening and Closing the Hatch
To open the hatch, pull up on the handle.
NOTE
If the vehicle battery is dead or there is
a malfunction in the electrical system
and the hatch cannot be unlocked,
perform the following manual
procedure as an emergency measure to
unlock it:
1. Remove the cap on the interior
surface of the hatch with a flathead
screwdriver.
Cap
3-12
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page90
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (92,1)
Liftgate (Sport Wagon)
WARNING
Open Liftgate and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust gas
to be drawn into the cabin. This gas
contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could cause
occupants to fall out in an accident.
Do not drive with the liftgate open.
qLocking, Unlocking with Key
The liftgate can be locked/unlocked by
inserting the key into the driver's door key
slot, refer to Power Door Locks (page
3-10).
qLocking, Unlocking with Transmitter
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-10).
qOpening and Closing the Liftgate
Opening the liftgate
Pull up on the handle.
NOTE
If the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate cannot be unlocked,
perform the following procedure as an
emergency measure to unlock it:
1. Remove the cap on the interior
surface of the liftgate with a flathead
screwdriver.
Cap
3-14
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page92
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (98,1)
Trunk Lid (Sedan)
WARNING
Open Trunk and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death. Because
exhaust gas can get into the cabin
through an open trunk, keep the trunk
closed when driving.
qOpening and Closing the Trunk Lid
WARNING
Trunk Access and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid, lock the
rear seatbacks and do not allow
children to play inside the vehicle.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don't leave your children
or pets alone in a car at any time.
Don't leave the car, the rear folding
seats or the trunk unlocked. Always
keep the car from being a tempting
place to play by locking rear seats,
doors and the trunk, and keeping the
keys where children can not play with
them.
CAUTION
For vehicles equipped with a rear
spoiler, do not lift the trunk lid by the
spoiler. Lifting up the trunk lid by the
rear spoiler could cause damage to the
rear spoiler and the trunk lid.
3-20
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page98
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (99,1)
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with thetransmitter
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).
Opening the trunk lid with the remoterelease button
Push the release button.
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Knowing Your Mazda
Doors and Locks
3-21
Mazda6_8U66-EA-05F_Edition1 Page99
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (100,1)

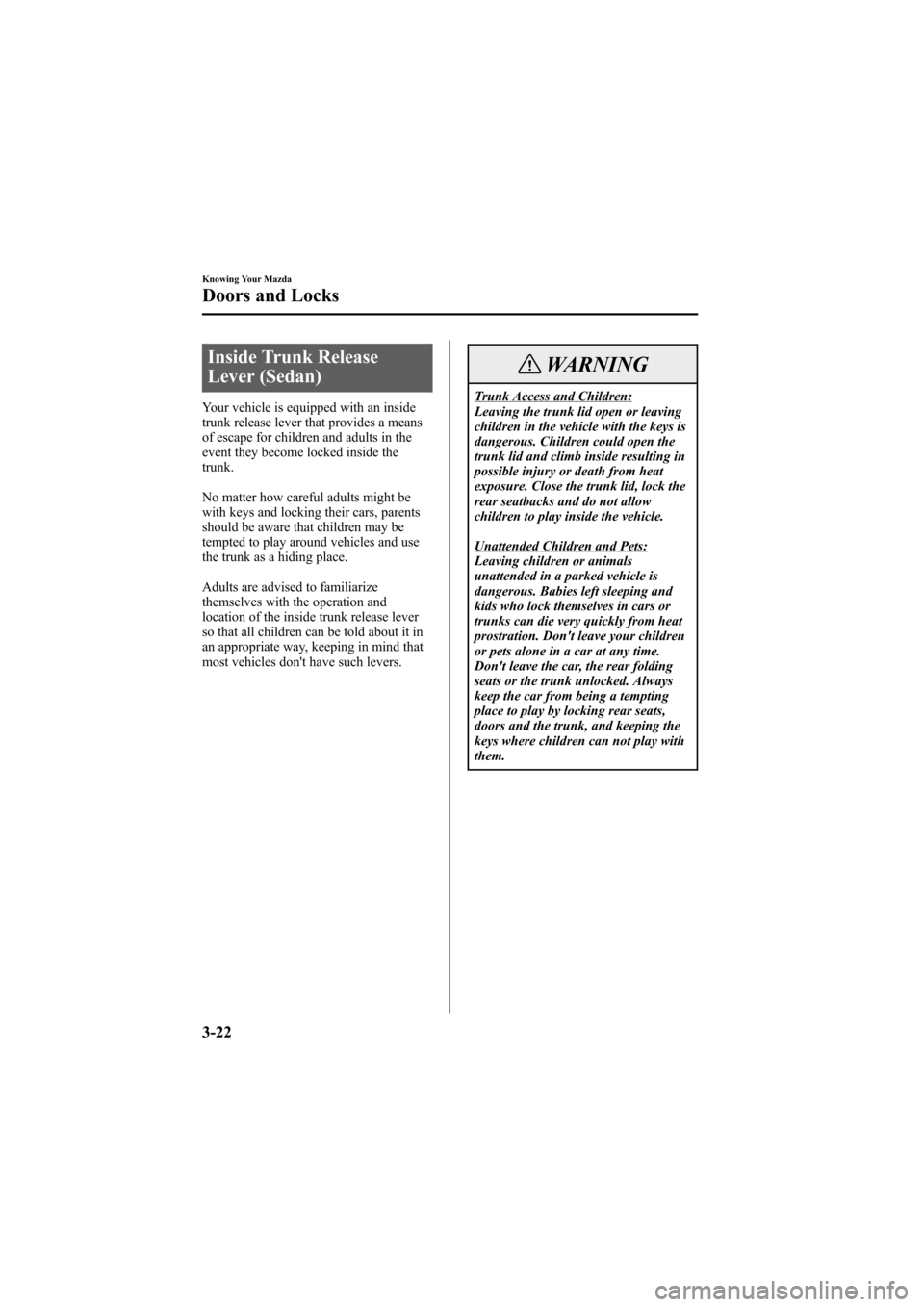

Inside Trunk Release
Lever (Sedan)
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles don't have such levers.
WARNING
Trunk Access and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid, lock the
rear seatbacks and do not allow
children to play inside the vehicle.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don't leave your children
or pets alone in a car at any time.
Don't leave the car, the rear folding
seats or the trunk unlocked. Always
keep the car from being a tempting
place to play by locking rear seats,
doors and the trunk, and keeping the
keys where children can not play with
them.
3-22
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page100
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (106,1)
WARNING
Unintentional Window Operation:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury. Unless a passenger needs to
operate a power window, keep the
power window lock switch in the
locked position.
NOTE
When the power window lock switch is
in the locked position, the light on front
passenger's power window switch turns
off. The light may be difficult to see
depending on the surrounding
brightness.
Opening/Closing the Power
Windows from Outside
Front door windows can be opened or
closed from outside the vehicle after the
doors and the hatch/liftgate/trunk lid are
closed.
WARNING
Closing Power Windows:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
NOTE
The power windows cannot be opened
or closed from outside the vehicle under
the following condition:
lA door or the hatch/liftgate/trunk lid
is opened.
lThe key is inserted into the ignition
switch.
3-28
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page106
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F
