NOTE
lWhen maximum cooling is desired,
set the temperature control dial to the
extreme cold position and set the air
intake selector to the
position,
then set the fan control dial to
position 4.
lIf warmer air is desired at floor level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.
lThe air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
qVentilation
1. Set the mode selector dial to theposition.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
qWindshield Defrosting and Defogging
1. Set the mode selector dial to theposition.
2. Set the temperature control dial to the
desired position.
3. Set the fan control dial to the desired
speed.
WARNING
Do not defog the windshield using theposition with the temperaturecontrol set to the cold position:
Using theposition with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog up.
Your vision will be hampered, which
could lead to a serious accident. Set
the temperature control to the hot or
warm position when using the
position.
NOTE
lFor maximum defrosting, set the
temperature control dial to the
extreme hot position and the fan
control dial to position 4.
lIf warm air is desired at the floor, set
the mode selector dial to the
position.
lIn the,orposition, the air
conditioner is automatically turned
on (however, the indicator light does
not illuminate) and the
position
is automatically selected to defrost
the windshield.
In the
orposition, theposition cannot be changed to theposition.
Interior Comfort
Climate Control System
6-9
Mazda6_8W89-EA-06K_Edition1 Page191
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (192,1)
qDehumidifying (With Air
Conditioner)
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
5. Turn on the air conditioner by pressing
the A/C switch.
NOTE
One of the functions of the air
conditioner is dehumidifying the air
and, to use this function, the
temperature does not have to be set to
cold. Therefore, set the temperature
control dial to the desired position (hot
or cold) and turn on the air conditioner
when you want to dehumidify the cabin
air.
6-10
Interior Comfort
Climate Control System
Mazda6_8W89-EA-06K_Edition1 Page192
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (193,1)
Fully Automatic Type
Climate control information is displayed on the information display.
Fan control dial
Air intake selector
A/C switchTemperature control dial
OFF switch Mode selector switch
Windshield defroster switchAuto switch
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperature
lAmount of airflow
lSelection of airflow mode
lOutside/Recirculated air selection
lAir conditioner operation
NOTE
AUTO switch indicator light
lWhen on, it indicates AUTO
operation, and the system will
function automatically.
lWhen off, it indicates the operation
of other switches such as the mode
selector switch, fan control dial, A/C
switch and windshield defroster
switch. Other functions will continue
to operate automatically.
Interior Comfort
Climate Control System
6-11
Mazda6_8W89-EA-06K_Edition1 Page193
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (194,1)
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Hot Cold
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Fast Slow
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
lWith the airflow mode set toposition and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and a
comparably lower air temperature
will flow through the central, left and
right vents.
lTo set the air vent to, press the
windshield defroster switch.
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
6-12
Interior Comfort
Climate Control System
Mazda6_8W89-EA-06K_Edition1 Page194
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (195,1)
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F). (Indicator
remains on even when system is off.)
Air intake selector
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position (
)
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position (
)
Use this position for normal conditions
and defogging.
WARNING
Do not use theposition in coldor rainy weather:
Using theposition in cold or
rainy weather is dangerous as it will
cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
qOperation of Automatic Air
Conditioning
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
Hot Cold
To turn off the system, press the OFF
switch.
Interior Comfort
Climate Control System
6-13
Mazda6_8W89-EA-06K_Edition1 Page195
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (196,1)
NOTE
lSetting the temperature to maximum
high or low will not provide the
desired temperature at a faster rate.
lWhen selecting heat, the system will
restrict airflow until it has warmed to
prevent cold air from blowing out of
the vents.

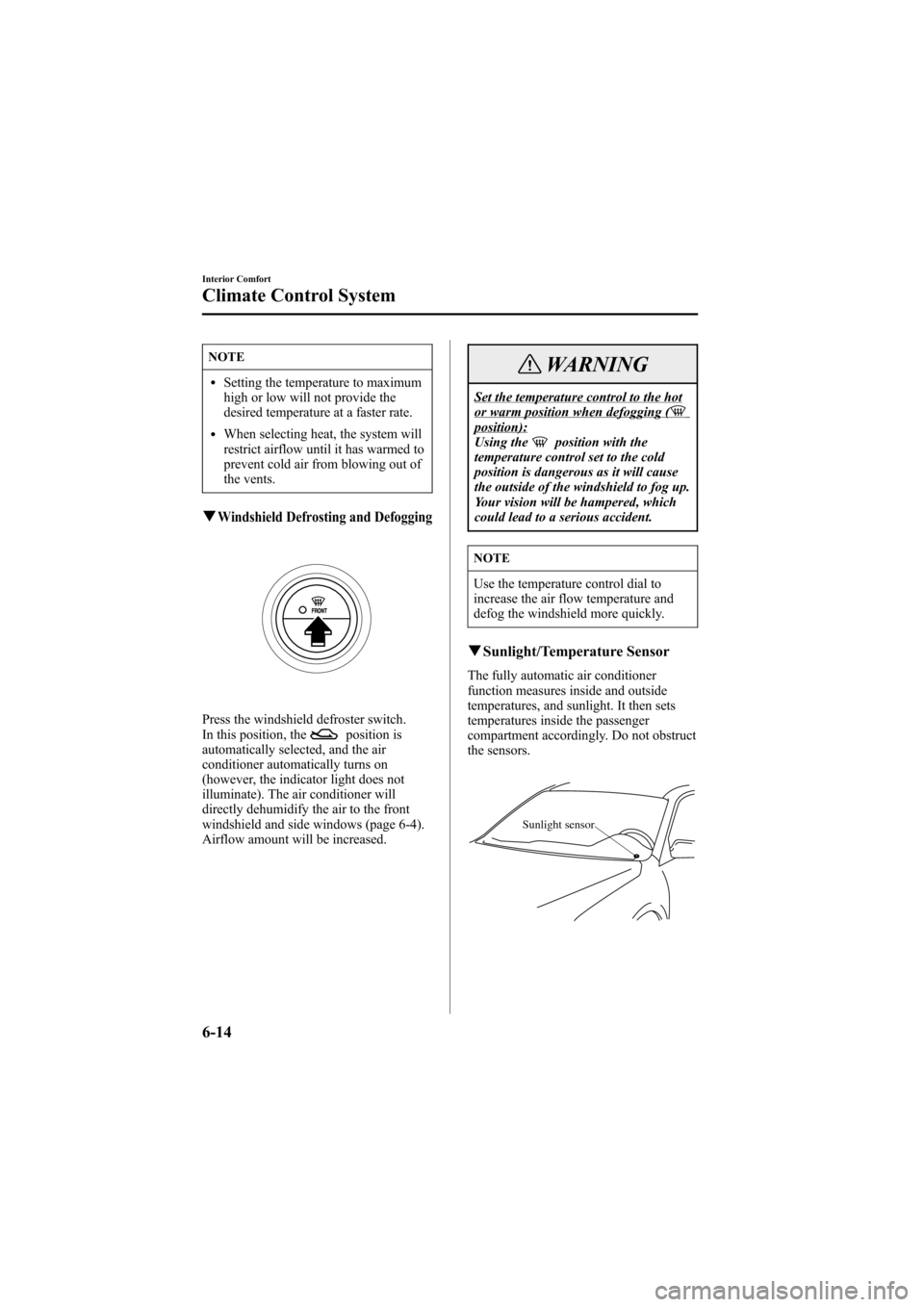

qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, theposition is
automatically selected, and the air
conditioner automatically turns on
(however, the indicator light does not
illuminate). The air conditioner will
directly dehumidify the air to the front
windshield and side windows (page 6-4).
Airflow amount will be increased.
WARNING
Set the temperature control to the hotor warm position when defogging (position):
Using theposition with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog up.
Your vision will be hampered, which
could lead to a serious accident.
NOTE
Use the temperature control dial to
increase the air flow temperature and
defog the windshield more quickly.
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly. Do not obstruct
the sensors.
Sunlight sensor
6-14
Interior Comfort
Climate Control System
Mazda6_8W89-EA-06K_Edition1 Page196
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (197,1)
Interior temperature sensor
Interior Comfort
Climate Control System
6-15
Mazda6_8W89-EA-06K_Edition1 Page197
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (198,1)
Antenna
qDetachable Type
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.
Install Remove
CAUTION
lTo prevent damage to the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
lBe careful around the antenna when
removing snow from the roof.
Otherwise the antenna could be
damaged.
NOTE
When leaving your vehicle unattended,
we recommend that you remove the
antenna and store it inside the vehicle.
Operating Tips for Audio
System
WARNING
Do not adjust the audio controlswitches while driving the vehicle:
Adjusting the audio while driving the
vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a
serious accident. Always adjust the
audio while the vehicle is stopped.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep
your maximum attention on the road
while driving the vehicle.
CAUTION
For the purposes of safe driving, adjust
the audio volume to a level that allows
you to hear sounds outside of the
vehicle.
NOTE
lDo not use the audio for long periods
of time while the engine is off.
Otherwise the battery could go dead.
lIf a cellular phone or CB radio is
used in or near the vehicle, it could
cause noise to occur from the audio
system, however, this does not
indicate that the system has been
damaged.
6-16
Interior Comfort
Audio System
Mazda6_8W89-EA-06K_Edition1 Page198
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (199,1)
qRadio Reception
AM characteristics
AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere. Therefore, they can reach
longer distances than FM signals. Because
of this, two stations may sometimes be
picked up on the same frequency at the
same time.
Station 2 Station 1Ionosphere
FM characteristics
An FM broadcast range is usually about
40―50 km (25―30 miles) from the
source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.
FM Station
40—50km
(25—30 miles)
Signals from an FM transmitter are similar
to beams of light because they do not
bend around corners, but they do reflect.
Unlike AM signals, FM signals cannot
travel beyond the horizon. Therefore, FM
stations cannot be received at the great
distances possible with AM reception.
AM wave FM wave
FM wave
100—200 km (60—120 miles)Ionosphere
Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days
may provide better reception than clear
days.
Multipath noise
Since FM signals can be reflected by
obstructions, it is possible to receive both
the direct signal and the reflected signal at
the same time. This causes a slight delay
in reception and may be heard as a broken
sound or a distortion. This problem may
also be encountered when in close
proximity to the transmitter.
Reflected wave
Direct
Interior Comfort
Audio System
6-17
Mazda6_8W89-EA-06K_Edition1 Page199
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (200,1)
Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.
Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from
the transmitter. Reception in such fringe
areas is characterized by sound breakup.
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz Station 1
88.1 MHz
6-18
Interior Comfort
Audio System
Mazda6_8W89-EA-06K_Edition1 Page200
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K
