Page 261 of 863
& $ 8 7 , 2 1
¾Do not shade the light sensor by adhering a sticker or a label on the windscreen. Otherwise
the light sensor will not operate correctly.
¾The light sensor also works as a rain sensor for the auto-wiper control. Keep hands and
scrapers clear of the windscreen when the wiper lever is in the
position and the
ignition is switched ON as fingers could be pinched or the wipers and wiper blades
damaged when the wipers activate automatically. If you are going to clean the windscreen,
be sure the wipers are turned off completely Š this is particularly important when clearing
ice and snow Š when it is particularly tempting to leave the engine running.
NOTE
xThe headlights and other exterior lights may not turn off immediately even if the
surrounding area becomes well-lit because the light sensor determines that it is night time
if the surrounding area is continuously dark for several minutes such as inside long
tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the lights turn off if the light switch is turned to the
position.
xThe sensitivity of the auto-light control may be changed.
Refer to Vehicle Equipment on page 9-16.
: K H Q ' U L Y L Q J
6 Z L W F K H V D Q G & R Q W U R O V
Page 268 of 863
¾When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
¾If the windscreen above the rain sensor
is touched or wiped with a cloth.
¾If the windscreen is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windscreen when the wiper lever is in the
position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windscreen,
be sure the wipers are turned
off
completely (when it is most likely that the
engine is left running) this is particularly
important when clearing ice and snow.
NOTE
xSwitching the auto-wiper lever from the
to the position while driving
activates the windscreen wipers once,
after which they operate according to
the rainfall amount.
xThe auto-wiper control may not operate
when the rain sensor temperature is
about –10 °C (14 °F) or lower, or about
85 °C (185 °F) or higher.
xIf the windscreen is coated with water
repellent, the rain sensor may not be
able to sense the amount of rainfall
correctly and auto-wiper control may
not operate properly.
xIf dirt or foreign matter (Such as ice or
matter containing salt water) adheres to
the windscreen above the rain sensor or
if the windscreen is iced, it could cause
the wipers to move automatically.
However, if the wipers cannot remove
this ice, dirt or foreign matter, the
auto-wiper control will stop operation.
In this case, set the wiper lever to the
low speed position or high speed
position for manual operation, or
remove the ice, dirt or foreign matter by
hand to restore the auto-wiper
operation.
xIf the auto-wiper lever is left in the
position, the wipers could operate
automatically from the effect of strong
light sources, electromagnetic waves, or
infrared light because the rain sensor
uses an optical sensor. It is
recommended that the auto-wiper lever
be switched to the
position other
than when driving the vehicle under
rainy conditions.
xThe auto-wiper control functions can be
turned off.
Refer to Vehicle Equipment on page 9-
16.
▼ : L Q G V F U H H Q : D V K H U
3 X O O W K H O H Y H U W R Z D U G \ R X D Q G K R O G L W W R
V S U D \ Z D V K H U I O X L G
Washer OFF
: K H Q ' U L Y L Q J
6 Z L W F K H V D Q G & R Q W U R O V
Page 318 of 863
NOTE
xThe BSM will operate when all of the following conditions are met:
xThe ignition is switched ON.
xThe BSM OFF switch is pressed and the BSM OFF switch indicator light is turned off.
xThe vehicle speed is about 30 km/h (19 mph) or faster.
xThe BSM will not operate under the following circumstances.
xThe vehicle speed falls below about 25 km/h (15 mph) even though the BSM OFF switch
indicator light is turned off.
xThe shift lever (manual transaxle)/selector lever (automatic transaxle) is shifted to R
position and the vehicle is reversing.
xThe turning radius is small (making a sharp turn, turning at intersections).
xIn the following cases, the BSM OFF indicator light turns on and operation of the system
is stopped. If the BSM OFF indicator light remains illuminated, have the vehicle inspected
at an Authorised Mazda Repairer as soon as possible.
xSome problem with the system including the BSM warning indicator lights is detected.
xA large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.
xThere is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear). Remove any snow, ice or mud on the rear bumper.
xDriving on snow-covered roads for long periods.
xThe temperature near the radar sensors (rear) becomes extremely hot due to driving for
long periods on slopes during the summer.
xThe battery voltage has decreased.
xUnder the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
xA vehicle is in the detection area at the rear in an adjacent driving lane but it does not
approach. The BSM determines the condition based on radar detection data.
xA vehicle is travelling alongside your vehicle at nearly the same speed for an extended
period of time.
xVehicles approaching in the opposite direction.
xA vehicle in an adjacent driving lane is attempting to pass your vehicle.
xA vehicle is in an adjacent lane on a road with extremely wide driving lanes. The
detection area of the radar sensors (rear) is set at the road width of expressways.
xIn the following case, the flashing of the BSM warning indicator light, and the activation
of the warning sound and the warning screen indicator display may not occur or they may
be delayed.
xA vehicle makes a lane change from a driving lane 2 lanes over to an adjacent lane.
xDriving on steep slopes.
xCrossing the summit of a hill or mountain pass.
: K H Q ' U L Y L Q J
L $ & 7 , 9 6 ( 1 6 (
Page 319 of 863
xWhen there is a difference in the height between your driving lane and the adjacent
lane.
xDirectly after the BSM system becomes operable by changing the setting.
xIf the road width is extremely narrow, vehicles 2 lanes over may be detected. The detection
area of the radar sensors (rear) is set according to the road width of expressways.
xThe BSM warning indicator light may turn on and the vehicle detection screen may be
displayed in the display in reaction to stationary objects (guardrails, tunnels, sidewalls,
and parked vehicles) on the road or the roadside.
Objects such as guardrails and concrete walls
running alongside the vehicle.Places where the width between guardrails or
walls on each side of the vehicle narrows.
The walls at the entrance and exits of tunnels,
turnouts.
xA BSM warning indicator light may flash or the warning beep and the warning screen
indicator display may be activated several times when making a turn at a city
intersection.
xTurn off the BSM while pulling a trailer or while an accessory such as a bicycle carrier is
installed to the rear of the vehicle. Otherwise, the radar’s radio waves will be blocked
causing the system to not operate normally.
xIn the following cases, it may be difficult to view the illumination/flashing of the BSM
warning indicator lights equipped on the door mirrors.
xSnow or ice is adhering to the door mirrors.
xThe front door glass is fogged or covered in snow, frost or dirt.
xThe system switches to the Rear Cross Traffic Alert function when the shift lever (manual
transaxle) or the selector lever (automatic transaxle) is shifted to the reverse (R) position.
Refer to Rear Cross Traffic Alert (RCTA) on page 4-170.
: K H Q ' U L Y L Q J
L $ & 7 , 9 6 ( 1 6 (
Page 338 of 863
xThe temperature near the radar sensors becomes extremely hot due to driving for long
periods on slopes during the summer.
xThe battery voltage has decreased.
xUnder the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
xThe vehicle speed when reversing is about 10 km/h (6 mph) or faster.
xThe radar sensor (rear) detection area is obstructed by a nearby wall or parked vehicle.
(Reverse the vehicle to a position where the radar sensor detection area is no longer
obstructed.)
Your vehicle
xA vehicle is approaching directly from the rear of your vehicle.
Your vehicle
xThe vehicle is parked on a slant.
Your vehicle
x(With Blind Spot Monitoring (BSM) OFF switch)
Directly after pressing the Blind Spot Monitoring (BSM) OFF switch and the system
becomes operable.
x(Without Blind Spot Monitoring (BSM) OFF switch)
Directly after the Blind Spot Monitoring (BSM) system becomes operable using the
personalisation feature.
xRadio wave interference from a radar sensor equipped on a nearby parked vehicle.
xIn the following cases, it may be difficult to view the illumination/flashing of the Blind
Spot Monitoring (BSM) warning indicator lights equipped on the door mirrors.
: K H Q ' U L Y L Q J
L $ & 7 , 9 6 ( 1 6 (
Page 402 of 863
Do not apply a strong force to an ultrasonic sensor (rear):
When washing the vehicle, do not spray highly pressurised water against an ultrasonic sensor
(rear), or rub it strongly. In addition, do not hit the rear bumper forcefully when loading and
unloading cargo Otherwise, the sensors may not detect obstructions correctly which could
cause the SCBS R system to not operate normally, or it could operate unnecessarily.
& $ 8 7 , 2 1
¾When driving
off-road in areas where there is grass or foliage, it is recommended that the
SCBS R system be turned off.
¾Always use tyres of the specified size and the same manufacturer, brand, and tread pattern
on all 4 wheels. In addition, do not use tyres with significantly different wear patterns on the
same vehicle. Otherwise, the SCBS R system may not operate normally.
¾If ice or snow is stuck on the ultrasonic sensors (rear) they may not be able to detect
obstructions correctly depending on the conditions. In such cases, the system may not be
able to perform controls correctly. Always drive carefully and pay attention to the rear of
the vehicle.
NOTE
xThe vehicle posture changes depending on the accelerator pedal, brake pedal and
steering wheel operations, which could make it difficult for the system to recognise an
obstruction, or it could facilitate unnecessary detection. In such cases, the SCBS R may or
may not operate.
xThe SCBS R system will operate under the following conditions.
xThe engine is running.
xThe change lever (manual transaxle vehicle) or the selector lever (automatic transaxle
vehicle) is in the R (reverse) position.
x“Smart City Brake Support Reverse Malfunction” is not displayed in the
multi-information display.
xThe vehicle speed is between about 2 to 8 km/h (2 to 4 mph).
xThe SCBS R is not turned off.
xThe DSC is not malfunctioning.
xThe SCBS R operates using ultrasonic sensors (rear) which detect obstructions at the rear
by emitting ultrasonic waves and then receiving the returning waves reflected off the
obstructions.
xIn the following cases, the ultrasonic sensors (rear) cannot detect obstructions and the
SCBS R may not operate.
xThe height of the obstruction is low such as low walls or trucks with low loading
platforms.
: K H Q ' U L Y L Q J
L $ & 7 , 9 6 ( 1 6 (
Page 403 of 863
xThe height of the obstruction is high such as trucks with high loading platforms.
xThe obstruction is small.
xThe obstruction is thin such as a signpost.
xThe obstruction is positioned away from the centre of the vehicle.
xThe surface of the obstruction is not pointed vertically relative to the vehicle.
xThe obstruction is soft such as a hanging curtain or snow stuck to a vehicle.
xThe obstruction is shaped irregularly.
xThe obstruction is extremely close.
xIn the following cases, the ultrasonic sensors (rear) cannot detect obstructions correctly
and the SCBS R may not operate.
xSomething is stuck on the bumper near an ultrasonic sensor (rear).
xThe steering wheel is turned sharply, or the brake or accelerator pedal is operated.
xThere is another obstruction near one obstruction.
xDuring inclement weather such as rain, fog and snow.
xHigh or low humidity.
xHigh or low temperatures
xStrong winds.
xThe path of travel is not flat.
xHeavy luggage is loaded in the luggage compartment or on the rear seat.
xObjects such as a wireless aerial, fog light, or illuminated number plate is installed
near an ultrasonic sensor (rear).
xThe orientation of an ultrasonic sensor (rear) has deviated for reasons such as a
collision.
xThe vehicle is affected by other sound waves such as the horn, engine noise, ultrasonic
sensor of another vehicle.
xIn the following cases, an ultrasonic sensor (rear) may detect something as a target
obstruction which could cause the SCBS R system to operate.
xDriving on a steep slope.
xWheel blocks.
xHanging curtains, gate poles such as at toll gates and railroad crossing.
xWhen travelling near objects such as foliage, barriers, vehicles, walls, and fences along
a road.
xWhen driving off-road in areas where there is grass and forage.
xWhen passing through low gates, narrow gates, car washing machines, and tunnels.
xA towing bar is installed or a trailer is connected.
x(Manual transaxle)
If the vehicle is stopped by the Smart City Brake Support (SCBS) operation and the clutch
pedal is not depressed, the engine stops.
xWhen the system operates, the user is notified by the multi-information display.
: K H Q ' U L Y L Q J
L $ & 7 , 9 6 ( 1 6 (
Page 406 of 863
xWhen warnings and messages, such
as a dirty windscreen, related to the
Forward Sensing Camera (FSC) are
being displayed in the
multi-information display.
xAlthough the objects which activate the
system are four-wheeled vehicles, the
radar sensor (front) could detect the
following objects, determine them to be
an obstruction, and operate the SBS
system.
xObjects on the road at the entrance to
a curve (including guardrails and
snow banks).
xA vehicle appears in the opposite lane
while cornering or rounding a curve.
xWhen crossing a narrow bridge.
xWhen passing under a low gate or
through a tunnel or narrow gate.
xWhen entering an underground
parking area.
xMetal objects, bumps, or protruding
objects on the road.
xIf you suddenly come close to a
vehicle ahead.
xWhen driving in areas where there is
high grass or forage.
xTwo-wheeled vehicles such as
motorbikes or bicycles.
xPedestrians or non-metallic objects
such as standing trees.
xWhen the system operates, the user is
notified by the multi-information
display.
xThe SBS warning indication (amber)
turns on when the system has a
malfunction.
Refer to Taking Action on page 7-58.
▼ & R O O L V L R Q : D U Q L Q J
, I W K H U H L V W K H S R V V L E L O L W \ R I D F R O O L V L R Q Z L W K
D Y H K L F O H D K H D G W K H E H H S V R X Q G V
F R Q W L Q X R X V O \ D Q G D Z D U Q L Q J L V L Q G L F D W H G L Q
W K H P X O W L L Q I R U P D W L R Q G L V S O D \ D Q G W K H
D F W L Y H G U L Y L Q J G L V S O D \
▼ 6 W R S S L Q J 7 K H 6 P D U W % U D N H 6 X S S R U W
6 % 6 6 \ V W H P 2 S H U D W L R Q
7 K H 6 % 6 V \ V W H P F D Q E H W H P S R U D U L O \
G H D F W L Y D W H G
5 H I H U W R 6 D I H W \ ( T X L S P H Q W R Q S D J H
: K H Q W K H 6 % 6 V \ V W H P L V W X U Q H G R I I W K H
6 % 6 2 ) ) L Q G L F D W R U O L J K W W X U Q V R Q
: K H Q W K H H Q J L Q H L V U H V W D U W H G W K H V \ V W H P
E H F R P H V R S H U D W L R Q D O
NOTE
If the SBS system operation is turned off,
the Smart City Brake Support (SCBS)
system operation is turned off
simultaneously.
: K H Q ' U L Y L Q J
L $ & 7 , 9 6 ( 1 6 (
Page 420 of 863
& $ 8 7 , 2 1
The parking sensor detection range has limitations. For example, obstructions closing in from
the side and objects short in height may not be detected. Always confirm the safety around
the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and warning sound.
Refer to Parking Sensor System on page 4-306.
NOTE
The setting can be changed so that the projected vehicle path lines are not displayed.
Refer to Safety Equipment on page 9-14.
+ R Z W R X V H W K H S U R M H F W H G Y H K L F O H S D W K O L Q H I X Q F W L R Q
(Actual condition) (Screen display)
0 D N H V X U H W K D W W K H U H D U H Q R R E V W U X F W L R Q V Z L W K L Q W K H S U R M H F W H G Y H K L F O H S D W K O L Q H V
' U L Y H W K H Y H K L F O H I R U Z D U G Z K L O H W X U Q L Q J W K H V W H H U L Q J Z K H H O V R W K D W Q R R E V W U X F W L R Q V F R P H
Z L W K L Q W K H S U R M H F W H G Y H K L F O H S D W K O L Q H V
: K H Q ' U L Y L Q J
L $ & 7 , 9 6 ( 1 6 (
Page 422 of 863

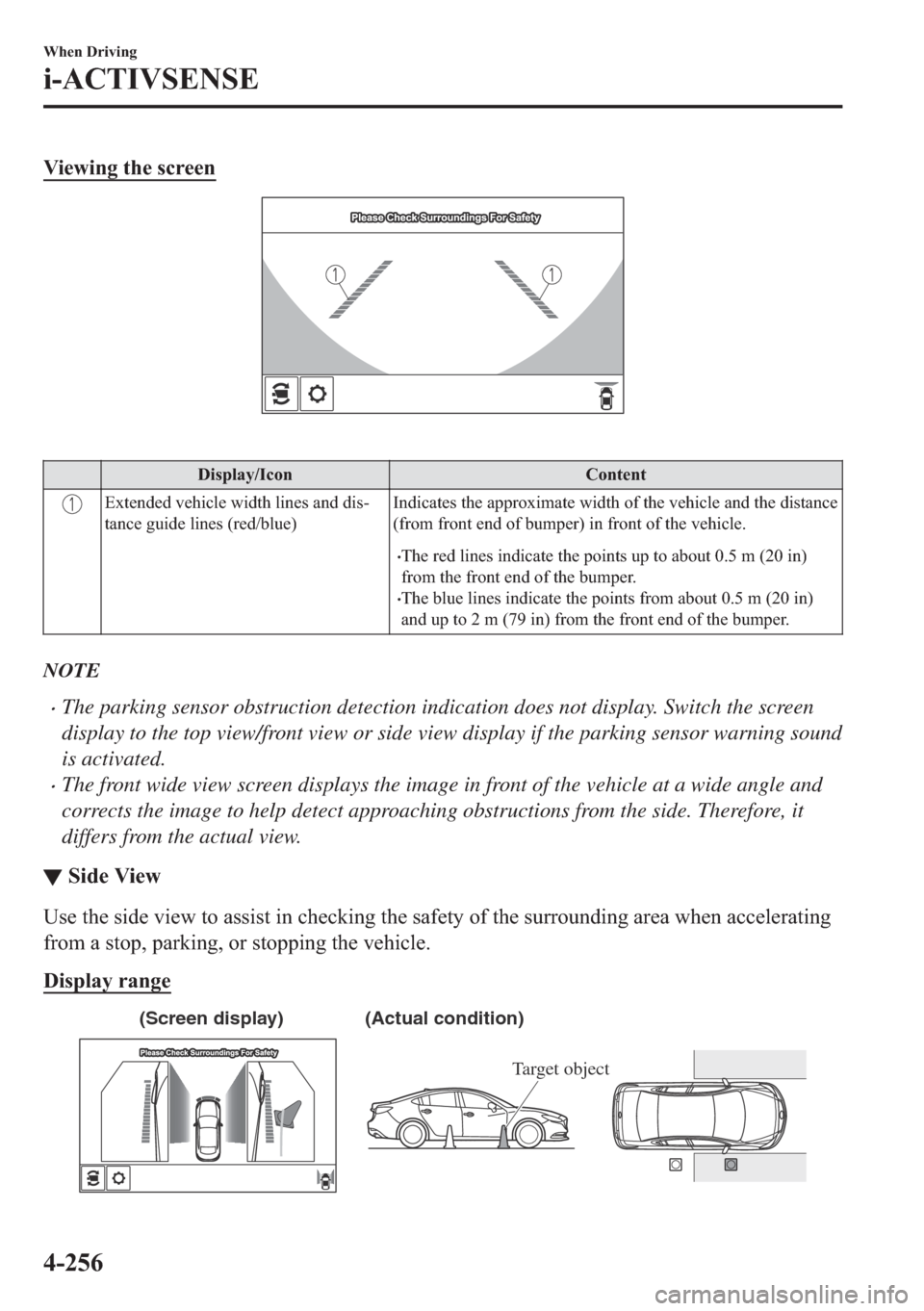

9 L H Z L Q J W K H V F U H H Q
' L V S O D \ , F R Q & R Q W H Q W
( [ W H Q G H G Y H K L F O H Z L G W K O L Q H V D Q G G L V
W D Q F H J X L G H O L Q H V U H G E O X H , Q G L F D W H V W K H D S S U R [ L P D W H Z L G W K R I W K H Y H K L F O H D Q G W K H G L V W D Q F H
I U R P I U R Q W H Q G R I E X P S H U L Q I U R Q W R I W K H Y H K L F O H
x 7 K H U H G O L Q H V L Q G L F D W H W K H S R L Q W V X S W R D E R X W P L Q
I U R P W K H I U R Q W H Q G R I W K H E X P S H U
x 7 K H E O X H O L Q H V L Q G L F D W H W K H S R L Q W V I U R P D E R X W P L Q
D Q G X S W R P L Q I U R P W K H I U R Q W H Q G R I W K H E X P S H U
NOTE
xThe parking sensor obstruction detection indication does not display. Switch the screen
display to the top view/front view or side view display if the parking sensor warning sound
is activated.
xThe front wide view screen displays the image in front of the vehicle at a wide angle and
corrects the image to help detect approaching obstructions from the side. Therefore, it
differs from the actual view.
▼▼ 6 L G H 9 L H Z
8 V H W K H V L G H Y L H Z W R D V V L V W L Q F K H F N L Q J W K H V D I H W \ R I W K H V X U U R X Q G L Q J D U H D Z K H Q D F F H O H U D W L Q J
I U R P D V W R S S D U N L Q J R U V W R S S L Q J W K H Y H K L F O H
' L V S O D \ U D Q J H
(Actual condition) (Screen display)
Target object
: K H Q ' U L Y L Q J
L $ & 7 , 9 6 ( 1 6 (
